Diesel Engine Block Heater

Why Does Your Diesel Engine Need a Block Heater?

Gelled Oil and Sluggish Cranking at Subzero Temperatures

Diesel engine oil thickens dramatically as temperatures fall below freezing. At negative twenty Fahrenheit, 15W-40 conventional oil barely flows, and your starter has to overcome massive internal drag just to rotate the crankshaft. A block heater warms the coolant surrounding the cylinders, which conducts heat into the block casting and keeps the oil in the pan thin enough to pump within seconds of startup. Without that pre-heat, the oil pump starves the upper bearings during the first critical revolutions, accelerating journal wear and shortening engine life.

Glow Plug Overload and Battery Drain in Extreme Cold

Glow plugs are designed to ignite atomized fuel in the pre-combustion chamber, not to heat the entire cylinder block. When you start an ice-cold diesel, the glow plugs stay on longer, drawing heavy amperage from batteries that are already weakened by cold temperatures. The block heater takes the thermal load off the glow plug system by raising cylinder wall temperature above the compression-ignition threshold, so the glow plugs only need a short cycle and the batteries recover faster after each start.

Thermal Shock and Cylinder Wall Cracking

Firing cold fuel into a freezing cylinder creates an extreme temperature gradient between the combustion chamber and the surrounding cast iron. Over thousands of cold starts, that thermal cycling produces micro-cracks in the cylinder wall and warpage in the cylinder head gasket surface. A block heater maintains a baseline temperature above the danger zone, eliminating the shock that causes block cracking and head gasket failure in Cummins, Powerstroke, and Duramax engines.

What Can a Diesel Engine Block Heater Solve?

Restored Cold-Start Reliability for Work Trucks

A replacement block heater cord delivers full voltage to the factory immersion element, restoring the pre-heat cycle that keeps your truck on the job instead of stranded in the parking lot. For Cummins 5.9L and 6.7L owners, the heater element is already installed in the block from the factory; you simply need the correct cord to complete the circuit.

Preventative Maintenance for Fleet and Farm Trucks

Corroded terminals, cracked insulation, and bent pins are the silent killers of block heater performance. You plug in the cord overnight, assume the block is warm, and discover at dawn that the heater never fired because the terminal lost contact inside the element bore. Replacing the cord every few seasons as preventative maintenance is cheap insurance compared to a tow bill or a cracked block.

Complete Heater Kit for Trucks Missing the Factory Element

Some trucks rolled off the assembly line without the block heater element installed, particularly older Cummins 5.9L 12-valve models. Our complete heater kit includes the immersion element, the cord, and the O-ring seal, giving you a full factory-spec installation in under an hour with basic hand tools.

Shop Diesel Engine Block Heater by Engine & Fitment Guide

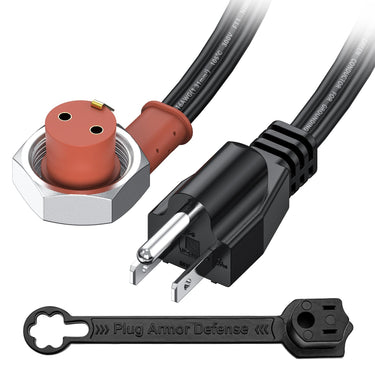

• Engine Block Heater Cord for 6.7L Cummins - Fits 6.7L Cummins in Dodge Ram 2500 / 3500 (2014-2018). Direct-fit replacement cord with OEM terminal pin for the factory immersion heater element. Solves corroded terminal and cracked insulation issues on 6.7L Cummins trucks from the 2013-2018 body style.
• 120V Block Heater Cord (Universal Ford / Dodge) - Fits 7.3L / 6.0L / 6.4L Powerstroke in Ford F250 / F350 (1994-2018) and 5.9L / 6.7L Cummins in Dodge Ram 2500 (1989-2018). Universal 120-volt cord with molded rubber seal and 6-foot reach. Replaces cracked or missing cords on Ford Super Duty and Dodge Ram diesel trucks across multiple engine generations.
• Block Heater Cord for 5.9L / 6.7L Cummins - Fits 5.9L Cummins (1989-2007) and 6.7L Cummins (2007-2021) in Dodge Ram 2500 / 3500. Covers the full production run of both the 12-valve and 24-valve 5.9L, plus every 6.7L generation through 2021. Heavy-gauge copper conductors rated for continuous 1000-watt draw.
• Engine Block Heater Cord for 6.7L Cummins - Fits 6.7L Cummins in Dodge Ram 2500 / 3500 (2014-2018). OEM-spec replacement cord with precision terminal pin for reliable contact with the factory heating element. Ideal for 6.7L Cummins owners who need a direct-fit cord for the 2013-2018 Ram body style.
• Engine Block Heater Kit for 5.9L / 6.7L Cummins - Fits 5.9L Cummins (1998-2007) and 6.7L Cummins (2007-2009) in Ram 2500 / 3500. Complete kit with immersion heater element, replacement cord, and O-ring seal. For Cummins trucks where the original heater element has failed or was never installed from the factory.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

Frequently Asked Questions

What does a diesel engine block heater do?

A diesel engine block heater is an electric immersion heating element installed in the coolant passage of the cylinder block. When plugged into a 120-volt outlet, it warms the engine coolant to approximately 80 to 100 degrees Fahrenheit, which in turn heats the cast iron block, the cylinder walls, and the oil in the pan. This pre-warming keeps the oil thin enough to flow on the first crank, reduces the load on your glow plugs and batteries, and prevents the thermal shock that causes cylinder cracking over thousands of cold starts.

Block heaters are not just for arctic conditions. Anytime the temperature drops below 20 degrees Fahrenheit, the oil in a diesel engine starts to thicken noticeably, and the starter has to work harder to turn the engine over. Plugging in the block heater for two to four hours before startup keeps everything in the optimal temperature range and extends the life of your bearings, rings, and cylinder walls.

At what temperature should I plug in my diesel block heater?

Most diesel truck manufacturers recommend plugging in the block heater when the ambient temperature drops to 0 degrees Fahrenheit or below. That said, many experienced diesel mechanics and fleet operators start plugging in at 20 degrees Fahrenheit, especially on older trucks with higher mileage where the glow plugs, batteries, and compression may not be at peak condition. If your truck cranks slowly on a 15-degree morning, that is a clear sign you should be plugging it in sooner rather than later.

The general rule is simple: if the engine cranks sluggishly or produces excessive white smoke on startup, you should have plugged in the block heater. Cummins installs the heating element in every 5.9L and 6.7L block from the factory, so most Ram diesel owners already have the heater and just need to connect the cord.

Do all diesel trucks come with a block heater?

No, not all diesel trucks come with a block heater from the factory. Cummins installs the immersion heater element in every 5.9L and 6.7L block, but the cord is often a separate item that the dealer or owner must add. On the Ford Powerstroke side, many 6.7L Powerstroke trucks did not include a block heater element from the factory, and some 7.3L and 6.0L models had the element installed but required the cord to be purchased separately. Duramax engines generally include the heater element, but the cord routing varies by model year.

The easiest way to check is to look behind the oil filter on a Cummins, or near the frost plug on the side of the block on a Powerstroke or Duramax. If you see a threaded port or a recessed hole with electrical contacts, the element is there and you just need the cord. If the port is empty, you need the complete heater kit with the element, cord, and seal.

How long should I leave my diesel block heater plugged in?

Two to four hours is plenty for most diesel engines in cold weather. The block heater is typically rated at 1000 watts, which raises the coolant temperature by roughly 40 to 60 degrees Fahrenheit over a three-hour period in freezing ambient conditions. Leaving it plugged in overnight is safe because the thermostat in the heater element or cord regulates the temperature and prevents overheating, but it does use more electricity than necessary.

For shop owners managing multiple trucks, a timer set to turn on the block heater three hours before the morning shift is the most efficient approach. This gives the coolant enough time to reach operating temperature without wasting power through the entire night. In extreme cold below negative twenty, extend the plug-in time to four hours.

How do I know if my block heater cord is bad?

The most common symptom is a truck that cranks slowly or fails to start on a cold morning even though you left it plugged in overnight. Other signs include visible cracks in the outer insulation, a corroded or bent terminal pin, and a cord that feels stiff and brittle instead of flexible. You can test the cord with a multimeter by checking for continuity between the plug blades and the terminal pin. If there is no continuity, the internal conductor is broken and the cord needs to be replaced.

Another quick test is to plug in the cord and feel the block near the heater element after thirty minutes. If the casting is warm to the touch, the heater is working. If it is still ice cold, either the cord or the element has failed. Road salt, engine vibration, and accidental disconnection during oil changes are the three most common causes of cord failure on Cummins and Powerstroke trucks.

Can I install a block heater cord myself?

Yes, installing a replacement block heater cord is a straightforward job that most diesel owners can handle with basic hand tools. On Cummins 5.9L and 6.7L engines, the heater element port is located behind the oil filter. You simply clean the contact surface, insert the terminal pin into the element, and route the cord through the grille or bumper opening. No special tools or electrical knowledge is required. The entire job takes about thirty minutes.

For the complete heater kit on a 5.9L Cummins that does not have the factory element, you will need to drain some coolant, remove the frost plug, install the immersion element with the supplied O-ring seal, and refill the coolant. This is a bigger job but still manageable for anyone who has done basic coolant system work. Always verify that the cord is fully seated in the element before plugging it in, and check for coolant leaks around the element after the first heat cycle.

What is the difference between a block heater cord and a block heater kit?

A block heater cord is just the electrical cable that runs from the 120-volt wall outlet to the heater element inside the engine block. Most Cummins engines already have the heating element pressed into the block from the factory, so you only need the cord to complete the connection. A block heater kit includes the immersion element, the cord, and the sealing O-ring. You need the full kit when the original heater element has burned out, corroded beyond use, or was never installed at the factory.

On older 5.9L 12-valve Cummins trucks, it is common to find that the element was never installed. On those trucks, the complete kit is the correct purchase. On 6.7L Cummins trucks from 2007 onward, the element is almost always present and the cord is all you need. Check behind the oil filter to confirm before ordering.

Will a block heater cord fit my Ford Powerstroke?

The universal 120V block heater cord we carry is compatible with Ford 7.3L Powerstroke from 1994 through 2003, the 6.0L Powerstroke from 2003 through 2010, the 6.4L Powerstroke from 2008 through 2010, and select 6.7L Powerstroke models that have the factory heater element installed. The cord uses a standard terminal pin that matches the Ford frost-plug heater element. If your Powerstroke does not have the factory element, you will need to source the heater element separately or have one installed at a shop.

Many Ford Super Duty owners discover that their truck has the heater element but never received the cord from the factory. The cord routes through the front bumper or lower grille opening on F250 and F350 models. Installation takes about twenty minutes and requires no cutting or splicing.

Does EGR Performance offer free shipping on block heater cords?

Yes, every block heater cord and heater kit we sell ships free within the United States. All orders are fulfilled from our warehouses in California, Texas, Ohio, and New Jersey, so most customers receive their parts within three to five business days. We also offer a 45-day return policy and a one-year warranty on every block heater product, so you can buy with confidence knowing that you are covered if the cord does not fit or fails prematurely.

If you are unsure which cord fits your truck, our 24/7 live support team can help you identify the correct part based on your engine, model year, and VIN. We stock cords for Cummins 5.9L and 6.7L, and universal-fit cords that cover multiple platforms.

Is a diesel engine block heater legal for street-driven trucks?

A block heater cord is a factory-style electrical component with no emissions or legal restrictions. It does not modify the engine calibration, alter the exhaust system, or bypass any emissions equipment. Installing a replacement block heater cord or heater element is no different from replacing a glow plug or a battery cable. It is fully legal for street-driven trucks in all fifty states.

Some of the other products we carry at EGR Performance, such as EGR delete kits and DPF delete pipes, are intended for competition and closed-course off-road use only and may not be legal for street-driven vehicles in certain jurisdictions. Block heater cords and kits are not in that category. They are straightforward replacement parts that restore or add a factory heating function to your diesel engine.
