Duramax Intercooler Pipes

Why Does Your Duramax Need an Intercooler Pipe Upgrade?

Factory Spring Clamps That Lose Tension

GM ships these trucks with spring-band clamps on the charge pipes, and those clamps are the first thing to fail when you turn the tune up. They rely on temper and tension that relaxes after years of heat cycling, so once boost spikes past what they can hold, the boot slides right off the bead and dumps all your charge air. We see it most on the driver side hot side pipe across LLY, LBZ, and LMM trucks from 2004.5 through 2010, but the same spring clamps let go on LB7, LML, and L5P rigs too. The fix is never a tighter spring clamp. It is a constant-tension T-bolt clamp that applies real clamping force against a bead-rolled end.

Plastic and Stretched Rubber Boots That Blow Off

The cold side plumbing on these engines is plastic from the factory on LML and L5P trucks, and rubber boots age and stretch on every generation. Push enough boost through a 2003, 2004, or 2005 LB7 or LLY, or haul a heavy load with a 2008 LMM, and that plastic splits or that stretched boot pushes off the pipe with a sharp pop under the hood. You lose boost instantly, the truck goes rich and rolls black smoke, and you are dead on the side of the road. Upgraded high-temperature silicone boots and aluminum piping eliminate the stretch and the plastic failure in one shot.

Corroded Pipe Ends and Thermal Fatigue

The stock pipe ends corrode where the boot seats, especially on the driver side hot side pipe that sees the full heat of the turbo discharge. Once that bead rusts and pits, no clamp will hold a boot there for long, and the leak cycles right back. Heat fatigue cracks the thinner factory tubes over years of thermal cycling too. Our T304 stainless steel bodies and 6061-T6 billet aluminum ends do not pit, do not stretch, and shrug off the constant heat from the turbo outlet.

What Can a Duramax Intercooler Pipe Solve?

Bead-Rolled Aluminum Ends That Hold the Boot Captive

Every charge pipe ships with a properly rolled bead at each end so the silicone boot has a mechanical ledge to lock behind. CNC-machined 6061-T6 billet aluminum end tanks and beads give the boot a clean, consistent surface to grip, which is the single biggest reason an upgraded pipe will not blow off when the stock one did.

Constant-Tension T-Bolt Clamps and High-Temp Silicone

We pair the piping with high-temperature silicone boots and constant-tension T-bolt clamps instead of the factory spring bands. The T-bolt clamp applies real, repeatable clamping force, and the constant-tension design compensates for thermal expansion, so the joint stays sealed from cold start to full tow. Kits that use a resonator or intake transition seal with high-temperature Viton O-rings.

Mandrel Bends for Flow and Lower EGTs

Smooth mandrel bends replace the crimped and kinked factory routing, so charge air flows with less restriction from the turbo, through the intercooler, and up to the intake manifold. Less restriction means the turbo does not work as hard to build the same boost, intake air temps drop, and EGTs come down, which is exactly what you want when the trailer is heavy and the grade is long. Most owners also report faster spool and a more responsive pedal once the leak is gone.

Shop Duramax Intercooler Pipes by Chevrolet & GMC Engine & Fitment Guide

• 3" Intercooler Pipe Boot Kit - Fits 6.6L Duramax LB7 in the Chevy Silverado 2500 and GMC Sierra 2500 (2001-2004, including the 2003 and 2004 models). Replaces the dried, stretched factory boots with high-temperature silicone boots sized for the stock 3" charge pipe so the air stays sealed.
• Hot Side Intercooler Pipe - Fits 6.6L Duramax LLY, LBZ, and LMM in the Chevy Silverado 2500 and GMC Sierra 2500 (2004.5-2010, including the 2008 LMM). This driver side hot side pipe deletes the failure-prone stock tube with T304 stainless steel and bead-rolled 6061-T6 billet aluminum ends that will not blow off under load.
• Intercooler Pipe Boot Kit - Fits 6.6L Duramax LML in the Chevy Silverado 2500 and GMC Sierra 2500 (2011-2016, including the 2015 model). Restores the passenger side cold side and hot side connections with heavy-duty silicone boots and constant-tension T-bolt clamps to stop the boost leaks common on tuned LML trucks.

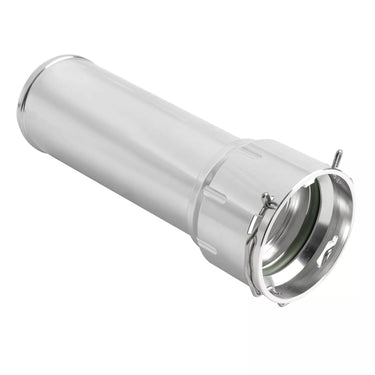

• Turbo Intercooler Resonator Tube - Fits 3.0L Duramax LM2 and LZ0 in the Chevy Silverado, GMC Sierra, Tahoe, Yukon, and Escalade (2020-2025). Replaces the weak factory resonator with an upgraded tube and high-temperature Viton O-rings to stop the whistling and the boost loss.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What is the difference between a Duramax hot side and cold side intercooler pipe?

The hot side pipe, also called the driver side charge pipe, carries hot, pressurized air from the turbocharger to the intercooler.
It is the most failure-prone pipe on LLY, LBZ, and LMM trucks because it sees full turbo heat and pressure.
The cold side pipe, or passenger side pipe, carries cooled, compressed air from the intercooler up to the intake manifold.
Both need to seal perfectly, but the hot side is usually the one that blows a boot first when boost climbs.

Why does my LBZ or LMM Duramax keep blowing the driver side intercooler pipe off?

The factory driver side hot side pipe uses a spring-band clamp and a rubber boot that lose tension after years of heat cycling.
Once your tune pushes boost past what that clamp can hold, the boot slides off the bead and dumps all your charge air with a sharp pop.
That is a chronic issue on 2006-2010 LBZ and LMM trucks and the exact reason the hot side pipe is the first upgrade most owners make.
A bead-rolled aluminum pipe with a constant-tension T-bolt clamp fixes it permanently.

Will upgrading my Duramax intercooler pipes lower EGTs and add power?

It can, and the size of the gain depends on what your stock pipes were doing.
If you had a slow boost leak from stretched boots or corroded ends, fixing it restores turbo response and can drop peak EGTs noticeably while picking up horsepower and torque.
The smoother mandrel bends and larger diameter also reduce restriction so the turbo builds boost more efficiently.
Owners chasing big power stack this with tuning, but even a stock tow rig runs cooler and more responsive once the leaks are gone.

Which Duramax engines and years do these intercooler pipes fit?

This collection covers the 6.6L Duramax family across its main generations, plus the 3.0L baby Duramax.
The boot kit fits LB7 trucks from 2001 through 2004, covering the 2003 and 2004 models owners ask about most.
The hot side pipe fits LLY, LBZ, and LMM trucks from 2004.5 through 2010, including the 2008 LMM.
The LML boot kit covers 2011 through 2016 trucks, and the resonator tube fits the 3.0L LM2 and LZ0 from 2020 through 2025.
Always confirm your engine code and year before ordering, since the charge plumbing changed at each generational break.

What materials are these Duramax intercooler pipes and boots made from?

The charge pipes are mandrel-bent from T304 stainless steel with CNC-machined 6061-T6 billet aluminum bead-rolled ends.
Seams are joined with precision TIG welds and pressure tested before they ship.
The boots are high-temperature silicone, and the clamps are constant-tension T-bolt style instead of factory spring bands.
Kits that use a resonator or intake seal rely on high-temperature Viton O-rings.
This is the material spec that lets the piping hold boost the factory parts cannot.

What are the symptoms of a blown intercooler boot or boost leak on a Duramax?

The classic sign is a sharp pop or bang under the hood followed by a sudden loss of power, especially under load or towing up a grade.
You will usually see black smoke from the tailpipe because the engine goes rich without the boost it expects.
A slower leak shows up as sluggish spool, lower than normal boost, higher EGTs, and sometimes a hissing under the hood under throttle.
If you hear the pop and lose power, shut it down and inspect both the hot side and cold side boots and clamps before driving further.

Do these kits include the clamps and boots, or just the pipe?

The boot kits include the high-temperature silicone boots and the constant-tension T-bolt clamps needed to reseal the factory plumbing.
The hot side pipe kit ships with the upgraded pipe plus the boots and clamps to install it.
We list exactly what is in each kit on the product page, so check the contents for your specific engine code before you pull the trigger.
Do not reuse your old stretched boots or rusted spring clamps on a new pipe, or you will chase the same leak again.

How hard is it to install a Duramax intercooler pipe, and do I need a tune?

Swapping a hot side or cold side pipe is a straightforward driveway job with basic hand tools for most owners.
You remove the old boot and clamp, seat the new pipe and silicone boot, and torque the T-bolt clamp down evenly.
No tuning is required to run upgraded piping, since you are only improving the charge air path, not changing airflow metering.
Tuning simply makes the upgrade more valuable because the pipes will hold the extra boost your tune produces.

Are these Duramax intercooler pipe upgrades street legal, or for off-road use only?

Performance intercooler piping that alters the factory emissions or charge air system is intended for competition and closed-course off-road use only, and may not be legal for registration, inspection, or operation on public roads in some states, such as California.
It is your responsibility to confirm fitment and emissions legality for your specific truck, engine code, and jurisdiction before purchase and installation.
Removing or altering emissions-related components can void certain warranties and violate local law.
Check your local regulations and order only if your use case is compliant.

What are the shipping, warranty, and return policies on Duramax intercooler pipes?

Every order ships fast and free from our U.S. warehouse, so you are not waiting weeks to get your truck back together.
All intercooler pipes and boots are backed by a one-year warranty and are tested under extreme conditions before they leave us.
If the part does not fit or you ordered the wrong engine code, you are covered by our 45-day return policy for a risk-free purchase.
Need help picking the right pipe for your LB7, LLY, LBZ, LMM, LML, or L5P? Our 24/7 live support team can confirm fitment before you buy.
