Frequently Asked Questions About Ford and Chevy Truck Valve Covers
1. What are the symptoms of a bad valve cover on a Ford F150 5.4 Triton?
A failing valve cover on the Ford F150 5.4L Triton causes several noticeable symptoms. The most common is oil leaking from the top of the engine, either pooling on the intake manifold or running down the front or rear of the block where it drips onto the exhaust.
You may also smell burning oil while driving, especially after the engine warms up and the leaking oil contacts the hot exhaust manifold. If the crack or gasket failure is near a spark plug tube, oil fills the spark plug well and causes misfire codes (P0301 through P0310), rough idle, and a noticeable loss of power.
On the 2004 Ford F150 5.4, the original plastic valve cover is a known failure point, particularly around the spark plug tube towers. If you keep getting misfire codes on the same cylinder after replacing the coil pack and spark plug, check the spark plug well for oil. A cracked valve cover is almost certainly the cause.
2. How do I know if my Chevy 5.3 or 5.7 valve cover gasket is leaking?
A leaking valve cover gasket on the Chevy 5.3L or 5.7L engine shows up as wet oil staining on the outside of the cylinder head, visible when you look down between the exhaust manifold runners. You may also notice a burning oil smell after the engine reaches operating temperature, caused by oil dripping onto the exhaust.
On the Chevy Silverado, the passenger side valve cover gasket tends to fail first because it sits closer to the exhaust manifold crossover and sees more heat. Over time, the rubber gasket hardens, shrinks, and loses its ability to maintain a seal against the cylinder head. If you see oil accumulating where the valve cover meets the head, the gasket has failed.
Some updated Chevy 5.3 valve covers include a redesigned PCV valve baffle that reduces oil consumption. If your Silverado is using more oil than normal between changes, a valve cover with the updated design can help reduce oil burning and consumption.
3. Can a bad valve cover cause misfire codes and check engine lights?
Yes, a bad valve cover is one of the most overlooked causes of persistent misfire codes on both Ford and Chevy trucks. When oil leaks through a cracked cover or failed gasket and enters a spark plug well, it shorts out the ignition coil boot against the spark plug. The coil cannot fire the plug, and the PCM registers a misfire code for that cylinder.
On the Ford 5.4 Triton, this typically shows up as a single-cylinder misfire (P0301 through P0310) or a random misfire code (P0300). On the Chevy 5.3 and 6.0 LS, the misfires may be intermittent at first, happening only when the engine is cold and the oil is thickest, then clearing up as the engine warms.
If you have replaced coils and spark plugs but the same misfire code returns within a few hundred miles, pull the coil and check the spark plug well for oil. If you find oil, the valve cover or its spark plug tube seals need to be replaced, not the ignition components.
4. Are aftermarket aluminum valve covers better than OEM plastic on the Ford 4.6 and 5.4?
Aftermarket aluminum valve covers offer a significant durability advantage over the original equipment plastic covers on the Ford 4.6L and 5.4L engines. The OEM plastic covers become brittle after years of heat cycling, developing cracks along the spark plug tube towers and around the bolt holes. Aluminum does not suffer from this heat-related degradation and maintains its structural integrity indefinitely.
The main trade-off is that aluminum valve covers may transmit slightly more valvetrain noise into the cabin compared to the plastic originals, which act as a sound dampener. For most daily-driven trucks, the difference is minimal and far outweighed by the fact that the aluminum cover will never crack and leak.
Our aluminum valve covers for the Ford 4.6 2V and 5.4 3V engines are CNC-machined for exact bolt pattern fitment and include pre-installed spark plug tube seals. They bolt directly to the cylinder head using the factory bolt locations and torque specifications, with no drilling or modifications required.
5. What is the difference between 15-bolt and 8-bolt valve covers on the 2004-2008 Ford F150?
The 2004 Ford F150 5.4 uses a 14-bolt or 15-bolt valve cover, while the 2005 through 2008 Ford F150 5.4 uses an 8-bolt or 9-bolt valve cover. These two designs are not interchangeable because the bolt pattern on the cylinder head changed mid-production for the 2004 model year.
Early 2004 F150 trucks built before approximately November 2004 typically have the 15-bolt valve cover, sometimes called the "early style." Trucks built after that date, and all 2005-2008 F150 models, use the 8-bolt "late style" cover. To confirm which one your truck has, count the number of valve cover bolts on your current cover before ordering.
This distinction is critical for the Ford 5.4L 3-valve engine but does not affect the Ford 4.6L 2-valve, which uses a different valve cover design altogether. Always verify your bolt count or check your build date before purchasing a replacement valve cover for a 2004 F150.
6. Do I need to replace the valve cover gasket when replacing the valve cover?

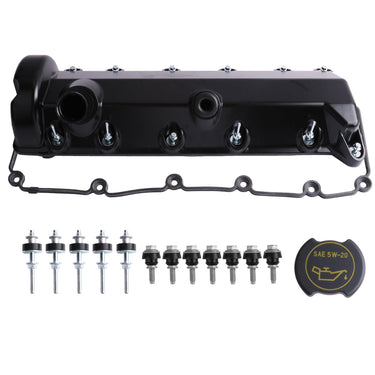

In most cases, yes. When you install a new valve cover, you should always use a fresh gasket rather than reusing the old one. The old gasket has already been compressed and heat-cycled, and it will not seal reliably against the new cover. Many replacement valve covers, including ours, ship with a new gasket set included specifically for this reason.
On the 2005 and 2006 Ford F150 valve cover gasket, the gasket is a molded rubber design that seals the mating surface of the cover to the cylinder head, plus individual O-ring seals for each spark plug tube. All of these seals should be replaced together as a set.
On the Ford 6.0 Powerstroke, the valve cover gasket also seals the wiring harness pass-through for the injectors and glow plugs. If you are replacing the valve cover on a 6.0 Powerstroke, use a gasket that matches the original harness connector configuration to ensure the electrical connections remain sealed against oil intrusion.
7. How much does it cost to replace valve covers on a Ford F150 or Chevy Silverado?
The cost to replace valve covers depends on whether you do the work yourself or have a shop handle it. Doing it yourself reduces the cost to just the price of the parts, since valve cover replacement on most gas engines is a straightforward job that takes two to four hours with basic hand tools.
At an independent repair shop, the total job including parts and labor typically falls in a moderate range. At a dealership, the cost is higher due to higher labor rates and OEM parts pricing. The biggest labor variable is access: on some engines, you need to move brackets, hoses, or the intake manifold to reach the valve cover bolts.
EGR Performance offers a 45-day hassle-free return and a one-year warranty on all valve cover orders, so you can buy with confidence knowing the part is guaranteed to fit and perform.
8. What is the torque spec for Ford 5.4 Triton valve cover bolts?
The torque specification for the Ford 5.4L Triton valve cover bolts is 89 inch-pounds (7.4 foot-pounds). This is a relatively low torque value, and it is critical not to over-tighten the bolts. Over-torquing can crack a plastic valve cover or warp the gasket, creating a leak path instead of sealing it.
Tighten the bolts in a star or crisscross pattern, starting from the center bolts and working outward toward the corners. This ensures even pressure distribution across the gasket and prevents the cover from cocking to one side. Make two passes: first snug all bolts finger-tight in the star pattern, then torque to specification in the same sequence.
On aluminum valve covers, the same torque spec applies, but the aluminum is far more forgiving than plastic if you accidentally exceed the spec by a small amount. Always use a calibrated inch-pound torque wrench for this job, not a standard foot-pound wrench.
9. Will these valve covers fit the 6.0 Powerstroke diesel?
Yes, we carry a dedicated valve cover for the Ford 6.0L Powerstroke diesel engine that fits the 2004-2007 Ford F250, F350, and Excursion. The 6.0 Powerstroke valve cover is different from the gas engine valve covers because it also serves as a sealing surface for the under-valve-cover wiring harness that connects to the fuel injectors and glow plugs.
On the 6.0 Powerstroke, valve cover leaks are common because the gasket hardens over time and allows oil to seep out around the harness connector. If you see oil accumulating on the driver side or passenger side valve cover of your 6.0 Powerstroke, the gasket has failed and should be replaced along with the cover if it shows signs of warping or damage.
The 6.0 Powerstroke valve cover includes the integrated connector seal for the wiring harness pass-through. When installing, make sure the harness connector seats fully into the valve cover and the locking tab clicks into place to prevent future oil leaks at the connection point.
10. What causes valve covers to crack and leak on Ford and Chevy trucks?
The most common cause of valve cover failure on Ford and Chevy trucks is heat cycling. Every time the engine heats up from cold to operating temperature and then cools back down, the valve cover and gasket expand and contract. Over tens of thousands of miles, this repeated thermal cycling causes plastic covers to become brittle and crack, and rubber gaskets to harden and shrink.
On the Ford 5.4 Triton, the plastic valve cover design compounds this problem because the spark plug tubes extend deep into the cylinder head, creating thin walls that crack first. On the Chevy 5.3 and 6.0 LS, the gasket material ages and loses its elasticity, while the PCV valve baffle inside the cover can become clogged with carbon deposits, increasing crankcase pressure and forcing oil past the gasket.
Replacing a cracked or leaking valve cover with an aluminum version eliminates the heat-cycling failure mode entirely. Aluminum maintains its mechanical properties across the full temperature range of a gasoline or diesel engine, providing a permanent solution to a recurring problem.
