Ford F150 Exhaust Manifold Headers

Why Does Your Ford F150 Need an Exhaust Manifold?

A Cracked Cast Iron Factory Log

The factory exhaust manifold on the 1997 to 2003 Ford F150 is a heavy cast iron log, and cast iron is brittle by nature. Years of cold starts, hot towing runs, and hard heat cycling fatigue the casting until it splits at the collector or cracks across a runner. Once the log cracks, exhaust gas escapes before it ever reaches the O2 sensor, the truck runs lean, the throttle falls off, and you smell raw exhaust under the hood and in the cab. A cracked factory manifold cannot be patched or welded back to a reliable seal, so a tubular stainless header is the lasting fix.

Snapped Manifold Bolts and a Warped Flange

The 4.6L 2V and 5.4L 2V Triton modular V8s are famous for one thing above all else: broken exhaust manifold bolts. Ford fitted these engines with thin, shallow bolts that sit an inch from 1,200 degree exhaust ports, and the constant heat cycling work-hardens the fastener until it snaps flush in the head. When the bolt lets go, the cast log warps away from the head, blows the gasket, and the ticking leak begins. Replacing bolts alone rarely holds, because the warped flange no longer sits flat against the head, which is why a header with a thick, machined flange is the real repair.

Restricted Flow and Lost Towing Torque

The inside of the factory log is full of sharp, restrictive corners that choke the exhaust pulse from each cylinder and pile backpressure onto the 5.4L Triton. On a work truck that tows heavy, that restriction shows up as sluggish throttle, soft low-end torque, and fuel economy that slowly drops as the motor pumps against a cork. Mandrel-bent primary tubes open up that flow path, let each exhaust pulse scavenge the next in a tuned collector, and give you back the torque a tow rig actually uses.

What Can an Exhaust Manifold Header Solve?

Tubular Mandrel-Bent Primaries Recover Torque and Flow

One smooth, mandrel-bent primary tube per cylinder, merged into a tuned collector, removes the sharp restrictions inside the cast log and lets the 4.6L and 5.4L Triton exhale freely. Backpressure drops, throttle response sharpens, and the low and mid-range torque a towing F150 lives in comes back, along with a small bump in fuel economy.

A Thick CNC Flange Ends the Ticking Leak

The 1/2 inch CNC-machined flange stays flat under heat, where the thin factory flange warps, and it clamps across a full bolt pattern instead of a few shallow fasteners. That is what stops the blown gasket, the snapped-bolt leak, and the cold-startup ticking for good.

T304 Stainless Resists Rust and the Brittle Crack

T304 stainless steel will not rust through like aluminized steel and will not crack along a casting line like the factory log. The precision TIG welds and mandrel bends hold their shape through years of heat cycling, so the header outlasts the cast manifold it replaces.

A Bolt-On Direct Fit With No Cutting or Welding

These headers mount to the factory port locations with the stock bolt pattern and reuse the original collector or donut gasket, so the swap is a bolt-and-go job with hand tools, not a custom exhaust fab project.

Ships Fast and Backed for Life

Every set ships free from a U.S. warehouse, carries a one-year warranty, and is covered by a 45-day return policy, with 24/7 live tech support to confirm your exact engine and year before you turn a wrench.

Shop Exhaust Manifold Headers by Ford Engine & Fitment Guide

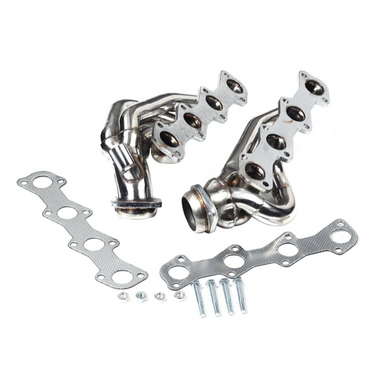

• Exhaust Manifold Header for Ford F150 F250 Expedition V8 5.4 - Fits the 5.4L SOHC 2V Triton V8 in the Ford F-150, F-250 light duty, and Expedition (1997-2003). T304 stainless with mandrel-bent primaries and a 1/2 inch CNC flange that ends the cracked-log ticking and snapped-bolt leak on the 2-valve Triton.
• Exhaust Manifold Headers for 1997-2003 Ford F150 F250 LOBO 4.6L 5.4L V8 - Fits the 4.6L 2V and 5.4L 2V Triton modular V8 in the Ford F-150, F-250, and LOBO (1997-2003). Bolt-on tubular header set for both banks that restores exhaust flow, recovers towing torque, and seals where the warped factory log no longer can.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

Ford F150 Exhaust Manifold Headers FAQs

What does the exhaust manifold do on a Ford F150, and how is it different from an exhaust header?

The exhaust manifold bolts to the cylinder heads and collects the spent gases from each exhaust port, then funnels them into a single outlet that feeds the rest of the exhaust system.

On a 1997 to 2003 Ford F150, the factory piece is a heavy cast iron log that is cheap to build but chokes flow with sharp, restrictive internal corners.

A header is a tubular replacement built from mandrel-bent primary tubes, one per cylinder, that merge in a tuned collector so the exhaust pulses scavenge each other instead of colliding.

The result is less backpressure, stronger low-end torque for towing, and a part that will not crack and leak the way the cast log does.

What are the warning signs of a cracked exhaust manifold on a 4.6L or 5.4L Triton F150?

The first thing a shop hears is a sharp ticking or tapping at cold startup that smooths out as the cast iron heats and expands.

That tick is exhaust gas blowing past a cracked manifold or a blown gasket from a broken manifold bolt, and on the 4.6L and 5.4L Triton the bolts are the weak link.

You will also smell raw exhaust in the cab, see a rough idle or a lean code from the upstream O2 sensor reading false air, and lose throttle response under load.

Left alone, the leak cooks the surrounding wires and the spark plug boots and turns a simple bolt job into a full manifold replacement.

Why do Ford 4.6L and 5.4L Triton exhaust manifold bolts keep breaking?

The modular 4.6L and 5.4L Triton V8s use thin, shallow manifold bolts that sit inches from 1,200 degree exhaust ports, so they heat-cycle into brittle failure over years of use.

Ford ran those bolts against a thin clamping area, and the constant expansion and contraction work-hardens the fastener until it snaps flush with the head.

When a bolt lets go the manifold warps away from the head, blows the gasket, and the ticking leak begins.

That is exactly why a tubular stainless header with a thick, flat CNC flange and a full bolt pattern is the lasting fix, because it spreads the clamp load and seals where the warped log no longer can.

Do these exhaust manifold headers fit both the driver and passenger side of a 1997-2003 F150?

The headers in this collection are engineered as a direct bolt-on for the 1997 to 2003 Ford F150, F250 light duty, Expedition, and LOBO running the 4.6L 2V and 5.4L 2V Triton modular V8.

They mount to the factory port locations with the original bolt pattern and the stock collector or donut gasket, so there is no cutting and no welding.

Both banks, driver and passenger side, are covered, which is the part most owners need because the passenger side bolt nearest the frame is the one that always snaps.

Always confirm your engine, year, and cab against the listing before you order, because the 2004 and newer 3-valve Triton and the 5.4 3V exhaust manifold use a different casting and will not interchange.

Will exhaust manifold headers add horsepower and torque to my 5.4L Triton for towing?

Yes. The mandrel-bent primary tubes and tuned collector remove the restriction of the factory cast log, so the 5.4L 2V Triton exhales easier and picks up usable torque right where a tow rig needs it, in the low and mid rpm band.

On a basically stock truck you will feel sharper throttle and a stronger pull on the grade more than you will see a big dyno number, and fuel economy often inches up because the engine is no longer pumping against a cork.

The headers pair well with a freer exhaust and a tune, but they are a real improvement even bolted on alone.

For a work truck that tows heavy, the torque recovery and the end of the cracked-manifold ticking are worth more than any peak horsepower claim.

Are stainless steel headers better than the factory cast iron exhaust manifold?

For a 1997 to 2003 F150 that has already cracked or bolt-leaked, a T304 stainless tubular header is the superior part.

Cast iron is durable but it is thick, heavy, and brittle, and the factory log design cracks at the collector and warps at the flange after a decade of heat cycling.

T304 stainless is rust resistant, lighter, and the mandrel-bent tube flows far better than any cast passage, while the thick CNC-machined flange stays flat and seals tight.

The one trade-off is sound and surface color; stainless headers will take on a heat tint and ring a touch louder than the dead cast log, which most owners consider part of the upgrade.

How hard is it to replace the exhaust manifold on a 1997-2003 Ford F150?

It is a straightforward bolt-on job for a home mechanic with hand tools, a floor jack, and patience, so plan a weekend for both banks.

The hard part is not the new header, it is getting the old one off; soak the factory bolts with penetrant for a day or two, because the Triton bolts snap flush in the head and a snapped stud means an easy-out or a drill.

The passenger side is tighter against the frame and the starter, so pull the wheel and the inner fender liner for access, and have a new gasket set on hand before you start.

Bolt the new stainless header to the clean flange, torque in sequence, and reuse the factory collector connection, no welding required.

How long do exhaust manifolds last on a Ford F150 before they crack or fail?

A factory cast iron manifold on a 4.6L or 5.4L Triton commonly makes it 100,000 to 150,000 miles before the bolts start snapping and the log cracks, and many fail sooner on trucks that tow heavy or idle long hours.

The killer is heat cycling and corrosion, not mileage alone; the thin bolts work-harden, the flange warps, and the cast iron eventually splits at the collector.

A quality T304 stainless header with a thick flange and a full bolt pattern outlasts the factory log because it resists rust, stays flat, and does not run the same brittle failure mode.

If your truck is over ten years old or past 100k and is ticking at startup, the manifold is already telling you it is done.

Do I need a tune after installing exhaust manifold headers, and do you carry manifolds for the 3.5 EcoBoost or newer trucks?

A shorty or mid-length header that bolts to the stock collector location does not require a tune on the 4.6L and 5.4L Triton, though a tune will let you take full advantage of the freer flow.

Full long-tube headers that relocate or delete the primary catalytic converter do require a tune and are for competition and closed-course off-road use only, not street driving.

The headers in this collection are built for the 1997 to 2003 modular 2-valve V8; we do not list a manifold here for the 3.5L EcoBoost, the 5.0L Coyote, or the 2004 and newer 3-valve trucks.

If you need a manifold for a later generation, confirm fitment with our tech line before you order so you get the right part the first time.

Are these exhaust manifold upgrades legal for street use, and what is your fitment, shipping, warranty, and return policy?

These tubular headers that bolt to the factory collector location are a street-legal replacement for the cracked factory manifold on the 1997 to 2003 Ford F150, while any full long-tube header, catless race pipe, or setup that deletes or relocates the catalytic converter is for competition and closed-course off-road use only.

Because fitment is exact to engine, valve count, year, and cab, always confirm your truck's specs against the product listing before you order to avoid a wrong part, especially between the 2-valve and the 3-valve Triton.

Every order ships free from our U.S. warehouse, is backed by a one-year warranty, and comes with a 45-day return policy so you can buy with confidence.

Call our 24/7 live tech support, and we will match your exact Ford to the right manifold header the first time.
