Twin Turbocharger Kit for 3.5L EcoBoost Ford F150 (2013-2016)

x-tinymce/html

Product Overview

• Product Type:Twin turbocharger kit for 3.5L EcoBoost engines.
• Purpose:Replaces left and right side turbocharger units.
• Failure Help:Addresses power loss, smoke, leaks, and oil use.
• System Type:Water and oil cooled turbocharger assembly.

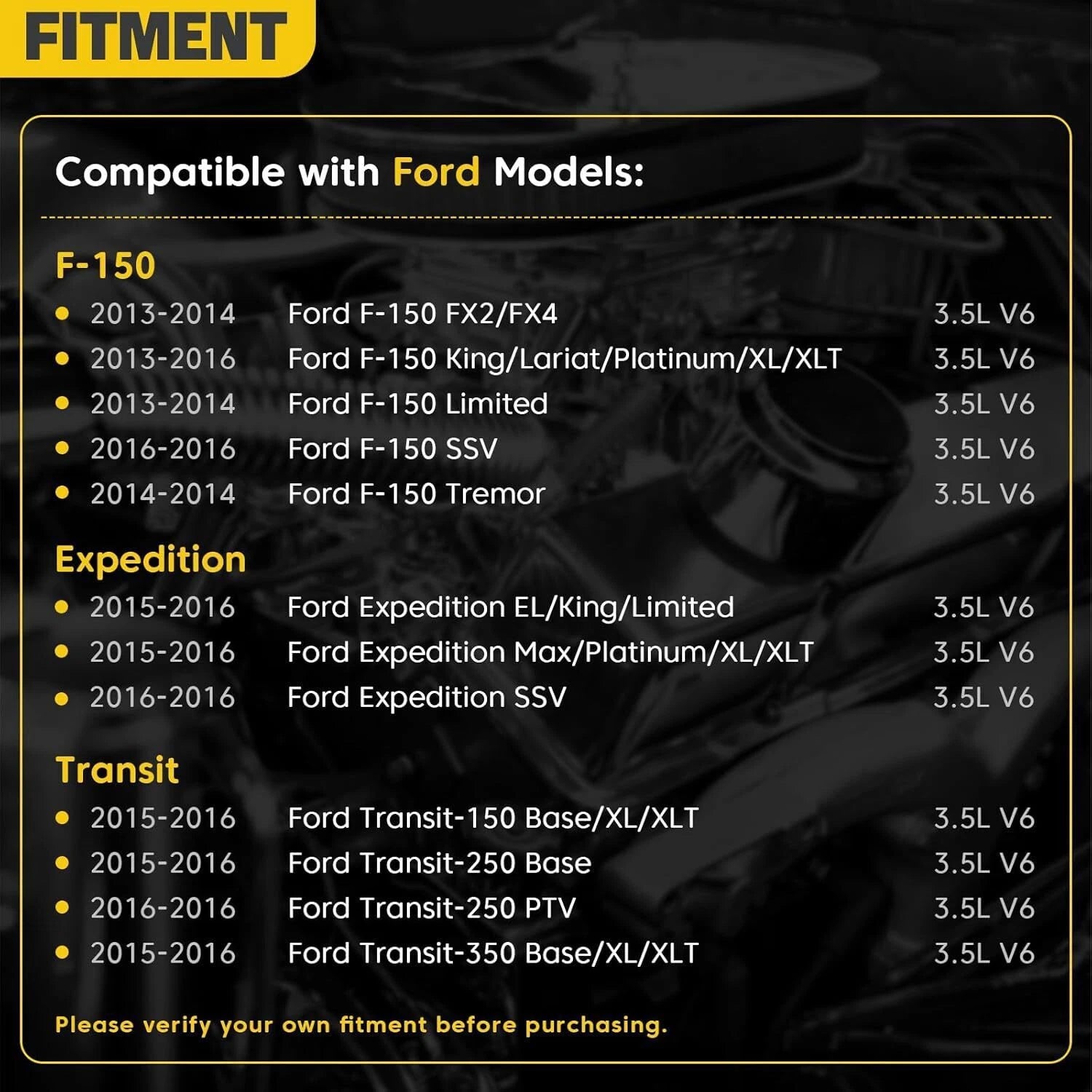

• Fitment:Vehicle specific, not universal fitment.

Ideal For

• Power Loss:Solve weak boost from a failed turbocharger.
• Oil Smoke:Solve smoking linked to turbo oil seal wear.
• Oil Consumption:Solve increased oil use from turbo failure.
• Boost Leak Repair:Solve leaking turbocharger housing issues.
• Complete Side Service:Solve left and right turbo replacement needs.

Technical Specifications

• Brand:EGR Performance.
• Condition:100 percent brand new.
• Type:Turbocharger.
• Feature:Twin turbocharger kit.
• Turbo Model:K03.
• Engine:for Ford EcoBoost.
• Cooling Type:Water and oil cooling.
• Position:Front, left, and right.
• Bearing Type:Floating bearing.
• Actuator Type:Vacuum actuator.
• Finish:Matte silver.
• Universal Fitment:No.
• Vintage Part:No.
• Warranty:1 Year Limited Warranty against manufacturing defects.

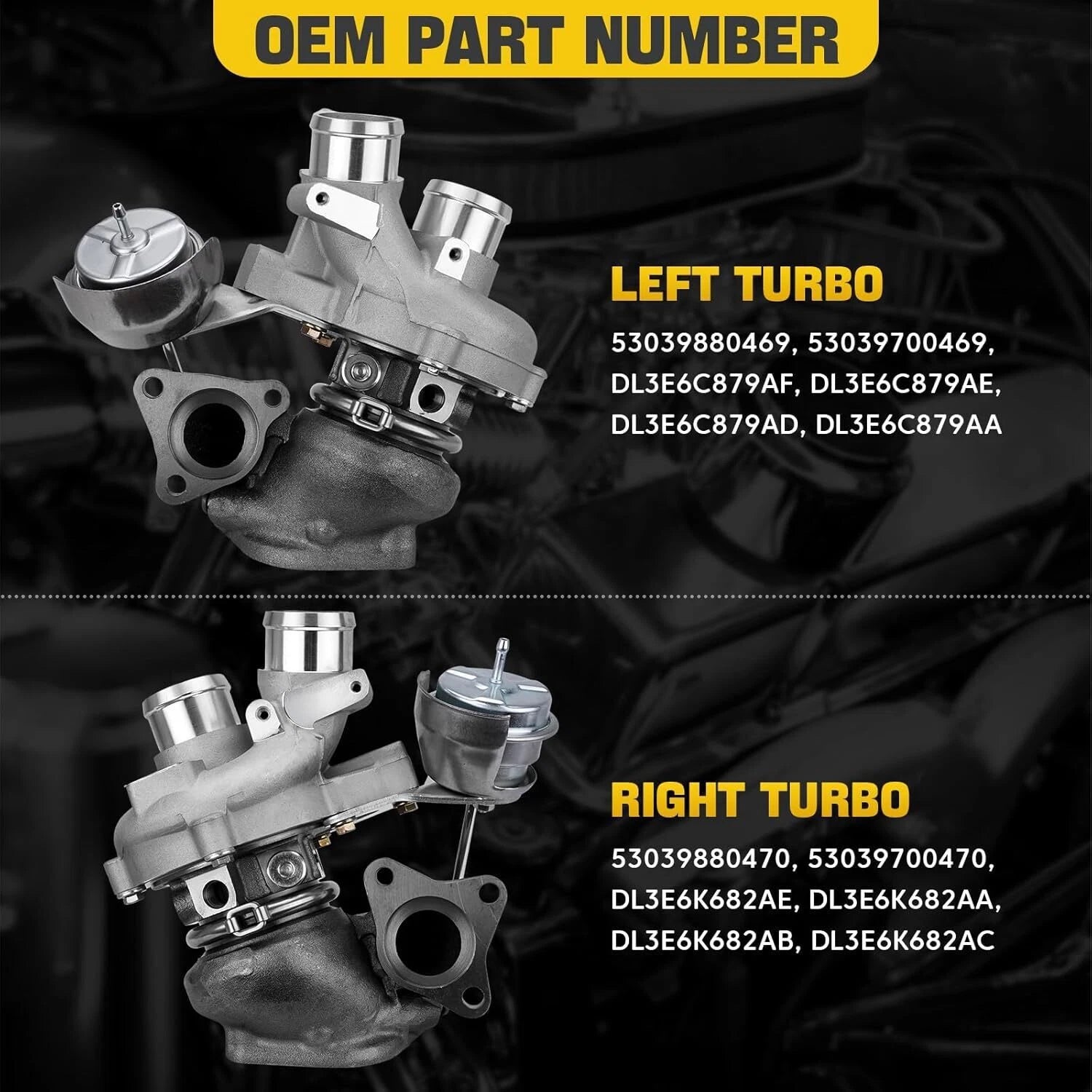

• Reference Numbers:replacement for 53039700469, 53039880469, 53039700470, 53039880470.
• Reference Numbers:replacement for DL3E6C879AA, DL3E6C879AD, DL3E6C879AE, DL3E6C879AF.
• Reference Numbers:replacement for DL3E6K682AA, DL3E6K682AB, DL3E6K682AC, DL3E6K682AE.
• Reference Numbers:replacement for DL3E6K682AF, DL3Z 6K682 F, DL3Z 6K682 B, DL3Z 6K682 D.

Why Choose EGR Performance

• Fitment Support:Solve compatibility concerns with VIN help by email.
• Warranty Support:Solve defect concerns with1 Year Limited Warranty.
• Complete Kit:Solve missing side concerns with2turbochargers.
• US Support:Solve order questions through service@egrperformance.com.

Installation Information

Installation Difficulty Level

Difficult

Estimated Installation Time

4 to 6 hours

Required Tools

• Metric socket set.
• Torque wrench.
• Line wrench set.
• Screwdrivers and pliers.
• Drain pan and shop towels.
• New engine oil and coolant as required.

Step-by-Step Installation Overview

• Disconnect battery and allow the engine to cool.
• Drain fluids needed for turbo line removal.
• Remove intake, exhaust, oil, and coolant connections.
• Install left and right turbochargers with new gaskets.
• Prime oil system, check leaks, and road test.

No printed instructions included. Professional installation is highly recommended. For technical support, contact service@egrperformance.com.

Troubleshooting and Problem Solving

Common Issues After Installation

• Oil Leak:Oil feed or return line seal not seated correctly.
• Coolant Leak:Coolant line fitting not tightened to spec.
• Low Boost:Intake leak, exhaust leak, or vacuum actuator issue.
• Smoke After Start:Oil residue or restricted oil drain line.
• Noise:Loose clamp, exhaust leak, or foreign object contact.

Error Code Solutions

• P0299:Turbo underboost - inspect charge pipes and vacuum lines.
• P0234:Turbo overboost - inspect actuator control and wastegate movement.
• P2263:Boost system fault - check air leaks and sensor connections.
• P0101:MAF range issue - inspect intake sealing after service.

How to Reset Check Engine Light After Installation

• Repair all stored fault causes before clearing codes.
• Connect an OBD2 scan tool.
• Clear diagnostic trouble codes.
• Drive cycle the vehicle and recheck for codes.

What to Do If Your Vehicle Loses Power After Installation

• Check all intake and charge pipe clamps.
• Verify oil and coolant line routing.
• Inspect vacuum actuator hose connections.
• Confirm exhaust connections are sealed.
• Scan for active DTC codes before further driving.

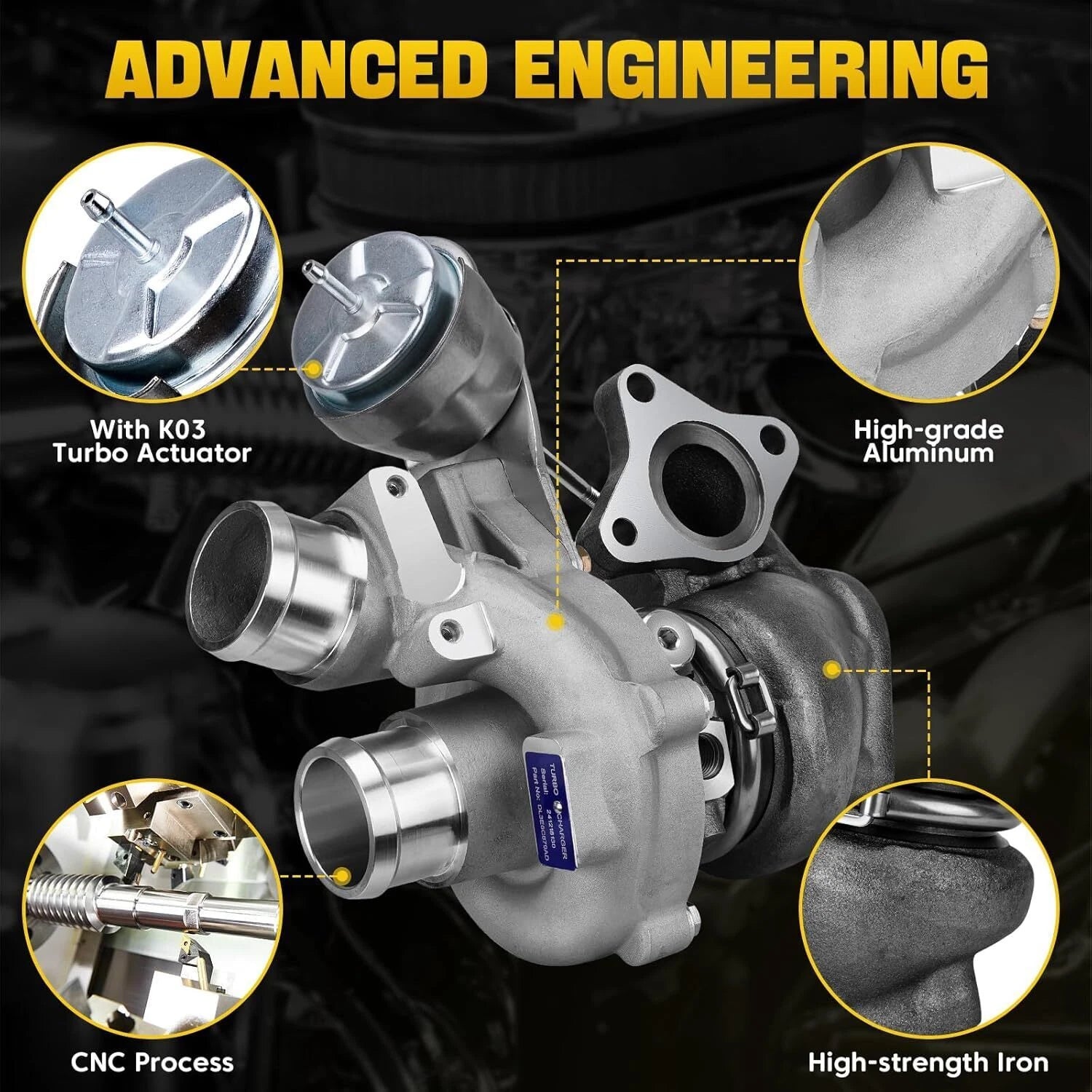

Core Advantages

• Dual Side Kit:Includes2turbochargers for left and right positions.
• Balance Testing:Built with100 percentbalancing test process.

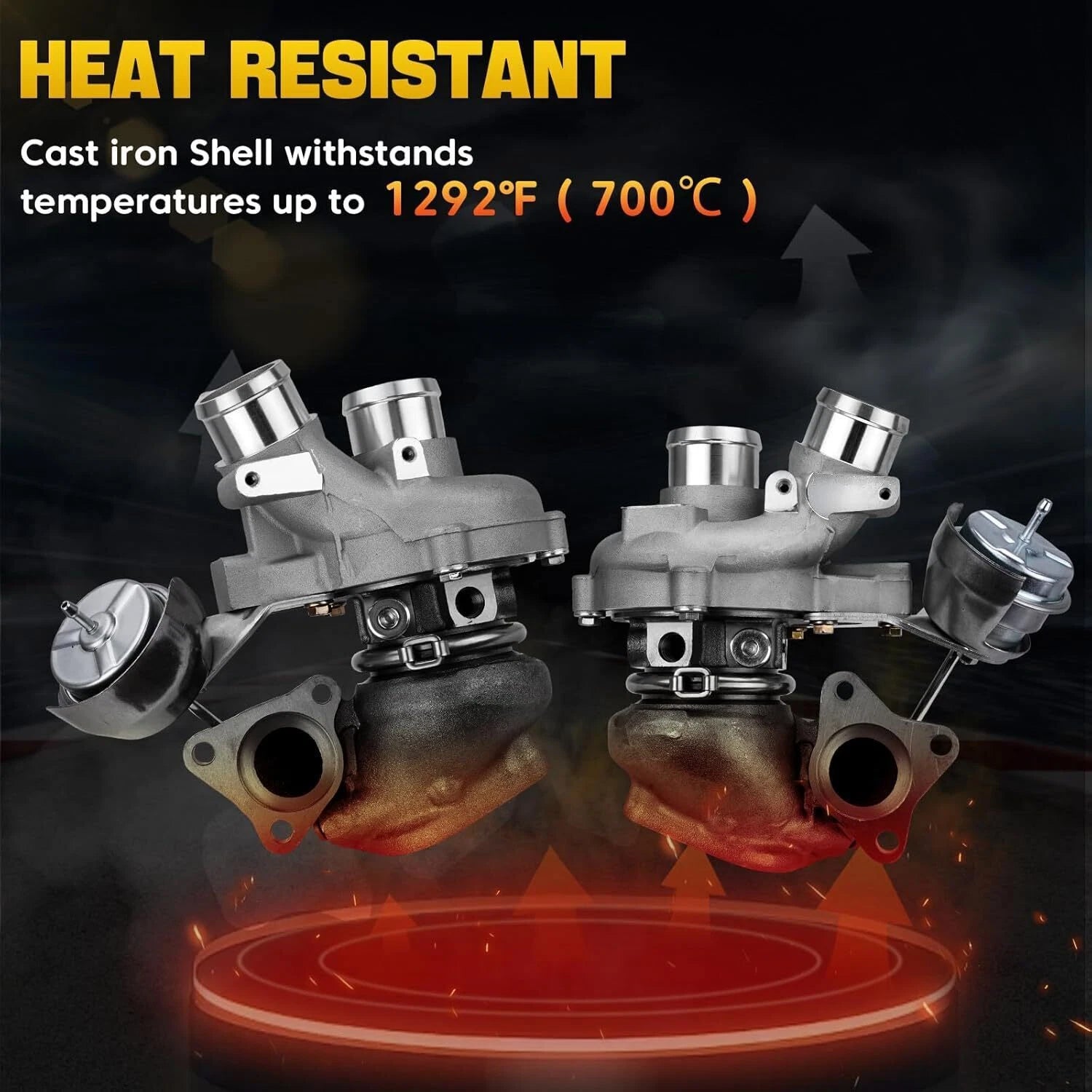

• Turbine Housing:QT450 10 ductile iron rated up to700 C.
• Turbine Wheel:K418 alloy rated up to900 C.
• Seal Design:High speed oil seal ring supports controlled oil sealing.

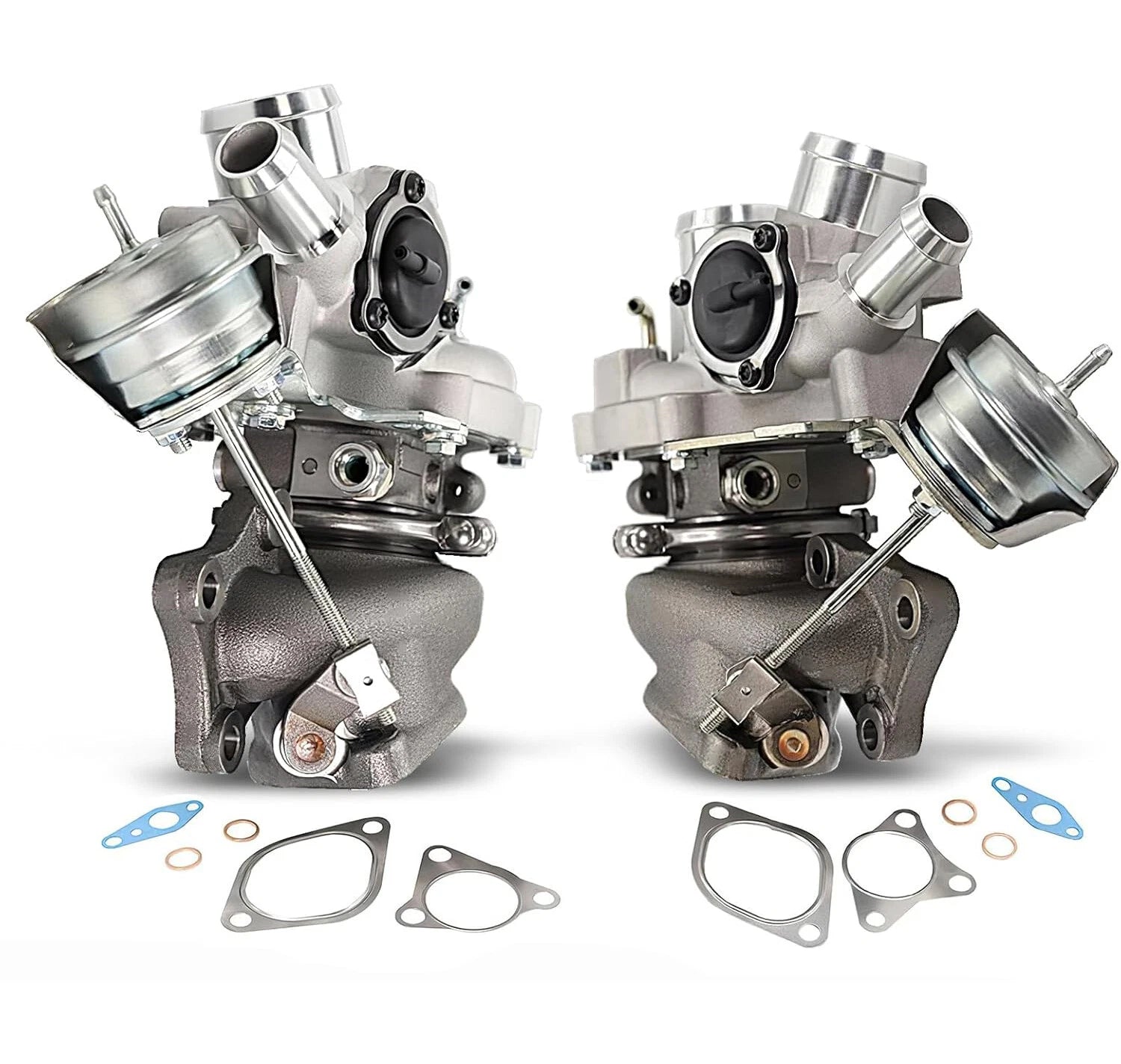

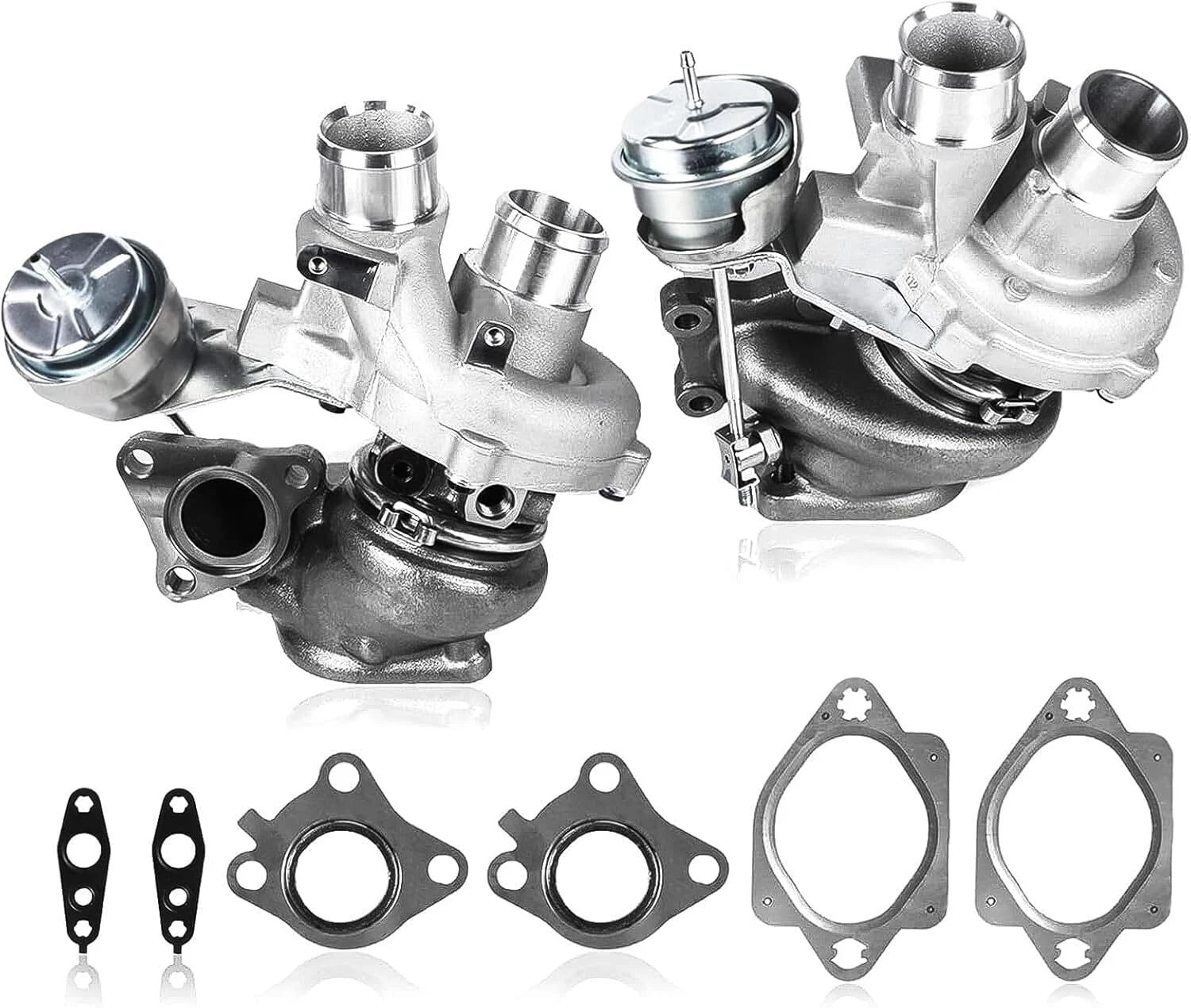

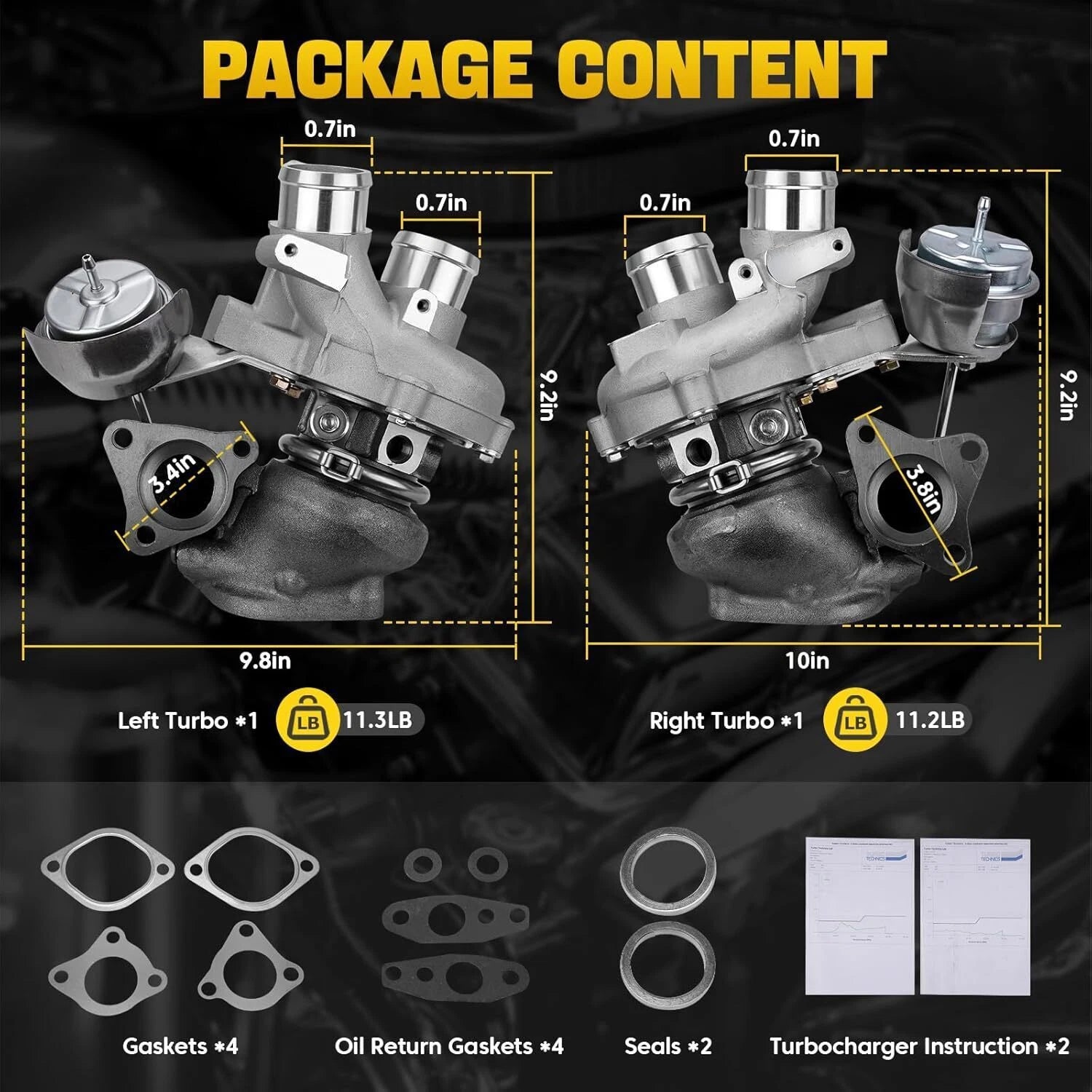

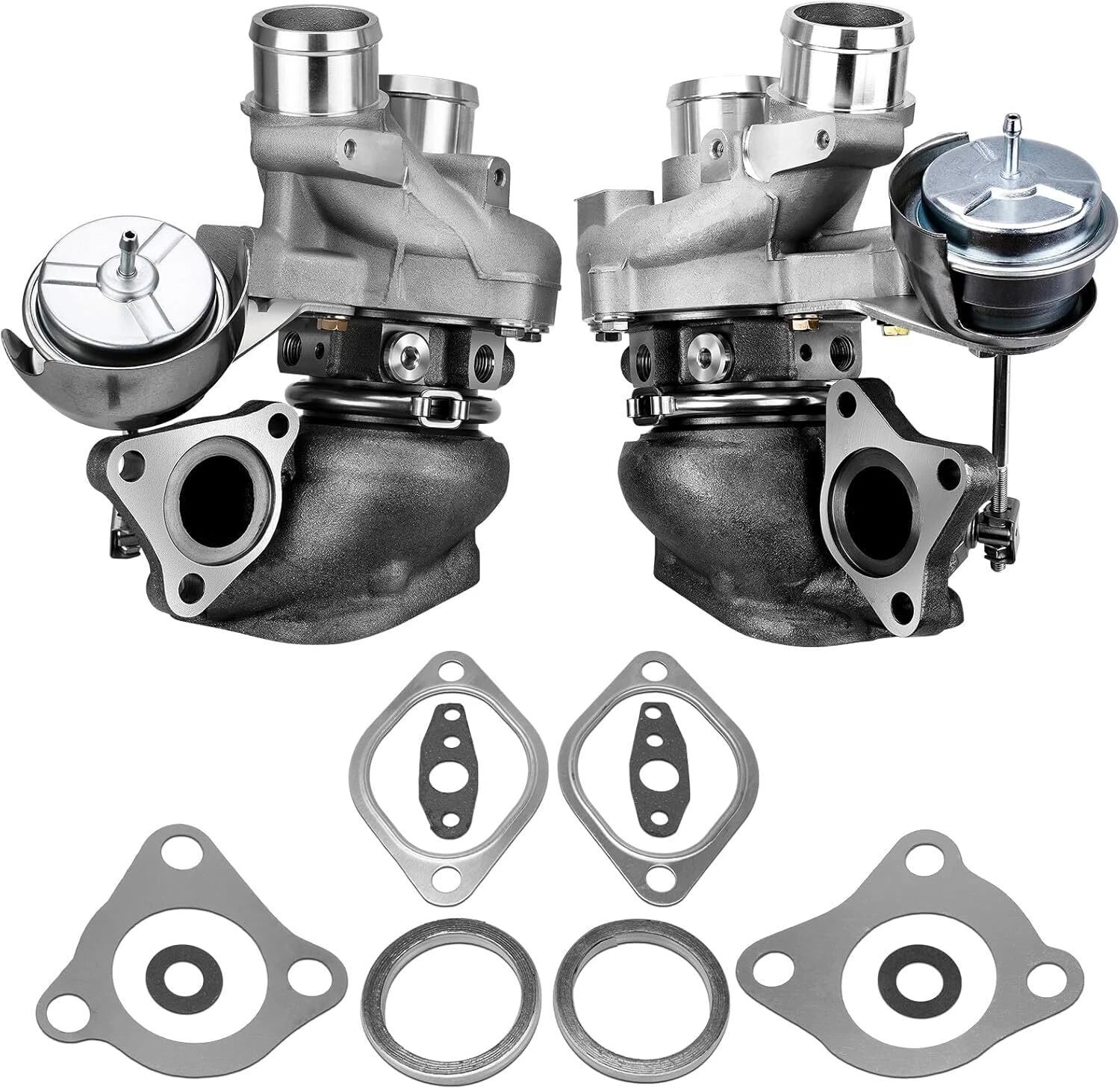

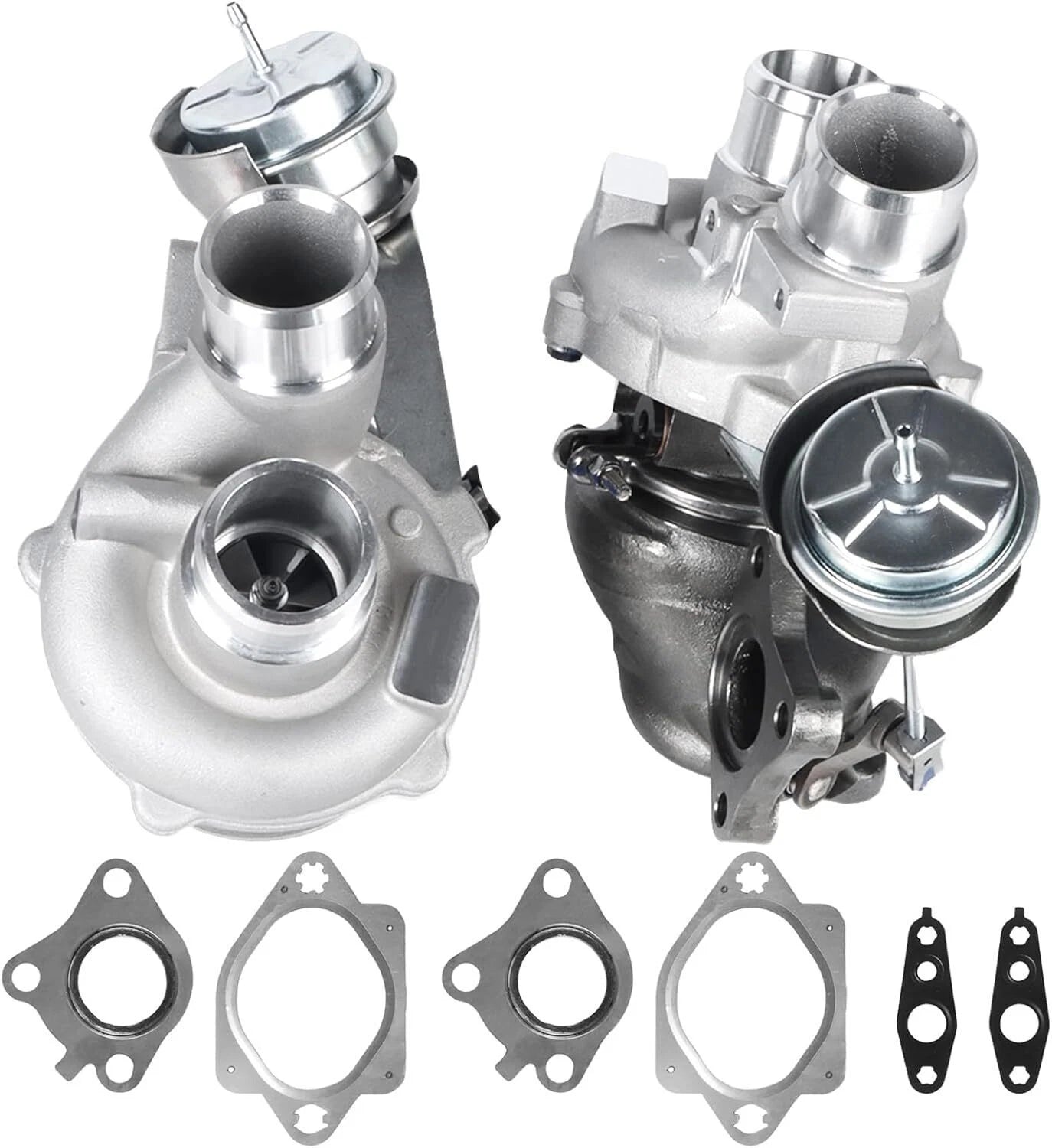

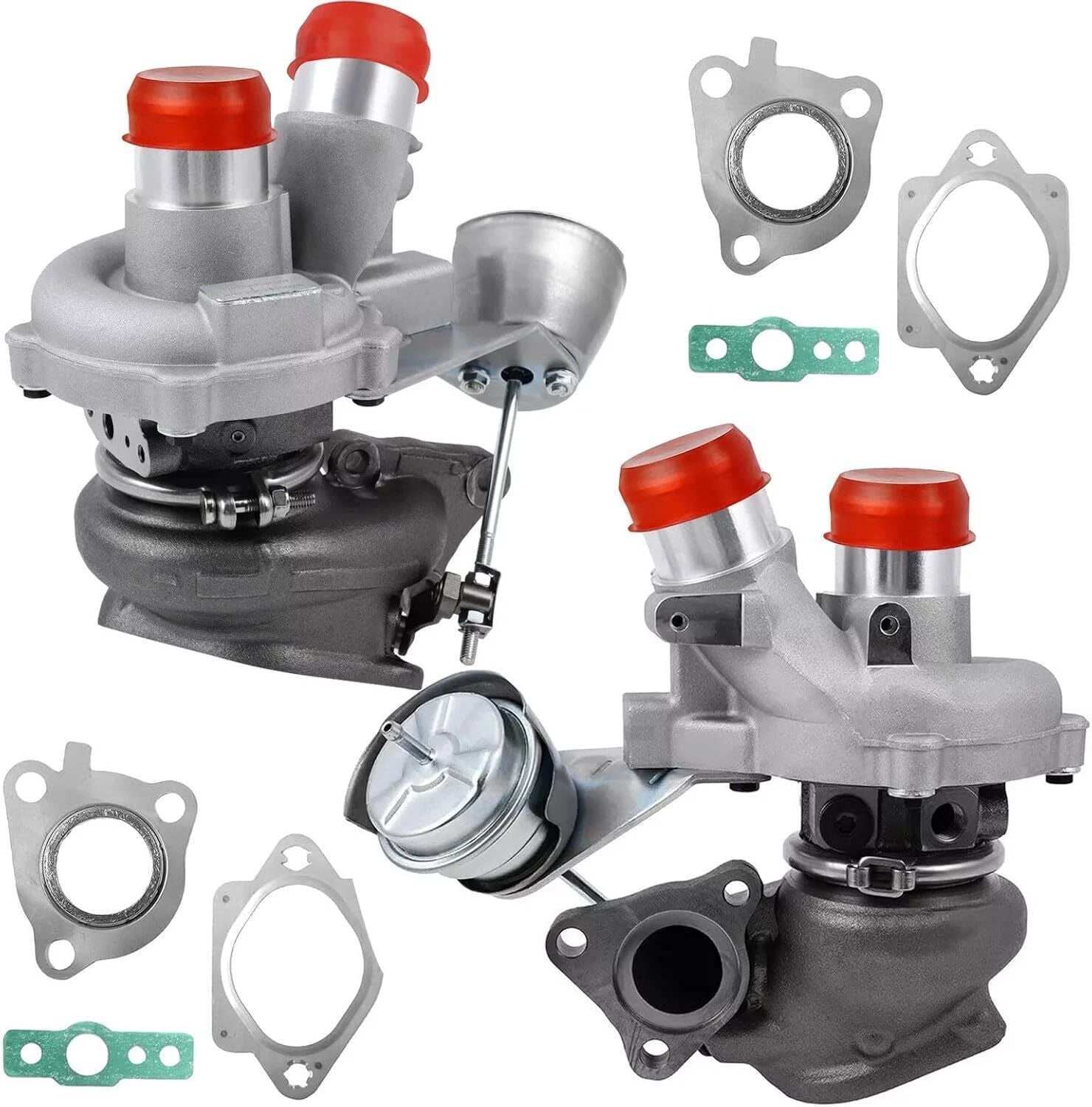

Complete Package Contents

• 1left side turbocharger.
• 1right side turbocharger.
• 4turbocharger gaskets.

Long-Term Maintenance Tips

• Engine Oil:Check every service interval to prevent turbo oil starvation.
• Oil Filter:Replace as scheduled to protect bearing surfaces.
• Air Filter:Inspect regularly to prevent debris entering the compressor.
• Intake Seals:Inspect during service to prevent boost leaks.
• Warm Up:Build oil pressure before heavy throttle use.
• Cool Down:Avoid immediate shutdown after heavy load operation.
