Chevy Silverado Leveling Kit

Why Does Your Chevy Silverado Need a Leveling Kit?

The Factory Rake Buries the Nose

GM builds every Silverado with the rear suspension sitting higher than the front, a built-in rake that lets a loaded bed squat level instead of bottoming out. On an empty truck that rake leaves the front end pointing down, with the bumper riding low and the fender gap looking uneven front to rear. A leveling kit raises only the front coil or strut to erase that rake, so the truck sits flat across the rocker panels and the nose stops diving toward the pavement.

Lost Approach Angle and Ground Clearance

That nose-down stance costs you real clearance. The front bumper hangs closer to the dirt, the air dam scrapes on every farm approach and snow bank, and the approach angle shrinks the moment you leave pavement. Lifting the front one and a half to three inches pulls the bumper up and out of harm's way, opening up the approach angle for fields, job sites, boat ramps, and hunting ground without touching the rear suspension.

Nose-High Towing and Swallowed Front Tires

When the front rides low, a fifth wheel or heavy tongue makes the whole truck squat and the bed drop, leaving you towing nose high and overworking the rear axle. The same low stance swallows the front tires in the fender well, so the truck looks undersized and the tires look lost. A front level sets the bed to tow flat and lifts the tire up into the wheel opening, so the Silverado looks right and hauls right.

What Can a Silverado Leveling Kit Solve?

CNC Billet Spacers That Hold Their Height

Our kits use CNC-machined 6061-T6 billet aluminum coil spring and strut spacers that carry the full weight of the front end without compressing, creeping, or cracking the way stamped steel or cheap poly spacers can. Each spacer is matched to the factory coil bucket and strut tower, so the lift is exact and repeatable, and the front end holds its level height for the life of the truck instead of sagging back down after a season.

Urethane Isolators and Grade 10.9 Hardware That Stay Quiet

A loose spacer is a noisy spacer. Every kit ships with polyurethane isolators that dampen vibration between the coil, the spacer, and the tower, plus Grade 10.9 high-tensile hardware and precision TIG-welded studs that hold torque under load. The result is a level that rides quiet, stays tight through hard towing and rough ground, and never backs off the way soft hardware does.

Matching Rear Blocks That Level the Whole Truck

For trucks that tow heavy or run a bigger tire all around, our front-plus-rear kits pair the front billet spacer with a matching high-tensile steel rear lift block and U-bolt pack. That combo levels the entire truck, not just the nose, so a loaded bed sits flat and the rear clears the same larger tire as the front. It is the setup shop owners reach for when a half-ton Silverado doubles as a daily driver and a weekend hauler.

Shop Chevy Silverado Leveling Kit by Generation & Fitment Guide

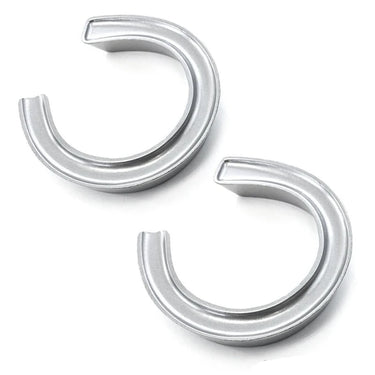

• 2.5" Coil Spring Spacer Leveling Kit - Fits the GMT800 Chevy Silverado 1500 & GMC Sierra 1500 (1999-2007, 2WD). CNC billet coil spacers erase the factory rake on the coil-spring front end and clear a slightly taller tire with no cutting.

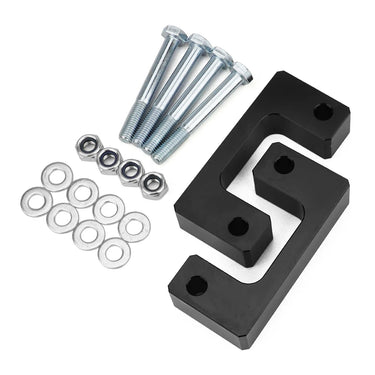

• 2" / 2.5" / 3" Front Leveling Lift Kit - Fits the GMT900 and K2XX Chevy Silverado 1500 & GMC Sierra 1500 (2007-2019, 2WD / 4WD). Adjustable billet strut spacers let you dial the front lift to the tire you run and restore a level stance on every trim.
• 2" / 2.5" / 3" Front + 3" Rear Leveling Lift Kit - Fits the GMT900 and K2XX Chevy Silverado 1500 & GMC Sierra 1500 (2007-2019, 2WD / 4WD). Pairs the front strut spacer with a 3 inch rear block to level the whole truck for flat towing and matching tire clearance.
• Racing Front Leveling Lift Kit 0.5"-2.5" - Fits the GMT900 Chevy Silverado 1500 & GMC Sierra 1500 (2007-2017, 2WD / 4WD). A progressive 0.5 to 2.5 inch billet spacer set for a dial-in stance from a mild level to an aggressive look.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What is a Chevy Silverado leveling kit, and what does it do for my truck?

A Chevy Silverado leveling kit is a set of spacers that lifts the front coil spring or strut to match the height of the rear, canceling the factory nose-down rake. The spacer sits between the coil and its bucket or on top of the strut, raising the front one and a half to three inches without changing the spring rate or the ride.
The result is a true, level stance, room for a taller tire, and a bed that tows flat instead of nose high. Nothing on the rear suspension changes, so your load capacity and the factory ride stay right where GM set them.

How much does a leveling kit raise the front of my Chevy Silverado?

Most front leveling kits add between 1.5 and 3 inches of lift at the front coil or strut, and the exact height is set by the spacer thickness you bolt in. Two and two and a half inch spacers are the sweet spot for clearing a 33 inch tire on a Silverado 1500.
Three inch spacers are common on heavier 2500 and 2500HD trucks running 35s. Our front-plus-rear kits add a matching 3 inch rear block so the whole truck sits level under load, not just the nose.

What is the difference between a leveling kit and a lift kit on a Silverado?

A leveling kit raises only the front of the truck, usually one and a half to three inches, to bring the nose even with the taller rear. A suspension lift kit raises the entire truck, frame and all, by three to twelve inches or more, replacing coils, leaf springs, control arms, and track bars to do it.
Levelers are an afternoon bolt-on that keeps the factory ride, while full lifts are a major build that needs driveshaft, brake line, and gear work. Levelers clear one tire size up for a fraction of the cost; full lifts clear much larger rubber and change how the whole truck drives.

What size leveling kit is best for my Chevy Silverado, 2, 2.5, or 3 inches?

Match the height to the tire you want and the truck you drive. A 2 inch level is the right call for a daily driven Silverado 1500 that wants a cleaner stance and a slightly taller tire without stressing CV angles.
Two and a half inches is the most popular split for half-tons running 33s, and 3 inch spacers are built for 3/4 ton 2500 and 2500HD trucks clearing 35s under load. If you tow heavy, pair the front spacer with the matching rear block so the truck stays level with a loaded bed.

What size tires can I run after leveling my Chevy Silverado?

A two to two and a half inch front level typically clears a 33 inch tire on most Silverado 1500s with minor or no trimming. A three inch level is the range where a 35 inch tire fits a 2500 or 2500HD without rubbing the crash bracket at full lock.
Exact clearance depends on wheel width, offset, and trim level, so the wheel and tire package matters as much as the lift height. The level buys you the room; the wheel offset decides whether you rub.

Will a leveling kit affect ride quality, CV axles, or alignment on my Silverado?

A billet spacer leveling kit does not change the spring rate, so the ride stays close to factory smooth on the street. The trade-off is angle, because lifting the front changes the half-shaft and CV angles, the tie rod angles, and the camber, which is why a fresh alignment is mandatory the day the kit goes in.
On the Silverado's independent front suspension, a spacer pushes the strut down toward full extension, so CV boots can run closer to their limit on full droop. Staying at two to two and a half inches keeps those angles well within safe range; going past three inches on a 1500 is where you start to stress axles and ball joints.

How long does a Chevy Silverado leveling kit take to install, and can I do it myself?

A strut or coil spacer leveling kit is a straightforward bolt-on that a competent home mechanic can finish in a garage afternoon, roughly two to four hours with hand tools and a floor jack. The front strut has to come out, which means compressing the coil or swinging the assembly clear, then the billet spacer drops on top of the strut or into the coil bucket.
You will need a torque wrench, a four wheel drive may need the sway bar link dropped, and an alignment is required right after. If you do not have a shop press or spring compressor, a local shop can swing the strut for you in under an hour.

Do I need new shocks, upper control arms, or an alignment after leveling my Silverado?

A fresh alignment is non-negotiable after any front lift, because raising the strut changes camber, caster, and toe the moment the truck comes off the jack. New shocks are usually not required for a 2 inch level since the factory shock still has travel, but a 3 inch level can top out the stock shock at full droop.
Aftermarket upper control arms are only needed at the taller end of the range to recover camber and keep the ball joint from binding. For a moderate level the kit itself is all you need; the alignment is the one add-on you cannot skip.

Which Silverado generations and years do these leveling kits fit?

Fitment is driven by your Silverado generation, model, and drive type, not by engine. We carry direct-fit levels for the GMT800 Chevy Silverado 1500 and GMC Sierra 1500 (1999-2007, 2WD) and the GMT900 and K2XX Chevy Silverado 1500 and GMC Sierra 1500 (2007-2019, 2WD and 4WD).
Match your exact year, model, and whether your truck is 2WD or 4WD to the fitment table before you order, since the coil spring spacer and strut spacer designs differ by generation. The GMC Sierra 1500 shares the same chassis and takes the same spacer as the matching Silverado year.

Are Chevy Silverado leveling kits street legal, and what about shipping, warranty, and returns?

Most moderate leveling kits are street legal and DOT-compliant, since a small front lift does not change bumper height laws the way a tall suspension lift can. Taller lift kits and certain jurisdictions restrict modified heights to competition and closed-course off-road use only, so verify your local lift and bumper height laws and your exact fitment in the table before you drive on public roads.
Every Silverado leveling kit ships free, is backed by a 1-year warranty, and comes with our 45-day return policy, so if a spacer does not fit your exact truck you can send it back.
