Diesel Transmission Cooling System

Why Does Your Diesel Truck Need a Transmission Cooling System Upgrade?

Factory Crimp Fittings Are a Known Failure Point

The stamped steel crimp connections on OEM transmission cooler lines are the number one leak source on 6.6L Duramax trucks from 2006 to 2010. Over years of heat cycling, the rubber hose beneath the crimp hardens, shrinks, and begins to seep transmission fluid right where the metal ferrule meets the hose. On Cummins 6.7L trucks equipped with the 68RFE transmission, the factory thermal bypass valve is notorious for sticking in the closed position, which blocks coolant flow through the transmission heat exchanger and sends fluid temperatures soaring past 240 degrees under load.

Thermal Fatigue Destroys Rubber and Soft Metal Components

Sustained high transmission temperatures accelerate the breakdown of rubber seals, nylon filter media, and even the clutch friction material inside your transmission. When the cooling system cannot shed heat fast enough, every component downstream suffers. Fluid life drops from 100,000 miles to under 30,000. Seal hardness increases, causing external leaks at pan gaskets and cooler line connections. Valve body solenoids stick from varnish buildup. The root cause in most cases is insufficient cooling capacity, not a transmission that is inherently unreliable.

Stuck Bypass Valves Trap Heat Inside the Transmission

The factory thermal bypass valve on the 68RFE transmission is designed to restrict cooler flow when the fluid is cold, helping the transmission reach operating temperature faster. The problem is that these valves corrode, stick, and fail to open when the fluid heats up. The result is a transmission that never sends hot fluid to the cooler, running hotter with every mile. A bypass kit or upgraded thermal bypass valve eliminates this failure mode entirely by ensuring full flow to the heat exchanger at all operating temperatures.

What Can a Transmission Cooling System Upgrade Solve?

Eliminates Leaks at Crimp Connections with Upgraded Fittings

Our upgraded transmission cooler repair lines for the 6.6L Duramax replace the entire factory rubber hose section with braided stainless steel line and CNC-machined 6061-T6 aluminum fittings. Each fitting uses high-temperature Viton O-rings that maintain their seal through thousands of heat cycles. No more weeping crimps, no more fluid puddles on the driveway, and no more wondering whether your transmission has enough fluid to make it through the next tow.

Restores Full Cooler Flow on Cummins 68RFE Transmissions

The transmission bypass kit and thermal bypass valve for 6.7L Cummins trucks remove or replace the failure-prone factory bypass valve with a precision-machined aluminum housing that maintains unrestricted flow to the transmission cooler. Fluid temperatures drop 30 to 50 degrees under heavy load, clutch pack life extends significantly, and the transmission shifts more consistently because the fluid is not thinning out from excessive heat.

Protects Your Investment During Heavy Towing and Hauling

Transmission rebuilds on diesel trucks routinely cost several thousand dollars. A failed cooler line that dumps fluid on the highway can destroy a transmission in minutes. Upgrading the cooling system components before they fail is one of the highest-return investments you can make on a truck that sees regular towing duty, plowing, or heavy payload use.

Shop Transmission Cooling System by Vehicle Engine & Fitment Guide

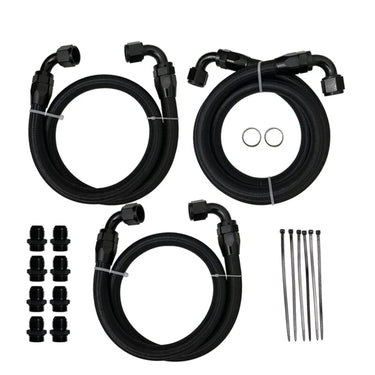

• Upgraded Transmission Cooler Repair Line - Fits 6.6L Duramax LLY/LBZ/LMM in Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD (2006-2010). Replaces leak-prone factory rubber hoses with braided stainless steel lines and CNC-machined 6061-T6 aluminum barbed fittings sealed with high-temperature Viton O-rings. Direct bolt-in replacement requires no modification to factory routing.
• Transmission Bypass Kit - Fits 6.7L Cummins 68RFE in Ram 2500 and Ram 3500 (2013-2018). Eliminates the factory thermal bypass valve that sticks closed and traps heat inside the transmission. CNC-machined from 6061-T6 billet aluminum with precision TIG welds. Ensures full-flow cooling to the heat exchanger at all operating temperatures.
• Transmission Cooler Thermal Bypass - Fits 6.7L Cummins 68RFE in Dodge Ram 2500 and Ram 3500 (2013-2018). Upgraded thermostatic bypass valve with stainless steel internal components that resist corrosion and sticking. Maintains proper temperature regulation while preventing the heat-trap failures common to the factory valve.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

Frequently Asked Questions

What does a transmission cooling system do in a diesel truck?

The transmission cooling system circulates hot transmission fluid through a heat exchanger, either inside the radiator or as a standalone cooler, to pull heat out of the fluid before it returns to the transmission.
In diesel trucks that tow heavy loads, the torque converter generates massive amounts of heat that the fluid absorbs.
Without adequate cooling, that heat builds up until it breaks down the fluid, warps clutch plates, and destroys seals.
The cooling lines, thermal bypass valves, and heat exchanger all work together to keep fluid temperatures in the safe operating range, typically between 175 and 200 degrees Fahrenheit under normal driving conditions.

How do I know if my transmission cooler lines are leaking?

The most obvious sign is a puddle of red or pinkish fluid under the front of the truck, near the radiator or along the frame rail where the cooler lines run.
You may also notice the transmission fluid level dropping on the dipstick without any visible leak at the pan gasket, which points to a cooler line weeping at a crimp fitting or quick-connect port.
On Duramax trucks from 2006 to 2010, the rubber-to-metal crimp connections are the primary failure point, and the leak often starts as a slow seep that goes unnoticed until the fluid level drops enough to cause rough shifting.
Inspect the lines where they connect to the radiator and along any bends where road debris can cause chafing.

Why do transmission cooler lines fail on Duramax diesel trucks?

The factory cooler lines on 6.6L Duramax LLY, LBZ, and LMM trucks use a rubber hose section that is crimped to a metal ferrule at each end.
Over years of heat cycling, the rubber hardens and shrinks away from the crimp, creating a gap where fluid can escape.
The Allison transmission in these trucks runs at relatively high line pressure, which accelerates the leak once it starts.
Road salt, debris, and vibration from the engine and drivetrain further degrade the rubber and the crimp connection.
Replacement with an upgraded line that uses braided stainless steel hose and CNC-machined aluminum fittings eliminates the failure mode entirely.

What is a transmission thermal bypass valve and how does it work?

A thermal bypass valve is a thermostat-controlled valve in the transmission cooling circuit that restricts fluid flow to the cooler when the transmission is cold.
This allows the fluid to reach operating temperature faster, which improves shift quality and reduces parasitic losses during warmup.
Once the fluid reaches the target temperature, typically around 165 degrees Fahrenheit, the valve opens and sends hot fluid through the cooler to shed excess heat.
The problem on the 68RFE transmission in Cummins trucks is that the factory valve corrodes and sticks in the closed position, blocking cooler flow even when the fluid is hot.
Upgraded thermal bypass valves use stainless steel internals that resist corrosion and maintain proper operation.

Can a bad transmission cooler cause shifting problems?

Yes, a failing transmission cooler or restricted cooler lines directly cause shifting issues.
When the cooling system cannot remove enough heat, the transmission fluid thins out as its viscosity drops with temperature.
Thin fluid cannot maintain proper hydraulic pressure for clutch application, resulting in soft shifts, slip conditions, and delayed engagement.
In severe cases, overheated fluid burns the clutch friction material, which contaminates the valve body and causes solenoids to stick.
If your transmission starts shifting erratically after a long tow or heavy load, check the fluid temperature and inspect the cooler lines and bypass valve before assuming the transmission itself is failing.

What are the signs of transmission fluid overheating?

The most reliable indicator is a transmission temperature gauge reading above 220 degrees Fahrenheit under load, or above 200 degrees during normal driving.
Other signs include a burning smell from the transmission dipstick, fluid that appears dark brown or black instead of bright red, and a gritty texture when you rub the fluid between your fingers.
You may also notice the transmission refusing to shift into overdrive, harsh downshifts, or a torque converter lockup that keeps disengaging.
On trucks with a stuck thermal bypass valve, the temperature will climb steadily during highway driving and never stabilize.
Catching overheating early and upgrading the cooling system prevents the cascading damage that leads to a full transmission rebuild.

How does a transmission bypass kit improve cooling on Cummins trucks?

A transmission bypass kit removes the factory thermal bypass valve from the cooling circuit on the 68RFE transmission and replaces it with a straight-through fitting that allows unrestricted fluid flow to the cooler at all times.
The CNC-machined 6061-T6 billet aluminum housing eliminates the corrosion and sticking issues that plague the factory valve.
With full flow to the cooler restored, fluid temperatures typically drop 30 to 50 degrees under heavy towing conditions.
The bypass kit installs in place of the factory valve using the existing mounting points and hose connections, making it a straightforward upgrade that can be completed with basic hand tools.

Should I upgrade my transmission cooling lines for heavy towing?

If you tow heavy loads regularly, upgrading the transmission cooling lines is one of the smartest preventive measures you can take.
Factory rubber cooler lines degrade faster under the sustained high temperatures that towing generates, and a line failure at highway speeds with a loaded trailer can destroy the transmission before you can pull over.
Upgraded braided stainless steel lines with CNC-machined aluminum fittings handle much higher pressures and temperatures without degrading.
The thermal bypass upgrade on Cummins trucks is equally important for towing, as it ensures the cooler receives full flow instead of being restricted by a valve that may be partially stuck.
Together, these upgrades give your transmission the thermal headroom it needs to survive repeated heavy tow cycles.

How long do transmission cooling lines typically last?

Factory transmission cooler lines on diesel trucks typically last 80,000 to 120,000 miles before the rubber sections begin to harden and the crimp connections start weeping.
Trucks that see heavy towing duty, extreme heat, or road salt exposure may experience failures sooner, sometimes as early as 50,000 miles.
Upgraded lines with braided stainless steel construction and aluminum fittings can last the life of the truck, since they do not rely on rubber hoses or crimped connections that degrade over time.
Regular inspection of the cooler lines during oil changes and fluid services is the best way to catch problems before they become costly failures.

Are transmission cooling system upgrades legal for street-driven trucks?

Transmission cooling system upgrades such as replacement cooler lines and thermal bypass valves are generally designed for competition and closed-course off-road use only.
Some jurisdictions have specific regulations regarding modifications to emissions-related or factory-specified drivetrain components, and it is the owner's responsibility to verify compliance with local, state, and federal laws before installation.
Always verify correct fitment for your specific year, make, and model before ordering, as incorrect fitment can cause drivability issues or damage to your transmission.
