5.9 Cummins Engine Block Heater

Why Does Your 5.9 Cummins Need an Engine Block Heater?

Cold Starts Accelerate Cylinder Wall and Bearing Wear

When a 5.9L Cummins sits overnight in sub-freezing temperatures, the engine oil thickens and drains away from critical bearing surfaces. Without a block heater warming the coolant jacket around cylinders two and three, that first crank of the morning forces the starter to work harder, puts excessive load on the batteries, and subjects the piston rings and cylinder walls to metal-on-metal contact until oil pressure builds. Over thousands of cold starts, this wear pattern compounds into reduced compression, higher oil consumption, and premature main bearing fatigue.

Frozen Coolant Can Crack the Block and Pop Freeze Plugs

The 5.9 Cummins cast iron block is tough, but running straight water or weak coolant in freezing conditions invites cracked cylinder walls and displaced freeze plugs. A functioning 750-watt block heater keeps the coolant in the immediate cylinder area above freezing, which prevents ice expansion damage that can turn a solid engine into a boat anchor overnight. This is especially critical on the 12-valve 5.9L found in the 1989-1998 Dodge Rams, where the block casting is older and more susceptible to thermal shock from extreme cold cycling.

Failed Heater Elements and Damaged Cords Leave You Stranded

The OEM heating element on the 5.9 Cummins threads into the passenger side of the block behind the oil filter, and after years of exposure to road salt, oil spray, and vibration, the brass threads corrode and the internal resistor degrades. The power cord routes through the grille area and takes a beating from road debris, temperature extremes, and chemical exposure. A frayed cord or burnt-out element means zero block heating when you need it most, and that usually gets discovered on the coldest morning of the year when the truck refuses to start.

What Can an Engine Block Heater Solve?

Restored Sub-Zero Starting Reliability

A fresh 750-watt heating element threaded into the factory block port raises coolant temperature in the cylinder area by 40 to 60 degrees Fahrenheit over ambient, which thaws thickened oil, reduces cranking resistance, and lets the 5.9L fire up within seconds instead of grinding through extended crank cycles. This directly extends starter motor life, preserves battery capacity, and eliminates the white smoke cloud that unburned fuel produces during a prolonged cold start.

Reduced Engine Wear During Warm-Up Cycles

Pre-heating the block means oil flows faster to the turbo bearings, valve train, and main bearings on that first start. Faster oil delivery translates to less metal-on-metal contact during the most vulnerable seconds of engine operation. For guys running high-boost tuning or towing heavy loads, this warm-start advantage adds up over thousands of cycles and can mean the difference between an engine that goes 400,000 miles and one that needs an in-frame at 250,000.

Shop Engine Block Heater by Dodge Ram Fitment Guide

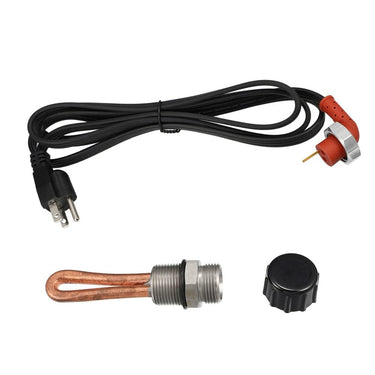

• Engine Block Heater Kit for 5.9L 6.7L Ram 2500 3500 (1998-2007) - Fits 5.9L Cummins 24-Valve in Dodge Ram 2500 and Ram 3500 (1998.5-2007). Includes both the 750-watt brass-threaded heating element and heavy-duty silicone-insulated power cord. Replaces corroded factory elements and restores cold-start performance on the 2003-2007 models that see the hardest winter duty.
• Block Heater Cord for 5.9L 6.7L Cummins Dodge Ram 2500 3500 (1989-2021) - Fits 5.9L Cummins 12-Valve in Dodge Ram 2500 and Ram 3500 (1989-1998), 5.9L Cummins 24-Valve in Dodge Ram 2500 and Ram 3500 (1998.5-2007), and 6.7L Cummins in Ram 2500 and Ram 3500 (2007.5-2021). Heavy-duty silicone-insulated cord with weather-sealed plug. Ideal when your factory element is intact but the original cord is cracked, frayed, or missing entirely.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

Where is the block heater located on a 5.9 Cummins?

The block heater on the 5.9L Cummins threads into the passenger side of the engine block, approximately two inches behind the oil filter housing and below the exhaust manifold. The heating element sits inside the coolant jacket surrounding cylinders two and three, and the power cord routes down through the engine bay to the passenger-side tow hook opening behind the front bumper.
On most 5.9 Cummins trucks, the factory heating element is already installed in the block from the assembly line, even if no cord was included with the truck. You can verify this by reaching behind the oil filter on the passenger side and feeling for the hex-head plug or the rubber cap covering the element port.

How many watts is the 5.9 Cummins block heater?

The factory block heater on the 5.9L Cummins is rated at approximately 750 watts at 120 volts, drawing 6.5 to 7 amps during operation. This wattage is sufficient to raise the coolant temperature around the cylinder area by 40 to 60 degrees Fahrenheit above ambient over a period of two to three hours.
Some aftermarket replacements offer 1000-watt elements for faster heating, but the standard OEM specification remains at 750 watts. Running a 750-watt heater on a standard 15-amp household circuit poses no electrical issues, and many owners use a timer or WiFi smart plug rated for at least 1500 watts to automate the heating schedule.

At what temperature should I plug in my 5.9 Cummins block heater?

The common rule of thumb among diesel technicians is the 20/20 rule: plug in the block heater when ambient temperature drops to 20 degrees Fahrenheit or below, and start the truck about 20 minutes before you plan to drive. This gives the 750-watt element enough time to warm the coolant jacket and surrounding cast iron without wasting electricity.
In practice, many 5.9 Cummins owners plug in at 32 degrees Fahrenheit or below for easier starts, faster cabin heat, and reduced engine wear. If you live in a region where overnight lows regularly dip into the single digits or below zero, using the block heater every night during winter months is a sound preventive measure that extends starter life and reduces battery strain.

How long should I leave my 5.9 Cummins block heater plugged in?

For temperatures between 20 and 34 degrees Fahrenheit, one hour of plug-in time is generally sufficient. When temperatures drop below zero, two to four hours is recommended, and anything beyond five hours provides diminishing returns since the cast iron block reaches a thermal equilibrium with the surrounding air.
Using a heavy-duty outdoor timer rated for at least 1500 watts is the most practical approach. Set it to turn on three to four hours before your scheduled departure time. WiFi-enabled smart plugs are also popular among diesel owners because they allow remote activation from a phone, which is handy when your schedule changes on short notice.

Does every 5.9 Cummins come with a block heater from the factory?

Most 5.9L Cummins engines left the factory with the 750-watt heating element already threaded into the block on the passenger side. However, many trucks, especially those originally sold in southern states, did not come with the power cord included. The element is there under a rubber cap, but you need to purchase and plug in a block heater cord separately.
If you bought a used 5.9 Cummins truck and cannot find a cord routed through the grille area, check behind the oil filter on the passenger side for the capped heater port. If the element is present, all you need is a replacement cord to get block heating functionality. If the element itself is missing or corroded beyond use, a complete heater kit including both the element and cord is the correct fix.

How do I install a block heater cord on a 5.9 Cummins?

Installing a block heater cord on the 5.9L Cummins is a straightforward job that takes about 30 minutes with basic hand tools. First, locate the heater element on the passenger side of the block, behind the oil filter housing. Remove the rubber cap or old cord from the element, then push the new cord terminal firmly onto the element prong until it seats with a positive click.
Route the cord down along the frame rail and through the opening near the passenger-side tow hook or lower grille opening. Secure the cord with zip ties away from the exhaust manifold, moving belts, and sharp edges. No sealant is required on the electrical connection, as the terminal is designed for a dry push-on fit. Reconnect the battery if you disconnected it, plug the cord into a standard 120V outlet, and verify that the element is warming by checking the cord for slight warmth after 10 minutes.

Can I start my 5.9 Cummins without a block heater in cold weather?

Yes, the 5.9L Cummins can cold-start without a block heater thanks to its compression ignition design and the factory grid heater that warms incoming air during the preheat cycle. The grid heater cycling is what causes the voltage drop you see on the dash gauge during cold starts, and it helps the engine fire even when the block is ice cold.
However, skipping the block heater in sub-freezing temperatures increases wear on the starter, batteries, piston rings, and main bearings during those first critical seconds before oil pressure builds. Extended cranking also dumps unburned fuel into the cylinders, which washes oil off the cylinder walls and dilutes the crankcase oil over time. Using the block heater is cheap insurance against premature engine wear, and it gets warm air flowing from the dash vents much faster on those brutal winter mornings.

How do I replace a failed block heater element on a 5.9 Cummins?

To replace the block heater element on a 5.9L Cummins, start by draining the engine coolant below the level of the heater port on the passenger side of the block. Remove the air intake box and turbo inlet tube for better access to the element behind the oil filter housing. Disconnect the power cord from the old element, then use a deep socket or wrench to unscrew the element from the block.
Thread the new 750-watt element into the block by hand first to avoid cross-threading, then torque it snug. Do not overtighten, as the brass threads can strip easily in the cast iron block. Reconnect the power cord, reinstall the air box and intake tube, refill the coolant, and run the engine to check for leaks around the new element before you button everything up.

Is the block heater the same for the 5.9 Cummins and 6.7 Cummins?

The block heater cord is shared between the 5.9L and 6.7L Cummins platforms, which is why many replacement cords list fitment from 1989 through 2021. The cord uses the same push-on terminal design and routes through the same general area on both engines.
The heating element itself, however, can vary between the 5.9L and 6.7L in terms of thread size and wattage depending on the model year. The 5.9L uses a 750-watt element as standard, while some 6.7L applications use a 1000-watt element. Always verify the specific element part number for your engine displacement and year range before ordering, or contact our 24/7 live support team for fitment confirmation.

Are block heater upgrades legal for street-driven diesel trucks?

Block heater elements and replacement cords are standard maintenance components, not emissions modification devices, and are legal for use on street-driven diesel trucks in all 50 states. A block heater does not alter the emissions system, fuel delivery, or engine tuning in any way; it simply warms the engine coolant to aid cold starting.
However, some products in our catalog, such as EGR delete kits, DPF delete kits, and performance tuners, are designed and sold for competition and closed-course off-road use only. These off-road products are not legal for use on public roads or registered vehicles in jurisdictions that enforce emissions regulations. EGR Performance provides free shipping on all orders, a one-year warranty against manufacturing defects, and a 45-day return policy so you can shop with confidence.
