5.9 Cummins Head Studs

Why Does Your 5.9 Cummins Need a Head Stud?

OEM Head Bolts Are Torque-to-Yield and Cannot Be Reused

The factory head bolts on every 5.9 Cummins engine are torque-to-yield fasteners, designed to stretch permanently when installed to their spec of 89 ft-lbs plus a 90-degree turn. The moment you remove the cylinder head for a gasket replacement, valve job, or any internal engine work, those bolts are done. Reinstalling them invites uneven clamping, poor seal compression, and a head gasket failure that will leave you stranded. Upgraded head studs eliminate this problem entirely because they are reusable, providing consistent clamping force through multiple teardowns and rebuilds.

Cylinder Head Lift Under High Boost Pressure

When you push a 5.9 Cummins past 38 to 40 psi of boost, whether from a larger single turbo, compounds, or an aggressive tune, the combustion pressure inside each cylinder starts overwhelming the factory head bolt clamping force. The cylinder head physically lifts off the block deck during each power stroke, breaking the fire ring seal on the head gasket. You will see coolant loss, white smoke from the exhaust, and compression escaping into the cooling system. ARP head studs, with their 220,000 to 280,000 psi tensile ratings, provide the additional clamping force needed to keep the head planted under extreme cylinder pressure.

Thermal Fatigue and Uneven Clamping Patterns

Head bolts apply clamping force with a twisting motion, which creates lateral stress on the bolt and uneven pressure distribution across the cylinder head. Over thousands of heat cycles, especially on trucks that tow heavy in hot climates, this twisting fatigue weakens the bolt and distorts the clamping pattern. Studs, by contrast, clamp with pure tension. You thread the stud finger-tight into the block, then torque the nut down with zero twisting force on the stud body. The result is a more even, durable clamping pattern that holds up through years of thermal cycling.

What Can a Head Stud Solve?

Blown Head Gasket Prevention and Repair

A failed head gasket on a 5.9 Cummins means coolant in the oil, compression in the cooling system, and an engine that overheats under any load. When you replace that gasket, you need fasteners that clamp harder and more evenly than the factory bolts that failed in the first place. Head studs provide 30 to 70 percent more clamping force than OEM torque-to-yield bolts, compressing the head gasket fire rings fully and evenly across all six cylinders. This prevents repeat gasket failures and gives you head retention you can trust at any power level.

Reusable Fasteners for Repeated Engine Teardowns

Unlike factory bolts that go in the trash after a single use, quality head studs can be removed and reinstalled multiple times without losing their clamping integrity. For anyone building a competition truck, doing frequent valve adjustments, or running through multiple turbo and fueling upgrades, this reusability saves money and time over the life of the engine. ARP 625+ studs in particular are rated for repeated use at their full torque spec of 150 ft-lbs, making them the preferred choice for high-mileage competition engines.

Shop Head Studs by Dodge RAM Engine & Fitment Guide

• Head Stud Replacement Kit for Cummins 5.9L / 6.7L - Fits 5.9L 24-valve and 6.7L Cummins in Dodge Ram 2500 / 3500 (1998 through 2018). Direct replacement head stud kit with hardened washers and precision-matched nuts, delivering ARP 2000-grade tensile strength for boosted and towing applications.
• Cylinder Head Stud Bolt Nuts Kit for 5.9L / 6.7L Cummins - Fits 5.9L 24-valve and 6.7L Cummins in Dodge Ram 2500 / 3500 (1998 through 2021). Complete head retention kit including studs, bolts, and nuts for full cylinder head service, compatible with both VP44 and common rail fuel system engines.

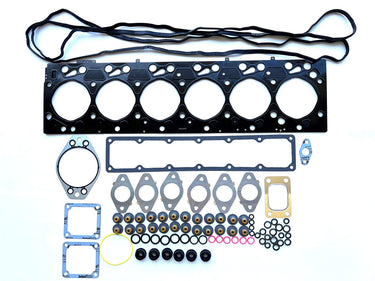

• Cylinder Head Gasket Set for 5.9L Cummins - Fits 5.9L common rail Cummins in Dodge Ram 2500 / 3500 (2003 through 2006). Multi-layer steel head gasket set designed to pair with upgraded head studs for maximum combustion seal integrity under high boost and sustained heavy towing loads.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What are the best head studs for a 5.9 Cummins?

The best head studs for a 5.9 Cummins depend on your power goals and how hard you work the truck. ARP head studs are the industry standard, available in two primary grades: ARP 2000 material rated at 220,000 psi tensile strength and Custom Age 625+ rated at 280,000 psi tensile strength.
For most street and moderate towing builds on the 5.9, ARP 2000 studs (part number 247-4202 for 24-valve, 247-4203 for 12-valve) provide more than enough clamping force to prevent head gasket failures.
If you are running compound turbos, pushing past 50 psi of boost, or building a competition truck, the ARP 625+ studs deliver the highest tensile rating and can be reused across multiple engine rebuilds without losing clamp integrity.

Do I really need head studs on a 5.9 Cummins?

If your 5.9 Cummins is stock or lightly modified with a mild tune, the factory head bolts are adequate for normal driving and moderate towing. The 5.9 Cummins is not notorious for blowing head gaskets the way the 6.7 Cummins is, so studs are not mandatory on a stock truck.
However, once you exceed approximately 38 to 40 psi of boost with a larger turbo, injector upgrade, or aggressive tuning, the factory torque-to-yield bolts can no longer maintain sufficient clamping force under peak cylinder pressure.
Studs also become necessary any time you remove the cylinder head, because the factory bolts are single-use and cannot be safely reinstalled.

What is the torque spec for ARP head studs on a 5.9 Cummins?

ARP 2000 head studs on the 5.9 Cummins require a final torque of 125 ft-lbs using ARP Ultra-Torque Fastener Assembly Lubricant. ARP 625+ studs require a final torque of 150 ft-lbs with the same lubricant.
Both grades must be torqued in three equal incremental steps following the factory Cummins cylinder head torque sequence, working from the center of the head outward in a spiral pattern.
For ARP 2000 studs, the steps are roughly 42 ft-lbs, then 84 ft-lbs, then 125 ft-lbs. For ARP 625+ studs, the steps are 50 ft-lbs, 100 ft-lbs, and 150 ft-lbs.
Never use motor oil or any lubricant other than the ARP Ultra-Torque lube, as the torque specs are calibrated specifically for that product and using something else will give you incorrect clamping force.

Can I install head studs without removing the cylinder head on a 5.9 Cummins?

Yes, you can install head studs on a 5.9 Cummins without removing the cylinder head using a one-at-a-time method. You remove one factory head bolt, thread the stud into the block finger-tight, install the washer and nut, and torque it to spec, then repeat this for each bolt working in the correct sequence.
This method is commonly used as a preventive upgrade on engines that are running fine but need more clamping force for higher boost levels.
However, if you already have a blown head gasket or suspect cylinder head damage, the head must come off for proper inspection, deck surface prep, and a fresh gasket. Installing studs without addressing a damaged gasket will not fix the underlying problem.

What is the difference between ARP 425 and ARP 625 head studs for 5.9 Cummins?

ARP 425 studs, also known as ARP 2000 material, are rated at approximately 220,000 psi tensile strength and torque to 125 ft-lbs. ARP 625+ studs, made from Custom Age 625+ alloy, are rated at approximately 280,000 psi tensile strength and torque to 150 ft-lbs.
The 625+ material offers significantly higher fatigue resistance and can be reused multiple times at full torque spec, whereas the ARP 2000 studs have more limited reusability.
For most 5.9 Cummins builds making moderate power, the ARP 425 studs are sufficient because the 5.9 is not as prone to head gasket issues as the 6.7.
The 625+ studs are the preferred choice for extreme competition builds, high-boost compound turbo setups, and any application where you plan to tear the engine down multiple times and want studs that hold up through repeated cycles.

Are 12-valve and 24-valve 5.9 Cummins head studs the same?

No, 12-valve and 24-valve 5.9 Cummins head studs are not interchangeable. The 12-valve engines from 1989 through early 1998 use a different cylinder head casting that requires three different stud lengths in the same kit.
The 24-valve engines from mid-1998 through 2007 use only two stud lengths due to the different head design. ARP assigns different part numbers to each: part 247-4203 for the 12-valve and part 247-4202 for the 24-valve.
If you try to install a 24-valve stud kit on a 12-valve engine, or vice versa, the studs will not seat correctly and you will not achieve proper clamping force. Always verify your engine year and valve count before ordering a head stud kit.

At what boost level do I need head studs on a 5.9 Cummins?

Most experienced builders and diesel shops recommend upgrading to head studs once you exceed 38 to 40 psi of boost on a 5.9 Cummins. Below that threshold, the factory torque-to-yield head bolts generally maintain adequate clamping force with a proper tune.
Around 50 to 60 psi, which is common with compound turbo setups or large single turbos with aggressive fueling, head studs become critical. At those pressures, the combustion force during each power stroke can physically lift the cylinder head off the block deck with factory bolts.
If you are planning to run twins or push past 50 psi, most builders skip the ARP 2000 studs entirely and go straight to the ARP 625+ for the maximum clamping reserve and reusability.

How do I install ARP head studs on a 5.9 Cummins?

Start by cleaning and chasing all threads in the block with a thread chaser before installing any studs. Apply ARP Ultra-Torque Fastener Assembly Lubricant to both ends of each stud and the underside of each nut.
Thread each stud into the block finger-tight only. Do not use a wrench or socket to tighten the studs themselves, as over-tightening the stud into the block can distort the threads and affect clamping accuracy.
Install the cylinder head, then place the hardened washers and nuts over the studs. Torque the nuts in three equal steps following the factory Cummins torque sequence, starting from the center and working outward.
For ARP 2000 studs, torque to 42 ft-lbs, then 84 ft-lbs, then 125 ft-lbs. For ARP 625+ studs, torque to 50 ft-lbs, 100 ft-lbs, then 150 ft-lbs. Many experienced builders recommend loosening and re-torquing three to four times to ensure proper stud seating.

Are head studs legal for street-driven 5.9 Cummins trucks?

Head studs themselves are generally considered a mechanical fastener upgrade and do not alter emissions equipment. However, head stud installations are often performed in conjunction with other modifications such as EGR deletes, DPF removal, or performance tuning that may not comply with local, state, or federal emissions regulations.
Any emissions-related modifications, including those performed alongside head stud installation, are intended for competition and closed-course off-road use only. It is the owner's responsibility to verify compliance with all applicable laws and regulations in their jurisdiction.
Head studs purchased from EGR Performance are covered by our one-year warranty and free shipping policy. We also offer a 45-day return policy if you need to exchange or return your kit for any reason.

Can I reuse ARP head studs on a 5.9 Cummins?

ARP 625+ head studs are designed for multiple reuse cycles at their full torque specification of 150 ft-lbs without losing clamping integrity. This makes them the preferred choice for competition engines that undergo frequent teardowns.
ARP 2000 head studs can also be reused, but with more caution. ARP recommends inspecting the studs carefully for any signs of thread deformation, stretching, or fatigue before reusing them. If any stud shows visible wear or the threads do not thread smoothly, replace it.
Factory torque-to-yield head bolts, by contrast, must never be reused. They are designed to stretch permanently during the initial installation and will not provide adequate clamping force if reinstalled. Always discard used OEM head bolts and replace them with studs or new bolts.
