What does the intercooler do on a 5.9 Cummins?
The intercooler on a 5.9 Cummins is an air-to-air heat exchanger mounted in the front of the truck between the grille and the radiator. After the turbocharger compresses the intake air, that compressed air gets extremely hot, often exceeding 300 degrees Fahrenheit, before it enters the intercooler.
As the hot compressed air flows through the intercooler core, it passes through rows of aluminum fins and tubes that are cooled by the ambient air flowing through the grille as you drive.
The cooled, denser air then exits the intercooler and enters the intake manifold, where the higher oxygen density allows the engine to burn fuel more completely, producing more power and running cooler than it would with hot, less-dense intake air.
How do I know if my 5.9 Cummins intercooler boot is blown?
The most obvious sign of a blown intercooler boot on a 5.9 Cummins is a sudden and dramatic loss of engine power while driving, especially under acceleration or load. You will likely hear a loud whooshing or hissing sound coming from under the hood as pressurized air escapes from the torn or disconnected boot.
Other symptoms include a significant increase in exhaust gas temperature, black smoke from the tailpipe due to over-fueling, and the turbo sounding louder than normal because it is spinning freely without building boost pressure.
If you inspect under the hood, you may find a boot that has slipped off its pipe, a boot with a visible tear or split along the reinforcement ribs, or oil residue sprayed around the connection point where the boost pressure escaped.
What are the symptoms of a cracked intercooler pipe on a Dodge Ram 2500?
A cracked intercooler pipe on a Dodge Ram 2500 with the 5.9 Cummins will typically cause a slow but persistent loss of boost pressure that gets worse over time as the crack expands from thermal cycling. You may notice the truck feels sluggish under acceleration, the turbo seems to spool longer before making power, and your exhaust gas temperatures are running higher than normal during towing or hard driving.
In many cases, a cracked pipe will produce a high-pitched whistling or hissing sound under boost, which is the compressed air escaping through the crack. The sound is often most noticeable at partial throttle when the turbo is building boost but the engine RPM is low enough to hear it.
You might also see a thin film of oil residue around the crack location, since the crankcase vapors that pass through the intercooler system carry oil mist that gets blown out through any opening in the pressurized system.
What is the best intercooler pipe kit for a 5.9 Cummins?
The best intercooler pipe kit for a 5.9 Cummins is one that uses mandrel-bent T304 stainless steel tubing with consistent wall thickness through every bend, paired with multi-layer reinforced silicone boots and constant-tension T-bolt clamps. This combination provides the durability to handle high boost pressures without cracking or blowing off, while maintaining smooth internal airflow for optimal turbo efficiency.

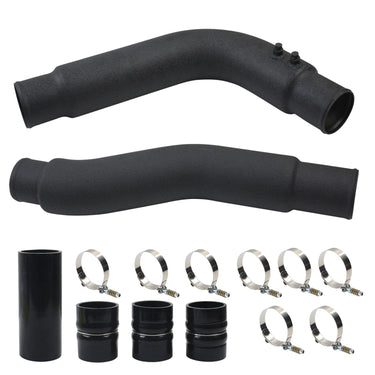

For 2003-2007 Dodge Ram 2500 and 3500 trucks, a complete intercooler pipe and boot kit replaces all the failure-prone OEM components in one package, giving you new piping and fresh boots at every connection point.
For 1994-2002 trucks, a dedicated 2.75-inch mandrel-bent pipe kit with separate reinforced silicone boots addresses the specific fitment requirements of the 2nd generation intercooler layout while eliminating the common cracking issues with the factory thin-wall pipes.
Will upgrading my 5.9 Cummins intercooler piping lower EGTs?
Yes, upgrading your 5.9 Cummins intercooler piping can lower exhaust gas temperatures by eliminating boost leaks that force the turbo to work harder to maintain target pressure. When your intercooler pipes and boots are cracked, split, or leaking, the turbo has to spin faster and generate more heat to compress enough air to make up for what is escaping through the leaks.
By sealing every connection with mandrel-bent stainless pipes and reinforced silicone boots, the turbo reaches target boost with less effort, which means the compressed air is cooler when it enters the intercooler.
Most truck owners report EGT reductions of 50 to 150 degrees after fixing all boost leaks with a quality intercooler pipe and boot kit, especially when towing heavy loads. The intercooler can then do its job more effectively, and the result is denser, cooler air entering the intake manifold.
How often should I replace the intercooler boots on my 5.9 Cummins?
Most diesel technicians recommend inspecting the intercooler boots on a 5.9 Cummins every 30,000 to 50,000 miles and replacing them proactively every 60,000 to 80,000 miles, even if they look fine externally. The rubber compounds in the OEM boots degrade from heat, oil exposure, and pressure cycling long before visible cracking appears on the outside surface.
If you tow regularly, run an upgraded turbo, or operate in extreme heat, you should inspect the boots more frequently, as the hot-side boot between the turbo and intercooler sees the highest temperatures and degrades fastest.
Replacing the boots before they fail is far less expensive and inconvenient than having a boot blow off on the highway with a loaded trailer behind you. Upgrading to reinforced silicone boots at the time of replacement extends the service life significantly compared to OEM rubber.
What size is the intercooler pipe on a 1994-2002 5.9 Cummins?
The factory intercooler pipes on a 1994-2002 Dodge Ram 2500 and 3500 with the 5.9 Cummins use a 2.75-inch outside diameter on both the hot side and cold side piping. This diameter is consistent across the entire 2nd generation production run, from the 1994 intercooled 12-valve trucks through the 2002 model year 24-valve trucks.
When shopping for an aftermarket intercooler pipe kit for these trucks, make sure the replacement pipes are also 2.75 inches in diameter to match the factory intercooler inlet and outlet sizes. Mandrel-bent tubing in this diameter maintains the full internal cross-section through every bend, unlike the factory pipes which can have slight restrictions at the bend points.
Can I install an intercooler pipe and boot kit myself on a Dodge Ram 3500?
Yes, installing an intercooler pipe and boot kit on a Dodge Ram 3500 with the 5.9 Cummins is a straightforward job that most owners can handle in their driveway with basic hand tools. You will need a set of standard wrenches or sockets, a pair of pliers for the clamp springs, and possibly a pick or small flathead to help remove the old boots from the pipes.
The process involves loosening the clamps on each boot, removing the old pipes and boots, cleaning the intercooler and turbo connection points of any oil residue, and then installing the new pipes and boots with the supplied T-bolt clamps.
Plan on about one to two hours for the complete installation. Take care to align each boot squarely on its pipe before tightening the clamps, and double-check that every connection is fully seated before starting the engine.
Are 5.9 Cummins intercooler pipe upgrades legal for street use?
Intercooler pipe and boot replacement kits are generally considered maintenance and repair items, since they replace worn or failed factory components with upgraded versions that serve the same function. However, any modifications to the emissions or engine control systems on your 5.9 Cummins should be evaluated for compliance with your local, state, and federal regulations.
Some intercooler and intake modifications are designed for competition and closed-course off-road use only, and may not be legal for use on public roads in jurisdictions with emissions testing or specific air quality regulations. Always check your local laws before installing any performance upgrade on a street-driven vehicle.
EGR Performance ships all intercooler pipe and boot kits with free shipping, a 45-day return policy, and a one-year warranty.
What is the turbo to intercooler hose on a 5.9 Cummins and when should it be replaced?
The turbo to intercooler hose, also called the hot-side intercooler boot, is the silicone or rubber connector that bridges the gap between the turbocharger compressor outlet and the intercooler inlet on the 5.9 Cummins. This is the highest-stress boot in the entire intercooler system because it carries the hottest, highest-pressure air coming directly out of the turbo compressor before any cooling occurs.
This boot should be replaced immediately if you notice any swelling, cracking, or oil seepage along the surface, as these are signs that the material is degrading and a blow-off is imminent. It should also be replaced whenever you install a new turbo or change the boost level, since the old boot has already been heat-formed to the previous operating conditions.
Upgrading the turbo to intercooler hose to a multi-layer reinforced silicone boot is one of the most effective preventive maintenance steps you can take on a 5.9 Cummins, especially on trucks that tow heavy or run higher than stock boost levels.
