What does the vacuum pump do on a 5.9 Cummins?
The vacuum pump on a 5.9L Cummins diesel generates the vacuum pressure needed to operate the power brake booster, cruise control servo, HVAC blend door actuators, and the Jacobs exhaust brake actuator on 2003-2007 models.
On 1991-2002 trucks, the vacuum pump is integrated with the power steering pump and driven by the timing gear train, while 2003-2007 exhaust brake trucks use a separate belt-driven vacuum pump mounted on the front of the engine with its own pulley and sealed bearing assembly. Without a functioning vacuum pump, you lose brake assist, the cruise control stops engaging, the HVAC defaults to defrost only, and the exhaust brake will not actuate.
Every one of those systems depends on consistent vacuum pressure to operate correctly, which is why a failing vacuum pump affects so many different functions at the same time.
Where is the vacuum pump located on a 5.9 Cummins?
On 1991.5-2002 Dodge Ram 5.9L Cummins trucks, the vacuum pump is bolted to the rear of the power steering pump on the driver side of the engine block near the timing gear housing. The two pumps share a common shaft driven by the timing gear train, and the vacuum pump section is the rearmost portion of that assembly.
On 2003-2007 models with the Jacobs exhaust brake, the vacuum pump is a separate belt-driven unit mounted on the front of the engine with its own pulley and a dry sealed bearing behind it. To access the vacuum pump on the older trucks, you remove the power steering pump as a complete assembly from the timing cover and then separate the two pump halves on the bench.
The seal kit addresses the leak point where the shared shaft passes through the vacuum pump housing, which is the most common oil leak location on these engines.
What are the symptoms of a failing 5.9 Cummins vacuum pump?
The most obvious sign is a hard brake pedal that requires significantly more foot pressure to stop the truck, which means the power brake booster has lost its vacuum supply. You may also notice the cruise control refusing to engage, the HVAC system blowing only from the defrost vents, and on 2003-2007 trucks the exhaust brake failing to activate when you press the switch.
Oil leaking from the vacuum pump area is another common symptom, especially on the 1991-2002 models where the shaft seal degrades over time and allows engine oil to seep past the housing. In some cases you will hear a hissing sound from vacuum leaks in the lines between the pump and the brake booster.
A vacuum gauge test reading below 15 inches of mercury at idle confirms the pump has lost efficiency and needs a reseal kit or full replacement depending on the model year.
How do I know if my 5.9 Cummins vacuum pump seal is leaking?
Check for oil seepage around the junction between the vacuum pump and the power steering pump on the driver side of the engine. On the 1991-2002 models, the leak originates from the shaft seal where the power steering shaft passes through the vacuum pump housing. You will see oil weeping from the seam between the two pump halves or running down the side of the engine block.
Pulling the vacuum line off the pump and finding oil inside the hose confirms that the internal seals have failed and are allowing engine oil to enter the vacuum chamber. A vacuum gauge test provides definitive confirmation; if the pump is not pulling at least 15 inches of mercury at idle, the shaft seal and O-rings are compromised and the pump needs a reseal kit or full replacement.
Can I rebuild my 5.9 Cummins vacuum pump instead of replacing it?
Yes, on the 1991-2002 models the vacuum pump can be rebuilt using a seal kit that includes new Viton O-rings, a precision shaft seal, and the gasket between the power steering pump and vacuum pump sections. The Cummins OEM reseal kit part number 4089742 covers 1994-2002 applications and is a straightforward bench job with basic hand tools.
The rebuild process involves removing the pump assembly from the truck, separating the vacuum pump from the power steering pump, and carefully pressing out the old seal using a small punch or screwdriver. For the 2003-2007 exhaust brake vacuum pumps, full replacement is typically more practical since the belt-driven unit uses sealed bearings that are not individually serviceable.

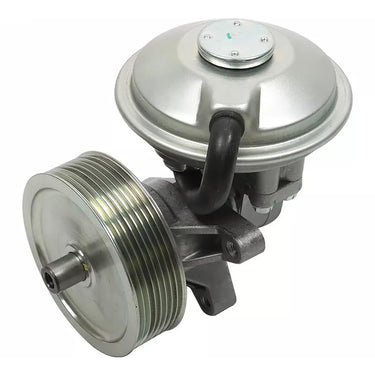

The mechanical vacuum pump in our collection is a direct bolt-on replacement for the factory Jacobs exhaust brake pump on the 2003-2007 trucks and also fits the early 6.7L Cummins through 2009.
What is included in a 5.9 Cummins vacuum pump seal kit?
A complete vacuum pump seal kit for the 5.9L Cummins includes a precision molded dual lip oil seal for the power steering shaft, two high temperature Viton O-rings for the vacuum passages, and a gasket that seals between the vacuum pump and power steering pump housings. The oil seal is the most critical component because it sits at the junction where the power steering shaft enters the vacuum pump, and that is where 90 percent of vacuum pump leaks originate on these engines.
The Viton O-rings seal the vacuum passages between the two pump halves and resist chemical breakdown from engine oil exposure over extended service intervals. The mounting gasket prevents oil from weeping between the machined surfaces where the two pump sections bolt together.
All sealing components in our kit are manufactured to OEM dimensional tolerances and tested for proper fit before packaging.
How does the vacuum pump affect the exhaust brake on a 5.9 Cummins?
On 2003-2007 Dodge Ram 5.9L Cummins trucks with the factory Jacobs exhaust brake, the vacuum pump actuates the exhaust brake diaphragm that closes the butterfly valve in the exhaust system. When you flip the exhaust brake switch, a solenoid opens and routes vacuum from the pump to the diaphragm, which closes the valve and creates backpressure for engine braking.
If the vacuum pump fails or loses capacity, the exhaust brake will not engage or will only partially close, leaving you without engine braking when you need it most. This is especially dangerous when towing heavy loads downhill because you lose the engine braking that supplements your service brakes.
The belt-driven vacuum pump on these trucks has a dry sealed bearing behind the pulley, and when that bearing wears out the pump efficiency drops until the exhaust brake becomes unreliable.
Why does my 5.9 Cummins lose cruise control when the vacuum pump fails?
The cruise control servo on the 5.9L Cummins Dodge Ram operates on vacuum pressure supplied by the vacuum pump. When the pump develops a leak or loses sealing capacity from worn internal components, the vacuum supply to the cruise control servo drops below the threshold needed to maintain throttle position. The servo cannot hold vacuum and the cruise control disengages or refuses to set in the first place.
This is actually one of the earliest warning signs of a vacuum pump problem, often appearing before the brake pedal gets hard or the HVAC starts malfunctioning. If your cruise control starts cutting out intermittently, check the vacuum lines for cracks or loose connections first, then test the vacuum pump output with a gauge to determine if the pump itself is the source of the problem.
What causes the vacuum pump to leak oil on a 5.9 Cummins?
The primary cause is wear on the shaft seal where the power steering pump shaft passes through the vacuum pump housing. After hundreds of thousands of miles of continuous rotation, the rubber seal lip wears a groove into the shaft surface and engine oil starts migrating past the seal into the vacuum chamber. Heat cycles, contaminated oil, and age related hardening of the Viton seal material all accelerate this wear process over time.
The O-rings that seal the vacuum passages between the pump halves also harden and crack over thousands of thermal cycles, allowing oil to migrate into the vacuum chamber and through the vacuum lines to the brake booster. On high mileage engines, excessive crankcase blow-by can pressurize the system and force additional oil past already worn seals, turning what was a minor seep into a significant oil leak that covers the side of the engine block and drips onto the ground.
Are these vacuum pump parts legal for street driven 5.9 Cummins trucks?
The vacuum pump parts in this collection are direct OEM specification replacement components designed to restore factory vacuum system function on your 5.9L Cummins diesel. These are maintenance and repair items that keep your brake booster, cruise control, HVAC, and exhaust brake operating as the manufacturer intended. However, all products from EGR Performance are intended for competition and closed-course off-road use only; customers should verify local regulations before installation as fitment requirements and compliance obligations vary by jurisdiction.
EGR Performance backs every vacuum pump product with free shipping on all orders, a 45-day return policy for risk-free shopping, and a one-year warranty against manufacturing defects. If you have fitment questions about your specific truck, our 24/7 live support team can help you select the correct vacuum pump or seal kit for your 5.9L Cummins application.
