6.0 Powerstroke Coolant Filtration

Why Does Your 6.0 Powerstroke Need a Coolant Filtration System?

The Root Cause of 6.0 Powerstroke Cooling System Failures

The 6.0L Powerstroke diesel engine has a well-documented weakness in its cooling system. The oil cooler uses a stacked-plate design with extremely narrow coolant passages that are easily clogged by debris, casting sand left from the manufacturing process, rust particles, and degraded coolant solids. The factory-fill Motorcraft Premium Gold coolant is also known to drop particulates and form silicate gel over time, adding to the debris load. When these passages become restricted, coolant flow to the oil cooler drops, causing the oil temperature to rise above the coolant temperature. When the temperature delta between oil and coolant exceeds 15 degrees Fahrenheit, it is a clear warning that the oil cooler is failing and will soon need replacement.

A plugged oil cooler has a cascading effect on the 6.0 Powerstroke. Since the EGR cooler receives its coolant supply directly from the oil cooler, reduced flow through a clogged oil cooler starves the EGR cooler of coolant. The EGR cooler then overheats, cracks internally, and allows coolant to enter the intake manifold. This is the classic failure sequence that leads to white smoke, coolant loss, and potentially catastrophic engine hydro-lock. A 6.0 coolant filtration system addresses the root cause by removing contaminants before they can plug these critical passages.

Many 2003 to 2007 Ford F250 and F350 owners have experienced repeated oil cooler failures even after using the correct Motorcraft gold coolant and performing flushes. The reason is simple: without inline filtration, the same contaminants that caused the first failure remain in the system and eventually plug the new cooler. Installing a coolant filter kit breaks this cycle by keeping the coolant clean over the long term, protecting your investment in replacement coolers and associated components.

The failure chain on the 6.0 Powerstroke follows a predictable pattern. Casting sand and debris left in the engine block from the factory circulate through the coolant system and gradually plug the oil cooler's narrow passages. This restricts coolant flow to the EGR cooler, which then overheats and ruptures, allowing coolant into the intake and cylinders. In the worst cases, this leads to blown head gaskets and catastrophic engine damage. A coolant filtration system stops this chain at the very first link by removing the debris before it can cause any blockages.

What Can a 6.0 Powerstroke Coolant Filter Kit Solve?

Continuous Coolant Cleaning and Contaminant Removal

A 6.0 Powerstroke coolant filtration system operates by diverting a small portion of the engine's coolant flow through an external filter element before returning it to the system. The filter media captures particles as small as a few microns, including casting sand, rust flakes, silica deposits, degraded coolant additives, and metal shavings. Over the first few hundred miles after installation, the filter typically collects a significant amount of debris that has been circulating in the system since the truck was built. Regular filter element replacements keep the coolant progressively cleaner with each service interval, extending the life of every component the coolant touches.

Replacement filter elements are widely available and affordable. Common cross-reference part numbers include Wix 24070, Donaldson P554685, Baldwin B5134, and Fleetguard WF2077. Always use a non-charged, non-SCA filter element to avoid overdosing your coolant with additives.

Oil Cooler and EGR Cooler Protection

By keeping the coolant free of debris, a coolant filtration kit directly protects the narrow passages inside the 6.0 Powerstroke oil cooler and EGR cooler from becoming restricted. Clean coolant flows freely through the oil cooler, maintaining proper heat exchange and keeping the oil-to-coolant temperature delta within the safe range below 15 degrees. This prevents the overheating cascade that destroys EGR coolers and forces expensive repairs. For owners who have already replaced their oil cooler or installed an EGR delete, a coolant filter is the single most important upgrade to prevent the same failure from happening again.

Long-Term Engine Protection and Lower Maintenance Costs

The cost of a 6.0 Powerstroke oil cooler replacement, including parts and labor, can be high, and EGR cooler failures are even more expensive. Repeated failures compound these costs rapidly. A coolant filtration system kit is a fraction of that cost and works continuously to prevent the contamination that causes these failures. The filter elements are inexpensive and easy to replace during routine maintenance, making ongoing protection affordable. For any 6.0 diesel owner planning to keep their truck for the long haul, a coolant filtration kit pays for itself many times over in avoided repair bills.

Shop 6.0 Powerstroke Coolant Filtration by Ford Engine and Fitment Guide

• Coolant Filtration Filter System Kit for 6.0L Powerstroke, fits 2003-2007 Ford F250, F350, F450, F550 Super Duty
• Coolant Filtration Filter and Eliminator Spool Kit with Bolts and O-Rings for 6.0L Powerstroke, fits 2003-2007 Ford F250, F350, F450, F550 Super Duty

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality and Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts; we live this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

Frequently Asked Questions About 6.0 Powerstroke Coolant Filtration

Q1: What does a coolant filtration system do for a 6.0 Powerstroke?

A coolant filtration system on the 6.0L Powerstroke continuously filters debris, casting sand, rust particles, and degraded coolant solids from the engine coolant as it circulates. By capturing these contaminants in an external spin-on filter element, the system prevents them from clogging the narrow passages inside the oil cooler and EGR cooler.

This is critically important for the 6.0 diesel because the factory cooling system has no inline filtration whatsoever. Without a coolant filter kit, contaminants circulate indefinitely and gradually restrict coolant flow through the oil cooler, which is the root cause of the oil cooler and EGR cooler failures that the 6.0 Powerstroke is known for.

Q2: How often should I change the coolant filter on my 6.0 Powerstroke?

For the first filter element after installation, we recommend replacing it at approximately 500 to 1,000 miles. The initial filter will collect a large amount of debris that has been circulating in the system, sometimes filling the element quickly depending on the condition of your coolant.

After the first replacement, subsequent filter elements can be changed at every 5,000 to 10,000 mile interval, or at every oil change for convenience. As the system becomes progressively cleaner over time, you may notice less debris in each spent filter element. This is a good sign that the coolant filtration system is doing its job and your cooling system is staying clean.

Q3: Will a coolant filter prevent oil cooler failure on the 6.0 Powerstroke?

Yes, a coolant filtration system is one of the most effective preventative measures you can take against 6.0 Powerstroke oil cooler failure. The oil cooler fails because debris in the coolant plugs its narrow internal passages, reducing coolant flow and causing overheating. A coolant filter kit removes that debris before it can cause blockages.

If your oil cooler has already failed or is showing a temperature delta above 15 degrees between oil and coolant, you will need to replace the cooler first, then install the coolant filtration system to keep the new cooler from suffering the same fate. Many owners who skip the filter end up replacing their oil cooler repeatedly because the underlying contamination was never addressed.

Q4: Can I install a coolant filtration kit myself on my 6.0 Powerstroke?

Yes, installing a coolant filtration kit on a 6.0L Powerstroke is a straightforward project that can be completed with basic hand tools in about one to two hours. The kit mounts to a convenient location in the engine bay, and the coolant lines tap into existing coolant passages using the supplied fittings and hoses.

The installation process involves selecting a mounting location, securing the filter bracket, routing the coolant hoses to the tapped ports, and filling the system. After installation, check for leaks and top off the coolant level. Our kits include detailed instructions, and our 24/7 live support team is available if you need assistance during the install.

Q5: Do I need a coolant filter if I have already done an EGR delete on my 6.0?

Yes, a coolant filtration system is still highly recommended even after an EGR delete. The EGR delete removes the EGR cooler from the equation, but the oil cooler remains just as vulnerable to contamination and clogging. In fact, protecting the oil cooler becomes even more important after an EGR delete because the oil cooler is still a critical component for engine cooling.

Many 6.0 Powerstroke owners make the mistake of thinking the EGR delete solves all cooling issues. While it eliminates the EGR cooler as a failure point, the root cause of contaminated coolant is still present. Installing a coolant filter kit after your EGR delete ensures the oil cooler stays clean and functional for the long term.

Q6: What is the difference between the coolant filtration system kit and the filtration kit with eliminator spool?

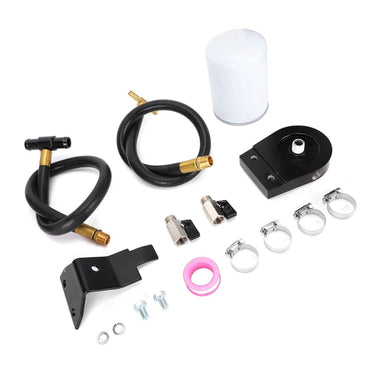

The standard coolant filtration system kit includes the filter housing, mounting bracket, filter element, hoses, and fittings needed to add inline coolant filtration to your 6.0 Powerstroke. This is the ideal choice for owners who want to add filtration as a standalone upgrade or who already have an EGR delete installed.

The coolant filtration kit with eliminator spool includes everything from the standard kit plus an EGR valve eliminator spool with bolts and O-rings. This is designed for owners who are performing an EGR valve delete and want to add coolant filtration at the same time. The eliminator spool replaces the EGR valve and seals the opening, completing the delete while the filtration system protects the cooling system going forward.

Q7: What are the symptoms of a clogged oil cooler on a 6.0 Powerstroke?

The most reliable symptom of a clogged oil cooler on the 6.0L Powerstroke is a temperature difference of more than 15 degrees Fahrenheit between the engine oil temperature and engine coolant temperature, which you can monitor on the dashboard or with an aftermarket gauge. When the oil runs significantly hotter than the coolant, the oil cooler passages are restricted.

Other symptoms include overheating under load or while towing, coolant loss with no visible external leaks, white smoke from the exhaust indicating coolant entering the intake through a failed EGR cooler, and low coolant warning lights. If you notice any of these symptoms on your 2003 to 2007 Ford F250 or F350 6.0 diesel, have the oil cooler tested immediately and consider installing a coolant filtration system to prevent recurrence.

Q8: What coolant should I use with a coolant filtration system on my 6.0 Powerstroke?

Ford initially specified Motorcraft Premium Gold coolant for the 6.0L Powerstroke, but many diesel specialists now recommend switching to a heavy-duty diesel coolant such as Motorcraft Specialty Green or a CAT EC-1 rated coolant like Fleetcharge or Shell Rotella ELC. These coolants have better additive packages and are less prone to forming the silicate deposits that clog the oil cooler passages.

When installing a coolant filtration kit, it is an excellent time to perform a complete coolant flush and refill with a high-quality coolant. This gives your filtration system the best starting point and ensures you are not circulating degraded or incorrect coolant through your new filter. Always use distilled water when mixing coolant concentrate.

Q9: How do I know if my 6.0 Powerstroke coolant filter needs replacement?

The filter element inside your coolant filtration system should be replaced based on mileage intervals rather than visual inspection alone. For the first filter after installation, replace it at 500 to 1,000 miles. After that, replace the element every 5,000 to 10,000 miles or at every oil change.

When you remove a spent filter element, you can cut it open to inspect the debris it has collected. Heavy contamination in the first few filters is normal and indicates the system is working as intended. If you notice a decrease in coolant flow through the filter housing or if the filter housing feels unusually hot, the element may be plugged and should be replaced immediately.

Replacement filter elements are available under several cross-reference part numbers: Wix 24070, Donaldson P554685, Baldwin B5134, and Fleetguard WF2077. Use a non-charged filter element to avoid introducing additional chemicals into your coolant system.

Q10: Does EGR Performance offer returns on 6.0 Powerstroke coolant filtration kits?

Yes, EGR Performance provides 45-day hassle-free returns and a one-year warranty. We stand behind every coolant filtration kit we sell for the 6.0L Powerstroke with a generous 45-day return policy, so you can shop with confidence.

All of our 6.0 Powerstroke coolant filtration products are backed by a one-year warranty against manufacturing defects. If you have any questions about fitment for your 2003 to 2007 Ford F250, F350, F450, or F550, our 24/7 live support team is available to help you confirm the right kit for your truck before you order.
