6.0 Powerstroke Glow Plugs FAQ
1. What do glow plugs do on a 6.0 Powerstroke?
Glow plugs on the 6.0L Powerstroke are small electric heating elements threaded into each of the eight combustion chambers in the cylinder head. Before the engine cranks, the glow plug control module sends current through each plug, heating the combustion chamber to a temperature that allows the diesel fuel to ignite when it is injected.
Diesel engines rely on compression heat to ignite fuel, but when the engine block is cold, the compression stroke alone does not generate enough heat for reliable ignition. The glow plugs provide supplemental heating during startup to ensure the fuel ignites promptly. Once the engine is running and the cylinders have reached operating temperature, the glow plugs cycle off and the engine sustains combustion through compression alone.
On the 2003-2010 Ford 6.0 Powerstroke, all eight glow plugs must be functional for the system to work as designed. When one or more plugs fail, the affected cylinders cannot ignite fuel properly during cold starts, leading to rough running, white smoke, and extended crank times.
2. What are the symptoms of bad glow plugs on a 6.0 Powerstroke?
The most common symptoms of bad glow plugs on the 6.0 Powerstroke include hard starting or extended cranking in cold weather, thick white smoke from the exhaust at startup, rough or uneven idle when the engine is cold, and a strong diesel fuel smell during cranking. These symptoms are most noticeable when temperatures drop below 40 degrees Fahrenheit.
You may also see diagnostic trouble codes stored in the powertrain control module. Individual glow plug circuit faults set codes P0671 through P0676, each corresponding to a specific cylinder. The P0670 code indicates a fault in the glow plug control module power circuit, while P0683 indicates a communication fault between the PCM and the GPCM.
If your 2006 F250 or 2006 F350 6.0 glow plugs are failing, you might also notice that the wait-to-start light on the dash cycles faster than normal or does not illuminate at all, indicating the glow plug system has detected a fault and is not completing the preheat cycle.
3. How do I know if my 6.0 glow plug control module is bad?
Symptoms of a bad glow plug control module on the 6.0 Powerstroke include complete failure of the glow plug system with no wait-to-start light illumination, all eight glow plug codes (P0671 through P0676) set simultaneously, and the P0683 code indicating lost communication between the PCM and GPCM. A failed GPCM typically prevents any glow plug from operating, resulting in severe hard starting or no start conditions in cold weather.
The GPCM is located on the driver side valve cover and is identifiable by its electrical connector and aluminum housing. You can test the module by checking for battery voltage at the main power terminal with the key on and the glow plug system active. If power is present at the module input but the output circuits show no voltage to the glow plugs, the module has failed internally.
The factory GPCM, part number 3C3Z-12A690-AA, is a known failure point on the 6.0 Powerstroke. Internal relay contacts degrade over time from the high current load of driving eight glow plugs through repeated heating cycles. If you are replacing glow plugs and still experiencing cold start issues, the GPCM should be tested and replaced if faulty.
4. How much does it cost to replace glow plugs on a 6.0 Powerstroke?
The glow plug replacement cost for a 6.0 Powerstroke varies depending on whether you do the work yourself or have a shop perform the service. Parts costs are typically reasonable, with a full set of eight glow plugs and a harness kit being an affordable investment compared to the inconvenience and potential engine damage from continued cold starting on failed plugs.
If you choose to have the work done at a repair shop, labor costs can be significant because accessing all eight glow plugs on the 6.0 Powerstroke requires removing the valve covers and other components. Some shops charge several hours of labor for a complete glow plug replacement. The number 8 glow plug, located near the firewall, is particularly difficult to access and adds time to the job.

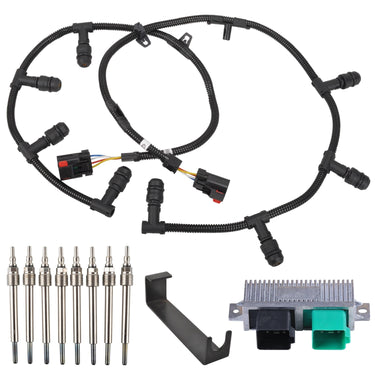

Doing the 6.0 Powerstroke glow plug replacement yourself can save substantially on labor costs. With the right tools and a glow plug removal tool, the job is manageable for experienced DIY mechanics. Our glow plug harness kit with removal tool provides the specialized socket needed to reach all plug positions safely.
5. Can I replace 6.0 Powerstroke glow plugs myself?
Yes, changing glow plugs on a 6.0 Powerstroke is a task that many experienced DIY mechanics can complete with the right tools and patience. The job requires a glow plug socket, a ratchet with extensions, a torque wrench, and basic hand tools to remove the valve covers and associated components for access.
The glow plug removal process involves disconnecting the batteries, removing the valve covers, disconnecting the glow plug harness from each plug, carefully unscrewing each glow plug from the cylinder head, and threading the new plugs in by hand before torquing to specification. Be extremely careful not to cross-thread the new plugs, and never overtighten them as this can damage the threads in the cylinder head.
The number 8 glow plug on the 6.0 Powerstroke is the most difficult to reach due to its location near the firewall. Using a dedicated glow plug removal tool with the correct extension length makes this job much easier. Take your time, use penetrating oil on plugs that feel tight, and if a plug feels like it is binding, back it out and rethread it rather than forcing it.
6. What is the glow plug control module (GPCM) on a 6.0 Powerstroke?
The glow plug control module, or GPCM, is the electronic controller on the 6.0 Powerstroke that manages the operation of all eight glow plugs. It receives signals from the powertrain control module regarding engine temperature, ambient temperature, and crank status, then determines how long to energize the glow plugs and at what power level. The factory part number is 3C3Z-12A690-AA.
The GPCM is mounted on the driver side valve cover and connects to both the vehicle wiring harness and the individual glow plug harness that runs under the valve covers. It contains internal relays and switching circuits that control the high current flow to each glow plug independently. The module monitors each glow plug circuit for faults and reports diagnostic trouble codes to the PCM.
When the GPCM fails, it can cause a range of issues from individual plug circuit faults to complete system shutdown. Common glow plug control module symptoms include no wait-to-start light, multiple simultaneous glow plug codes, and failure to preheat the cylinders. Replacing the GPCM along with the glow plug harness ensures the entire control circuit is restored to reliable operation.
7. How do I test glow plugs on a 6.0 Powerstroke?
You can test 6.0 Powerstroke glow plugs using a digital multimeter to measure resistance across each plug. With the engine off and batteries disconnected, access the glow plugs by removing the valve covers. Set your multimeter to the ohms setting and place one probe on the glow plug terminal and the other on a good engine ground. A functional glow plug typically reads between 0.5 and 2.0 ohms. A reading of infinite resistance (open circuit) indicates the plug has burned out internally and needs replacement.
You can also perform an amperage draw test at the GPCM harness connector to verify that each glow plug circuit is drawing current during the preheat cycle. A plug that draws no current is either open internally or has a break in the harness wiring. Comparing the amperage draw across all eight cylinders can help identify weak plugs that are still functioning but have degraded heating elements.
Before testing the glow plugs themselves, verify that the glow plug harness is intact and delivering voltage. A degraded or corroded harness can cause the same symptoms as a bad glow plug. Check the harness connectors for signs of melting, corrosion, or loose terminals. Our glow plug harness kit replaces the entire wiring run to eliminate harness related faults.
8. What glow plugs does a 6.0 Powerstroke use?
The 6.0 Powerstroke uses eight individual pencil type glow plugs threaded into the cylinder head. The original equipment plugs are Motorcraft glow plugs, specifically the Motorcraft ZD-11 or equivalent. Beru is also a common OEM supplier for Ford glow plugs, and many quality aftermarket options meet or exceed the factory specifications for heat output and durability.
It is important to use glow plugs that are specifically designed for the 6.0 Powerstroke. Plugs with incorrect heat output or thread specifications can cause poor starting, tip swelling, or damage to the cylinder head threads. Avoid inexpensive universal glow plugs that may not match the OEM heating profile. Our glow plug sets are selected to match the factory specifications for the 2003-2010 Ford 6.0 diesel.
The number 8 glow plug on the 6.0 Powerstroke deserves special attention during replacement. It is located at the rear of the engine on the driver side, tucked close to the firewall, making it the most difficult plug to access and remove. Using a glow plug removal tool specifically designed for the 6.0 Powerstroke helps reach this position safely without rounding off the plug hex or damaging surrounding components.
9. What is the P0683 code on a 6.0 Powerstroke?
The P0683 diagnostic trouble code on the 6.0 Powerstroke indicates a communication fault between the powertrain control module (PCM) and the glow plug control module (GPCM). When this code is set, it means the PCM is not receiving status data from the GPCM, which prevents the glow plug system from operating correctly.
Common causes of the P0683 code include a failed GPCM, a damaged or corroded wiring connection between the PCM and GPCM, a blown fuse in the GPCM power circuit, or a faulty glow plug harness. In many cases, the GPCM itself has failed internally due to heat damage or relay contact degradation, requiring replacement of the module.
To diagnose the P0683 code, start by checking the GPCM fuse and relay, then inspect the wiring harness connector at the GPCM for corrosion or damage. If the power and ground circuits to the GPCM are intact but communication is still lost, the GPCM needs to be replaced. Our GPCM controller kit includes both the replacement module and the harness, addressing both potential failure points in one complete package.
