6.4 Powerstroke Intercooler Pipe

Why Does Your 6.4 Powerstroke Need an Intercooler Pipe Kit?

The stock charge system on the 6.4L Power Stroke was designed to meet a price point and an emissions target, not to survive years of heavy towing and elevated boost. Three failures show up over and over in the shop, and every one of them traces back to the factory pipe and boot design.

Oil-Soaked Boots That Walk Off Under Boost

The factory CCV system routes crankcase vapor straight into the intake, and that oily mist coats the inside of every charge pipe and boot on the truck.
Once the silicone turns slick with oil, no clamp in the world holds it when you spool the compound turbos hard, and the boot pops off the pipe at exactly the wrong moment, usually halfway up a loaded grade.

A Crimped, Restrictive Factory Cold Side Pipe

The factory cold side pipe is a mild steel and plastic assembly that necks down to roughly an inch where it passes through the core support.
That pinch chokes the charge air leaving the intercooler, raises exhaust gas temperatures, slows turbo response, and forces the engine to work harder for the same airflow.

Thermal Fatigue in the Stock Pipes and Boots

The hot side pipe lives inches from the compound turbos and sees brutal heat cycling every time you shut down after a hard pull.
Years of that heat fatigue the boots, harden the clamps, and crack the plastic sections of the factory pipe, which sets up a slow boost leak you may not catch until it becomes a sudden one.

What Can an Intercooler Pipe Solve?

A properly built 6.4 Powerstroke intercooler pipe kit attacks each failure mode at the component level, and that is exactly how these kits are engineered.

Full-Flow Aluminum Tubing Opens the Charge Path

The cold side and full pipe kits use CNC-mandrel bent 6061-T6 aluminum that holds a true 3 inch diameter through every bend, with no crimp and no pinch.
That wider, smoother path lets the compound turbos breathe, drops exhaust gas temperatures, sharpens throttle response, and restores the airflow the factory choked off.

Rolled Retention Beads Lock the Boots Down

Every boot landing on these pipes carries a rolled bead that gives the clamp and the silicone a positive mechanical stop to seat against.
The boot can no longer walk off the pipe, even when it is slick with CCV oil, because the bead holds it mechanically and the clamp holds it radially.

5-Ply Silicone Boots and T304 Stainless Clamps Survive the Heat

The boot kits use 5-ply, high-temperature reinforced silicone that resists oil softening and stays pliable through thousands of heat cycles.
T304 stainless steel T-bolt clamps apply constant, even torque across the joint, so the seal holds under boost instead of relaxing the first time the pipe gets hot.

Shop 6.4 Powerstroke Intercooler Pipe by Ford Engine & Fitment Guide

• 6.4 Powerstroke Cold Side Intercooler Turbo Pipe Kit - Fits the 6.4L Power Stroke in the Ford F-250, F-350, F-450, and F-550 Super Duty (2008-2010). Replaces the pinched factory passenger side charge pipe with a high-flow, bead-rolled 6061-T6 aluminum tube that restores full charge airflow from the intercooler to the intake.
• 6.4 Powerstroke Hot Side Intercooler Pipe Boot Kit - Fits the 6.4L Power Stroke in the Ford F-250, F-350, F-450, and F-550 Super Duty (2008-2010). Triple-reinforced 5-ply high-temperature silicone boots and T304 stainless T-bolt clamps lock the driver side charge pipe in place under heavy boost and towing.
• 6.4 Powerstroke Intercooler Turbo Pipe Kit (Hot & Cold Side) - Fits the 6.4L Power Stroke in the Ford F-250 and F-350 Super Duty (2008-2010). Complete CNC-mandrel bent, TIG-welded aluminum charge pipe set that opens up both sides of the charged air circuit and ends the recurring boot blow-off problem in one job.

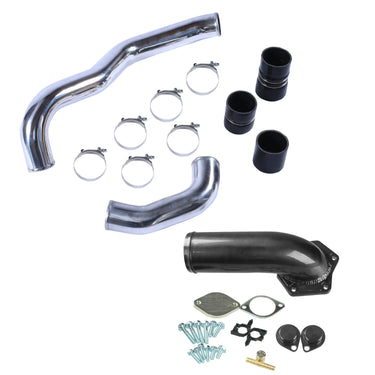

• 6.4 Powerstroke EGR Delete Kit with Intercooler Pipe Boot Kit - Fits the 6.4L Power Stroke in the Ford F-250 and F-350 Super Duty (2008-2010). Pairs a CNC-machined 6061-T6 billet aluminum EGR cooler delete with reinforced silicone intercooler boots to clean up the intake and reseal the charge system at the same time.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What does the intercooler pipe do on a 6.4 Powerstroke?

The intercooler pipe, also called the charge pipe, carries compressed air from the compound turbo setup through the air-to-air intercooler and into the intake manifold on your 6.4L Power Stroke. Your engine runs a small variable geometry turbo feeding a larger fixed geometry turbo, so the charge air leaves the compressor hot and heavily pressurized.
The hot side pipe moves that charge from the turbo to the intercooler, and the cold side pipe delivers the cooled, dense air back to the engine. Denser charge air means more oxygen in the cylinder, which supports cleaner combustion, more power, and lower exhaust gas temperatures.
When those pipes are restrictive, cracked, or leaking at the boots, you lose boost before it ever reaches the engine.

Why does my 6.4 Powerstroke keep blowing intercooler boots off under boost?

The number one cause is oil contamination. The factory CCV system routes crankcase vapor into the intake, and that oil mist coats the inside of the charge pipes and boots until the silicone turns slick.
Once the boots get oily, no amount of clamp torque will hold them under a heavy tow tune, and the boot walks right off the bead at wide open throttle.
The second cause is a deformed or missing retention bead on the pipe, often from over-tightening a T-bolt clamp until the tube necks down. Upgraded pipes with a proper rolled bead, fresh 5-ply high-temperature silicone boots, and the correct T304 stainless clamps end the blow-off cycle for good.

What is the difference between the hot side and cold side intercooler pipe on a 6.4L Powerstroke?

The hot side intercooler pipe sits on the driver side and carries hot, pressurized charge air from the turbo compressor outlet to the intercooler inlet.
The cold side pipe sits on the passenger side and carries the cooled, denser charge air from the intercooler outlet to the intake manifold.
Both pipes use silicone boots and T-bolt clamps at the joints, and both are common leak points. A full kit replaces both sides at once so the entire charged air circuit is sealed, which is what most 6.4L owners do when they upgrade and want to stop chasing one leak at a time.

Will an upgraded intercooler pipe add horsepower and lower EGTs on my 6.4 Powerstroke?

Yes. A high-flow aluminum intercooler pipe improves airflow over the crimped and restrictive factory tube, which helps the compound turbos spool faster and reduces pumping losses.
Lower backpressure and a denser charge translate into a modest horsepower gain on a stock tune, and a larger gain when paired with custom tuning.
The real benefit is lower exhaust gas temperatures and a wider safety margin when you tow heavy, because the engine is no longer fighting a restricted charge path.

How do I test for a boost leak in my 6.4 Powerstroke charge pipes?

The cleanest method is a pressurized smoke or air test using a boost leak tester that seals into the turbo inlet or cold side charge pipe.
Pump the system up to your normal boost level and listen for hissing at the boots, the intercooler seams, and the intake connections, then spray a soap and water mix on the joints to find bubbles.
Always clean the pipes and boots with brake cleaner and let them dry before you re-seat anything, because residual oil will mask a leak one day and cause a blow-off the next.

What material should I look for in a 6.4 Powerstroke intercooler pipe kit?

Look for CNC-mandrel bent 6061-T6 aluminum tubing with TIG-welded joints and a rolled retention bead at every boot location.
Pair it with 5-ply, high-temperature reinforced silicone boots and T304 stainless steel T-bolt clamps that maintain constant torque through heat cycling.
Stay away from thin-wall pipes with no bead, because they neck down and pop boots off at lower boost than the factory setup ever did.

Do I need to remove the factory hot side pipe, and does it have to be cut?

The factory hot side pipe can be removed in one piece, but most technicians cut it because clearance around the compound turbos and the driver side frame rail is tight.
Jacking the transmission slightly and working from underneath helps when you want to save the original pipe.
An aftermarket hot side pipe or full kit usually ships in a two-piece design that slips in without cutting, which makes the swap far easier than wrestling the OEM tube out whole.

What years and trucks do these 6.4 Powerstroke intercooler pipes fit?

Every pipe and boot in this collection fits the 6.4L Power Stroke V8 diesel that Ford built for the 2008, 2009, and 2010 model years.
That covers the Ford F-250, F-350, F-450, and F-550 Super Duty trucks.
They do not fit the 6.0L or the 6.7L Power Stroke, which use completely different charged air systems, so confirm your engine and cab configuration before you order.

What is the shipping, warranty, and return policy on these intercooler pipe kits?

Every order ships fast and free from our U.S. warehouse in California, Texas, Ohio, and New Jersey so you get back on the road sooner.
Each intercooler pipe and boot kit is backed by a one-year warranty tested under extreme heat and pressure conditions, and you can shop risk-free with our 45-day return policy.
If you have a fitment or install question, our 24/7 live support team can help you from choosing the right kit all the way through post-install tuning.

Are these 6.4 Powerstroke intercooler pipe kits legal for street use?

Upgrades and delete components in this collection are designed and sold for competition and closed-course off-road use only, and they are not legal for use on pollution-controlled highways in all 50 states.
Always verify fitment and local emissions law for your specific 2008-2010 6.4L Power Stroke before purchase and installation, because fitment can vary by cab, bed, and model configuration.
