BMW Coolant Flange

Why Does Your BMW Need a Coolant Flange?

The N52, N54, N55, N20 and related BMW inline four and six engines share one stubborn failure point: the thermo-to-block coolant flange. Here is what actually fails on these engines.

Brittle OE Plastic Cracks Under Heat Cycling

The factory flange is molded from plastic, and a decade of cold starts, hot shutdowns and underhood heat turns it brittle. Once the plastic distorts or hairline-cracks, coolant weeps past the sealing surface and the slow drip turns into a real leak.

The Viton O-Ring Seal Flattens and Leaks

The coolant seal lives in a high-temperature Viton O-ring at the thermo-to-block junction. Age and heat flatten that O-ring, so the flange no longer holds coolant pressure even when the plastic housing looks intact.

The N54 Lower Coolant Pipe Fails Under Exhaust Heat

On the N54, the lower coolant pipe and thermostat housing sit close to exhaust heat and are a known leak source. When that pipe fails, a simple flange swap is not enough and the coolant pipe needs to be rerouted or relocated.

What Can a Coolant Flange Solve?

Each flange in this collection targets a specific part of that failure chain.

Stops the Coolant Leak at the Back of the Cylinder Head

The thermo-to-block metal flange restores a true, warp-proof sealing surface, so coolant stays inside the engine where it belongs instead of pooling on the block and drivetrain.

Holds Its Shape and Its Seal for the Long Haul

A CNC-machined 6061-T6 billet aluminum flange does not go brittle like the OE plastic, which means the repair lasts instead of repeating itself a year later.

Reroutes the N54 Coolant Pipe Away From Heat

The N54 coolant pipe relocation flange moves the failure-prone lower coolant pipe out of the exhaust heat path, a targeted fix for the 135i, 335i and 535i that addresses the root cause instead of the symptom.

Shop BMW Coolant Flange by BMW Engine & Fitment Guide

• Coolant Water Hose Fitting (OE 11537541992 / 11537544638) - Fits N20, N52, N53, N54 and N55 in the 128i, 328i, 335i, 535i, X3, X5 and Z4 (2006-2016). A direct-fit water hose fitting that carries the Rein CHC0609 reference and restores the factory coolant hose connection.
• Engine Coolant Pipe Relocation Flange - Fits the N54 in the 135i, 335i and 535i (E82, E90, E92 and E60, 2006-2010). Reroutes the failure-prone lower coolant pipe away from exhaust heat to stop the recurring N54 coolant leak.

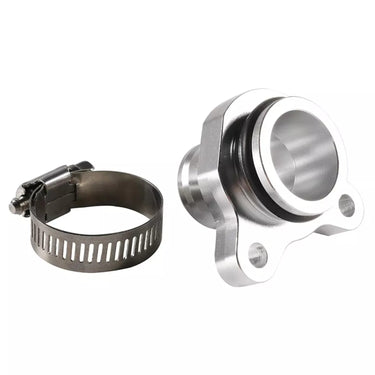

• Coolant Outlet Flange Thermo to Block METAL Upgrade - Fits N20, N26, N52, N54 and N55 in the 228i, 320i, 328i, 335i, X1, X3 and X5 (2006-2016). A 6061-T6 billet aluminum flange that replaces the warping OE plastic and ends the classic Mickey Mouse flange leak.
• Coolant Hose Thermo to Block METAL Upgrade - Fits N20, N52, N53, N54 and N55 in the 128i, 328i, 335i, 535i, X3, X5 and Z4 (2006-2016). A precision-machined metal flange with a high-temperature Viton O-ring that restores a permanent seal at the cylinder head.
