5.9L 6.7L Cummins Block Heater Cord & Kit 1989-2021

Why Does Your Cummins Diesel Need a Block Heater?

Problem 1: Hard or No-Start Conditions Below 20°F

Cummins diesel engines rely on compression ignition. When the engine block, coolant, and cylinder walls are ice-cold, the compression stroke loses too much heat to the cold metal for reliable ignition. A 2004 Dodge Ram 2500 diesel engine block heater warms the coolant surrounding the cylinders to approximately 100°F, bringing the engine block up to a temperature where compression ignition happens quickly and reliably.

Without a functioning block heater, a 5.9 Cummins block heater at 750W or a 6.7 Cummins block heater at 750W may require multiple long crank cycles, excessive glow plug or grid heater cycling, and thick cold oil that delays lubrication to critical bearings.

Problem 2: Cord Deterioration Is the #1 Block Heater Failure Mode

The factory block heater cord on your 2005 Dodge Cummins block heater or 1999 Dodge Ram 2500 diesel block heater is made from standard automotive-grade wire that degrades over time. The connector that pushes onto the heating element is exposed to extreme under-hood temperatures (200°F+), engine oil mist, and road debris.

After 10-15 years, the rubber boot cracks, the terminals corrode, and the cord either stops conducting or trips your GFCI outlet. The heating element itself (threaded into the 3/4" NPT port on the driver's side of the engine block) typically outlasts the cord by many years. A replacement block heater cord for Cummins diesel restores full functionality without draining coolant or removing the heating element.

Problem 3: Missing or Damaged Factory Block Heater on Used Trucks

Many used Cummins trucks, especially first-gen Cummins block heater trucks from 1989-1993 and second-gen trucks from 1994-2002, may have had the block heater cord removed, cut, or lost by previous owners. Some trucks were sold in southern states without the factory block heater element installed (it was a cold-weather option on some models).

For a 2000 Dodge Cummins block heater or a 2001 Dodge Cummins block heater where the element is missing entirely, the Engine Block Heater Kit provides both a new 750W heating element and a replacement cord. Everything needed to add or restore cold-weather starting capability.

What Can a Cummins Block Heater Cord or Kit Solve?

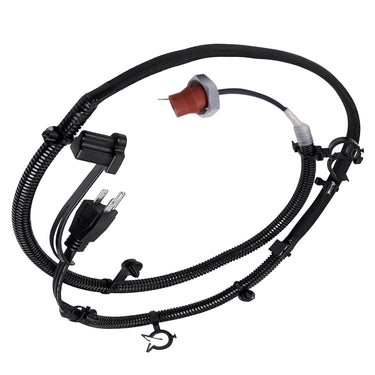

Block Heater Cord for 5.9L 6.7L Cummins (1989-2021): Universal Replacement

The universal replacement cord that covers first-gen through fourth-gen Cummins trucks. If your block heater for a 2006 Dodge Cummins or block heater for a 2001 Dodge Cummins stopped working due to a damaged cord, this is the direct replacement. Rated for up to 1500W block heater elements.

Fits 12-valve Cummins (1989-1998), 24-valve Cummins (1998.5-2007), and 6.7L Cummins (2007.5-2021), including a 97 Cummins block heater, 99 Cummins block heater, 03 Cummins block heater, 04 Cummins block heater, 05 Cummins block heater, 06 Cummins block heater, and every year in between.

Engine Block Heater Kit for 5.9L 6.7L Ram 2500 3500 (1998-2007): Element & Cord Combo

A complete kit that includes a brand-new 750W block heater element (3/4" NPT thread) plus a heavy-duty replacement power cord. Designed for 24-valve 5.9L Cummins (1998.5-2007) and early 6.7L Cummins trucks where the factory heating element is missing, corroded beyond repair, or leaking.

This is the block heater for Cummins diesel that gives you both parts in one package, no separate element and cord purchase needed.

Engine Block Heater Cord for 6.7L Cummins (2014-2018): Dedicated 4th Gen Fitment

The dedicated replacement cord for 2014-2018 Ram 2500 and 3500 equipped with the 6.7L Cummins. Updated connector design matches the revised factory block heater element used in these model years.

If you need a 2014 Cummins block heater cord, 2016 Cummins block heater cord, 2017 Cummins block heater cord, or 2018 Cummins block heater cord, this direct-fit option is designed specifically for your truck's factory element.

Engine Block Heater Cord for 6.7L Cummins Diesel (2014-2018): Alternative Connector Variant

An alternative cord option for 2014-2018 Ram 2500 and 3500 6.7L Cummins diesel trucks. Same direct-fit application with a slightly different connector housing design. Choose the version that matches your factory block heater element connector.

Shop Cummins Block Heater by Year & Engine

• 1989-1998 Ram 2500/3500 — 5.9L 12-Valve Cummins (1st/2nd Gen)
  Recommended Product: Universal Block Heater Cord
• 1998.5-2002 Ram 2500/3500 — 5.9L 24-Valve Cummins (2nd Gen)
  Recommended Product: Engine Block Heater Kit OR Universal Block Heater Cord
• 2003-2007 Ram 2500/3500 — 5.9L 24-Valve Cummins (3rd Gen)
  Recommended Product: Engine Block Heater Kit OR Universal Block Heater Cord
• 2007.5-2013 Ram 2500/3500 — 6.7L Cummins (3rd Gen)
  Recommended Product: Universal Block Heater Cord
• 2014-2018 Ram 2500/3500 — 6.7L Cummins (4th Gen)
  Recommended Product: Dedicated 6.7L Block Heater Cord (2014-2018)
• 2019-2021 Ram 2500/3500 — 6.7L Cummins (5th Gen)
  Recommended Product: Universal Block Heater Cord

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our premium block heater heating elements, heavy-duty weatherproof power cords, and engine heating kits are engineered from top-tier materials and subjected to brutal quality control, thermal cycle resistance tests, and intense winter validation. Unlike generic alternatives, our products are built to withstand extreme cold and high under-hood temperatures, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts—we live this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

Frequently Asked Questions: Cummins Block Heaters & Cords

Q1: What wattage is a Cummins block heater?

The factory Cummins block heater for both the 5.9L and 6.7L engines is rated at 750 watts (approximately 6.5 amps at 120V).

The 5.9 Cummins block heater wattage and 6.7 Cummins block heater wattage are the same across all model years from 1989 through 2021. Cummins has used the same basic 750W heater element design for over 30 years. The element threads into a 3/4" NPT port on the driver's side of the engine block.

Aftermarket upgraded block heater elements rated at 1000W are available for extreme cold climates, but the factory 750W unit is sufficient for temperatures down to approximately -20°F when the engine is plugged in for 2-3 hours before starting. Our replacement cords are rated for up to 1500W, so they work with both the factory 750W element and any upgraded aftermarket heater.

Q2: Where is the block heater located on a Cummins 5.9L and 6.7L?

On both the 5.9L Cummins and 6.7L Cummins, the block heater element is threaded into a freeze plug port on the driver's side of the engine block, near the oil filter housing and oil cooler area.

The heating element sits inside the engine's water jacket, directly heating the coolant that surrounds the cylinders. The power cord routes from the element connector up through the engine bay and typically exits near the front bumper or grille area, where you can plug it into a standard 110V outlet.

On a 2003 Dodge Ram 2500 diesel block heater or a 2006 Dodge 5.9 Cummins block heater, you'll find the cord end tucked behind the front bumper on the driver's side. On 2013+ 6.7L trucks, the cord exit location moved slightly, but the element position on the block remains the same.

Q3: What years does the universal block heater cord cover?

The universal Block Heater Cord for 5.9L 6.7L Cummins Dodge Ram 2500 3500 covers 1989 through 2021. Every model year of Cummins-powered Dodge Ram trucks from the first-generation 12-valve through the fifth-generation 6.7L. The cord uses a universal connector design that mates with the factory block heater element across all these years.

Q4: Is the block heater the same for 12-valve and 24-valve Cummins?

The block heater element is very similar between the 12-valve Cummins (1989-1998) and the 24-valve Cummins (1998.5-2007), both use a 750W heater element that threads into the same 3/4" NPT port on the engine block. The OEM part number for the 12-valve era is Cummins 3916127, while the 24-valve and 6.7L use Cummins 3975628.

The main difference is the connector design on the power cord. Our block heater for 12 valve Cummins applications uses the universal cord (1989-2021), which has a connector that fits both the older 3916127 element and the newer 3975628 element. Whether you have a first-gen Cummins block heater, a 2nd-gen Cummins block heater, or a 3rd-gen Cummins block heater, the universal replacement cord provides a direct fit.

Q5: How do I know if my block heater cord is bad (not the element)?

To diagnose whether your Cummins diesel block heater failure is a bad cord or a bad heating element, you can test each component separately with a multimeter. Test the cord: Unplug the cord from the block heater element and check for continuity between the prongs of the 110V plug and the terminals at the element end. No continuity means the cord is broken internally.

Test the element: With the cord disconnected, check the resistance across the two terminals on the block heater element itself. A good 750W element should read approximately 19-20 ohms. If you get no reading (open circuit), the element is bad, and you need the complete Engine Block Heater Kit.

If the element tests good but the cord doesn't, a replacement block heater cord for Cummins is all you need. The less expensive fix. This applies to all years from a 1999 Dodge Ram 2500 diesel block heater to a 2018 Ram 2500 Cummins block heater cord.

Q6: What's the difference between a block heater and a coolant heater on Cummins?

A block heater (what Cummins trucks come with from the factory) is a heating element that threads directly into the engine block and heats the coolant from inside the water jacket. This is the type used on the 5.9 Cummins engine block heater and 6.7 Cummins engine block heater, 750W, located on the driver's side of the block.

A coolant heater (also called an inline heater or tank heater) is a separate unit that installs in a coolant hose and circulates heated coolant through the engine. Coolant heaters are typically more powerful (1000-1500W), and some models actively circulate coolant for more even heating, while a block heater relies on convection.

For most Cummins owners, the factory-style engine block heater for Cummins is sufficient. Our products are factory-style block heater cords and elements — not inline coolant heaters.

Q7: Does the 4BT Cummins use the same block heater as the 5.9L?

The Cummins 4BT (3.9L 4-cylinder) is essentially a 4-cylinder version of the 5.9L 6BT, and it uses the same 3/4" NPT block heater port. The Cummins 4BT block heater is the same design as the 5.9L Cummins block heater, with a 750W element threading into the block's water jacket.

However, our products are specifically designed for Dodge Ram truck applications (Ram 2500 and 3500). If your 4BT is installed in a different vehicle platform (swap, industrial, agricultural), the heater element may be the same, but the cord routing and connector access will differ.

The 3.9 Cummins block heater element (same as the Cummins 3916127 for 4BT/6BT) is available from Cummins dealers, while our universal replacement cord may work depending on your specific installation.

Q8: How long should I plug in my Cummins block heater before starting?

For the factory 750W Cummins block heater, most diesel mechanics recommend plugging in for 2-3 hours before starting when temperatures are between 0°F and 20°F, and 3-4 hours when temperatures drop below 0°F. At temperatures above 20°F, 1-2 hours is typically sufficient.

There is no benefit to leaving the block heater plugged in overnight. The 750W element reaches its maximum heating effect within about 3-4 hours and then maintains a steady-state temperature. Running the block heater longer than necessary wastes electricity (750W × 12 hours = 9 kWh, roughly $1-1.50 per night at average US rates) without additional starting benefit.

A timer set to turn on 3 hours before your planned departure is the most efficient approach for a Dodge diesel block heater.

Q9: Does my Cummins truck come with a block heater from the factory?

Most Cummins-powered Dodge Ram trucks sold in North America come with a factory block heater element already installed in the engine block. However, some trucks originally sold in southern or warm-climate states may not have the heater element installed (it was sometimes a regional or optional item). Nearly all 2003-2021 Ram 2500 and 3500 Cummins trucks have the factory element, including the 2004 Dodge Ram block heater, 2005 Cummins block heater, and later models.

For 1989-2002 trucks, the block heater was more commonly a cold-weather package option. If you're unsure whether your truck has a block heater, look behind the front bumper on the driver's side for a 110V cord end, or check for the heater element on the driver's side of the engine block near the oil filter.

If the element is present but the cord is missing, our Block Heater Cord (1989-2021) is the solution. If the element is missing entirely, the Engine Block Heater Kit (1998-2007) provides both parts.

Q10: What is your return policy for Cummins block heater products?

EGR Performance offers a 45-day hassle-free return policy on all Cummins block heater cords and kits, plus a 1-year warranty against manufacturing defects. If the block heater cord doesn't fit your specific Dodge Ram 2500 or 3500 application, whether you ordered it for a 2001 Dodge Ram block heater or a 2019 Cummins block heater cord.

Contact our support team within 45 days for a full refund or exchange. Every engine block heater cord and complete block heater kit is tested for electrical continuity and proper connector fitment before shipping.

We stand behind every Cummins diesel engine block heater product we sell with 24/7 live support available for fitment questions and installation guidance.
