Cummins Head Studs

Why Does Your Cummins Need Head Studs?

Cylinder Head Lift Under High Combustion Pressure

The number one reason Cummins head studs go in is head lift. Every time a tuned 5.9L or 6.7L fires, cylinder pressure pushes down on the piston and straight up against the cylinder head. Stack on a tuner, bigger injectors, or a compounds setup, and that pressure overwhelms the clamping force of the factory bolts. The head actually lifts off the block for a fraction of a second, and that micro-movement pounds the fire ring until the gasket lets go. Studs thread permanently into the block and pull the head down with a nut-and-washer clamp that the factory one-time-use bolts simply cannot match.

Blown Head Gaskets and Pushed Coolant

The 6.7L Cummins carries a reputation for head gasket failure that the 5.9L never fully earned, and it is almost always pressure related, not mileage related. A lifted head pushes combustion gas past the fire ring, pressurizes the cooling system, pukes coolant out the overflow, and eventually burns the gasket out between cylinders. Installing studs before the gasket lets go is cheap insurance, and installing them after, with a fresh gasket and a surfaced head, is how you keep the repair from coming back. Either way, the studs are what hold that new gasket flat for the long haul.

Factory Torque-to-Yield Bolts That Stretch Once

From the factory these engines run torque-to-yield head bolts. They are engineered to stretch into a set range to hit clamp load, which makes them one-and-done, so any time the head comes off those bolts go in the trash. Even brand new they leave almost no safety margin past stock output, and because they clamp through friction along the shank, the readings drift as the bolt bed wears. Studs eliminate all of it: they are reusable, they clamp through the nut instead of the block threads, and they hand you a known, repeatable torque at every teardown.

What Can Head Studs Solve?

Holding the Head Flat at Big Boost

A quality head stud kit converts the fastener system from a stretch-prone bolt into a rigid, reusable clamp. Hardened parallel-ground washers spread the nut load across the head so you do not egg-shape the holes or gall the deck, and 12-point nuts let you run a socket in tight injector and rocker box clearance. The payoff is a head that stays seated at the boost levels that would otherwise lift it.

A Reusable, Serviceable Fastener for Future Teardowns

Studs stay parked in the block, so the next time you pull the head for a gasket, a valve job, or a cam, you only deal with the nuts. No chasing stretched bolts, no guessing whether a used bolt is still in spec, and no re-buying hardware every time the valve cover comes off. For a shop that builds the same platform over and over, that is real money and real time saved on every job.

Matching the Right Stud to the Right Generation

Fitment is where builds go sideways. The 5.9L 12-valve, built from 1989 to 1998, and the 5.9L 24-valve, built from 1998.5 on, share the Cummins architecture but use different head fastener arrangements, and the 6.7L, built from 2007.5 on, brings its own rocker box clearance needs. The kits in this collection are engineered for the 24-valve 5.9L and the 6.7L in Ram 2500 and 3500, plus the 4000, 4500, and 5500 chassis cabs. If your truck is a 12-valve, confirm the factory bolt arrangement before you order, because the fastener pattern is not a universal drop-in across every Cummins year.

Shop Cummins Head Studs by Ram Engine & Fitment Guide

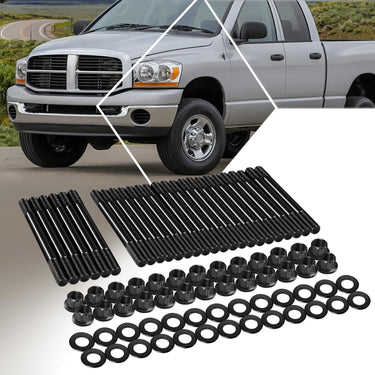

• Head Stud Replacement Kit for Cummins 5.9L 6.7L - Fits Cummins 5.9L and 6.7L 24-valve engines in Dodge Ram 2500, 3500, 4000, 4500, and 5500 (1998 to 2018). Through-hardened alloy steel studs with hardened washers and 12-point nuts that clamp the head flat under high boost and stop the gasket from letting go on a worked truck.
• Cylinder Head Stud, Bolt & Nuts Kit for 5.9L 6.7L Cummins Ram - Fits 5.9L and 6.7L Cummins B-series 24-valve inline-6 engines in Ram 2500 and 3500 (1998 to 2021). Upgraded steel head stud and bolt kit that replaces the one-time-use factory torque-to-yield fasteners with a reusable, even-clamping setup for towing and modified builds.
• 12-Valve 5.9L Cummins (1989 to 1998) - These 24-valve kits do not cover the earlier 12-valve 5.9L. Owners of a 12-valve should verify the factory head bolt arrangement and order a 12V-specific kit, because the fastener layout differs from the 24-valve engines listed above.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

Why do 5.9 and 6.7 Cummins engines need head studs?

They need them because combustion pressure tries to lift the cylinder head off the block on every power stroke, and once you add power the factory bolts cannot hold it down. Stock trucks get away with the factory hardware, but a tuner, bigger injectors, a larger turbo, or heavy towing pushes cylinder pressure past what those bolts can clamp.
A lifted head pounds the fire ring out of the gasket, pushes combustion gas into the coolant, and blows the gasket between cylinders.
Studs thread into the block and pull the head down with a nut and washer, giving a higher, more even, and reusable clamping load than the one-time-use factory bolts.

What is the difference between factory head bolts and head studs?

Factory head bolts are torque-to-yield, meaning they are engineered to stretch into a set range to reach clamp load, so they are single use and go in the trash any time the head comes off.
They also clamp through friction along the shank and through the block threads, so torque readings drift and there is almost no margin past stock output.
Studs stay parked in the block, clamp through a nut and hardened washer on top of the head, and can be reused teardown after teardown with a known, repeatable torque.

Do I need head studs on a stock Cummins, or only with a tuner and more boost?

On a stock, untuned truck the factory bolts are generally fine, because stock boost and cylinder pressure stay within their clamping range.
The threshold most builders lean on is around 50 psi of boost or any real jump in fuel and timing, which is exactly when head lift and gasket failure show up.
If you tow heavy in the heat, run a tuner, or chase more than stock horsepower, studs are the first upgrade, and they are mandatory the moment a gasket has already let go.

Can I install Cummins head studs without removing the cylinder head?

Yes, if the gasket is still intact you can swap studs in one at a time without pulling the head.
You back out a single factory bolt in reverse sequence, clean and chase the threads, thread the stud in hand tight, install the washer and nut, and torque it, then move to the next bolt so the head never fully relaxes.
On the 6.7L you may need to notch the rocker box for clearance on a few fasteners, and a warm retorque after a heat cycle is recommended for the most accurate clamping load.

What is the difference between 12-valve and 24-valve 5.9 Cummins head studs?

The 5.9L came as a 12-valve from 1989 to 1998 and a 24-valve from 1998.5 on, and while both are 5.9L Cummins they use different head fastener arrangements.
The kits in this collection are built for the 24-valve 5.9L and the 6.7L, not the earlier 12-valve.
If your truck is a 12-valve, confirm the factory bolt layout and order a 12V-specific kit, because the fastener pattern is not a drop-in across every 5.9 year.

Are ARP 625 studs necessary, or is a standard high-strength stud kit enough?

ARP Custom Age 625+ is the gold standard for extreme builds, with a tensile rating north of 260,000 psi and a torque spec around 150 ft-lbs, but it is overkill for a mild or tow rig.
ARP 2000 and L19 material, along with a quality through-hardened alloy steel kit, easily hold 600-plus horsepower and the boost most street and tow trucks will ever see.
Match the stud to the build: a high-strength steel replacement kit is plenty for towing and moderate power, while 625 studs earn their keep on compounds, sled pulling, and high boost.

What torque spec and sequence do I use on Cummins head studs?

Always follow the kit instructions, but the common procedure is to torque in three equal passes using the factory spiral sequence from the center outward.
A typical high-strength kit lands around 125 ft-lbs in three steps, while Custom Age 625 kits run higher, closer to 150 ft-lbs.
Use the assembly lube supplied with the kit on the threads and under the washer face, because dry torque over-stretches the stud and throws the reading off.

Do these head studs fit both 5.9L and 6.7L Cummins, and which Ram models do they cover?

Yes, the kits in this collection cover the 24-valve 5.9L and the 6.7L Cummins in Dodge and Ram 2500 and 3500, with one kit also fitting the 4000, 4500, and 5500 chassis cabs.
Fitment runs from 1998 up through 2018 to 2021 depending on the kit, and both are direct-fit replacements for the factory head bolts.
If you need help confirming your year and model, our 24/7 live support can match you to the right kit before you order.

Will head studs fix or prevent a blown head gasket on a 6.7 Cummins?

Studs prevent a gasket from blowing in the first place by holding the head flat under the cylinder pressure that lifts it, which is why the 6.7L, known for gasket trouble, benefits from them early.
If the gasket has already failed, studs are part of the repair, not the whole repair, because the head should be surfaced and a fresh gasket installed at the same time.
The studs are what keep that new gasket clamped and sealed for the life of the build, which is why they go in on nearly every 6.7L gasket job.

Are Cummins head studs street legal, and what is the warranty and return policy?

Head studs are a direct-fit durability and reliability upgrade, not emissions equipment, so they are legal for street use in most applications.
That said, if the studs are going into a truck that has been tuned or emissions-deleted, that tuning and any delete hardware are intended for competition and closed-course off-road use only, and local emissions laws still apply to on-road vehicles.
Confirm your fitment, generation, and year before ordering, because the wrong kit will not clamp a head it was not made for.
Every kit ships with free shipping, is backed by a 1-year warranty tested under extreme conditions, and comes with a 45-day return policy so you can order with confidence.
