Cummins ISX Fuel Injector

Why Does Your Cummins ISX Need a Fuel Injector?

Worn Nozzle Tolerances From Contaminated Fuel

The multi-hole nozzle on a 15L Cummins runs to micron-level clearances, and any grit or water that slips past a tired fuel filter scores the nozzle seat and wipes out those tolerances fast. Once the nozzle cannot seat cleanly, fuel dribbles into the cylinder instead of atomizing, and you end up with rough idle, black smoke, and fuel showing up on the dipstick. Dirty fuel is the number one reason an ISX injector dies early, long before the 400,000 to 600,000 mile mark.

Thermal Fatigue and Cracked Nozzle Tips

Sustained high exhaust gas temperatures under heavy towing cycle the hardened nozzle tip through brutal heat over hundreds of thousands of miles, and eventually that steel fatigue-cracks. A cracked tip sprays fuel in the wrong pattern, causing a dead or misfiring cylinder, lost power on the grade, and unburned fuel washing the cylinder walls. Heat-cycled OEM nozzles are a common failure on high-mileage ISX15 and X15 engines in fleet service.

Stuck Actuators and Fuel Diluting the Oil

The CNC-machined solenoid actuator inside the XPI injector meters each shot of fuel, and when it sticks or the internal seal leaks, fuel bypasses straight into the crankcase. That fuel-in-oil condition thins the lubricant, destroys bearing protection, and can wipe the engine if it is not caught. A stuck or leaking actuator is exactly what turns a single bad injector into a major engine problem.

What Can a Fuel Injector Solve?

Restored Atomization and Clean Combustion

A fresh hardened, precision-ground multi-hole nozzle puts fuel back into a fine, even cone, so the cylinder burns completely instead of smoking. Rough idle smooths out, the misfire clears, and the engine recovers the crisp throttle response and horsepower it lost as the old nozzle wore. Clean atomization is the single biggest reason a 15L Cummins feels like a new engine after an injector service.

Lower EGTs and Better Fuel Economy

When fuel burns completely instead of late and partially, exhaust gas temperatures drop and you stop pouring unburned fuel out the stack. Most operators see fuel economy recover and smoke clear within the first tank after installing a correctly trim-coded injector set. Lower EGT also protects the turbo, the exhaust manifold, and the aftertreatment from heat damage.

Stop Fuel Wash and Oil Dilution

A sealed injector body with new high-temperature Viton FKM O-rings and copper sealing washers stops the internal leak that lets fuel migrate into the oil. Oil stays at the right viscosity, bearing protection returns, and you stop chasing rising oil levels on the dipstick. Use the leak test kit to confirm every injector holds pressure before it goes back in the head.

Shop Cummins ISX Fuel Injectors by Cummins Engine & Fitment Guide

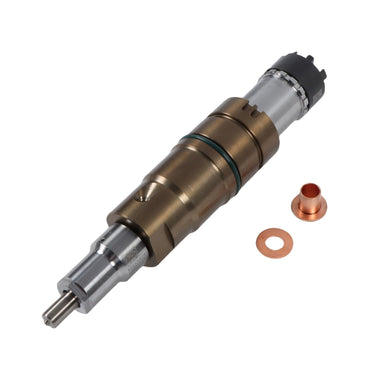

• Fuel Injector for Cummins ISX X15 ISX15 QSX15 15L (2010-2021) - Fits Cummins ISX15 and X15 15L in Freightliner Cascadia, Peterbilt 579, Kenworth T680, and Volvo VNL (2010-2021). Hardened bearing-steel body and precision-ground multi-hole nozzle restore atomization across the EPA10 and EPA13 ISX15 generations and the EPA17 X15 generation. Matches common OE and reman numbers 2872405, 2894920, 5579415, 5579421, 4062567, 4955080, and 6513589, where RX marks a remanufactured unit built to OE spec.

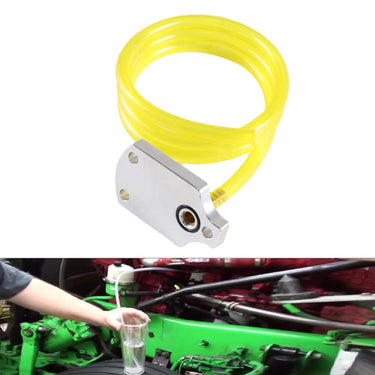

• Fuel Injector Leak Test Kit for Cummins ISX (2007-2019) - Fits Cummins ISX and Signature 15L in Freightliner, Peterbilt, Kenworth, and Volvo trucks (2007-2019). CNC-machined billet aluminum adapter plate and high-pressure brass fittings let you bench-test each injector for internal nozzle and seat leakage before reinstalling, so you only put verified units back in the head.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What are the most common symptoms of a failing Cummins ISX fuel injector?

Watch for rough idle, a noticeable drop in power under load, and black or white smoke from the stack.
Hard starts, longer crank times, and a misfire on one cylinder usually point to a single dribbling injector.
Fuel showing up on the dipstick, rising fuel consumption, and a check engine light with low-power or misfire codes mean the nozzle is no longer atomizing correctly and the injector needs to come out.

How long do Cummins ISX15 and X15 fuel injectors last?

Most ISX and ISX15 injectors live somewhere between 400,000 and 600,000 miles before symptoms start, though well-maintained units can push past 700,000 miles.
There is no fixed replacement interval, so you replace them when performance drops, smoke increases, or fuel contaminates the oil.
Clean fuel and fresh primary and secondary filters every 15,000 to 30,000 miles are what actually stretch injector life on a 15L.

Which fuel injector fits the 2010 to 2021 Cummins ISX, ISX15, X15, and QSX15 15L?

Our direct-replacement injector covers the Cummins ISX, ISX15, X15, and QSX15 15L from 2010 through 2021, spanning the EPA10, EPA13, and EPA17 XPI fuel systems.
Common OE and reman numbers in this family include 2872405, 2894920, 5579415, 5579421, 4062567, 4955080, and 6513589, where the RX suffix marks a remanufactured unit built to OE spec.
Always confirm the part against your engine serial number and CPL before ordering, since the wrong trim code will run rough even if it bolts in.

What causes Cummins ISX fuel injectors to fail prematurely?

Dirty or wet fuel is the number one killer, because grit and water bypassing the filters score the nozzle and wipe out the tight internal tolerances.
A failing high-pressure fuel pump sheds metal debris straight into the injectors, taking out several at once.
Skipped fuel filter services, cracked nozzles from sustained high EGT, and old, hardened O-rings that let fuel leak into the oil all shorten injector life.

Should I replace all six injectors at once or just the bad one?

If one injector fails from contamination or pump debris, the rest are usually not far behind, so most shops swap the full set to avoid a second teardown.
Replacing just the dead cylinder makes sense when the failure is isolated, the others test clean on a leak-down bench, and budget is tight.
Either way, install new copper sealing washers, connector tubes, and O-rings while the valve cover is off.

Can I install a Cummins ISX fuel injector myself?

A seasoned diesel tech with the right tools can handle the swap, but it is not a quick driveway job on a 15L.
You have to pull the valve cover, release high-pressure fuel, extract the connector tube, and torque the injector bolt to spec, then the fuel bolt to 20 Nm and the final torque to about 80 Nm.
If you do not have a clean shop, a calibrated torque wrench, and the leak test kit to verify each injector, hand it to a heavy-duty shop.

What is the correct torque spec for Cummins ISX15 fuel injectors?

The injector hold-down bolt goes to roughly 80 Nm, or about 59 ft-lb, after the injector is seated in the cup with a new copper washer.
The high-pressure fuel fitting bolt is torqued to 20 Nm, about 177 in-lb, to seal the connector tube without crushing it.
Always follow the current Cummins service procedure for your engine serial number, and replace the copper washers every time so the injector seats and seals correctly.

Are ISX, ISX15, and X15 fuel injectors interchangeable?

They look similar, but they are not a drop-in match across every year because Cummins changed the XPI fuel system, trim codes, and nozzle flow between the ISX, ISX15, and X15 generations.
An EPA10 ISX15 injector will not run correctly in a 2017-and-up X15, and forcing the wrong trim code causes rough running and smoke.
Match the injector to your engine serial number and emissions tier, and use the leak test kit to confirm each unit before it goes back in the head.

Are these aftermarket Cummins ISX fuel injectors legal for street use?

These aftermarket injectors are sold for competition and closed-course off-road use only and are not legal for use on pollution-controlled highways or vehicles registered for the street.
Fitment varies by engine serial number, emissions tier, and CPL, so verify the exact part against your engine before installing, since incorrect fitment can cause running issues and warranty denial.
Always check your local emissions laws and order the correct trim-coded unit for your application.

What is the warranty, return policy, and shipping on EGR Performance injectors?

Every Cummins ISX fuel injector ships free with fast delivery from our U.S. warehouses in California, Texas, Ohio, and New Jersey.
Your purchase is backed by a one-year warranty tested under extreme conditions, plus a generous 45-day return policy so you can shop risk-free.
If you need help confirming fitment by engine serial number or post-install tuning, our 24/7 live tech support is standing by.
