Cummins ISX Oil Cooler

Why Does Your Cummins ISX Need a New Oil Cooler?

The factory oil cooler on a Cummins ISX and ISX15 is a wearing part, not a lifetime part, and shop owners who run these 15-liters hard know the exact moment one is going south. Heat, pressure, and coolant chemistry work against the brazed-plate core every mile, and once the original core gives up it fills your coolant with oil and puts bearings, turbos, and injectors at risk.

Core Breach and Oil-to-Coolant Cross-Contamination

Thousands of hot oil-to-coolant heat cycles fatigue the internal plates until one breaches, and because engine oil runs at higher pressure than the coolant circuit, oil forces its way into the coolant first. The surge tank and DCA filters turn to chocolate milk long before coolant ever shows in the oil, and no amount of flushing fixes it because the source is the breached core.

Sludge, Scale, and Debris Restriction

A core that is packed with sludge, hardened coolant scale, and debris restricts oil flow through the cooler, which drops oil pressure on the gauge and lets oil temperature climb past the safe 215-degree mark. The restriction starves the lube system exactly when a loaded 15-liter needs it most, and it sends you chasing low-pressure codes that point everywhere except the cooler.

Thermostat and Regulator Plug O-Ring Failure

The 215-degree oil thermostats and the regulator plug O-ring live in the same housing as the cooler, and a stuck thermostat or a cut O-ring leaks and throws off oil temperature control. A failed plug O-ring is a documented leak path on these engines, and it mimics a bad cooler until you open the housing and find the real culprit.

What Can a Cummins ISX Oil Cooler Solve?

The right replacement oil cooler and matched thermostats restore clean oil-to-coolant separation, reset the heat control, and give the lube system its flow back. A fresh brazed-plate core stops the cross-contamination at the source, so the fix holds instead of repeating with the next coolant flush.

Brazed-Plate Aluminum Core for Clean Separation

A high-efficiency brazed-plate aluminum core separates the oil and coolant circuits under the full pressure split, ending the oil-in-coolant failure that turns the surge tank to chocolate milk.

CNC-Machined Housing and High-Temperature Viton Seals

A precision-machined cast aluminum housing with TIG-welded seams and high-temperature Viton O-ring seals holds the pressure split under sustained heavy-tow load and reseals the housing against weep leaks.

Matched Thermostats and Regulator Plug

Generation-matched 215-degree thermostats and a fresh regulator plug O-ring restore proper oil temperature control and remove the stuck-thermostat failure mode while the housing is already open.

Shop Cummins ISX Oil Cooler by Truck Make & Engine Fitment Guide

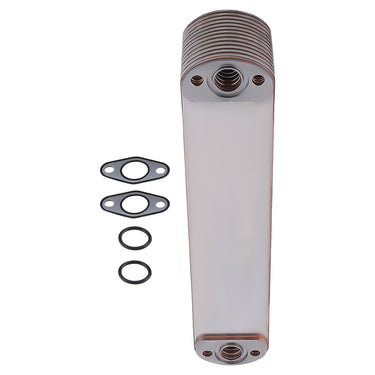

• Core Oil Cooler for Cummins ISX15 (2008-2015) - Fits the Cummins ISX15, ISX, QSX, and QSX15 15-liter diesel in Peterbilt 389/579/567, Kenworth W900/T800/T680, Freightliner Cascadia, and Volvo VNL Class 8 trucks (2008-2015). A brazed-plate aluminum core in a CNC-machined cast aluminum housing with Viton O-ring seals that ends oil-in-coolant cross-contamination and restores clean lube flow.
• Oil Cooler for Cummins ISX QSX QSX15 ISX15 (2008-2015) - Fits the Cummins ISX, QSX, QSX15, and ISX15 diesel across Peterbilt, Kenworth, Freightliner, Volvo, Mack, and International Class 8 trucks (2008-2015). A complete replacement cooler engineered for the CM871, CM2250, and CM2350 platforms that reseals the oil-to-coolant circuit and stops the chocolate-milk surge tank.
• Generation Fitment Note for CM871 2008-2010 - Early EGR ISX and ISX15 trucks on the CM871 control module (2008-2010) take this cooler family, but confirm the thermostat and regulator plug version against your engine serial number, since the housing detail changed at the CM2250 step.
• Generation Fitment Note for CM2250 and CM2350 2010-2015 - Mid-generation ISX15 CM2250 (2010-2013) and CM2350 (2013-2015) trucks are the strongest match for both coolers in this collection, especially on emissions-deleted fleet and owner-operator trucks that run higher sustained oil temperatures.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

Cummins ISX Oil Cooler FAQ

What does a Cummins ISX oil cooler do?

A Cummins ISX oil cooler is the plate-style heat exchanger that pulls heat out of your engine oil using engine coolant, keeping oil temperature in the safe band under heavy load.
Hot engine oil flows through one set of passages while cooler coolant flows through the other, and the heat transfers across the brazed-plate core so the oil comes out cooler and keeps its viscosity.
The housing also holds the thermostatic oil regulator that only routes oil through the cooler once it is up to temperature. On a worked 15-liter pulling 80,000 pounds, that heat control is what keeps bearings, turbos, and injectors alive.

Where is the oil cooler located on a Cummins ISX and ISX15?

On the Cummins ISX and ISX15 the oil cooler sits on the driver's side, or left side, of the engine block, tucked up under the EGR cooler and intake manifold area.
That tucked-in location is exactly why the job is involved, because you have to clear the EGR cooler, intake, brackets, and coolant hoses out of the way to reach the cooler housing.
The oil thermostats and the regulator plug live in that same housing on the side of the block. Knowing the location up front tells you this is not a quick roadside swap, so plan the access work before you drain the first drop of coolant.

What are the symptoms of a failing Cummins ISX oil cooler?

The classic symptom is oil showing up in the coolant overflow or DCA tank, often with no coolant visible in the oil at all, because the oil runs at higher pressure and pushes into the coolant first.
You may also see oil temperature climbing past the 215 degree mark, slow coolant loss, a milky residue under the oil fill cap, or low oil pressure when the engine is hot.
Some trucks throw an oil temperature code before any visible contamination shows up. Any one of these on a high-mileage 15-liter points at a breached cooler core or a failed thermostat O-ring.

Why is there oil in my coolant but no coolant in my oil on my ISX?

That one-way cross-contamination is the signature ISX oil cooler failure, and it happens because engine oil runs at a higher pressure than the coolant circuit.
Once an internal plate or seal in the cooler breaches, the higher-pressure oil forces its way into the lower-pressure coolant side and collects in the radiator, surge tank, and DCA filters.
Coolant does not push back into the oil until the pressures equalize or the breach gets much worse, which is why the coolant turns to chocolate milk long before the oil does. The fix is a replacement cooler core and fresh gaskets, not a coolant flush alone, because the source is the breached core.

How long does it take to replace a Cummins ISX15 oil cooler?

Plan on roughly four to six hours of shop time for an ISX15 oil cooler swap, depending on how stubborn the access bolts are and whether the thermostats come out at the same time.
Most of that time is access work, draining coolant and oil, removing the EGR cooler, intake manifold, brackets, and hoses to reach the housing on the side of the block.
The cooler itself comes out once the housing is exposed, and reassembly is the reverse with fresh gaskets and a new thermostat O-ring. It is a straightforward job for a tech who has done it, just time consuming because of everything stacked on top of it.

Which years of Cummins ISX and ISX15 does this oil cooler fit?

This oil cooler is engineered for the 2008-2015 Cummins ISX, ISX15, QSX, and QSX15 diesel engines, which covers the CM871, CM2250, and CM2350 control module platforms across those years.
The castings and coolant-to-oil routing changed across generations, so the cooler that fits a 2008 CM871 is not the same part as one for an early pre-EGR ISX or a 2017-plus X15.
Always confirm your engine serial number and CM number before ordering, because the catalog uses a broad year range and the real fitment lives in the serial number. The thermostats and regulator plug share that same generation-specific matching.

Should I replace the oil cooler thermostats at the same time as the cooler?

Yes, on an ISX the smart move is to replace the oil thermostats and the regulator plug O-ring while the cooler is already out, because they live in the same housing and you do the same access work either way.
The 215-degree thermostats are a known wear item, and a stuck thermostat can cause high oil temperatures that look just like a bad cooler and send you back in a second time.
The NHTSA service bulletin on these engines even flags the thermostat plug O-ring and groove as a suspect leak path. Doing both jobs in one trip saves the labor of opening that housing twice.

Can a bad oil cooler cause low oil pressure or high oil temp on a Cummins ISX?

It absolutely can, and those two symptoms together are a strong cooler-related clue on a 15-liter.
A cooler core packed with sludge, scale, or debris restricts oil flow and drops oil pressure on the gauge, while a breached core or stuck thermostat lets oil temperature run away past safe limits.
The ECM watches oil temperature and pressure closely, so you will often get a code alongside the gauge movement. The reliable answer is a clean-flow replacement core paired with fresh thermostats, which restores both the pressure and the heat control in one job.

What trucks use the Cummins ISX15 oil cooler?

The ISX and ISX15 are the dominant 15-liter engines in North American Class 8 trucks, so this oil cooler shows up across Peterbilt 389, 579 and 567, Kenworth W900, T800 and T680, Freightliner Cascadia and Century, Volvo VNL, and Mack and International HX trucks.
That same platform also powers a lot of heavy haulers, vocational equipment, and motorhomes that lean hard on the lube system under sustained load.
Because the cooler casting is matched to the CM control module and not the truck badge on the hood, you confirm fitment by engine serial number and CM number. Any of these trucks running a 2008-2015 ISX15 family engine is a candidate for this replacement cooler.

Are these Cummins ISX oil coolers street legal, and what if the fitment is wrong?

These oil coolers are direct-fit replacement parts for the factory lube cooler, but for owners installing them on competition, deleted, or off-road-only trucks, any emissions-related work must stay within competition and closed-course off-road use only and comply with your local and federal laws.
Because the ISX oil cooler varies by control module platform and engine serial number, always verify fitment by your CM number and serial number before ordering.
If a part does not match your engine, contact us and we will set it right under our 45-day return policy. Every order ships fast and free from our U.S. warehouse and is backed by a one-year warranty and 24/7 live technical support.
