LB7 Duramax Intakes & Intercoolers

Why Does Your LB7 Duramax Need Intake and Intercooler Upgrades?

A Restrictive Factory Charge Horn

The stock LB7 intake horn between the intercooler outlet and the intake manifold is a cast bottleneck that chokes the charger well before the turbo runs out of breath.
The casting is rough, the cross-section necks down, and at anything above light throttle the engine is working harder to pull air through the horn than the turbo is working to push it.
The result is slower spool, softer throttle response, and EGT that creeps up on a long grade because the engine cannot move enough charge air to keep the combustion temperatures in check.

A Non-Adjustable Wastegate That Gives Up Boost Early

The LB7 runs a fixed-geometry Garrett turbo with a mechanical wastegate, and from the factory that gate is set to crack open at roughly 18 to 20 PSI.
There is no electronic VGT control to tune around it, so once boost hits that threshold the gate opens and bleeds exhaust past the turbine.
Any tune that commands more fuel has no extra air to burn it with, and the horsepower you paid for in the tuning sits on the table because the gate opened before the charger could build the boost the tune expects.

Blown Intercooler Boots Dumping Charge Air

The factory rubber intercooler boots on the hot side and cold side harden, oil-soak, and let go, and when they do they dump boost straight into the engine bay.
The metal retaining ring at the hot-side joint is a known failure point, the boot walks off the bead, and suddenly you are running a naturally aspirated 6.6L with a tune written for 28 PSI.
Every blown boot is a lost tow, a hot EGT alarm, and a roadside fix in the rain.

What Can an LB7 Intake and Intercooler Upgrade Solve?

High Flow Intake Horn

A CNC-machined 6061-T6 billet or ported cast intake horn opens up the charge path from the intercooler to the manifold with a smooth, enlarged bore and a proper high-temperature gasket seal.
Owners see the turbo spool about 150 RPM sooner, three to five PSI more boost, and roughly 15 horsepower back that the factory horn was stealing.
It is widely called the best bang-for-the-buck bolt-on you can put on an LB7.

3.5" Turbo Intake Elbow and Inlet Horn

The compressor inlet side gets the same treatment with a 3.5-inch turbo intake elbow and inlet horn that feeds the charger a straighter, larger column of air.
Combined with the charge horn it removes both ends of the intake restriction, quiets the surge, and lets a tuned LB7 breathe all the way to redline without the charger choking for inlet air.
It carries a high-temperature Viton O-ring seal at the compressor housing for a leak-free fit.

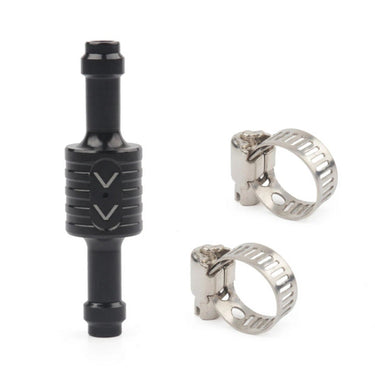

Boost Increase Valve Kit

A precision boost increase valve splices into the wastegate actuator line and bleeds a measured portion of the boost signal away from the diaphragm.
The wastegate sees less pressure than the turbo is actually making, so it opens later, and the LB7 holds boost into the 28 to 30 PSI range instead of giving up at 20.
It is the part that lets the tuning actually do its job, and it is far safer than unplugging the gate hose entirely because it still sends a regulated signal to the actuator.

3" Intercooler Pipe Boot Kit

A 4-ply reinforced high-temperature silicone boot kit with stainless steel T-bolt clamps reseals every charge connection on the LB7 so the boost you finally built stops escaping under the hood.
The silicone holds up to oil and heat where the factory rubber hardened and split, and the constant-tension clamps hold the boot on the bead instead of letting the retaining ring walk out.
It is the cleanest fix for the hot-side and cold-side boost leak that plagues a worked LB7.

Shop LB7 Intake and Intercooler Parts by Chevy GMC Duramax Engine & Fitment Guide

• High Flow Intake Horn - Fits the 6.6L Duramax LB7 in the Chevy Silverado 2500/3500 and GMC Sierra 2500/3500 (2001-2004). A CNC-machined billet and ported high-flow charge horn that replaces the restrictive factory piece, restoring spool, boost, and roughly 15 horsepower.
• 3.5" Turbo Intake Elbow and Inlet Horn - Fits the 6.6L Duramax LB7 in the Chevy Silverado 2500HD/3500, GMC Sierra 2500HD/3500, and the Chevy Kodiak / GMC Topkick 4500/5500 medium-duty trucks (2001-2004.5). Opens up the compressor inlet with a 3.5-inch cast and billet elbow paired with a high-temperature Viton O-ring seal.
• Boost Increase Valve Kit - Fits the 6.6L Duramax LB7 in the Chevy Silverado 2500/3500 and GMC Sierra 2500/3500 (2001-2004). A CNC-machined brass and stainless boost valve that bleeds the wastegate actuator signal so the non-adjustable factory gate opens later, holding boost into the 28 to 30 PSI range on a tuned truck.
• 3" Intercooler Pipe Boot Kit - Fits the 6.6L Duramax LB7 in the Chevy Silverado 2500HD/3500 and GMC Sierra 2500HD/3500 (2002-2004). A 4-ply high-temperature silicone boot and stainless steel T-bolt clamp kit that reseals the hot-side and cold-side charge connections and stops the blown-boot boost leak.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What does an LB7 intake horn do, and is it worth the upgrade?

The LB7 intake horn is the charge-air horn that sits between the intercooler outlet and the intake manifold, and the factory piece is a rough cast bottleneck that chokes the charger.
A CNC-machined 6061-T6 billet or ported high-flow horn opens that bore up, smooths the airflow, and seals with a proper high-temperature gasket instead of the aging factory seal.
Owners consistently report the turbo spooling about 150 RPM sooner, three to five PSI more boost, smoother throttle, and roughly 15 horsepower back that the stock horn was stealing, which is why the LB7 community calls it the best bang-for-the-buck bolt-on you can put on the truck.
On a stock or mildly tuned LB7 it is absolutely worth it, and on a tuned truck it is the part that lets the rest of the build breathe.

What is the difference between the LB7 intake horn and the turbo intake elbow?

They sit on opposite ends of the intake tract and do different jobs, and both are worth understanding before you order.
The intake horn is the charge horn between the intercooler COLD-side outlet and the intake manifold, and upgrading it is the famous plus-15 horsepower LB7 mod.
The 3.5-inch turbo intake elbow and inlet horn sits on the COMPRESSOR INLET of the turbo itself, and its job is to feed the charger a straighter, larger column of incoming air.
Together they remove both ends of the factory restriction, but if you only do one, start with the intake horn because that is where the biggest airflow gain lives.

What does an LB7 boost increase valve do to the wastegate?

The LB7 runs a fixed-geometry Garrett turbo with a mechanical wastegate, and from the factory that gate is set to crack open at roughly 18 to 20 PSI with no electronic adjustment.
A boost increase valve splices into the wastegate actuator line and bleeds a measured portion of the boost signal away from the actuator diaphragm.
Because the gate sees less pressure than the turbo is actually making, it opens later, and a tuned LB7 can hold boost into the 28 to 30 PSI range instead of giving up at 20.
It is the part that lets your tuning do its job, and it works by delaying the gate, not by blocking it off.

Is a boost increase valve safe on a stock LB7 turbo, or only for tuned trucks?

A boost increase valve is far safer than simply unplugging the wastegate hose, because it still sends a regulated signal to the actuator and keeps the turbo shaft speed in a sane range.
On a completely stock truck the gains are modest, because the ECU is not adding extra fuel to match the extra air, so the valve mainly cleans up the boost curve.
Where it earns its keep is on a tuned LB7, where the extra fuel from the tune finally has the charge air to burn it.
Pair it with EGT monitoring and a tune written for higher boost, and the brass and stainless valve is a reliable, well-reviewed upgrade rather than a gamble.

Why do my LB7 intercooler boots keep blowing off under load?

The factory rubber boots on the hot side and cold side harden and oil-soak over time, and the metal retaining ring at the hot-side joint is a documented failure point that walks out and lets the boot separate.
When the boot lets go it dumps boost straight into the engine bay, and you are suddenly running a tuned 6.6L with no charge pressure.
A 4-ply reinforced high-temperature silicone boot kit with stainless steel T-bolt clamps holds the boot on the bead, resists the oil and heat that killed the factory rubber, and keeps constant tension where a standard clamp would relax.
If the boots keep blowing off, also confirm the boost increase valve is not over-boosting the system past what the boots can hold.

Do you carry the LB7 intercooler pipe kit and the hot side and cold side metal charge pipes?

This collection carries the 3-inch intercooler BOOT kit that reseals the factory LB7 charge connections, not the metal mandrel-bent charge pipes themselves.
The terms lb7 intercooler pipe kit, lb7 piping kit, lb7 charge pipes, lb7 hot side intercooler pipe, lb7 cold side intercooler pipe, lb7 drivers side intercooler pipe, and lb7 intercooler pipe upgrade all refer to that aluminum charge tubing, which is a separate product line not stocked here.
The boot kit pairs with your stock LB7 pipes to fix the leak at the joint where boots actually fail, so confirm exactly what you need before ordering.
If you need the full mandrel-bent aluminum pipe kit, check back or contact support and we will point you to the right application.

Do you sell the LB7 Duramax intercooler core itself, or just boots and intake parts?

No, the actual intercooler CORE, the front-mounted heat exchanger that cools the charge air, is not stocked in this collection.
The terms lb7 duramax intercooler, 2003 duramax intercooler, and 2004 duramax intercooler all point to that core, and what we carry here is the intake horn, the turbo intake elbow, the boost increase valve, and the boot kit that bolt to the stock core.
If your core is damaged or you want a larger flowed core, that is a different part and a separate order.
Reach out and we will confirm whether your build needs a boot and intake refresh or a full core swap.

Will these intake, intercooler, and boost parts fit a 2004.5 or newer LLY, LBZ, LMM, or LML Duramax?

No, these parts are engineered specifically for the 2001-2004 LB7 and will not fit the later Duramax generations.
The LLY that replaced the LB7 in mid-2004 got a different intake layout, a Garrett VVT variable-geometry turbo instead of the fixed-geometry LB7 charger, and the wastegate and boost-control architecture changed with it.
The LBZ, LMM, and LML moved the driver-side intercooler pipe and reworked the charge and intake geometry again, so the boots, horns, and boost valve in this collection will not seal or function on those engines.
If you have a 2004.5 or newer truck, confirm your engine code before ordering so we can get you the correct generation of parts.

The LB7 has no factory EGR or DPF. Does that make these intake and boost parts a cleaner install?

Yes, the LB7 is the cleanest Duramax canvas because GM shipped it from the factory with no EGR cooler, no DPF, and no diesel oxidation catalyst on the intake and exhaust path.
That means an intake horn, turbo elbow, boot kit, and boost increase valve bolt onto a stock LB7 without touching, removing, or bypassing any emissions device, because there is no emissions hardware in that part of the engine to begin with.
There is no EGR cooler to delete, no DPF to bypass, and no soot load working against your fresh charge air, so the install is straightforward and the airflow gains are uncomplicated.
It is one of the reasons the LB7 is still the favorite Duramax for honest, reliable bolt-on power.

Are these LB7 intake and intercooler upgrades street legal, and do they include free shipping and a warranty?

These intake horns, turbo intake elbows, intercooler boot kits, and boost increase valves are direct-fit airflow parts that remove or bypass no emissions device, so they are street-legal, 50-state bolt-on upgrades for a stock LB7 used on the highway.
The boost increase valve does raise turbo boost, so on a tuned or emissions-deleted truck calibrated for above-stock boost pressure these upgrades are intended for competition and closed-course off-road use only, and you remain responsible for confirming the fitment and the emissions rules in your jurisdiction before installing.
Every order includes free shipping, is backed by a 1-year warranty, and comes with our 45-day return policy so you can confirm fitment on your 2001-2004 Chevy Silverado or GMC Sierra 2500HD/3500 without risk.
Confirm your engine code is LB7 and your year falls in the 2001-2004 range, and the right part ships fast.
