LBZ LMM Duramax SOTF Switch and Fuel Rail Plug

Why Does Your LBZ or LMM Duramax Need a Fuel Rail Plug and SOTF Switch?

The Relief Valve Opens Too Early

The factory fuel pressure relief valve is a spring-and-seat safety device that was never built for above-stock rail pressure. The minute a tune pushes the CP3 harder, heat soaks the spring and it unseats early, bleeding high-pressure fuel straight back to the return line.

Rail Pressure Collapse Under Load

Once that valve cracks, the rail cannot hold commanded pressure. The injectors starve at the top of a hard pull, the truck falls on its face, and the ECM flags P1093, rail pressure drop during power enrichment, or P0087, rail pressure too low.

One Tune Is Never Enough

A single fixed calibration forces you to choose between a safe tow tune and a hot street file, then reflash every time the job changes. An LBZ or LMM running EFI Live wants the same truck to tow on Friday and race on Saturday without a laptop in the cab.

What Can a Fuel Rail Plug and SOTF Switch Solve?

Locked-In Rail Pressure

The 17-4 stainless race plug threads into the relief port and seals it permanently, so the rail holds full pressure through every enrichment event and the P1093 and P0087 codes disappear.

Five Calibrations on One Knob

The DSP5 switch reads position off the ECM and lets you rotate between five EFI Live tune slots, tow to race, while the truck is running. One flash, five tunes, no second AutoCal session.

A Cleaner, Tuner-Ready Engine Bay

Both parts are direct-fit, sealed, and serviceable without pulling the rail or chasing custom wiring. The billet knob and the weatherpack connector install clean and stay clean.

Shop SOTF Switch and Fuel Rail Plug by GM Duramax Engine and Fitment Guide

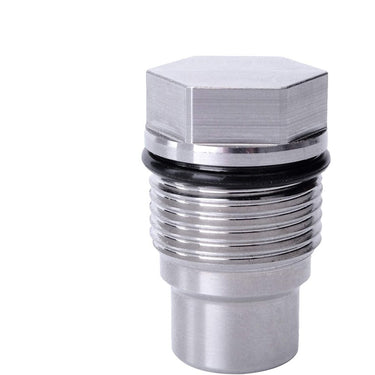

• Fuel Rail Plug Valve - Fits 6.6L Duramax LLY, LBZ, and LMM in Chevy Silverado and GMC Sierra 2500 and 3500 (2004.5 to 2010). Blocks the OEM fuel pressure relief valve on the driver-side rail to hold full rail pressure and clear P1093 and P0087. CNC-machined 17-4 stainless steel with a high-pressure seal washer.
• SOTF (DSP5) Switch - Fits 6.6L Duramax LBZ and LMM in Chevy Silverado and GMC Sierra 2500 and 3500 (2006 to 2010). Five-position EFI Live rotary switch to change tune levels on the fly via ECM pin B15. CNC-machined 6061-T6 billet aluminum housing, gold-plated brass pins, IP67 weatherpack connector.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What does an LBZ LMM Duramax fuel rail plug do?

It replaces the factory fuel pressure relief valve on the driver-side fuel rail with a solid CNC-machined 17-4 stainless steel plug.
That relief valve is a spring-loaded safety device that bleeds high-pressure fuel back to the tank when rail pressure spikes.
On a tuned LBZ or LMM the plug blocks that port so the rail holds full commanded pressure through every power enrichment event.

Why does my LBZ or LMM Duramax need a fuel rail plug?

The factory relief valve is notorious for opening too early once a tune raises rail pressure above stock.
When it cracks, rail pressure collapses under load and the truck throws P1093 or P0087 and loses power.
The race plug locks the port shut so pressure stays pinned and the codes clear up on a modified truck.

How do I install the fuel rail plug on my LBZ LMM Duramax?

Install is on the driver-side fuel rail where the relief valve threads in.
Relieve fuel pressure, unscrew the factory relief valve, and thread the race plug in with its seal washer to spec.
No rail removal is needed and it is a clean, single-side job on LLY, LBZ, and LMM trucks.

What is a DSP5 switch and what does it do on an LMM or LBZ Duramax?

DSP5 is the EFI Live five-position switch that lets you rotate between five custom tune slots while the truck runs.
It reads the knob position off the ECM and changes calibration instantly, no reflash between tunes.
SOTF, or switch on the fly, is the same idea, and this rotary knob gives you tow, street, and race files on one dial.

How do I install the DSP5 SOTF switch on my LBZ LMM Duramax?

Install taps into ECM pin B15 on the blue C2 connector under the hood.
Splice the switch input wire to pin B15, ground the return, then route the rotary knob into the cab.
Flash your five-slot DSP5 tune file through an AutoCal or FlashScan and the knob selects the active calibration.

Does the SOTF switch fit an LLY Duramax?

This SOTF switch is built for the LBZ and LMM, 2006 to 2010, which share the same ECM connector layout.
The LLY from 2004.5 to 2005 does run EFI Live with a DSP5 setup, but its ECM and connector differ.
Confirm fitment on an LLY before ordering, and note the fuel rail plug in this collection does cover the LLY from 2004.5 up.

What is the difference between a fuel rail plug, a shim kit, and a race valve?

A race plug fully blocks the relief port so no fuel can bypass it.
A shim kit adds washers behind the factory spring to raise the pressure it takes to crack open.
A race valve is an upgraded relief valve rated to a higher pressure that still bleeds off in a true over-pressure event.

Do I need EFI Live or a tuner for the SOTF switch to work?

Yes, the switch is only the selector, it does nothing without a DSP5 tune file loaded in the ECM.
Your tuner writes five calibrations into the DSP5 slots and flashes them in one pass with an AutoCal or FlashScan.
After that the rotary knob changes the active tune on the fly.

Will these parts throw codes or trigger a check engine light?

Used together on a properly tuned truck they tend to clean codes up, not cause them.
The rail plug stops the P1093 and P0087 rail pressure codes that the weak relief valve throws.
The switch only changes the active calibration, so it will not set a code on its own once the DSP5 file is flashed.

Are these parts legal for street use, and what are the shipping, warranty, and return terms?

The fuel rail plug removes a factory fuel pressure safety valve, and the SOTF switch is part of a tuned EFI Live setup, so both are intended for competition and closed-course off-road use only and may not be legal for registration or operation on public roads in some jurisdictions.
Confirm fitment for your LLY, LBZ, or LMM before ordering.
Every order includes free shipping, is backed by a 1-year warranty, and comes with our 45-day return policy.
