LLY LBZ LMM Duramax Down Pipe

Why Does Your 6.6L Duramax Need a Down Pipe?

The Factory Pipe Is Crimped and Crushed

To clear the cab floor on the assembly line, GM stamped a flattened kink into the stock down pipe. That pinch is the single biggest flow restriction between the turbo and the tailpipe, and it chokes exhaust gas the instant boost climbs. On an LLY, LBZ, or LMM that is tuned or worked hard, the crimp shows up as lag, smoke, and heat.

EGTs Climb Under Load and Tow

That restriction builds back-pressure, and back-pressure turns straight into heat. On a tuned 6.6L Duramax pulling a heavy trailer up a long grade, exhaust gas temperatures spike and stay pinned high, which stresses pistons, turbos, and head gaskets. The hotter the engine runs, the faster the stock pipe rusts and thins from the inside.

Sluggish Turbo Spool and Heat Soak

Drive pressure ahead of the turbine slows the variable-geometry turbo's response and traps heat in the turbine housing. The result is lazy spool off the line, smoke under hard throttle, and a turbo that bakes its own oil at idle. The factory pipe is the root cause, not the turbo itself.

What Can a Down Pipe Solve?

Straight-Through 3 Inch Mandrel-Bent Flow

The constant 3 inch mandrel-bent bore removes the crimp, so exhaust gas exits the turbine unrestricted. Flow goes up, drive pressure comes down, and the whole exhaust path breathes the way the 6.6L Duramax was designed to.

Lower Exhaust Gas Temperatures

With the bottleneck gone, EGTs drop and recover faster after a hard pull. That protects the engine on long grades and heavy tows, and it buys back the headroom you need to run a tune without cooking anything.

Faster Turbo Response and Cleaner Spool

Less drive pressure ahead of the turbo means the VGT lights sooner, throttle feels sharper off idle, and the truck pulls through the rpm range instead of hesitating. Most owners also pick up a deeper exhaust note and more turbo whistle.

Bonus Power When Paired With a Tune

On a tuned LLY, LBZ, or LMM, the freed-up flow turns into useable horsepower and torque you can feel in the seat. The down pipe is the supporting mod that lets the rest of the build do its job.

Shop Duramax Down Pipe by Chevy and GMC Engine & Fitment Guide

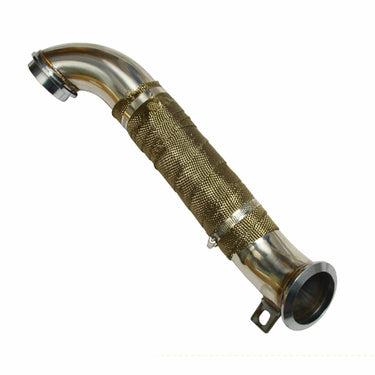

• Chrome Down Pipe for 2004.5-2010 6.6L Duramax - Fits the LLY, LBZ, and LMM 6.6L Duramax in the Chevy Silverado and GMC Sierra 2500HD and 3500HD (2004.5-2010). A mandrel-bent 3 inch chrome pipe that replaces the crimped factory bend to cut back-pressure and drop EGTs.
• 3 Inch Down Pipe for LMM Duramax (2007.5-2010) - Fits the LMM 6.6L Duramax in the Chevy Silverado and GMC Sierra 2500HD and 3500HD (2007.5-2010). Opens up turbo flow, speeds VGT spool, and pulls heat out of the turbine housing under a loaded trailer.
• 3 Inch Down Pipe for LBZ Duramax (2006-2007) - Fits the LBZ 6.6L Duramax in the Chevy Silverado and GMC Sierra 2500HD and 3500HD (2006-2007). Removes the stock pipe's flattened kink for cleaner flow, lower drive pressure, and a deeper exhaust note.
• 3 Inch Down Pipe for LLY Duramax (2004.5-2005) - Fits the LLY 6.6L Duramax in the Chevy Silverado and GMC Sierra 2500HD and 3500HD (2004.5-2005). Straight-through mandrel bend drops drive pressure and protects the head gaskets on tuned trucks.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What does a down pipe do on a 6.6L Duramax?

A down pipe is the first section of exhaust that bolts to the turbocharger and carries exhaust gas back toward the rest of the exhaust system. On the LLY, LBZ, and LMM, the factory pipe has a crimped, flattened bend that restricts flow.
Our mandrel-bent 3 inch down pipe removes that kink so exhaust gas exits the turbine with no choke point, which drops back-pressure, lowers EGTs, and speeds up turbo response. Think of it as uncorking the engine right at the turbo outlet.

Will a 3 inch down pipe fit my LLY, LBZ, or LMM Duramax?

Yes. Our chrome down pipe is a direct fit for the 6.6L LLY (2004.5-2005), LBZ (2006-2007), and LMM (2007.5-2010) in the Chevy Silverado and GMC Sierra 2500HD and 3500HD.
The LLY, LBZ, and LMM share the same turbo and flange layout, so one pipe covers all three generations.

How much horsepower does a Duramax down pipe add?

On its own, a down pipe is a supporting mod, so the gain depends on the rest of your build. On a stock truck expect a modest bump you will mostly feel as response and sound, not a big peak number.
On a tuned LLY, LBZ, or LMM with an open exhaust, owners commonly report 10 to 20 extra horsepower because the turbo can finally breathe.
The bigger win is torque under load and the ability to hold power on a long grade without the truck getting hot.

Does a down pipe really lower EGTs on a Duramax?

Yes, and EGT reduction is the number one reason most owners swap the pipe. The crimped stock bend builds drive pressure, and that pressure shows up as heat right at the turbine.
Opening up the pipe to a constant 3 inch mandrel bend lets exhaust gas out faster, so EGTs drop and recover much quicker after a hard pull. That headroom is what protects your pistons, turbo, and head gaskets when you tow heavy or run a tune.

How hard is it to install a Duramax down pipe, and how long does it take?

It is a moderate do-it-yourself job for anyone comfortable under the truck. Plan on roughly 2 to 3 hours, and it goes faster with a second set of hands and the truck on a lift or tall jack stands.
The hard part is the bottom bolt near the transmission and clearing the cab floor, so soak the fasteners with penetrating oil first and have a cheater bar ready.
If you are not comfortable dropping the down pipe and fighting rusted hardware, a diesel shop can handle it in an afternoon.

Is a down pipe worth it on a stock LBZ or LMM?

For most owners, yes, even on an otherwise stock truck. The factory pipe is a genuine restriction, and fixing it lowers EGTs, sharpens throttle, and adds a deeper exhaust note with more turbo whistle.
If your truck is tuned, straight-piped, or used for towing, the down pipe is one of the best bang-for-buck upgrades you can make. On a totally stock, light-duty truck the gains are smaller but the EGT and response improvements are still real.

What size down pipe is best for the LLY, LBZ, and LMM, 3 inch or 4 inch?

For the LLY, LBZ, and LMM, a 3 inch mandrel-bent down pipe is the sweet spot and what we recommend for almost every build. The factory pipe is well under 3 inches at the crimp, so a full 3 inch bore is already a huge improvement.
A 4 inch down pipe only pays off on high-horsepower, big-turbo builds, and on a near-stock truck it can actually hurt low-end response. For tow, daily, and mild-tune trucks, 3 inch is the proven choice.

Do I need to retune my truck after installing a down pipe?

You do not strictly need a tune to run a down pipe, since it is a bolt-on exhaust part, not an emissions delete. The pipe will lower EGTs and improve response on its own.
That said, pairing it with a tune is where you see the real horsepower and torque gains, because the engine can finally use the extra flow. If your truck is already deleted or tuned, the down pipe is the supporting mod that lets that tune deliver.

Are these down pipes legal for street use?

These down pipes are sold as performance replacement parts for competition and closed-course off-road use only. If your truck still has its factory emissions equipment, check your local and state laws before modifying the exhaust, because replacing or relocating catalytic or emissions piping can affect on-road legality.
Fitment matters too: the bottom bolt and cab clearance are the known snag on the LLY, LBZ, and LMM, so verify your engine code and cab configuration before you install.
Every order ships fast and free, is backed by our 1-year warranty, and is covered by our 45-day return policy if the fit is not right.

What are EGR Performance's shipping, warranty, and return policies?

Every order gets fast and free shipping from our U.S. warehouses so you are back on the road sooner. All down pipes are covered by a 1-year warranty and have been tested under extreme heat and pressure.
You also shop risk-free with our 45-day return policy, and our 24/7 live support team can help with fitment, install, and post-install tuning questions. If anything is off, reach out and we will make it right.
