Engine Wiring Harness for 6.0L Powerstroke Ford F250 F350 Super Duty (2004)

$164.59
Shipping calculated at checkout.
84 in stock, ready to ship
🛒 Bulk Discount: Save 6% on 2+ Items
🎁 Special Offer: Enjoy 10% Off on 3+ Items
📞 Large Orders (10+): Contact Us for Exclusive Deals
Details
Brand Model Year Engine Model
Ford F-250 Super Duty 2004 (Built 9/23/2003 & After) 6.0L Powerstroke V8 Diesel Turbo
Ford F-350 Super Duty 2004 (Built 9/23/2003 & After) 6.0L Powerstroke V8 Diesel Turbo
Ford F-450 Super Duty 2004 (Built 9/23/2003 & After) 6.0L Powerstroke V8 Diesel Turbo
Ford F-550 Super Duty 2004 (Built 9/23/2003 & After) 6.0L Powerstroke V8 Diesel Turbo
Ford Excursion 2004 (Built 9/23/2003 & After) 6.0L Powerstroke V8 Diesel Turbo

✅ Exact Fitment Guarantee | If you are unsure about compatibility, please contact us at service@egrperformance.com with your VIN number.

Introduction

Engine wiring harness for 6.0L Powerstroke Ford F250 F350 Super Duty is a critical replacement component that restores proper electrical connections to your diesel engine. Designed for 2004 models built after September 23, 2003, this harness replaces OE part number 4C3Z-12B637-AA and ensures reliable communication between engine sensors, fuel injectors, and the PCM. A faulty wiring harness can cause hard starts, rough idle, injector misfires, and even complete engine shutdown. Keep reading to learn why this is the best replacement harness for your 6.0L Powerstroke.
Shipping Details

Ontario CA / Springdale OH / Newark NJ
Package List

Complete Package Contents

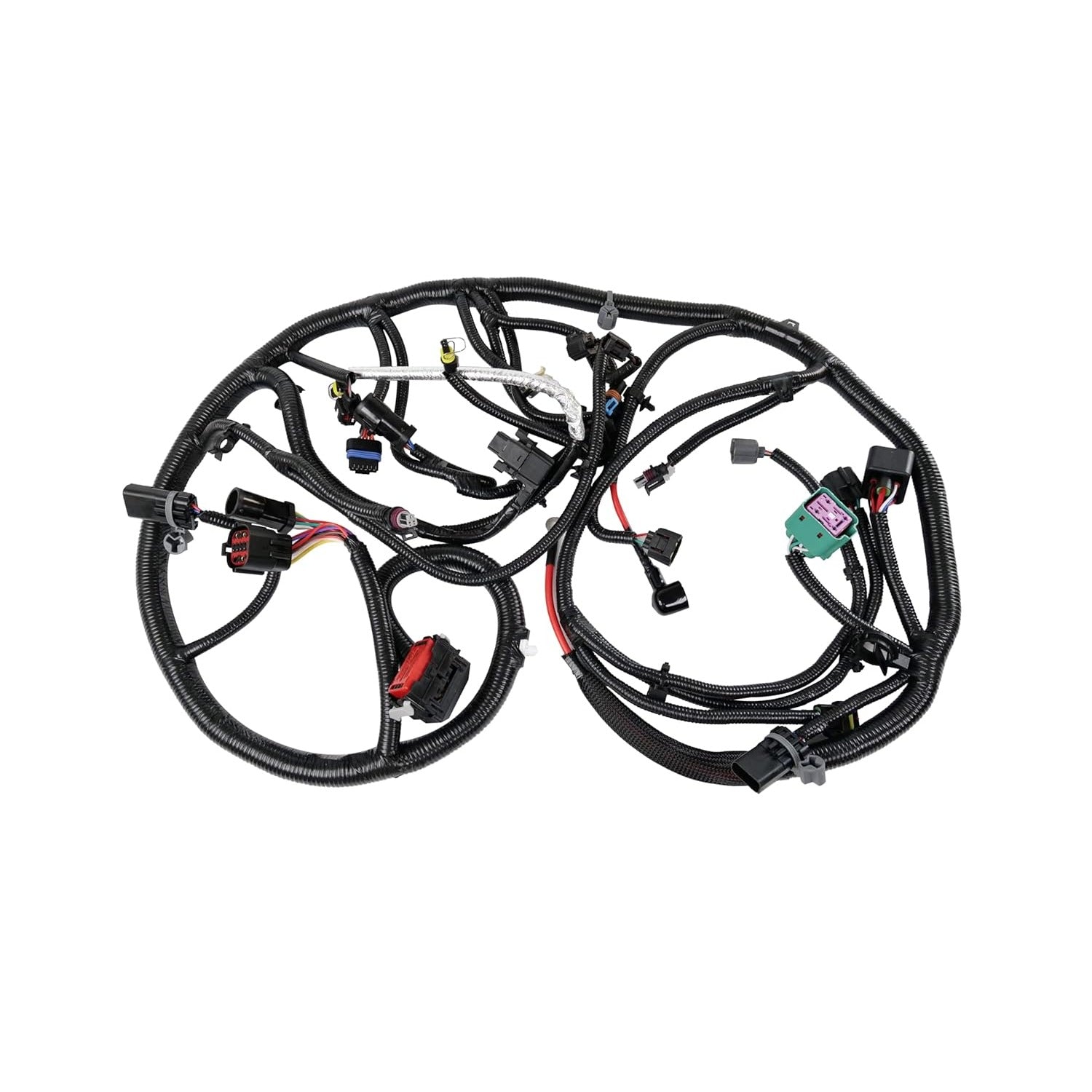

  • 1x Engine Wiring Harness (replaces OE 4C3Z-12B637-AA)
  • No additional hardware included — reuses factory mounting points and connectors
Delivery Time

2-5 working days inland in the United States

Product details

Product Overview

The engine wiring harness is the central nervous system of your 6.0L Powerstroke diesel engine. It connects all engine sensors, fuel injectors, glow plugs, and other electrical components to your vehicle's main computer (PCM). Over time, heat, vibration, and oil exposure can cause factory harnesses to crack, corrode, or develop internal shorts. This replacement harness restores proper electrical communication, eliminating intermittent electrical issues and preventing costly engine damage. It's a direct-fit replacement for OE number 4C3Z-12B637-AA on 2004 Ford Super Duty trucks built after September 23, 2003.

Ideal For

  • Towing and Hauling: Ensures consistent injector performance and engine communication under heavy load conditions, preventing unexpected power loss while towing
  • Daily Driving: Eliminates intermittent electrical gremlins that cause stalling, hard starts, or check engine lights during regular commutes
  • Commercial Vehicles: Provides reliable electrical connections for work trucks that run all day, reducing downtime and maintenance costs
  • Engine Performance Upgrades: Essential foundation for any 6.0L Powerstroke performance build — proper electrical signal delivery is required for tuners and upgraded injectors
  • Long-Term Vehicle Ownership: Proactively replaces an aging harness before it fails, avoiding costly breakdowns and potential engine damage from electrical faults

Core Advantages

  • Reliable Electrical Connections: Premium copper conductors with heat-resistant insulation ensure consistent signal delivery to all engine sensors and injectors
  • Direct Fit Replacement: Pre-terminated connectors match factory locations exactly — no splicing or modification required for installation
  • Heat and Oil Resistant: Constructed with high-temperature insulation that withstands under-hood conditions better than the original factory harness
  • Restores Engine Performance: Fixes common 6.0L Powerstroke issues like injector misfires, rough idle, and hard starting caused by degraded wiring
  • Cost-Effective Repair: Replaces only the engine harness instead of the entire vehicle wiring system, saving hundreds compared to dealer pricing

Technical Specifications

  • OE Part Number: 4C3Z-12B637-AA (also referenced as 4C3Z12B637AA, 4C3Z 12B637 AA)
  • Material: High-grade copper conductors with heat-resistant PVC insulation
  • Connector Type: Factory-style pre-terminated connectors
  • Placement on Vehicle: Engine bay (front)
  • Condition: 100% Brand New
  • Warranty: 1 Year Limited Warranty against manufacturing defects

Why Choose EGR Performance

  • Premium Quality Materials: Manufactured with high-grade copper wiring and heat-resistant insulation that meets or exceeds OE specifications
  • Precision Engineering: Each harness is built to exact factory dimensions with pre-terminated connectors for perfect fitment
  • Rigorous Testing: Every unit undergoes electrical continuity testing before shipping to ensure all circuits function properly
  • Dedicated Customer Support: Email us at service@egrperformance.com for fitment verification or technical assistance
  • Fast Shipping from USA Warehouse: Orders ship same day from our US-based warehouse
  • 1 Year Limited Warranty: Full coverage against manufacturing defects

Troubleshooting and Problem Solving

Common Issues After Installation

  • Check Engine Light (CEL) with injector or sensor codes
  • Rough Idle or misfires
  • Hard Starting or No Start condition
  • Glow plug circuit errors
  • Intermittent power loss

Error Code Solutions

  • P0261-P0280 (Injector Circuit Codes): Check injector connector seating — ensure all 8 injector connectors are fully clicked in. Inspect for bent or pushed-out pins in the connectors.
  • P0380/P0381 (Glow Plug Circuit Codes): Verify glow plug control module connections. Check that the harness is properly grounded to the engine block.
  • P0603/P0605 (PCM Codes): Check PCM connector for corrosion or bent pins. Ensure all battery connections are clean and tight.
  • P0230 (Fuel Pump Circuit): Verify fuel pump relay connections and check for damaged wiring near the harness routing points.

How to Reset Check Engine Light After Installation

  1. Ensure the engine is fully warmed up and running smoothly
  2. Use an OBD2 scan tool to clear all diagnostic trouble codes
  3. Turn the ignition off for 30 seconds, then restart the engine
  4. Drive the vehicle for 10-15 minutes to allow the PCM to relearn
  5. If the light returns, re-read codes and address the specific issue

What to Do If Your Vehicle Loses Power After Installation

  • Double-check all electrical connections — a loose connector is the most common cause
  • Verify battery connections are clean and tight
  • Check that all ground straps are properly reconnected
  • Use an OBD2 scanner to read any stored trouble codes
  • Confirm the harness is the correct part number for your build date (must be 9/23/2003 or later)

Long-Term Maintenance Tips

  • Regular Inspection: Every 10,000-15,000 miles, inspect the harness for signs of heat damage, oil saturation, or abrasion near moving components
  • Connector Maintenance: Every oil change, check that all connectors are fully seated and free of corrosion. Apply dielectric grease to connectors for added protection
  • Oil and Fluid Cleanup: If engine oil or coolant spills on the harness, clean it promptly — prolonged exposure to petroleum products can degrade insulation over time
  • Hardware Check: Every 20,000 miles, verify all harness mounting brackets and clips are secure to prevent vibration damage
  • Heat Shield Inspection: Ensure all factory heat shields are properly installed to protect the harness from exhaust manifold heat
  • Warranty Reminder: Following these maintenance guidelines will keep your 1 Year Limited Warranty valid

Fit Your Vehicle with 6.0 Powerstroke

This engine wiring harness is specifically designed for 2004 Ford Super Duty trucks and Excursion models with the 6.0L Powerstroke V8 diesel engine that were built on or after September 23, 2003. It replaces OE part number 4C3Z-12B637-AA.

Important Build Date Notice: 2004 model year vehicles built before September 23, 2003 use a different harness (OE# 3C3Z-12B637-BA) and this part will NOT fit those early-build trucks. Please verify your vehicle's build date before ordering.

Compatible Vehicles:

  • 2004 Ford F-250 Super Duty 6.0L Powerstroke (built 9/23/03 & after)
  • 2004 Ford F-350 Super Duty 6.0L Powerstroke (built 9/23/03 & after)
  • 2004 Ford F-450 Super Duty 6.0L Powerstroke (built 9/23/03 & after)
  • 2004 Ford F-550 Super Duty 6.0L Powerstroke (built 9/23/03 & after)
  • 2004 Ford Excursion 6.0L Powerstroke (built 9/23/03 & after)

Not Compatible With:

  • 2003 models (all build dates)
  • 2005+ models
  • 2004 models built before September 23, 2003 (requires 3C3Z-12B637-BA)
  • Gasoline engine models (5.4L, 6.8L)
  • California emissions-specific models have not been separately verified

For 100% fitment confirmation, please send your VIN number to service@egrperformance.com

Avoid catastrophic engine failure by addressing the 6.0's weak points today: Essential 6.0 Powerstroke Reliability Upgrades.

  1. Dispatch Time: Orders will be shipped within 24 hours after successful payment.
  2. Delivery Time: 2-5 business days after dispatch (delivery speed depends on proximity to warehouse location).
  3. Return Window:7 days for unsatisfactory items45 days for quality-related issues
  4. Refund Processing: Refunds will be processed back to your original payment method within 2-4 business days after receiving the automated refund confirmation email (subject to bank verification).

What is an engine wiring harness?

An engine wiring harness is a bundled set of electrical wires that connects all engine components — including fuel injectors, sensors, glow plugs, and solenoids — to the vehicle's main computer (PCM). It's the electrical backbone of your engine.

How does an engine wiring harness work?

The engine wiring harness carries electrical signals and power between the PCM and every engine sensor and actuator. It ensures that injector timing, sensor readings, and glow plug operation all work in perfect sync for proper engine performance.

What are the benefits of replacing an engine wiring harness?

Replacing a degraded engine wiring harness eliminates intermittent electrical issues, restores proper injector performance, fixes hard starting problems, and prevents potential engine damage from incorrect sensor signals.

Will an engine wiring harness void my warranty?

No, replacing a worn engine wiring harness with a direct-fit replacement will not void your vehicle warranty. It's considered a standard maintenance and repair item.

Is an engine wiring harness legal in my state?

Yes, a replacement engine wiring harness is legal in all 50 states. It's a direct replacement part that maintains factory emissions specifications and does not alter emissions systems.

Do I need a tuner for an engine wiring harness?

No, you do not need a tuner when replacing your engine wiring harness. It's a direct replacement that works with your factory PCM calibration without any programming changes.

How much horsepower does an engine wiring harness add?

A new engine wiring harness doesn't add horsepower on its own, but it restores lost horsepower caused by degraded wiring. Faulty wiring can cause injector misfires and sensor errors that rob power — a new harness fixes these issues.

How much MPG gain can I expect from an engine wiring harness?

You won't see a direct MPG gain from a new harness, but you may recover lost fuel economy caused by incorrect sensor readings or injector timing issues from degraded wiring.

How long does it take to install an engine wiring harness?

Installation typically takes 4-6 hours for a professional mechanic. DIY installation may take longer depending on experience level. Proper labeling of connectors during removal will speed up reassembly.

Can I install an engine wiring harness myself?

While it's possible for experienced DIYers, engine wiring harness installation is moderately to highly difficult. It requires careful connector labeling, knowledge of engine components, and patience. Professional installation is highly recommended.

How often should I maintain my engine wiring harness?

Inspect your engine wiring harness every 10,000-15,000 miles for signs of damage. With proper care and heat protection, a quality replacement harness should last 100,000+ miles.

Will this engine wiring harness fit my 2004 Ford F-250 6.0L Powerstroke?

It fits 2004 F-250 Super Duty models built on or after September 23, 2003. Early-build 2004 models require a different harness (3C3Z-12B637-BA). Please verify your build date or send us your VIN for confirmation.

What is the warranty on this engine wiring harness?

This engine wiring harness comes with a 1 Year Limited Warranty against manufacturing defects, covering issues like connector failures and internal wiring faults under normal use.

Do you offer technical support?

Yes, our dedicated customer support team is available at service@egrperformance.com for fitment questions, installation guidance, and troubleshooting assistance.

How long does shipping take?

Orders ship same day from our USA warehouse. Standard shipping takes 3-5 business days within the continental US, and expedited options are available at checkout.

Can I return this engine wiring harness if it doesn't fit?

Yes, we accept returns within 30 days for unused products in original packaging. To avoid fitment issues, we strongly recommend verifying your build date or sending us your VIN before ordering.

How do I know if my build date is before or after 9/23/2003?

Check your driver's side door jamb sticker — it shows the exact build date. You can also decode your VIN or contact us with your VIN number and we'll verify compatibility for you.

What's the difference between 4C3Z-12B637-AA and 3C3Z-12B637-BA?

These are two different harnesses for different build dates. 3C3Z-12B637-BA fits early 2004 models (built before 9/23/03), while 4C3Z-12B637-AA fits models built on or after that date. They are not interchangeable.



Installation Difficulty Level

Moderate to Difficult

Estimated Installation Time

4-6 hours

Required Tools

  • Socket Set (metric and standard)
  • Torque Wrench
  • Screwdrivers (flat and Phillips)
  • Pliers
  • Wire Cutters/Strippers (for minor adjustments)
  • Trim Removal Tools
  • Shop Light
  • Service Manual (highly recommended)

Step-by-Step Installation Overview

  1. Disconnect batteries and remove engine covers: Disconnect both batteries (negative first), then remove the engine cover and any intake components blocking access to the harness
  2. Disconnect all engine connectors: Carefully disconnect all sensor connectors, injector plugs, and ground points from the old harness, labeling each for reference
  3. Remove old harness: Unbolt all harness mounting brackets and carefully route the old harness out of the engine bay, noting the routing path
  4. Install new harness: Route the new 4C3Z-12B637-AA harness following the factory path, securing it with all original mounting brackets
  5. Reconnect all components: Reconnect all sensors, injectors, and ground points, ensuring each connector clicks into place securely
  6. Reassemble and test: Reinstall engine covers and intake components, reconnect batteries, and start the engine to verify proper operation

Important Note: No printed installation instructions are included. Professional installation is highly recommended. If you need technical support, please contact us at service@egrperformance.com.
