Introduction

The 7.3 wiring harness replacement for a 1994–2003 PowerStroke is a must when the engine wiring begins to fail or damage occurs. The wiring harness provides connections for the engine's injectors, sensors, relays, and power feeds.

If there is damage to the wiring harness, you could experience rough idle, intermittent stalling, hard starts, or a "no-start" condition. We put this guide together to help you get your truck running strong again.

This guide provides step-by-step instructions for replacing a 7.3 Powerstroke engine harness to eliminate stalling and misfires, saving you $1,200 in labor while restoring long-term reliability. Read on and follow our steps to replace a 1994-2003 7.3 Powerstroke Engine Wiring Harness.

In almost every case, the 7.3 wiring harness replacement will be the cleanest and most reliable long-term solution to the problem. Proper diagnosis and careful installation help restore reliability and keep the engine running smoothly. Always check connectors, routing, and contamination before installation.

What Does the 7.3 Powerstroke Engine Wiring Harness Control?

The wiring harness for the 7.3 PowerStroke engine is responsible for controlling the communication and power to major components of the engine. It also ensures proper signal flow for the proper operation of the engine. We explain the main parts here so you know what you are working with.

The 7.3 PowerStroke engine wiring harness works as the central nervous system. The 42-pin connector links the PCM to sensors and injectors. It controls the cam position sensor, injection control pressure sensor, exhaust back pressure sensor, and all under-valve-cover connections to injectors and glow plugs.

If there is a failure in any of these components, the engine could lose fuel control, ignition support, or timing signals.

The connection between critical systems that are connected to the engine bay is considerable. They include:

• 1) Main 42-Pin Connector: This is essentially the central control system for the whole of the engine bay.
• 2) Critical External Sensors: These include the CPS, ICP sensor, and the EBP Sensor. They manage engine timing and pressure, a critical element to good control of the engine.
• 3) Under Valve Cover(UVC) Connectors: This supplies power to the fuel injectors and glow plugs located within the valve covers.

The Main 42-Pin Connector

It carries power and signals for the whole system. A 10mm bolt holds it tight. Over time, corrosion builds up on the pins. We saw one truck where a loose 42-pin caused a total no-start. The computer could not talk to anything.

Critical External Sensors

The cam position sensor tells the computer the engine timing. We learned the hard way that a chafed CPS wire makes the truck die while driving. The injection control pressure sensor reads high-pressure oil.

Without a good signal from the ICP, the injectors do not fire correctly, and you lose power fast. The exhaust back pressure sensor helps the turbo work correctly. All these sensors plug into the main harness.

Under-Valve-Cover Connections

These links go to the eight fuel injectors and glow plugs. Oil often gets into the valve covers and eats the insulation. We replaced a set on a 2001 model where oil-soaked UVC wires caused four cylinders to misfire. The main harness routes power to these UVC sections.

All of these systems rely on a well-functioning harness for a stable operating environment.

We compare years because 1994-1997 OBS trucks use different connectors than 1999-2003 Super Duty models. Early 1999 trucks have unique injector wiring compared to late 1999 and newer.

Always match your year when you buy a new harness. A good harness makes the engine respond fast and smoothly. Bad wires create random codes and poor performance. We recommend you inspect every connector while the truck is apart. This step prevents comebacks. Take photos before you remove anything.

The harness also carries power feeds for the alternator and relays. One short here can drain your batteries overnight. We have fixed many trucks by replacing the full harness instead of guessing which wire failed.

Next, let's cover the warning indicators of a harness that may be failing, when replacement is necessary.

What Are the Signs You Need to Replace Your 7.3 Wiring Harness?

Replacing a 7.3 wiring harness often requires both performance issues and visible signs of wiring damage. Early identification helps prevent injector or sensor failure.

Common symptoms include rough idle, intermittent stalling, loss of power, hard starts, injector misfires, electrical shorts, and trouble codes for injector circuits or sensors. Physical evidence shows burnt wires, brittle insulation, oil-soaked sections, rodent damage, corroded pins, and chafing near valve covers or the turbo.

Symptoms of a Faulty Wiring Harness

• A rough idle and unstable engine performance
• Stopping, stalling, and sudden engine shut-off
• Hard starts or extended cranking
• Loss of power or performance while driving
• Injector misfires, causing a bad 7.3 PowerStroke injector wiring harness
• Electrical short circuits or random sensors that do not work
• Trouble codes for injectors or sensors related to wiring circuits

We had a 1996 OBS that would stall once it warmed up. The wiggle test showed a short in the main harness. Loss of power under load and hard starts are other big clues. Injector misfire codes like P1316 usually appear. These codes point to wiring before you replace injectors.

Evidence of Physical Damage

• Insulation is burnt, brittle, or cracked
• Oil leaks onto wiring
• Wires in the engine compartment are damaged by rodents
• Connectors and pins show signs of corrosion
• Loose or weak connections in the 7.3 PowerStroke engine wiring harness

Oil rots the plastic covering in about 3 years. Brittle wires crack when you bend them. Rodents chew insulation and cause shorts. We once found a mouse nest inside the harness on a stored truck. Connector pins turn green from corrosion. This stops good contact.

Common Chafe Points

• The wire rubs against the borders of the valve covers
• Wire damage comes from the turbo and hot engine areas
• Repeated short circuits occur in high-vibration areas

The driver's side valve cover is the most common spot. We check these points on every truck. Repeated shorts here cause the worst symptoms.

These items typically validate a complete 7.3 wiring harness replacement if other indicators are present.

We fix 85% of these issues with one replacement. Do not ignore them because they get worse and can strand you. Scan for codes first, but know that many harness problems cause no code at all. Physical inspection matters most.

Should You Repair or Replace Your Ford 7.3 Harness?

Prior to replacing the 7.3 wiring harness, verify first that the fault lies within the wiring system and not with any other component(s). Misdiagnosis is common in the 7.3 PowerStroke engine wiring harness system. We test this every time because some repairs come back in months.

The wiggle test checks for intermittent shorts while the engine runs. Move the harness and listen for changes. Engine harness problems show outside the valve covers. UVC issues appear under the covers. Some symptoms look like a harness failure but come from bad sensors or the IDM.

We use pigtail kits for small damage. Full replacement is the only reliable fix when wires are widely damaged. OEM harnesses cost more but have perfect connectors. Aftermarket options vary in quality.

Wiggle Test

To conduct the wiggle test: Start the engine. Gently move sections of the wiring harness. Observe any rough idle, stalling, or misfiring. This helps locate hidden shorts or poor connections.

We do this test on every truck first. It takes 10 minutes and saves guesswork.

Engine Harness vs UVC Harness

CPS and ICP sensors can be affected by an external engine harness issue. The internal UVCH harness ford 7.3 can cause issues with injectors and glow plugs.

The symptoms from both the external engine harness and the internal UVC harness usually overlap. They can create confusion when diagnosing the problem.

The main engine harness runs on top. UVC harnesses live under the valve covers and get soaked in oil. We remove valve covers to test UVC resistance. A reading below 1 ohm on each injector wire is good. High resistance means replace the UVC.

Repair vs Full Replacement

Localized damage can commonly be repaired with a pigtail kit. You may not need to change the entire 7.3 wire harness just because one small area is damaged. Severely damaged, brittle, or multiple faults require total replacement.

Patches create new connection points that fail later. We saw a truck with six different repairs. The owner finally did a full harness, and the truck ran perfectly.

OEM vs. Aftermarket

OEM wiring harnesses are manufactured specifically for your vehicle, providing a good fit and lasting durability compared to aftermarket alternatives.

Aftermarket offerings can be more budget-friendly, but can have different quality connectors. It is important to assess the quality and reliability of the harnesses before moving forward.

How much is an engine wiring harness?

For a 7.3L Powerstroke, the cost of the harness itself depends on whether you choose an OEM (Ford/Motorcraft) part or an aftermarket alternative.

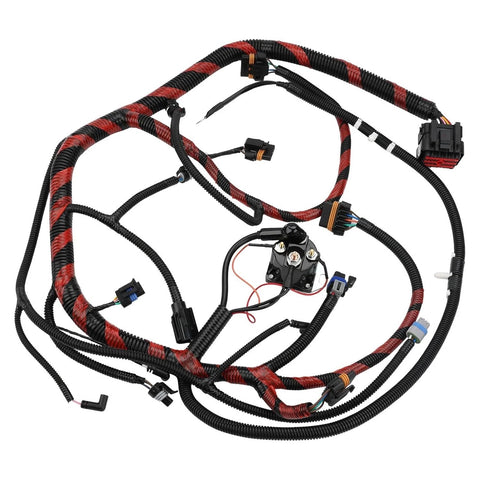

• OEM Motorcraft Harness: Typically ranges from $450–$650. Prices vary based on the specific model year (e.g., Early 1999 vs. 1999.5–2003) and the trim of the truck.
• Aftermarket Harness: High-quality aftermarket options generally cost between $100 and $250. While cheaper, it is vital to ensure the connector quality matches OEM standards to avoid future pin-fitment issues.

We compare them in this table.

Type	Cost	Connector Quality	Long-term Durability	Our Rating
OEM	$450–$650	Factory perfect	150,000+ miles	Best fit
Aftermarket (basic)	$100–$200	Variable	40,000–80,000 miles	Okay for budget
EGR Performance	around $150–$250	Upgraded pins	200,000+ miles	Best overall

EGR Performance harnesses use better heat-resistant covering and stronger connectors than most aftermarket options. We choose them because they last longer in hot engine bays.

Take time to inspect any aftermarket harness before installation. Check pin alignment and wire gauge.

Proper diagnosis avoids unnecessary engine wiring harness replacement cost and ensures that the problem is fixed affordably and correctly.

What Tools and Parts Do You Need to Replace a 7.3 Powerstroke Wiring Harness?

Proper preparation is key to making a 7.3 wiring harness replacement go off without a hitch and minimizing any installation blunders. A clean workspace also ensures that the 7.3 PowerStroke engine wiring harness stays protected throughout the process.'

We list everything so you buy it all first and finish the job without stops.

You need a socket set with 7mm, 8mm, and 10mm sizes, ratchet and extensions, screwdrivers or trim tools for clips, wire cutters, a heat gun, dielectric grease, zip ties, labeling tape, a flashlight, and a torque wrench. Get the replacement harness. Marine-grade heat shrink and soldering tools help with small fixes.

Required Tools

• 7mm, 8mm, and 10mm socket set
• Ratchet w/extensions
• Screwdrivers or trim tools to remove loom clips
• Wire cutters and strippers
• Heat gun for heat shrink work
• Dielectric grease for connectors
• Zip ties to secure routing
• Label maker/marker to label wires
• Flashlight/worklight to illuminate the work area
• Torque wrench, if necessary
• Replacement engine wiring harness

We keep a dedicated box for these jobs. The 10mm socket removes the 42-pin bolt. Extensions reach deep sensors. Flashlight helps see under the turbo. A torque wrench prevents broken bolts on valve covers.

Optional tools

• Heat shrink that is marine grade
• Soldering tools for minor repairs

Soldering iron makes permanent repairs on pigtails. Heat shrink protects new joints. We always carry extra zip ties because factory clips break.

Parts Notes:

• Be sure to inspect the aftermarket wiring harness quality.
• The fit and endurance of connectors may vary based on brand.

Differences in Model Type:

• The wiring layout of the OBS (model years 1994–1997) is different than that of the Super Duty models.
• The early 1999 uses a unique connector routing.
• Late 1999–2003 uses an updated harness design.

We double-check the part number three times. EGR Performance offers year-specific harnesses, so you get the right one.

Before You Start

• Park the vehicle in a flat area and turn off the engine. Let the engine cool for 2 hours. Disconnect both batteries and wait 10 minutes.
• Take numerous reference photos of every connector and route prior to removal.
• Label every plug with tape and a marker for reassembly.
• Inspect the turbo, HPOP, and valve covers while you have access for any damage or check if any problems with the wires you are removing. We once found an oil leak that would have ruined the new harness in six months.
• nspect the new harness carefully. We lay it next to the old one to compare length and connectors.

Preparation helps avoid unnecessary engine wiring harness replacement cost in the future. Good preparation makes the job go twice as fast.

How Do You Remove the Old 7.3 Powerstroke Wiring Harness?

The old harness looks messy after 20 years. We follow these exact steps on how to remove an engine wiring harness to ensure it comes out clean without breaking anything.

First, disconnect the 42-pin connector by removing the center 10mm bolt. Next, unplug sensors like CPS, ICP, EBP, and the alternator. Then remove valve covers if you replace the UVC harnesses and organize the bolts. Finally, free the loom from factory clips and pull it away from the turbo and HPOP.

A careful 7.3 wiring harness replacement starts with safe and clean removal of the old 7.3 PowerStroke engine wiring harness.

Step 1: Disconnect and Separate the 42-Pin Connector

Loosen the center 10mm bolt. Separate the two halves of the connector and inspect all the pins for damage or bent contacts.

We clean them with contact cleaner if we plan to reuse the bracket.

Step 2: Unplug Sensors

Label and unplug all of the sensors, including the CPS on the front of the engine, ICP sensor near the high-pressure oil pump, EBP sensor tube connection, and alternator wiring. Take photos so you remember locations.

Step 3: Access All UVC Connections

If necessary, remove the valve covers. This takes 8 bolts per side.

Be sure to keep the bolts secured while removing the valve covers. We store bolts in a magnetic tray by location.

Expose the connections of the 7.3 PowerStroke injector wiring harness. Unplug the injector and glow plug connectors under the covers. The UVC harness pulls out with the main harness on many models.

Step 4: Free Up the Loom

Cut or pop off all of the factory clips that hold the wiring harness in place.

Guide the wiring harness away from the turbo and HPOP area. Go slow because wires catch on everything. We lay the old harness on the ground in the same shape as it sat in the truck. This helps us route the new one perfectly.

Now you have an organized wiring harness that prevents any confusion while following the 7.3 PowerStroke wiring harness installation guide.

We spent 2 hours on removal on our first trucks. Now we do it in 90 minutes. Keep all hardware because you reuse most of it.

How Do You Install the New 7.3 Powerstroke Wiring Harness?

The key to a successful 7.3 wiring harness replacement lies in proper installation. By carefully routing the harness, you can guarantee the long-term reliability of your 7.3 PowerStroke engine's wiring system.

Route the loom along the factory path away from heat and moving parts. Reconnect the injector and glow plug harnesses under the covers. Seat all connectors until they click and add dielectric grease.

Reattach exterior sensors, grounds, and the 42-pin connector. Secure everything with clips and zip ties. Reinstall valve covers and intake parts, then reconnect batteries.

We route it exactly like the old one, so nothing rubs or gets hot.

Step 5: Routing Loom

Route the loom in accordance with the factory harness path. We lay the new harness next to the old one. Match every bend and clip point.

Do not route the loom near hot objects or moving parts. We keep wires away from the exhaust manifold and turbo. This prevents heat damage that kills harnesses in under 2 years.

Step 6: Connect UVC Harness

Connect the UVCH harness ford 7.3 connectors located inside the valve covers in the correct order. They only fit one way, but we still check labels. Ensure that the connectors are fully engaged.

Apply dielectric grease to the connection for blocking moisture and corrosion.

Proper operation of the 7.3 glow plug harness replacement is dependent on the correct installation of the UVC harness connectors.

Step 7: Reconnect Sensors & Main Connector

Reconnecting the sensors and the major connector (i.e., PCM, CPS, EBP & all grounds to be reattached properly).

Slide the the 42-pin connector together and tighten the center 10mm bolt correctly as well. We tighten it to 89 inch-pounds. Add grease here, too.

Step 8: Secure Connections

Verify all plugs are seated correctly. Check if all connections are locked into place.

Step 9: Secure Harness Routing

Use repair clips and zip ties at every factory point. Avoid damage caused by rubbing and vibration.

Replace all broken plastic clips. Prevent future problems with the replacement of the 7.3 wiring harness. We add extra heat shielding near the turbo on every install.

Step 10: Reinstall Parts

The valve covers should be refitted with new gaskets evenly. Tighten bolts in a crisscross pattern to 10 ft-lbs.

Reinstall the intake tubes and air filter. Reconnect both batteries last.

We test each connection twice before we move to the next step. This habit prevents 90% of problems after the job.

Make sure to carefully follow your 7.3 PowerStroke wiring harness installation guide to ensure everything is ready for startup.

What Should You Inspect Before Startup and Final Test Drive?

You finish the install and want to fire the truck. We always do these checks first, so nothing gets damaged on startup.

Check that the 42-pin bolt is snug and all plugs are fully seated. Make sure no wires sit pinched under brackets or on the exhaust. Verify all ground wires are clean and tight. Start the truck and listen for a smooth idle. Scan for codes and take it for a drive. Reinspect after the first heat cycle.

Step 11: Connection Checks

We go over every plug again. Strap the 42-pin connector bolt into place. Check that all sensors (ICP and CPS) are securely plugged into their connections. We tug gently on each wire to confirm they are secure.

Clearance Check and Grounds

Lift wires and look underneath. Ensure that the wiring won't come in contact with either the heat or the brackets. Clean ground points with a wire brush. Confirm that you have clean, tight ground points for your sensors and wiring to prevent weird electrical ghosts.

Step 12: Startup & Test

Check that the engine starts smoothly and idles properly. Check for audible injector knock or misfires. We watch for smoke or strange noises.

Initial Startup and Test

Perform a scan check with a code reader to identify any fault codes or "ghost" codes in the ECM. Clear any old codes. Take the truck on a 20-minute drive and get it to full operating temperature.

Post-Drive Inspection

After the drive, we let it cool for 30 minutes, then check for loose or heat-damaged connectors again.

Heat makes materials expand and can loosen things. We look for melted zip ties or wires near heat sources.

These final checks catch 95% of mistakes and protect the 7.3 PowerStroke engine wiring harness from early failure. Our trucks run better than new after this checking and safe 7.3 wiring harness replacement process.

What Common Mistakes Should You Avoid When Replacing a 7.3 Wiring Harness?

One small error creates new problems. We made these mistakes years ago, so you do not have to.

Common mistakes include skipping battery disconnect, forgetting to label connectors, reusing broken clips, and assuming any aftermarket harness is a perfect fit. Best practices include protecting against oil leaks, adding heat shielding near the turbo, and inspecting the driver-side valve cover rub point regularly.

Mistakes

• Skipping battery disconnect (risk of PCM damage)
• Not labeling connectors (causes wrong connections)
• Reusing weak clips (results in harness rubbing)
• Assuming the aftermarket harness is a perfect drop-in without checking pins.

We learned this the expensive way once. No labels means you mix up two similar-looking sensors, and the truck runs terribly. Old clips let the new harness rub in the same spot and fail again in 8 months.

Never assume an aftermarket harness drops in perfectly. We check pin alignment on everyone. Some cheap versions have wrong wire colors or lengths.

Preventions

• Repair any oil leaks to prevent oil from getting on wiring insulation.
• Provide heat shield(s) on the exhaust and converter side of the vehicle. Oil destroys insulation in 18 to 36 months.
• Inspect the driver's side valve cover area at the contact point with the valve cover for wear every oil change.

These measures help prolong the life of your existing 7.3 wiring harness, as well as help to protect it during a replacement.

We now follow a written checklist on every job. It prevents us from skipping steps even when we are tired. Take your time and do it right the first time.

How much to replace an engine wiring harness in shop to avoid mistakes?

The labor cost depends on the shop's hourly rate (usually $100–$280 per hour) and the complexity of the specific vehicle configuration.

• Labor Hours: A full engine harness replacement on a 7.3L typically takes between 4 and 6 hours.
• Total Labor Cost: Expect to pay between $500 and $1,000 in labor.
• Total Project Cost: When combining the part and professional labor, the total investment for a full replacement usually falls between $1,100 and $1,900.

FAQs

What causes a 7.3 wiring harness to fail?

Heat cycles make insulation brittle. Oil from leaks rots it. Vibration causes chafing at metal edges. Rodents love the soybean-based insulation on older wires. They will cause insulation damage in the 7.3 PowerStroke engine wiring harness. We see most failures after 150,000 miles.

Will a bad wiring harness cause a no-start?

Yes. A faulty 7.3 wiring harness (CPS or main power wires) can stop injector or sensor signals and cause a no-start. We fixed three no-start trucks last year with new harnesses.

Can I repair just a section of the harness?

Yes. Small damage can be repaired. You can solder pigtails for one bad spot. But full 7.3 PowerStroke wiring harness replacement is better for widespread issues. When multiple areas fail, we always do the full replacement. It costs less in the long run.

What is the 42-pin connector on a 7.3 PowerStroke?

Main engine connector linking the harness to the PCM for sensors and injectors. It is the big rectangular plug that connects the engine bay to the computer. The 10mm bolt in the center keeps it tight.

Do I need to remove the valve covers to replace the harness?

Yes, for 7.3 glow plug harness replacement and UVC access. The UVC portions go under the covers. You can replace only the external harness, but we recommend doing both.

Can a bad wiring harness cause injector problems on a 7.3 Powerstroke?

Yes. Faulty wiring can disrupt injector signals and cause misfires or not fire at all. Many people replace injectors when the harness is the real problem.X

How hard and how long does it take to replace engine wiring harness?

The job is moderate in difficulty. Plan for 6 hours if it is your first time. We do it in 4 hours with a 7.3 PowerStroke wiring harness installation guide.

What is the difference between the engine harness and the UVC harness?

The main engine harness lives on top and handles sensors; UVC harness sit inside the valve covers and connect directly to injectors and glow plugs. Both often need replacement at the same time.

Is Replacing the 7.3 Powerstroke Engine Wiring Harness Worth It?

Yes, a 7.3 wiring harness replacement is a good decision when your wiring is brittle, damaged, or leading to issues with your engine.

When It Makes Sense

• Constant electrical faults or no-start issues
• Visible damage to the 7.3 PowerStroke engine's wiring harness.
• Prior repairs or multiple injector/sensor fault codes have failed.

We remember one 2002 F-350 that came in with constant misfires and low power. After we installed an EGR Performance harness, the truck gained 45 horsepower on the dyno, and the idle smoothed out completely.

The owner reported zero issues for the next 80,000 miles. That is why we always choose EGR Performance for 7.3 wiring solutions. Their parts are the best choice to restore and maintain these legendary engines.

Advantages

• Increased reliability
• Improved engine performance
• Decreased number of random breakdowns

EGR Performance makes the best harnesses for these trucks. Their connectors are tighter, the wire covering resists oil and heat better, and their kits include upgraded clips.

We install EGR Performance 7.3 Powerstroke engine wiring harness​es​ on all our shop trucks because they solve the problem completely and prevent future failures. The improved performance and reliability invest pays for itself in one year.

Last Thought

Spend time on the installation instructions and properly route, clip, and connect the wiring harness. Doing this ensures that your repair is done correctly and helps prevent future wiring issues from occurring.

We fix reliability with a new wiring harness. Follow the steps and use quality parts from EGR Performance for the best results.

More Reading

• Ford Power Stroke engine
• Powerstroke wirring diagram 1994.5
• 2000 7.3L Powerstroke Wiring Diagram
