2 Barrel Carburetor for 289 302 351 360 Cu Ford F250 F350 (1964-1982)

x-tinymce/html

Product Overview

• Product Type:2 barrel carburetor for listed classic vehicles.
• Fuel Control:Supports carbureted engine fuel and air metering.
• Choke Type:Automatic electric choke.
• Reference Numbers:replacement for OEM part numbers 2100, A800.
• Material:Aluminum alloy carburetor body.

Ideal For

• Carburetor Replacement:Solve worn or damaged carburetor issues.
• Cold Start Concern:Solve choke operation issues with electric choke setup.
• Fuel Metering Service:Solve unstable fuel delivery from aging carburetor parts.
• Classic Truck Repair:Solve carburetor service needs for listed Ford trucks.

Technical Specifications

• Condition:New.
• Type:Carburetor.
• Barrel Count:2.
• Choke Type:Automatic electric choke.
• Material:Aluminum alloy.
• Venturi Size:1.16 inch, 29.5 mm.
• CFM:300.
• Pump Jet:60.
• Needle Valve:2.2 mm.
• Idle Jet:120.
• Main Jet:122.
• Air Jet:120.
• Venturi Choke Tube:29.5.
• Auxiliary Venturi:13.5.
• Reference Numbers:replacement for OEM part numbers 2100, A800.

Why Choose EGR Performance

• Fitment Support:Solve compatibility concerns by VIN email check.
• Warranty Support:Solve defect concerns with1 Year Limited Warranty.
• Clear Data:Solve guesswork with listed CFM, jets, and venturi size.
• Kit Contents:Solve parts uncertainty with5listed components.

Installation Information

Installation Difficulty Level

Moderate

Estimated Installation Time

1-2 hours

Required Tools

• Socket set.
• Combination wrench set.
• Screwdriver set.
• Gasket scraper.
• Fuel line clamp.
• Shop towels.

Step-by-Step Installation Overview

• Disconnect battery and relieve fuel line pressure.
• Remove air cleaner, linkages, hoses, and fuel line.
• Remove old carburetor and clean the mounting surface.
• Install gasket, carburetor, linkage, hoses, and fuel line.
• Check for leaks and adjust idle after warm up.

No printed instructions included. Professional installation is highly recommended. For technical support, contact service@egrperformance.com.

Troubleshooting and Problem Solving

Common Issues After Installation

• Fuel Leak:Loose fitting, damaged fuel hose, or gasket not seated.
• High Idle:Throttle linkage binding or vacuum hose not connected.
• Hard Start:Choke wiring, fuel delivery, or idle setting needs inspection.
• Rough Idle:Vacuum leak, dirty fuel, or ignition timing issue.

Error Code Solutions

• No OBD II DTC:Listed carbureted applications use mechanical fuel control.
• Check Lamp If Equipped:Inspect vacuum routing and ignition connections.
• Emissions Concern:Follow the factory service manual for vehicle checks.

How to Reset Check Engine Light After Installation

• Confirm all hoses, wires, and linkages are connected.
• Repair any vacuum leak or fuel leak first.
• Use the factory procedure if the vehicle has a warning lamp.
• Road test and recheck idle after engine warm up.

What to Do If Your Vehicle Loses Power After Installation

• Check fuel filter, fuel line routing, and pump output.
• Inspect throttle linkage for full travel.
• Verify vacuum hoses are connected to the correct ports.
• Check ignition timing and spark condition.
• Confirm the engine matches the listed fitment table.

Core Advantages

• 2 Barrel Design:Core fuel metering function with2barrels.
• Airflow Rating:Carburetor airflow value is300 CFM.
• Venturi Size:Uses1.16 inchventuri, equal to29.5 mm.
• Jet Data:Main jet122, idle jet120, air jet120.
• Warranty Coverage:1 Year Limited Warranty against manufacturing defects.

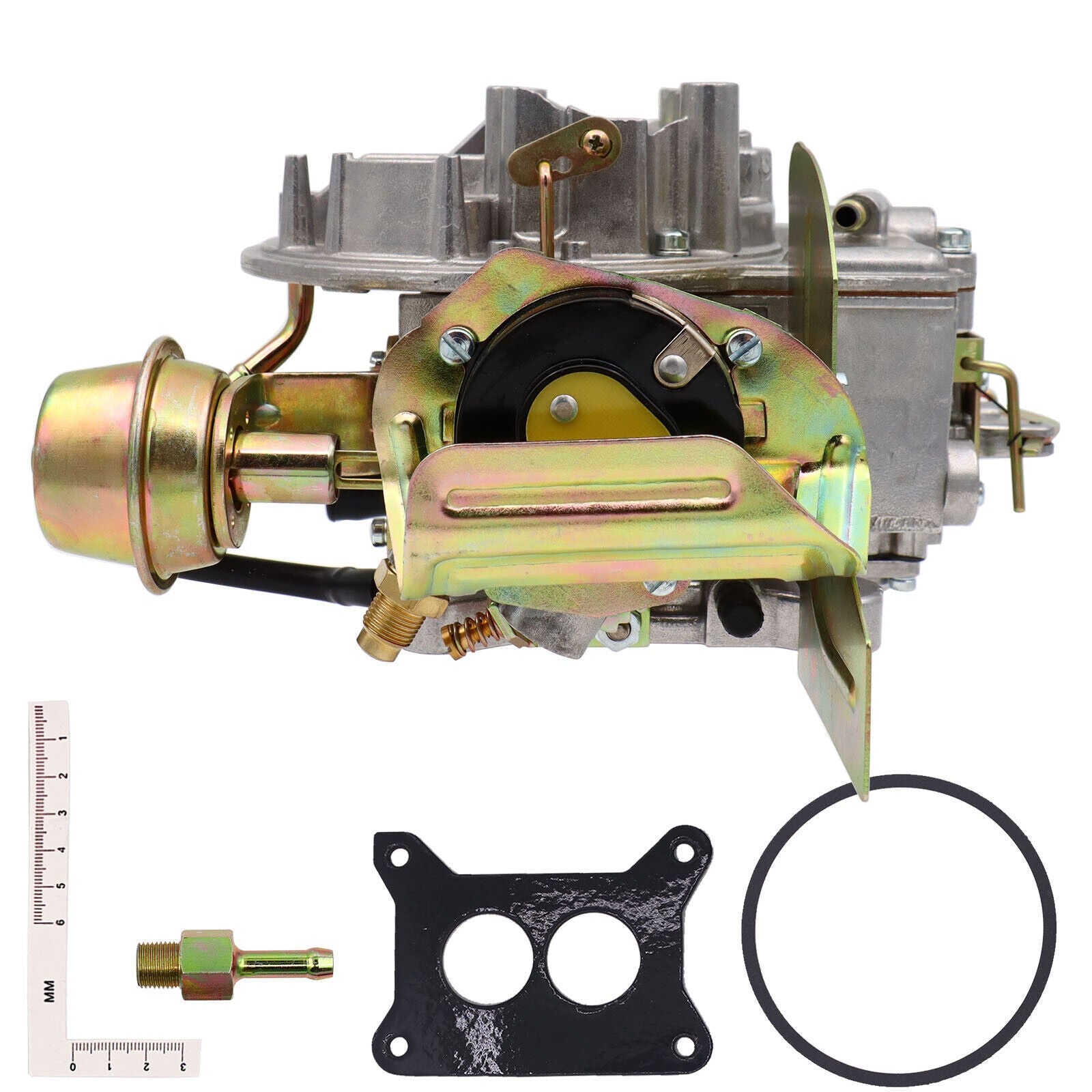

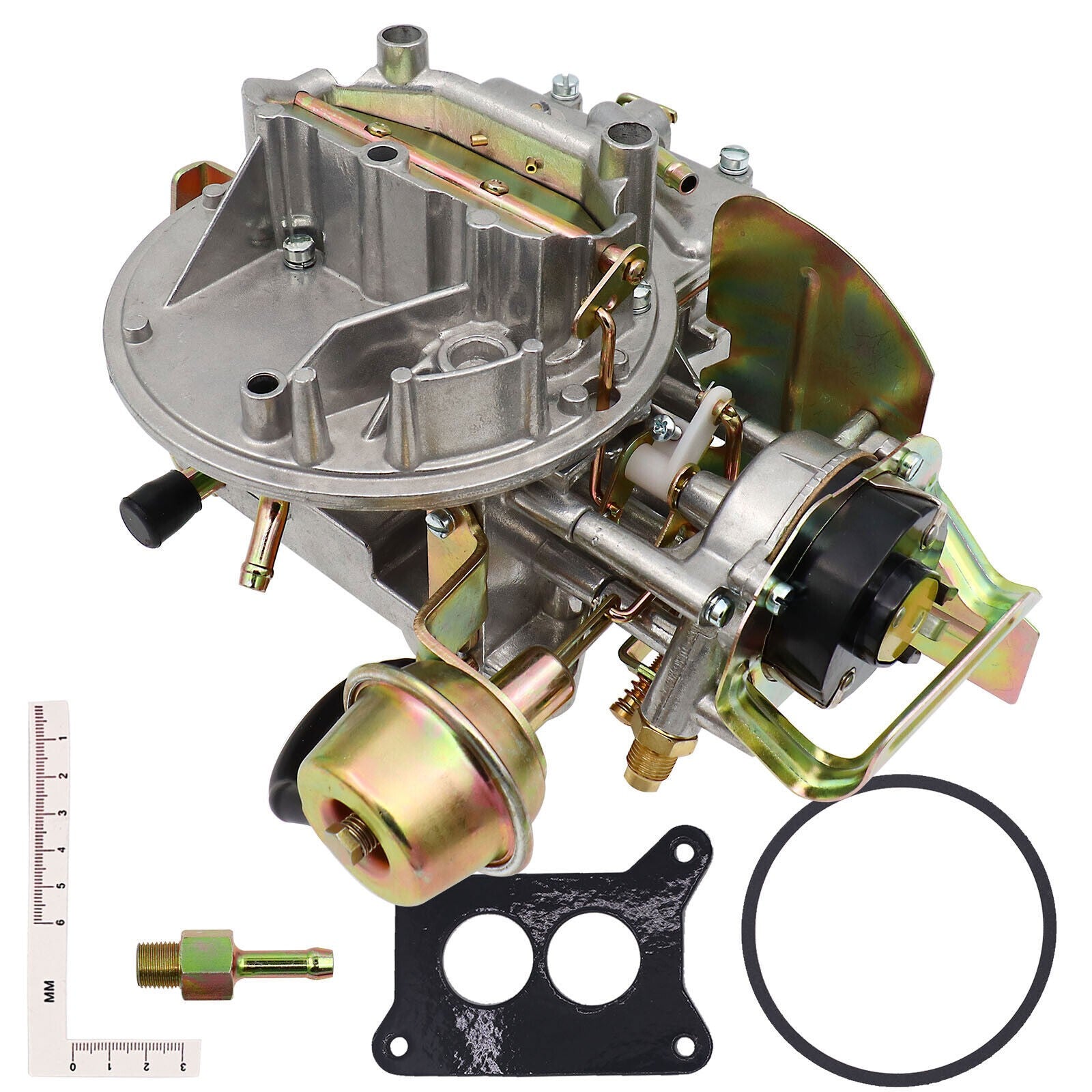

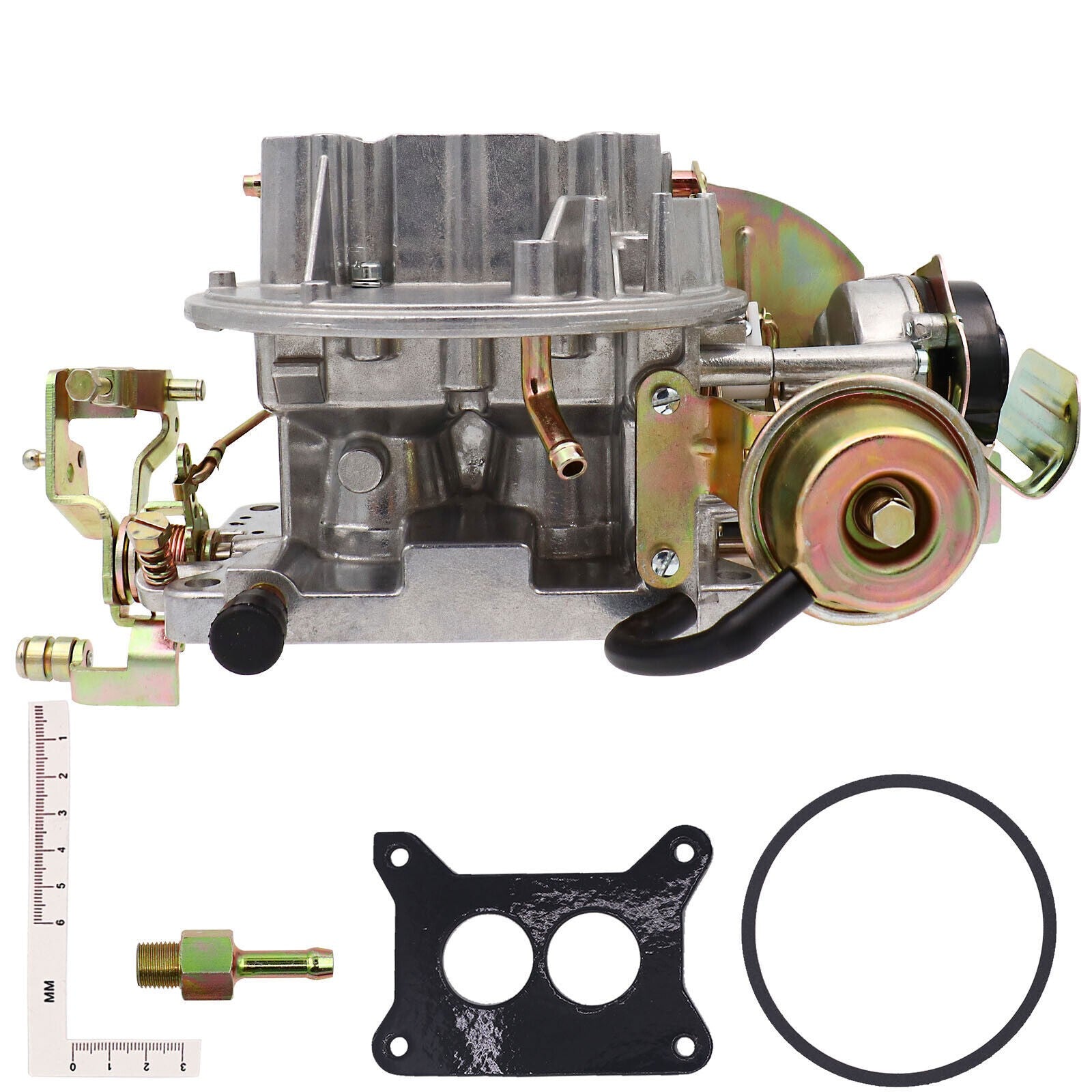

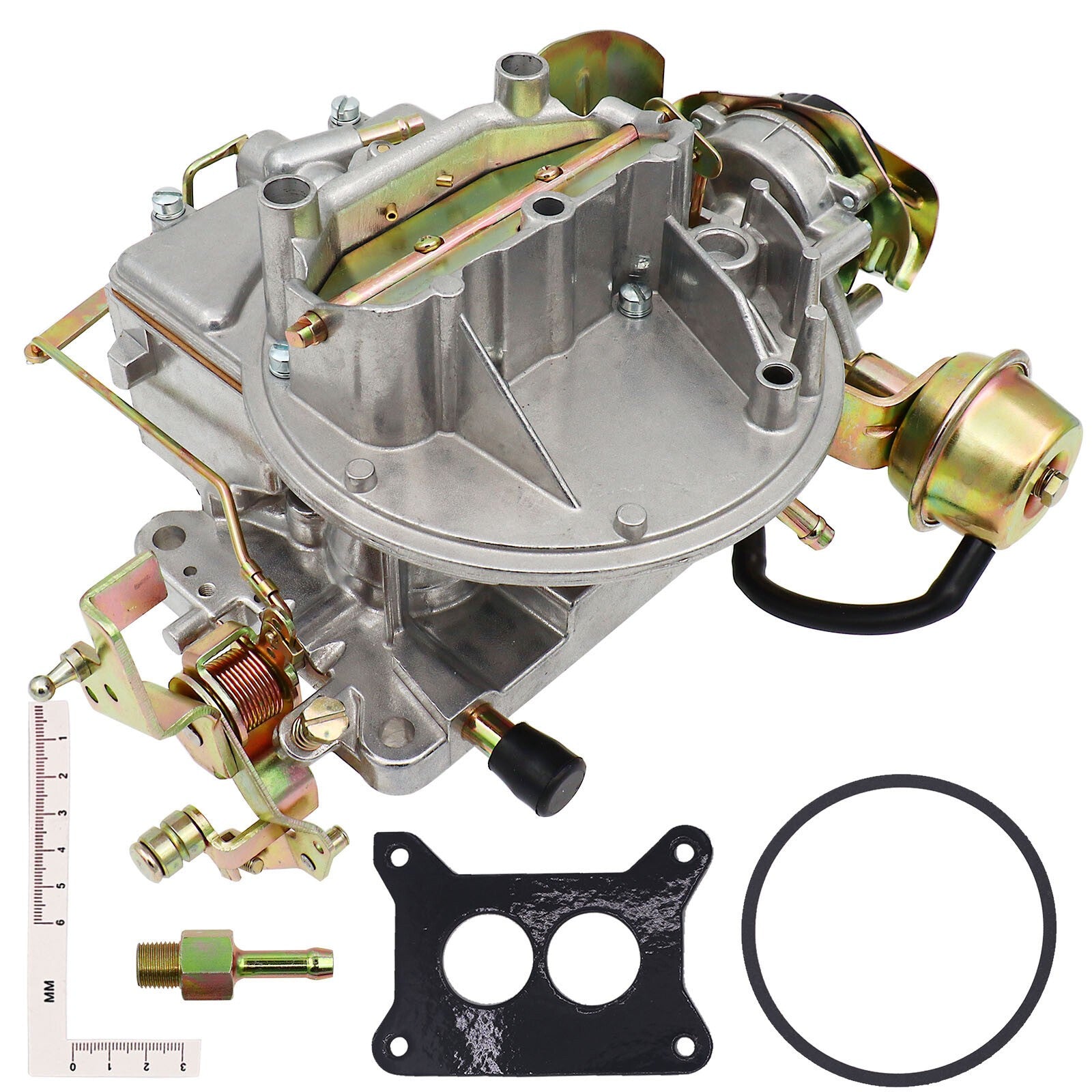

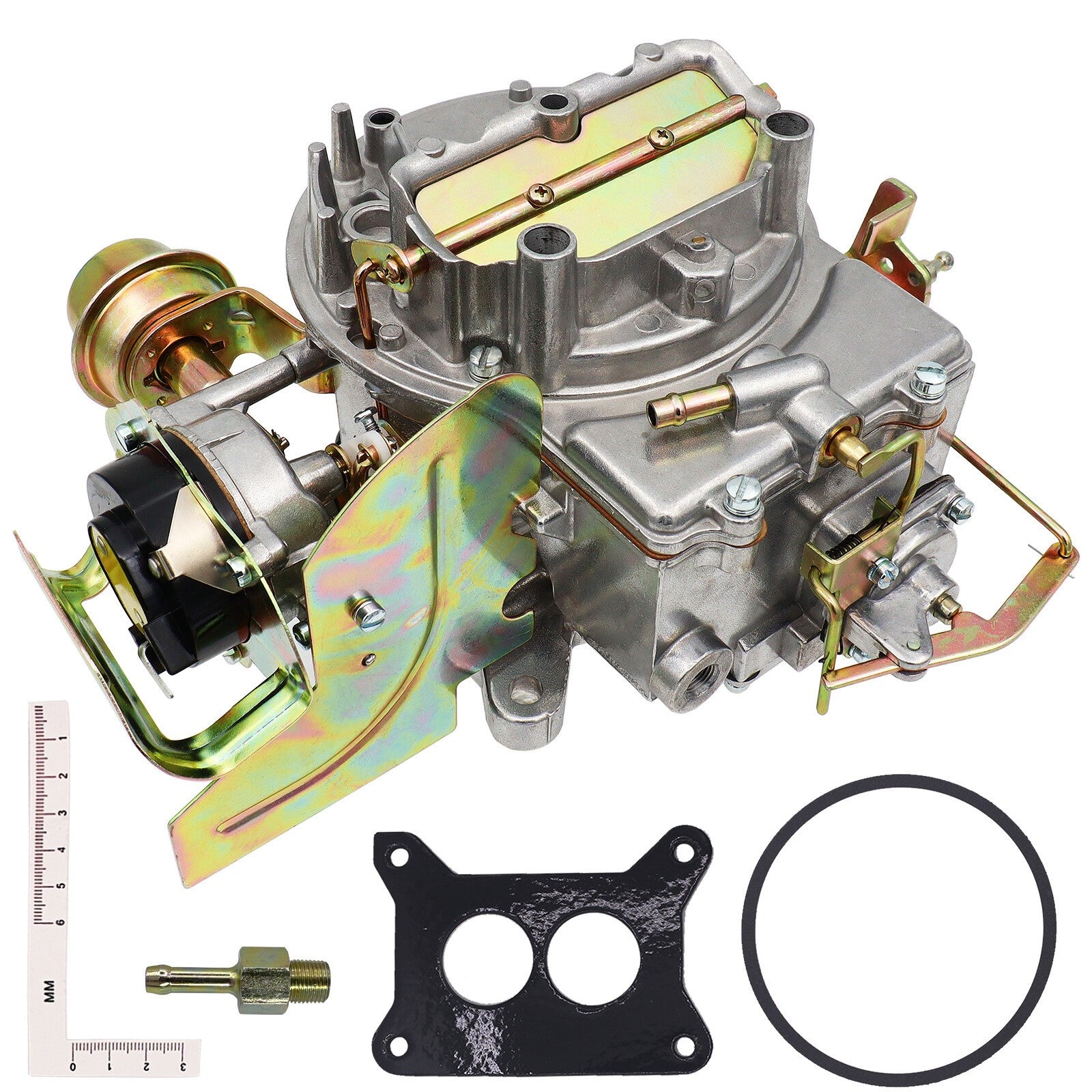

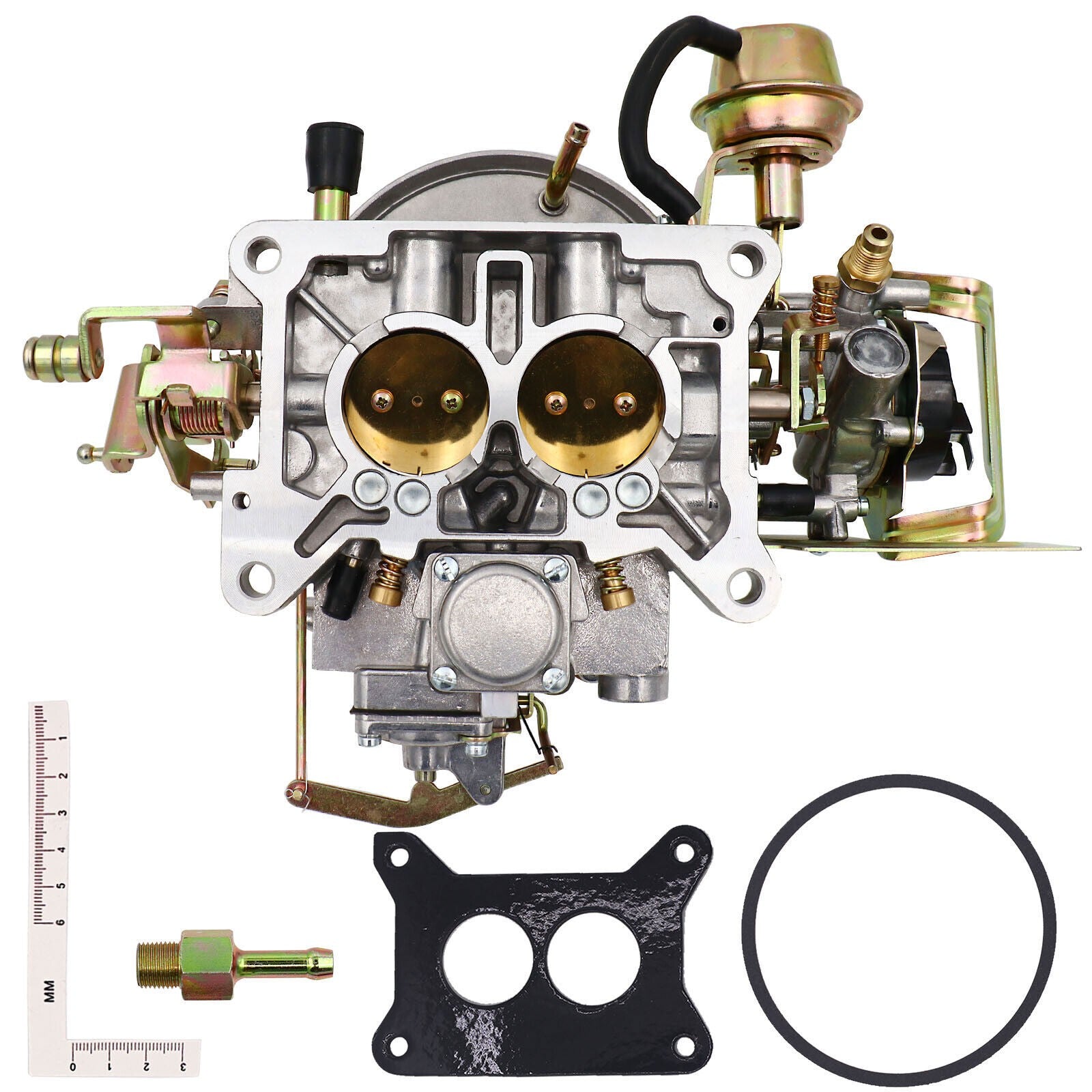

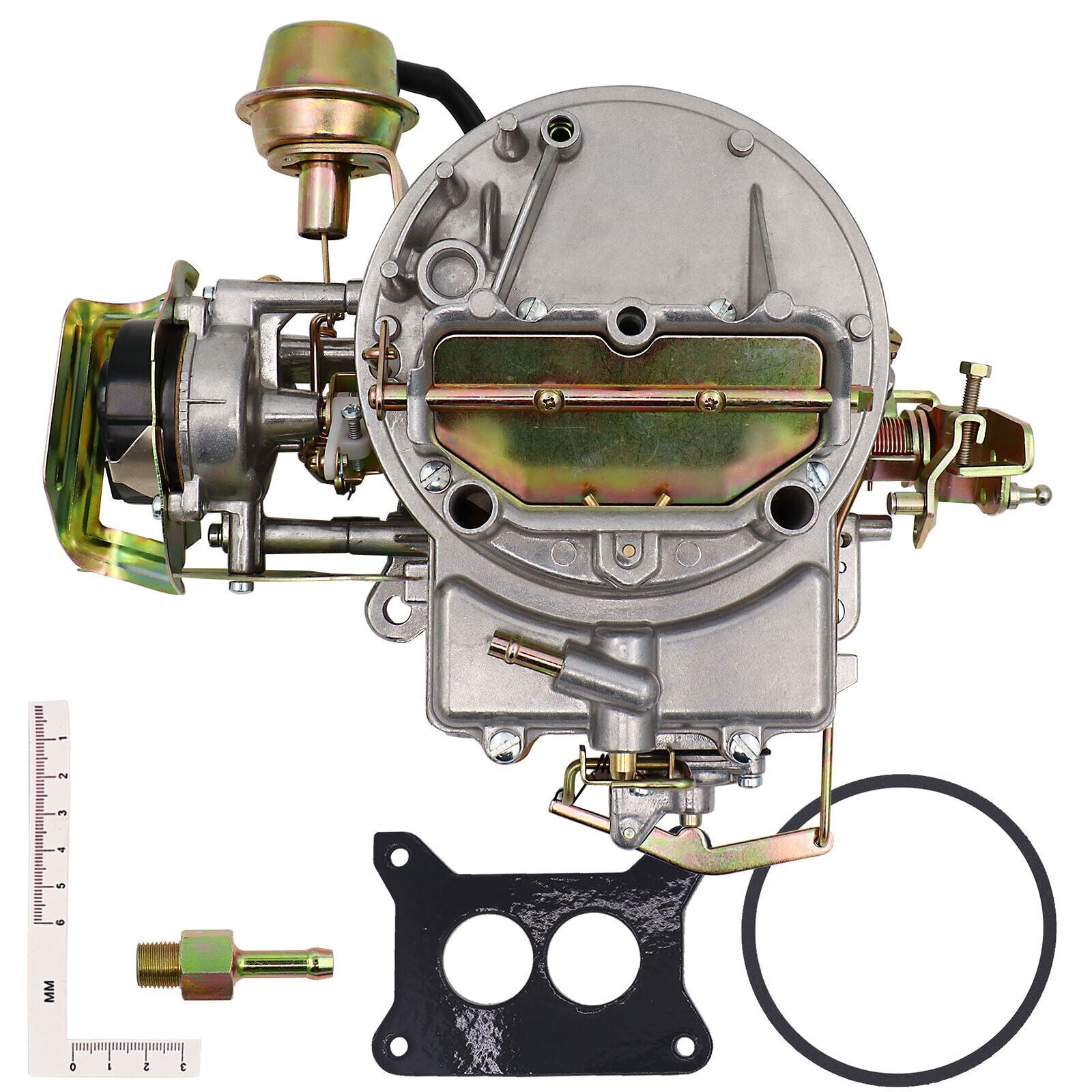

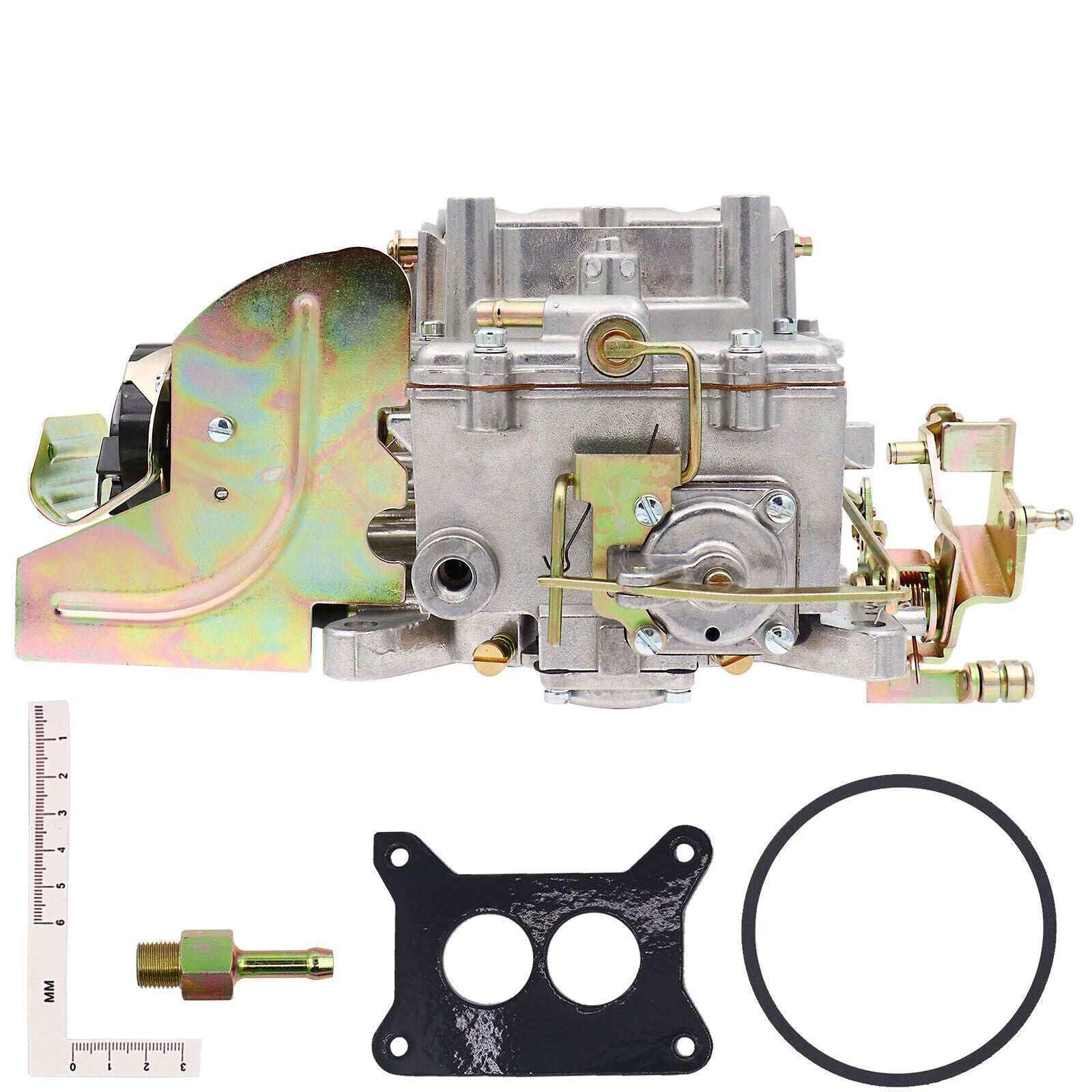

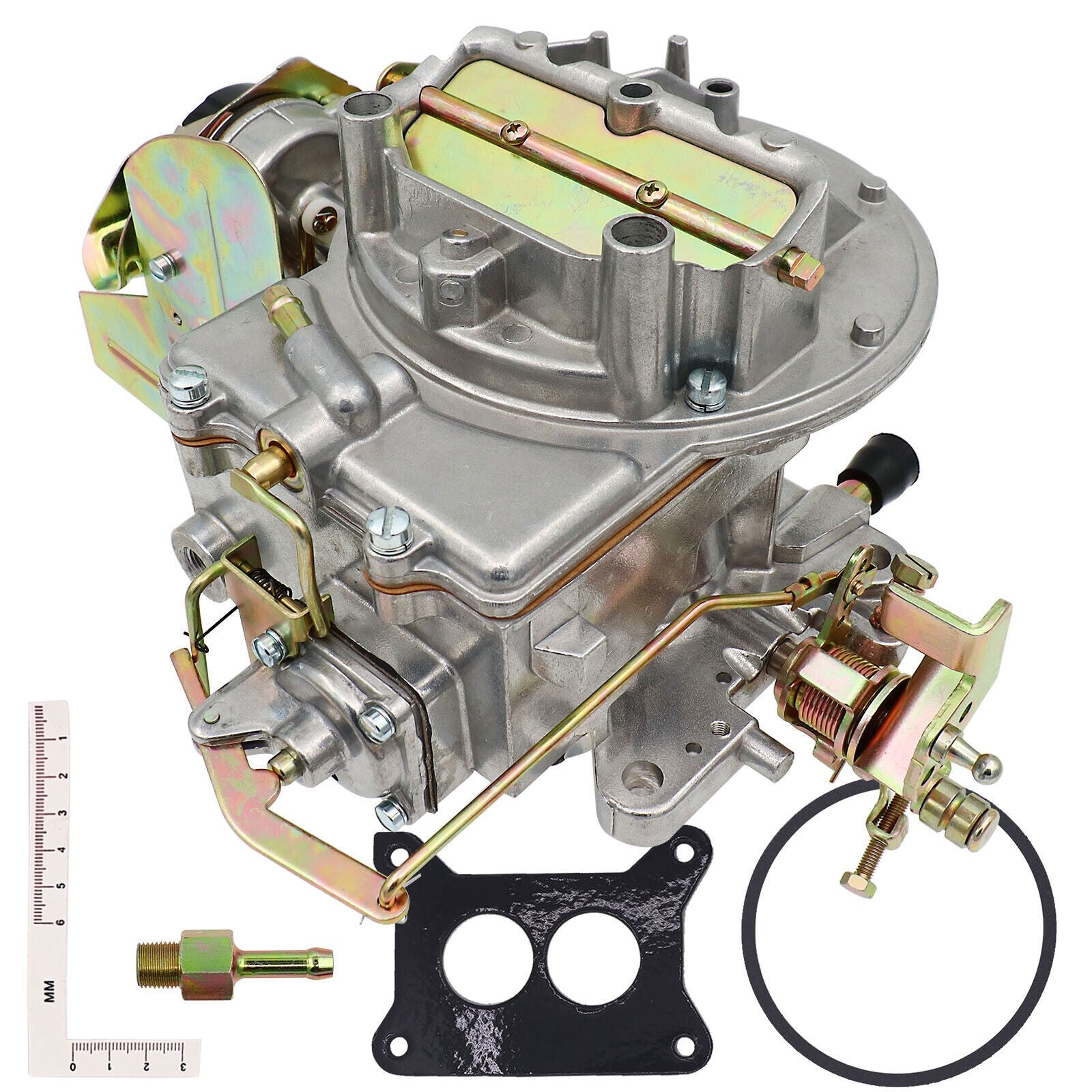

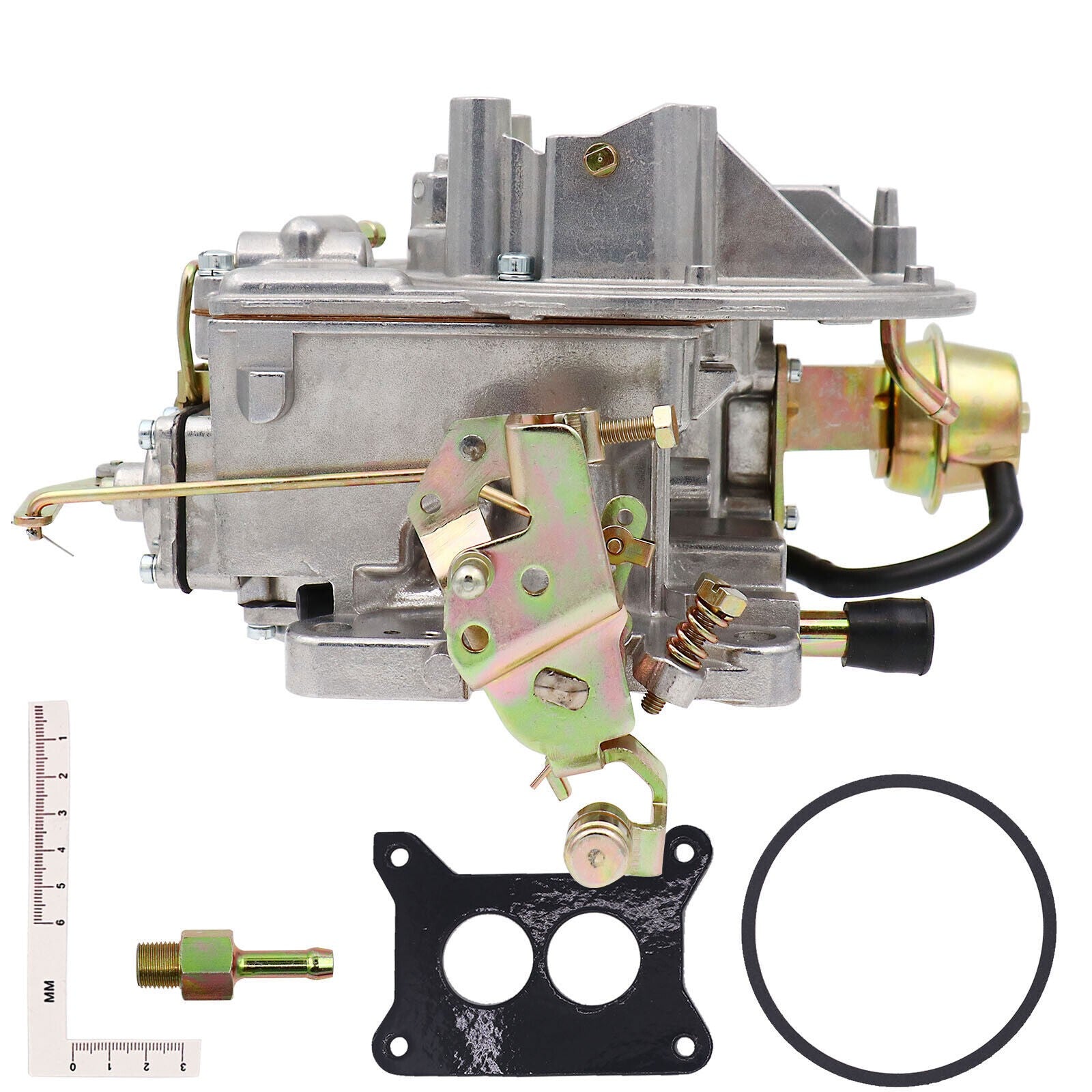

Complete Package Contents

• 1 xCarburetor.
• 1 xGrease nipple.
• 1 xMounting gasket.
• 1 xSeal ring.
• 1 xFloat level ruler.

Long-Term Maintenance Tips

• Fuel Filter:Inspect every 6 months and replace if restricted.
• Mounting Gasket:Inspect every 12 months to help prevent vacuum leaks.
• Throttle Linkage:Inspect every oil change to prevent sticking.
• Choke Wiring:Inspect every 6 months to prevent cold start issues.
• Fuel Hoses:Inspect every 6 months to help prevent fuel leaks.
