50mm V Band BOV Flange for Universal Turbo Applications

$47.57
Shipping calculated at checkout.
30 in stock, ready to ship
🛒 Bulk Discount: Save 6% on 2+ Items
🎁 Special Offer: Enjoy 10% Off on 3+ Items
📞 Large Orders (10+): Contact Us for Exclusive Deals
Details

✅ Exact Fitment Guarantee | If you are unsure about compatibility, contact us at service@egrperformance.com with your VIN.

Intro

  • 50mm V Band BOV Flange helps replace a leaking custom turbo BOV pipe joint.
  • Designed for universal performance custom turbo builds using a 50mm V band BOV.
  • Uses a 3 inch 76 mm aluminum tube and beaded edge for secure clamping.
  • Review the fitment, specifications, and installation notes before ordering.
Shipping Details

Ontario CA / Springdale OH / Newark NJ
Package List

Complete Package Contents

  • Quantity 1:50mm V Band BOV flange with 3 inch aluminum tube pipe.
Delivery Time

2-5 working days inland in the United States

Product details

x-tinymce/html

Product Overview

  • Product type:50mm V Band BOV flange with 3 inch tube pipe.
  • Application:Fits 50mm V band blow off valve turbo setups.
  • Material:Aluminum with polished silver look.
  • Design:Beaded edge supports secure clamp retention.
  • Fitment type:Performance custom universal installation.

Ideal For

  • Turbo piping repair:Solve leakage at a custom BOV connection.
  • Custom fabrication:Solve missing 50mm V band BOV mounting point.
  • Pipe upgrade:Solve poor clamp grip with a beaded edge tube.
  • Performance custom build:Solve non vehicle specific BOV fitment needs.

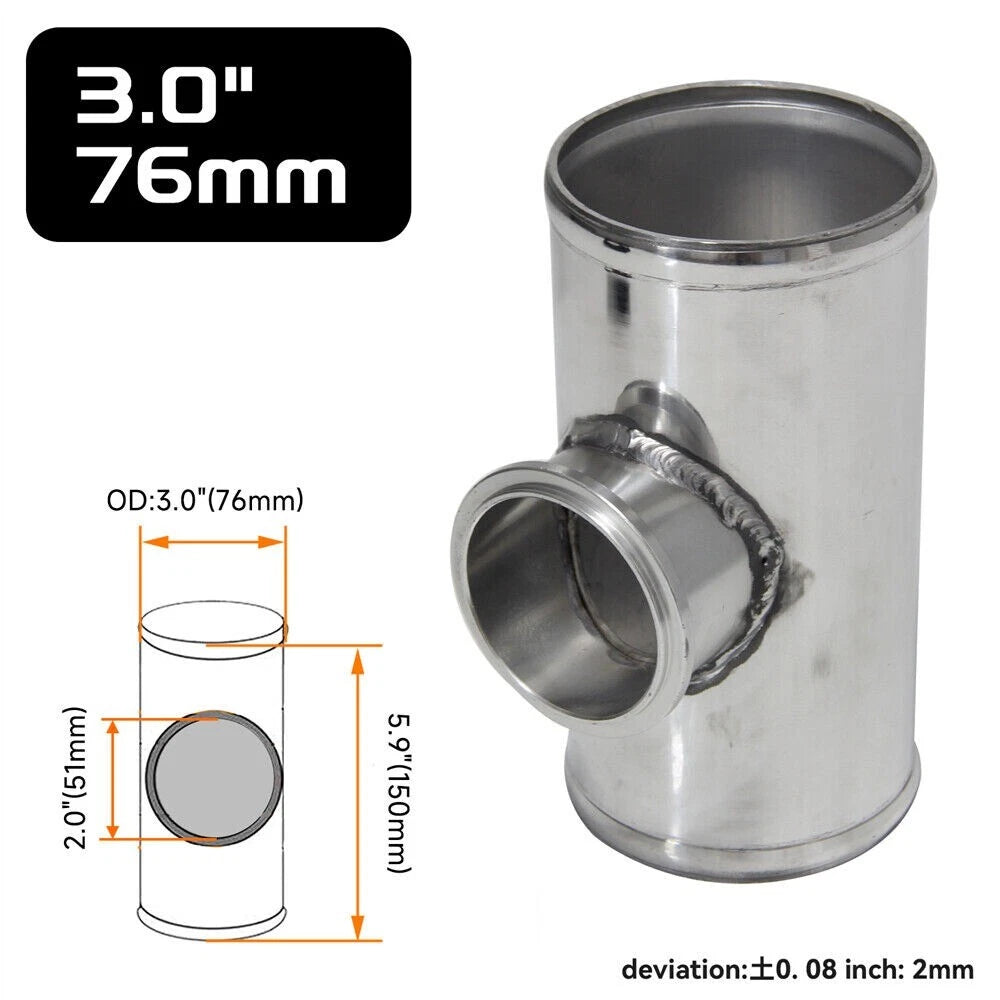

Technical Specifications

  • Core product:50mm V Band BOV flange 3 inch tube pipe.
  • Type:Blow off valve tube flange.
  • Flange fitment:Fits all 50mm V band BOV applications.
  • Outside diameter:3 inch 76 mm.
  • Total length:5.9 inch 150 mm.
  • Spout outside diameter:50 mm 2 inch.
  • Pipe thickness:2 mm.
  • Material:Aluminum.
  • Finish:Polished silver look.
  • Fitment type:Performance custom universal fitment.
  • Condition:New.

Why Choose EGR Performance

  • Fitment Support:Solve compatibility concerns by VIN email review.
  • Warranty Coverage:Solve defect concerns with 1 Year Limited Warranty against manufacturing defects.
  • Clear Specs:Solve measurement concerns with listed 50 mm and 3 inch data.
  • USA Support:Solve order questions through service@egrperformance.com.

Installation Information

Installation Difficulty Level

Moderate

Estimated Installation Time

1-2 hours

Required Tools

  • Socket set or wrench set for clamp hardware.
  • Turbo piping clamps sized for the application.
  • Welder or fabrication tools if welding is required.
  • Deburring tool for pipe edge preparation.
  • Safety glasses and gloves.

Step-by-Step Installation Overview

  • Confirm the BOV uses a 50mm V band connection.
  • Test fit the 3 inch tube in the turbo piping route.
  • Prepare the pipe edge and mounting surface.
  • Weld or clamp according to the custom setup.
  • Pressure check the joint for air leakage.

No printed instructions included. Professional installation is highly recommended. For technical support, contact service@egrperformance.com.

Troubleshooting and Problem Solving

Common Issues After Installation

  • Boost leak:Clamp not seated on the beaded edge.
  • Loose BOV:50mm V band connection not fully tightened.
  • Rough idle:Air leak in the custom turbo piping system.
  • Pipe movement:Piping support or clamp placement is incorrect.

Error Code Solutions

  • P0299:Underboost concern - inspect all BOV and pipe joints.
  • P0101:MAF range concern - check for air leaks after the sensor.
  • P0171:Lean condition - pressure test the turbo piping system.
  • N/A:This flange does not directly control vehicle electronics.

How to Reset Check Engine Light After Installation

  • Repair any leak or loose clamp first.
  • Scan the vehicle with an OBD2 tool.
  • Clear stored codes after the repair is complete.
  • Road test and rescan for pending codes.

What to Do If Your Vehicle Loses Power After Installation

  • Stop driving hard boost until the piping is inspected.
  • Check the 50mm V band BOV seal and clamp tension.
  • Inspect the 3 inch tube joint for boost leakage.
  • Verify the BOV is compatible with the custom turbo setup.
  • Contact service@egrperformance.com for fitment support.

Core Advantages

  • 50mm V Band Fit:Matches 50mm V band BOV mounting applications.
  • 3 Inch Tube Size:Uses 3 inch 76 mm outside diameter piping.
  • 150 mm Length:Provides 5.9 inch total tube length for fabrication.
  • 2 mm Wall:Uses 2 mm pipe thickness for custom turbo piping work.
  • Beaded Edge:Helps secure clamping and reduce leakage risk.

Complete Package Contents

  • Quantity 1:50mm V Band BOV flange with 3 inch aluminum tube pipe.

Long-Term Maintenance Tips

  • Clamp Check:Inspect every 3 months to prevent boost leakage.
  • V Band Check:Inspect every oil change for loosening or misalignment.
  • Pipe Surface:Clean every 6 months to spot cracks or leakage marks.
  • Pressure Test:Test after turbo service to confirm sealed connections.

x-tinymce/html

Vehicle Fitment

  • Universal fitment:For performance custom turbo applications.
  • BOV requirement:Must use a 50mm V band blow off valve.
  • Pipe requirement:Designed around 3 inch 76 mm tubing.
  • Not vehicle specific:No OEM vehicle year or engine fitment is provided.
  • Not compatible:Stock non turbo systems without custom fabrication.
  • VIN check:Email service@egrperformance.com before purchase if unsure.
  1. Dispatch Time: Orders will be shipped within 24 hours after successful payment.
  2. Delivery Time: 2-5 business days after dispatch (delivery speed depends on proximity to warehouse location).
  3. Return Window:7 days for unsatisfactory items45 days for quality-related issues
  4. Refund Processing: Refunds will be processed back to your original payment method within 2-4 business days after receiving the automated refund confirmation email (subject to bank verification).

x-tinymce/html

Will this fit my vehicle?

This is a universal performance custom part for 50mm V band BOV turbo setups.

Does this part fit all 50mm V band BOV units?

Yes, the supplied fitment data states it fits all 50mm V band BOV applications.

What is the tube outside diameter?

The tube outside diameter is 3 inch 76 mm.

What is the total length?

The total length is 5.9 inch 150 mm.

What is the spout outside diameter?

The spout outside diameter is 50 mm 2 inch.

What is the pipe thickness?

The pipe thickness is 2 mm.

What material is this BOV flange tube made from?

It is made from aluminum.

What finish does the part have?

It has a polished silver look.

Is this an OEM factory original part?

No. This is an EGR Performance aftermarket performance custom component.

Does the package include a blow off valve?

The package includes 1 50mm V Band BOV flange with 3 inch tube pipe.

Are printed installation instructions included?

No printed instructions are included. Professional installation is recommended.

Can this be installed without welding?

Installation depends on the custom turbo piping layout and clamp configuration.

Why does the tube have a beaded edge?

The beaded edge helps create more secure clamping and reduce leakage risk.

Will this fix a boost leak?

It can help replace a leaking BOV pipe joint when properly matched and installed.

What should I check before ordering?

Confirm 50mm V band BOV fitment and 3 inch 76 mm pipe compatibility.

How do I verify compatibility?

Email service@egrperformance.com with your VIN and custom setup details.

What warranty is included?

EGR Performance provides 1 Year Limited Warranty against manufacturing defects.
