FICM Fuel Injection Control Module Connector Terminal Wiring Harness Plug for 6.0L Powerstroke Ford F250 F350 2003-2010

$50.81
Shipping calculated at checkout.
30 in stock, ready to ship
🛒 Bulk Discount: Save 6% on 2+ Items
🎁 Special Offer: Enjoy 10% Off on 3+ Items
📞 Large Orders (10+): Contact Us for Exclusive Deals
Details
Model Year Range Engine
Ford F250 F350 F450 F550 Super Duty Pickup 2003-2007 6.0L Powerstroke Diesel
Ford F650 F750 2004-2008 6.0L Powerstroke Diesel
Ford Econoline Van 2004-2010 6.0L Powerstroke Diesel
Ford Excursion 2003-2005 6.0L Powerstroke Diesel

Product Overview

This 36-pin FICM connector kit is engineered to restore proper electrical connection between your vehicle's fuel injection control module and wiring harness, eliminating common performance issues caused by loose, corroded, or damaged factory connectors. It is manufactured to match OEM fit, form, and function for seamless installation and reliable long-term performance.

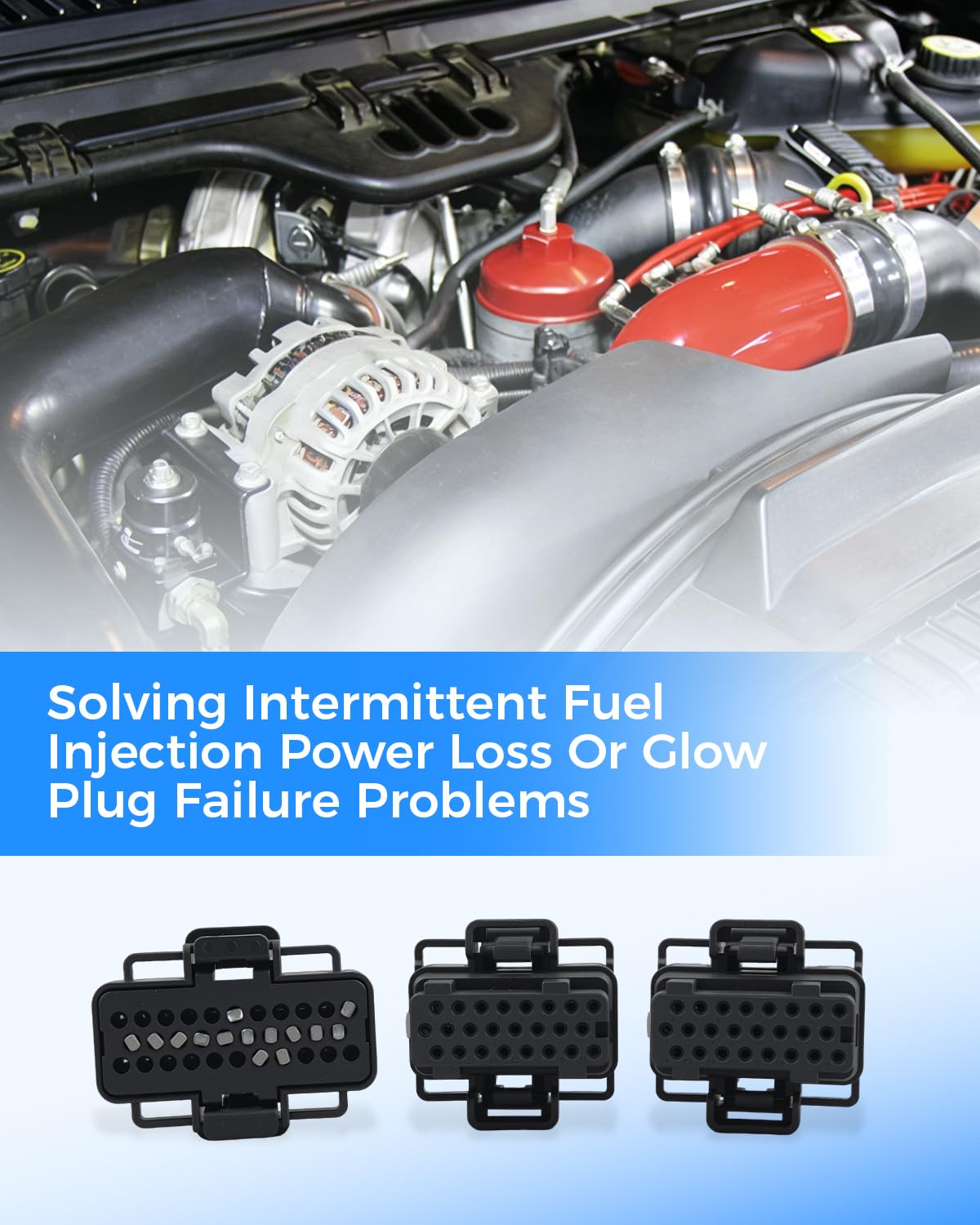

Common Faults & Replacement Symptoms

  • Intermittent fuel injection power loss leading to rough idle, stalling, or reduced engine power
  • Glow plug failure or preheating system error codes related to FICM connection issues
  • Check engine light activation with diagnostic codes pointing to FICM communication errors
  • Visible damage, corrosion, or broken pins on the original FICM wiring harness connector
  • Intermittent no-start conditions caused by poor electrical connection to the FICM

Ideal For

This FICM connector kit is ideal for DIY Ford 6.0L Powerstroke owners, professional diesel repair technicians, and fleet maintenance teams looking for a cost-effective, reliable replacement for damaged or faulty factory FICM connectors on compatible Ford trucks and vans.
Shipping Details

Ontario CA / Springdale OH / Newark NJ

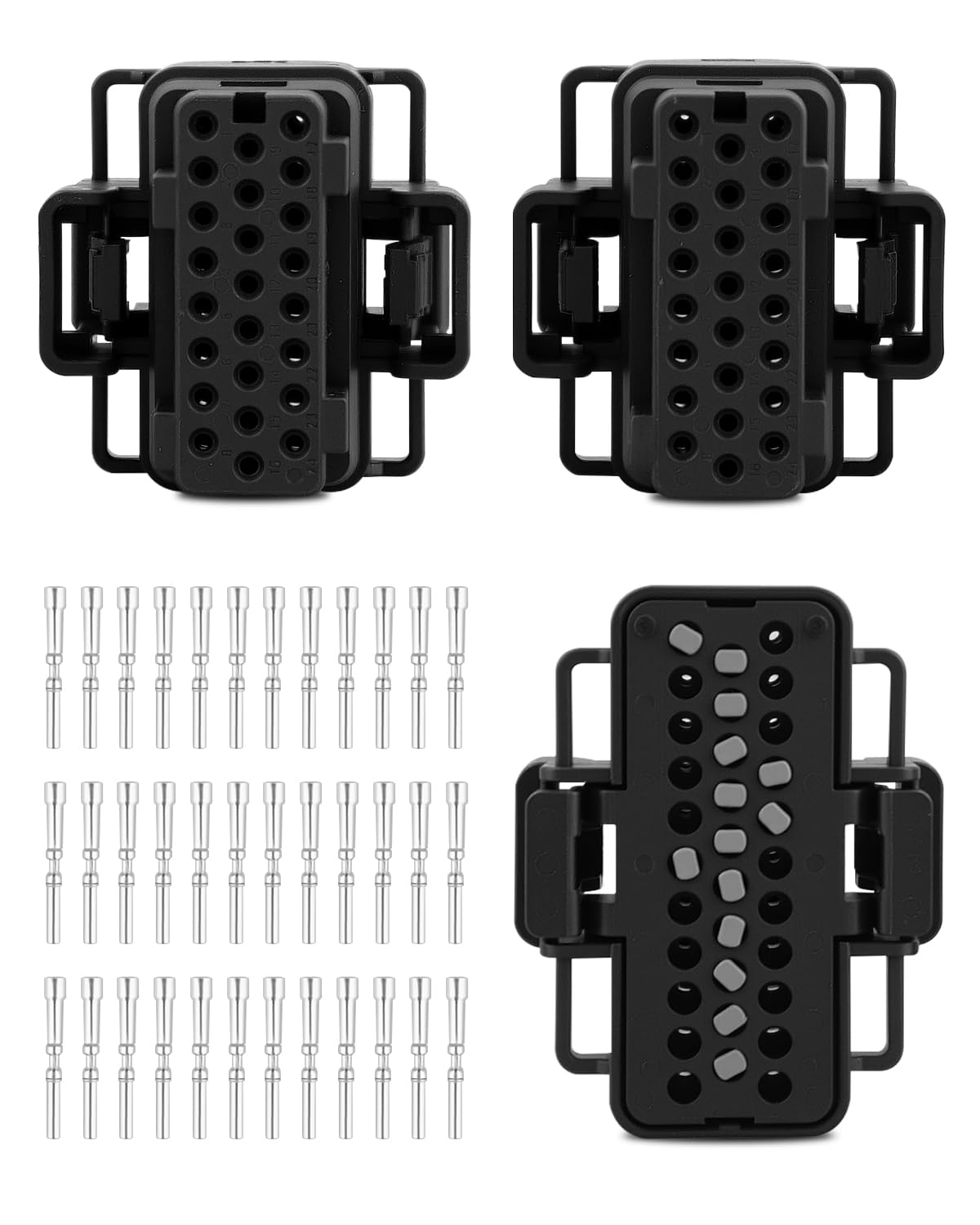

Package List

Complete Package Contents

  • 1 x Complete FICM connector kit with 36 pins, as shown in product images
Delivery Time

2-5 working days inland in the United States

Product details

Specifications

  • Connector Type: 36-pin FICM connector
  • Material: Copper conductors, Thermoplastic Elastomer (TPE) / Polyvinyl Chloride (PVC) housing
  • Item Weight: 0.24 Pounds
  • Fitment: Exclusively for Ford 6.0L Powerstroke Diesel models 2003-2010
  • Replacement for OEM part numbers 1456315-2, 1456315-6, 1437287-6, AP0018, AP0019, AP0020

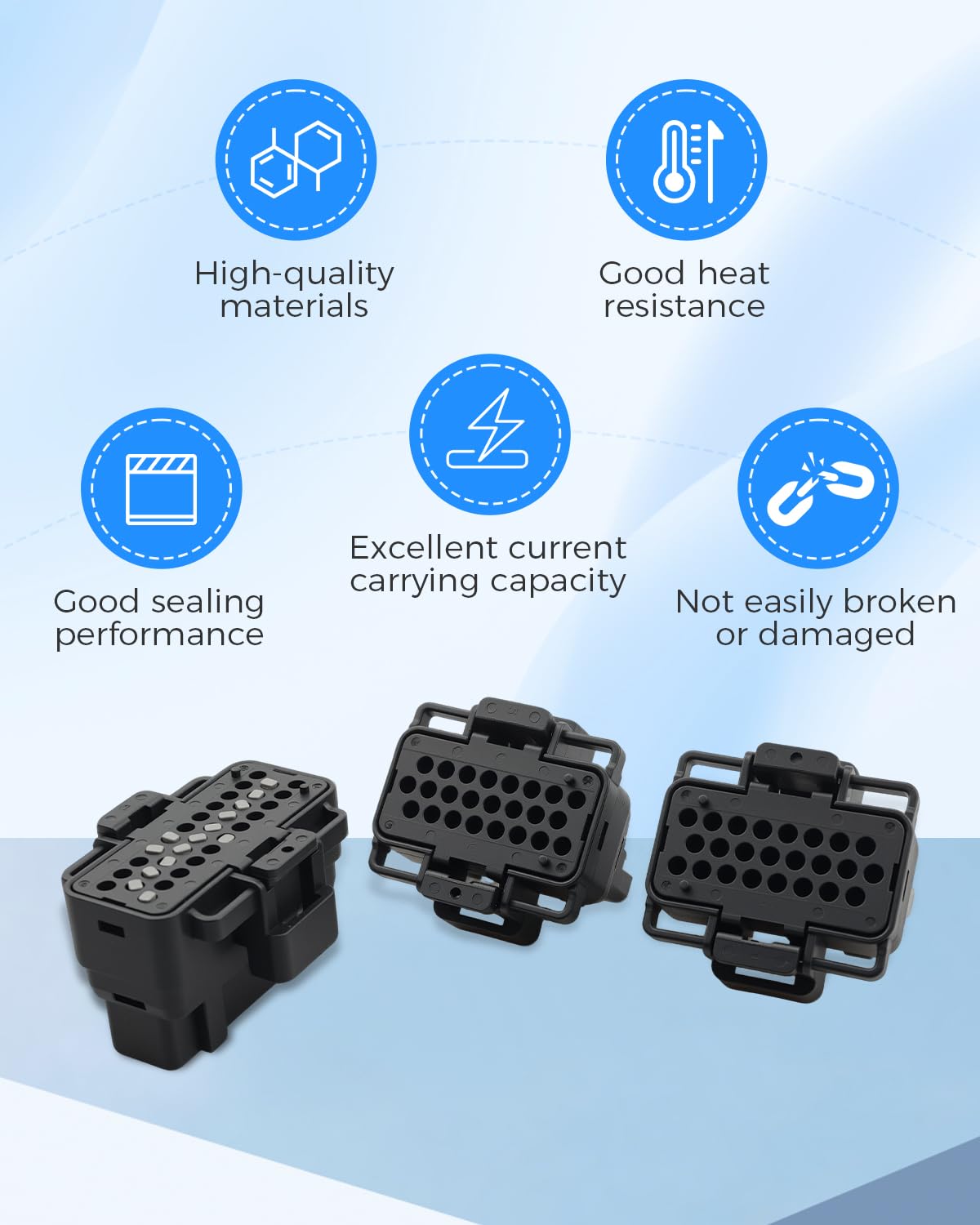

Core Advantages

  • Excellent heat resistance to withstand high under-hood temperatures common in diesel engines
  • Superior sealing performance to prevent moisture, dust, and corrosion from damaging internal connections
  • Outstanding current carrying capacity for consistent, reliable power delivery to the FICM
  • Tight, secure connection design that resists breakage, vibration damage, and accidental disconnection
  • Direct plug-and-play fit for compatible Ford models, no modifications required for installation

OEM Quality & Compliance Certification

This FICM connector kit from EGR Performance is manufactured to meet or exceed original equipment manufacturer (OEM) quality standards, following strict ISO 9001 quality control processes. It is fully compliant with SAE automotive electrical component standards for use in North American diesel vehicles, ensuring reliable performance and long service life. It is a direct replacement for OEM FICM connectors, with no modifications required for installation on compatible Ford 6.0L Powerstroke models.

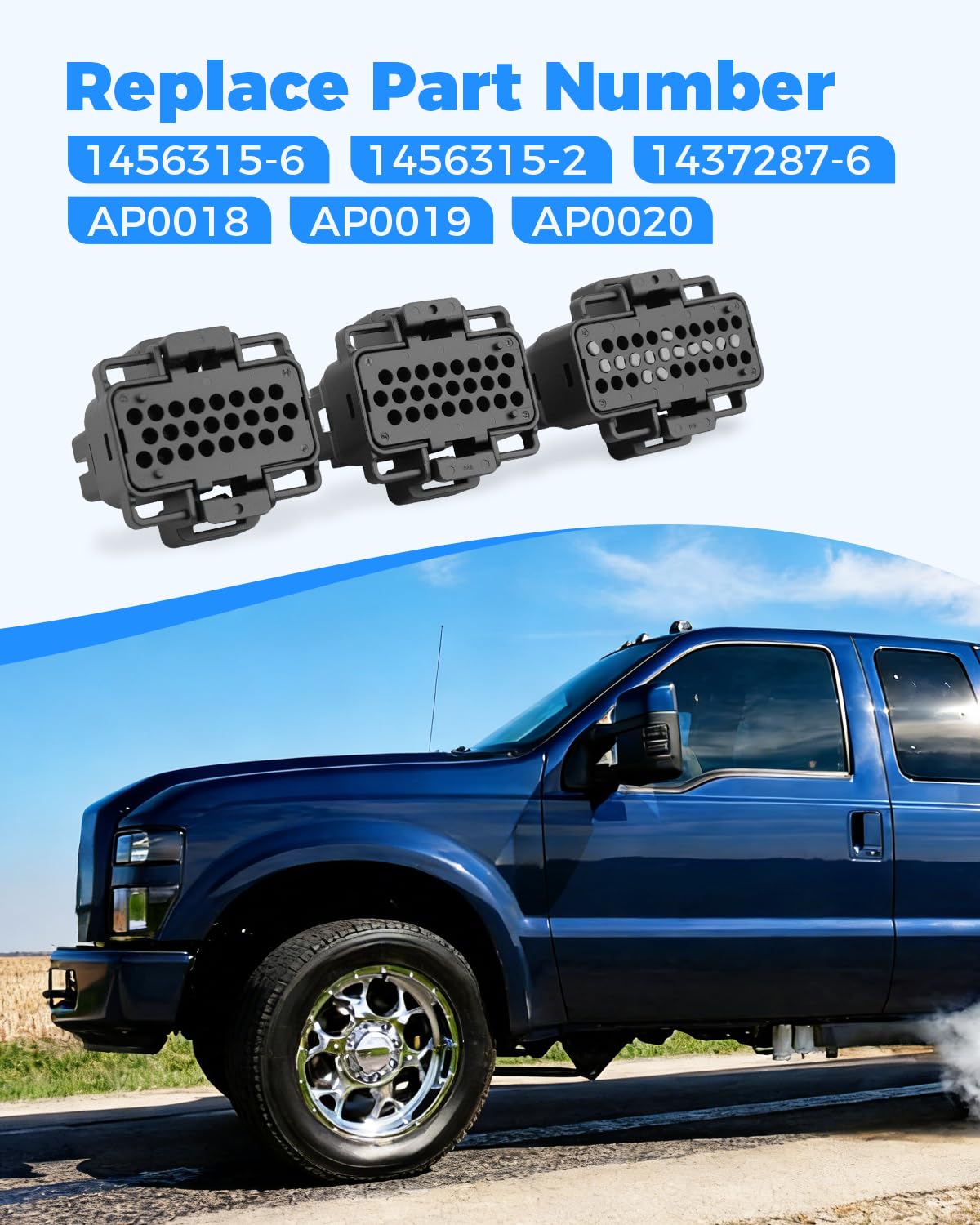

Replace Part Numbers

  • Replacement for 1456315-2
  • Replacement for 1456315-6
  • Replacement for 1437287-6
  • Replacement for AP0018
  • Replacement for AP0019
  • Replacement for AP0020
  • Note: This part is exclusively designed for vehicles with a 6.0L Powerstroke Diesel engine only.

Complete Package Contents

  • 1 x Complete FICM connector kit with 36 pins, as shown in product images

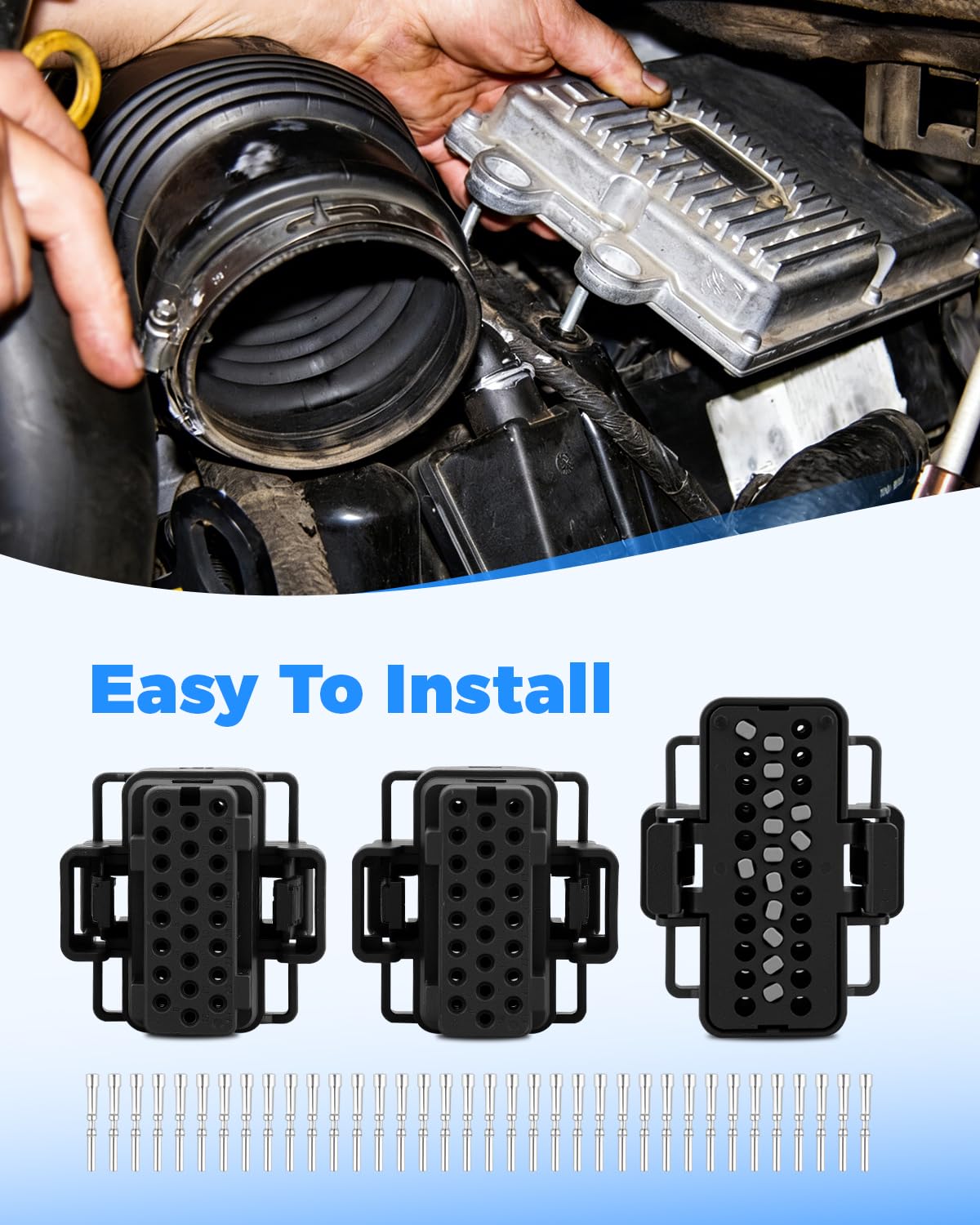

Installation & Fitment Notes

  • Always verify your vehicle's VIN, engine type, and original part number prior to purchase to ensure compatibility
  • Professional installation is highly recommended, no installation instructions are included with this product
  • Disconnect the vehicle's battery before starting any electrical work to avoid short circuits or damage to vehicle electronics
  • Inspect the original FICM wiring harness for signs of damage, corrosion, or fraying before installing the new connector
  • Not compatible with vehicles modified with aftermarket FICM systems or non-OEM wiring harnesses

Warranty & Support

This EGR Performance FICM connector kit comes with a 1-year manufacturer warranty against defects in materials and workmanship. If you experience any issues with your product, or have questions about fitment or installation, please contact our customer service team at service@egrperformance.com, and we will respond to your inquiry within 24 hours.

Shipping & Delivery Information

We offer fast, reliable shipping across all 50 US states, Canada, and Mexico for all EGR Performance automotive parts.

  • All orders are processed within 1-2 business days of payment confirmation
  • Free standard shipping is available for all orders within the contiguous United States
  • Expedited and international shipping options are available at checkout for an additional fee
  • All orders are shipped with tracking information so you can monitor your delivery status

Why Choose This Product

  • Cost-effective alternative to expensive OEM FICM connector replacements, with equivalent or better quality
  • 100% accurate fit for all compatible Ford 6.0L Powerstroke Diesel models 2003-2010, no modifications required
  • Manufactured with high-quality materials for long-term reliability, even in harsh under-hood conditions
  • Backed by a 1-year manufacturer warranty and dedicated US-based customer support
  • Resolves common FICM connection issues that can lead to costly breakdowns and engine damage if left unaddressed

Long-Term Maintenance Tips

  • Inspect the FICM connector and wiring harness annually for signs of corrosion, damage, or loose connections, especially after off-road use or exposure to harsh weather conditions
  • Apply a thin layer of dielectric grease to the connector pins during installation to prevent corrosion and improve electrical conductivity
  • Avoid spraying high-pressure water directly at the FICM and wiring harness when washing your engine bay to prevent moisture ingress
  • Address any electrical fault codes related to the FICM or fuel injection system immediately to avoid further damage to engine components
  • Replace the FICM connector any time you replace the FICM itself to ensure a reliable, long-lasting connection

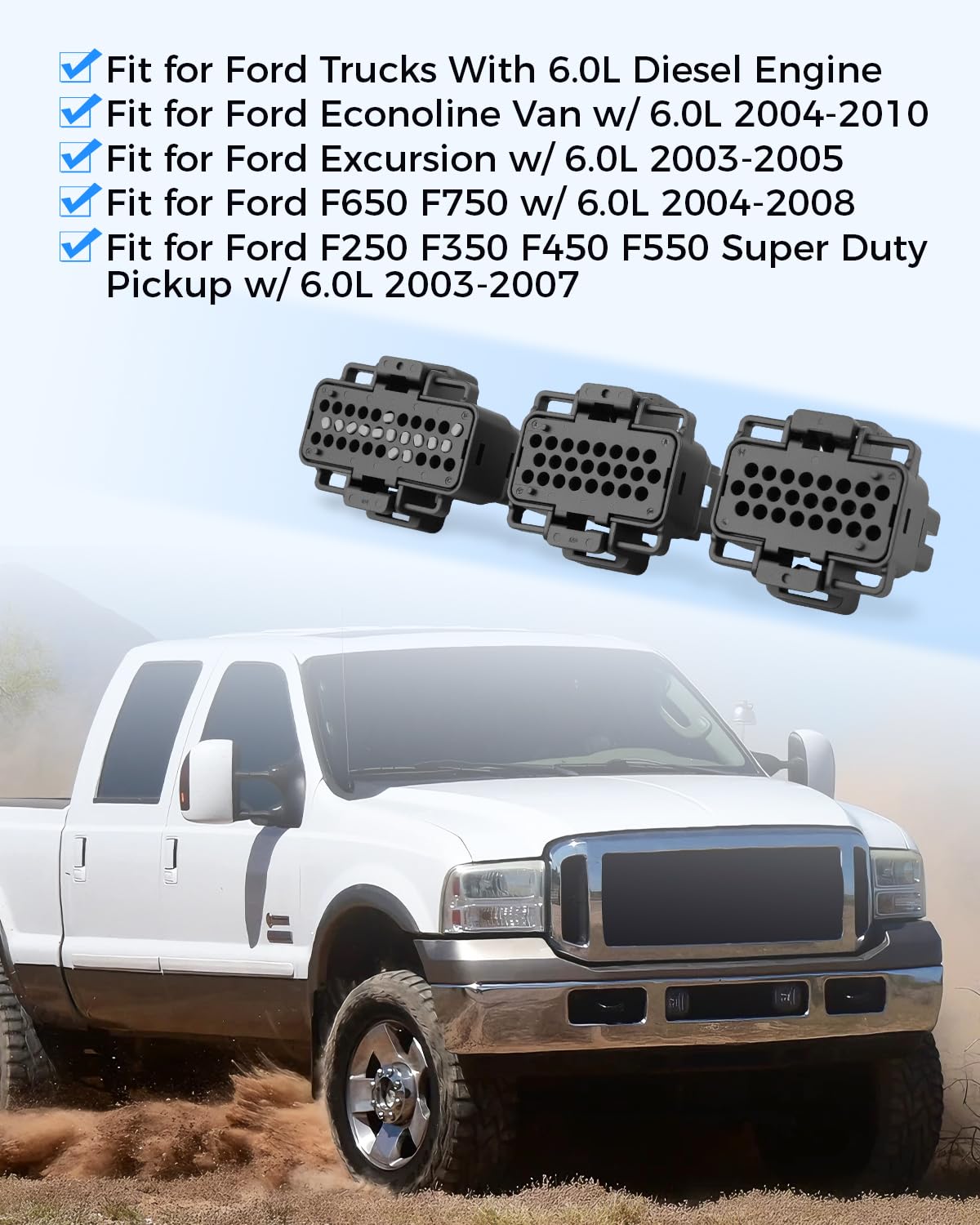

Vehicle Fitment Description

ThisFICM Fuel Injection Control Module Connector Terminal Wiring Harness Plugfrom EGR Performance is a direct replacement for 2003-2007 Ford F250 F350 F450 F550 Super Duty, 2004-2008 Ford F650 F750, 2004-2010 Ford Econoline Van, and 2003-2005 Ford Excursion models equipped with a 6.0L Powerstroke Diesel engine.

Compatible Vehicle Trim & Configuration Details

  • Compatible with all trim levels (XL, XLT, Lariat, King Ranch) of for Ford F250-F550 Super Duty 2003-2007 with 6.0L Powerstroke Diesel, both 2WD and 4WD configurations
  • Compatible with all for Ford F650/F750 work truck trims 2004-2008 with 6.0L Powerstroke Diesel, all cab and chassis configurations
  • Compatible with for Ford Econoline E150-E450 van trims 2004-2010 with 6.0L Powerstroke Diesel, including cargo, passenger, and cutaway models
  • Compatible with all for Ford Excursion trims 2003-2005 with 6.0L Powerstroke Diesel, all drivetrain configurations
  • Not compatible with vehicles equipped with 7.3L, 6.4L, or 6.7L Powerstroke Diesel engines, or gasoline-powered Ford models

EGR Performance FICM Fuel Injection Control Module Connector Terminal Wiring Harness Plugis a high-quality replacement part designed exclusively for Ford vehicles equipped with the 6.0L Powerstroke Diesel engine produced between 2003 and 2010, resolving common electrical faults related to the fuel injection control module connection.

  1. Dispatch Time: Orders will be shipped within 24 hours after successful payment.
  2. Delivery Time: 2-5 business days after dispatch (delivery speed depends on proximity to warehouse location).
  3. Return Window:7 days for unsatisfactory items45 days for quality-related issues
  4. Refund Processing: Refunds will be processed back to your original payment method within 2-4 business days after receiving the automated refund confirmation email (subject to bank verification).

FAQ (Frequently Asked Questions)

Will this FICM connector fit my 2005 Ford F250 Super Duty with 6.0L Powerstroke Diesel?

Yes, this EGR Performance FICM connector is a direct fit for 2003-2007 Ford F250 F350 F450 F550 Super Duty models equipped with a 6.0L Powerstroke Diesel engine, including your 2005 F250.

What OEM part numbers does this FICM connector replacement for?

This FICM connector kit is replacement for OEM part numbers 1456315-2, 1456315-6, 1437287-6, AP0018, AP0019, and AP0020, all of which correspond to the 6.0L Powerstroke FICM connector.

Does this product come with installation instructions?

No, installation instructions are not included with this FICM connector kit. Professional installation by a certified diesel technician is highly recommended to ensure proper fit and function.

What problems does this FICM connector fix?

This replacement FICM connector resolves common issues including intermittent fuel injection power loss, glow plug failure, FICM communication error codes, rough idle, stalling, and intermittent no-start conditions caused by damaged or corroded factory connectors.

Will this connector fit a 2006 Ford Econoline Van with 6.0L Powerstroke Diesel?

Yes, this FICM connector is compatible with 2004-2010 Ford Econoline Van models equipped with a 6.0L Powerstroke Diesel engine, including your 2006 model.

What warranty is included with this FICM connector?

All EGR Performance FICM connector kits come with a 1-year manufacturer warranty against defects in materials and workmanship. If you experience any issues, contact us at service@egrperformance.com for support.

Is this connector compatible with 7.3L Powerstroke Diesel engines?

No, this FICM connector is exclusively designed for use with 6.0L Powerstroke Diesel engines. It is not compatible with 7.3L, 6.4L, or 6.7L Powerstroke engines, or gasoline-powered Ford vehicles.

How many pins does this FICM connector have?

This FICM connector kit includes a full 36-pin connector, matching the original OEM connector specification for Ford 6.0L Powerstroke Diesel models.

What materials is this FICM connector made from?

This connector features high-quality copper conductors for optimal current carrying capacity, with a durable Thermoplastic Elastomer (TPE) and Polyvinyl Chloride (PVC) housing for excellent heat resistance and sealing performance.

Can I install this FICM connector myself if I have basic automotive experience?

While experienced DIYers may be able to install this connector, we strongly recommend professional installation to avoid damaging your vehicle's electrical system or FICM, as no installation instructions are provided.
