Trailer Brake Controller

Why Does Your Tow Vehicle Need a Trailer Brake Controller?

Overworked Tow Vehicle Brakes on Every Grade

Without a controller, the trailer coasts into the back of the truck and the tow vehicle's pads and rotors carry the whole combined load, which glazes the brakes and boils the fluid on a long downhill. A proportional controller shares the stopping work across every electric magnet on the trailer, so the truck stops like it is empty instead of overloaded and overheated.

Dead, Missing, or Never-Optioned Factory Module

Plenty of trucks left the lot with no factory tow package, and plenty more have an integrated trailer brake module that threw a code and quit, leaving a dead dash button and no trailer braking at all. Either EGR Performance unit is the direct replacement, restoring the brake circuit without a dealer visit or a full rewire.

Trailer Push, Surge, and Sway Under Load

A heavy trailer with no braking force of its own pushes on the hitch, lightens the rear axle, and sets up a sway cycle that turns dangerous fast. Dialing in brake force and boost, then using the manual override switch to settle a wiggle, pulls the trailer straight and puts the load back on its own axles where it belongs.

What Can a Trailer Brake Controller Solve?

Proportional Inertia Sensing and LED Digital Gain

The accelerometer reads real vehicle deceleration and sends a matching brake voltage, while the LED display shows live output so you set the gain by eye instead of by guesswork. The result is smooth, panic-stop-grade braking instead of the jerky, fixed-voltage feel of a cheap timed unit.

Plug-and-Play OEM 8508211 and F-150 ITBC Integration

The universal module is pinned to drop into the Ford 8508211 tow-package connector, and the dedicated unit mirrors the 2015 to 2020 F-150 integrated trailer brake layout, so most installs are a plug-in under the dash rather than cutting and splicing wires.

Manual Override Switch and Adjustable Brake Force

A slider override lets you apply the trailer brakes by hand to kill a sway event, and the adjustable boost setting ramps braking in faster for heavier loads. Short-circuit and reverse-polarity protection keep the module safe during setup and a wrong hookup.

Shop Trailer Brake Controller by Vehicle & Fitment Guide

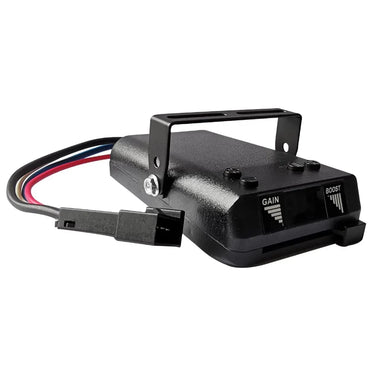

• Electronic Trailer Brake Controller (Replace 8508211) - Fits virtually any trailer with 2 to 8 electric braking systems on a 12V circuit across Ford F-150, F-250, F-350 Super Duty, Dodge Ram 1500 through 3500, and Chevy Silverado (verify your 7-way connector and brake feed, 2007-2023). A universal proportional controller with LED gain and manual override that restores braking when the factory unit is dead or the truck was never optioned with a tow package.

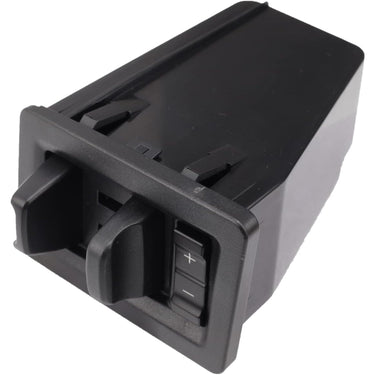

• Trailer Brake Controller for Ford F-150 (2015-2020) - Fits the 13th-generation aluminum-body Ford F-150 with the 2.7L, 3.0L, 3.3L, 3.5L, or 5.0L engine (2015-2020). A factory-style integrated module with a plug-and-play OEM harness that drops into the factory tow-package connector to restore factory trailer braking.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What does a trailer brake controller do, and when do you need one?

A trailer brake controller is the in-cab module that tells the electric magnets on your trailer's brakes how hard to pull. When you step on the tow vehicle's brake pedal, the controller reads that signal and sends a proportional voltage down the brake wire in your 7-way connector, so the trailer brakes engage with the truck instead of pushing it.
Most states require a working brake controller on any trailer over about 3,000 pounds with electric brakes, which means travel trailers, 5th wheels, enclosed cargo, and livestock haulers all need one.
If you tow anything with 2 to 8 electric brakes and have no controller, or the factory unit is dead, you are braking on the truck alone and cooking your tow vehicle's pads on every long grade.

What is the difference between a proportional and a time-delayed brake controller?

A proportional controller uses an inertia pendulum or accelerometer to match trailer braking force to how hard the truck is decelerating, so the trailer brakes with the same urgency as the tow vehicle, smooth and instant.
A time-delayed, or timed, controller sends a fixed, user-set voltage after a preset delay every time you touch the pedal, which is cheaper but feels jerky and stops slower in a panic stop.
Both EGR Performance controllers here are proportional digital units with an LED gain display, so you get the smooth, load-matched braking that keeps a heavy trailer tracking straight instead of nudging the truck.

How do I wire and connect a trailer brake controller to a 7-way connector?

The controller needs a few things wired in: constant 12V battery power through a circuit breaker, a clean chassis ground, the blue brake output wire that runs out to the brake pin on the 7-way, and a signal wire from the cold side of the brake pedal switch.
On a truck with a factory tow package, most of that circuit is already in the harness and you plug into the OEM connector under the dash, which is exactly what the 8508211-style and 2015 to 2020 F-150 modules are built for.
Without a tow package you run a brake-wiring kit from the battery to a 7-way at the bumper, then connect the controller's blue wire to that brake circuit, and you always confirm the 12V brake feed is live before you set the gain.

How do I adjust the brake force and gain on my brake controller?

Set the maximum power, or gain, first so the trailer brakes lock up slightly at about 25 mph with a full hand on the manual override slide, then back the gain off just until the wheels roll.
The brake force, or boost, setting controls how aggressively braking ramps in when you hit the pedal, useful for heavier loads or faster traffic where you want the trailer to lead slightly.
Recheck both after every load change, because a light empty trailer needs far less gain than the same rig loaded to its gross weight, and an over-set controller will surge and grab.

Will the universal electronic brake controller fit my F-150, Ram 2500, or Silverado?

The electronic trailer brake controller is built as a universal proportional unit for any trailer running 2 to 8 electric brakes on a 12V system, and it drops into the Ford 8508211 tow-package application.
That covers most F-150, F-250, F-350 Super Duty, Dodge Ram 1500 through 3500, and Chevy Silverado setups from roughly 2007 to 2023, provided your truck has the matching 7-way and a live brake feed.
Because wiring varies by year and trim, confirm your connector pinout and brake circuit before you order, and the dedicated F-150 module is the cleaner choice if you drive a 2015 to 2020 F-150.

What is a brake controller module, a brake controller switch, and a brake unit?

A brake controller module is the control brain itself, the in-cab box or the factory integrated trailer brake module that reads your pedal and sends brake voltage to the trailer; on Ford and GM trucks the factory unit is literally called the integrated trailer brake module, or ITBM and ITBC.
A brake controller switch usually means either the manual override slide on the face of an aftermarket unit or the dash button on a factory integrated system that lets you apply the trailer brakes by hand.
A brake unit is just shop shorthand for the whole controller assembly, and on these digital units the module, the override switch, and the LED gain readout are all in one compact housing.

Do I need a brake controller for a caravan, a 5th wheel, or a car trailer?

Any trailer with electric brakes needs a controller, which includes most 5th wheels, travel trailers, and car-hauler trailers, plus caravans built to the North American 12V electric-brake standard.
A 5th wheel or gooseneck with two or three axles falls right in the 4 to 8 brake range these controllers are rated for, so one proportional unit handles the whole rig.
Light unbraked utility trailers and boat trailers with surge brakes do not need a controller at all, since surge brakes work off the hitch coupler and have no electric magnets to drive.

Is a trailer brake controller street-legal, and is one required by law?

A trailer brake controller is street-legal towing safety equipment in all 50 states, not an off-road or delete part; most jurisdictions require a working electric brake controller on trailers above a set gross weight, typically around 3,000 pounds, so running one keeps you compliant and far safer on the highway.
Confirm fitment before you order by matching your vehicle's 7-way connector, brake feed, and the OEM 8508211 or 2015 to 2020 F-150 tow-package layout, since the wrong module will not plug in.
Every controller ships with free shipping, is backed by a 1-year warranty, and comes with our 45-day return policy.

Will the Ford F-150 controller fit my SUV, Durango, Explorer, E-450, or older F-150?

The Ford F-150 module is engineered specifically for the 13th-generation aluminum F-150 with the 2.7L, 3.0L, 3.3L, 3.5L, or 5.0L engine from 2015 to 2020, so it is not a drop-in for an Explorer, Durango, Tahoe, Suburban, E-450, or an older 2004 to 2014 F-150.
For an SUV, van, or older truck you generally want the universal electronic controller, which is connector-driven rather than year-and-model locked, as long as the brake circuit and 7-way match.
If you tow with a passenger car, a crossover, or a chassis-cab like the E-450 or Transit, verify the 12V brake feed and connector first, because fitment on those platforms is not guaranteed.

Does this brake controller work with sway control, and is it a wireless or trailer-mounted unit?

A proportional brake controller works alongside friction and electronic sway control, and the manual override is one of the fastest ways to straighten a swaying trailer, so the two systems complement each other.
These are hard-wired in-cab controllers that read your brake pedal and feed the blue brake circuit, not wireless, WiFi, RF, or remote units, and they are not the trailer-mounted or portable type some caravans use on a tow vehicle with no controller socket.
They are also built for the standard 12V North American electric-brake system, so a 24V commercial trailer would need a converter, and if your truck already has a working factory integrated module you simply do not need an add-on unit.
