SOTF Tune Switch for 6.6L Duramax LLY for Chevrolet Silverado and for GMC Sierra 2500HD 3500HD
Details
| Model | Year Range | Engine |
|---|---|---|
| for Chevrolet Silverado 2500HD | 2004.5-2005 | 6.6L Duramax LLY diesel |
| for Chevrolet Silverado 3500HD | 2004.5-2005 | 6.6L Duramax LLY diesel |
| for GMC Sierra 2500HD | 2004.5-2005 | 6.6L Duramax LLY diesel |
| for GMC Sierra 3500HD | 2004.5-2005 | 6.6L Duramax LLY diesel |

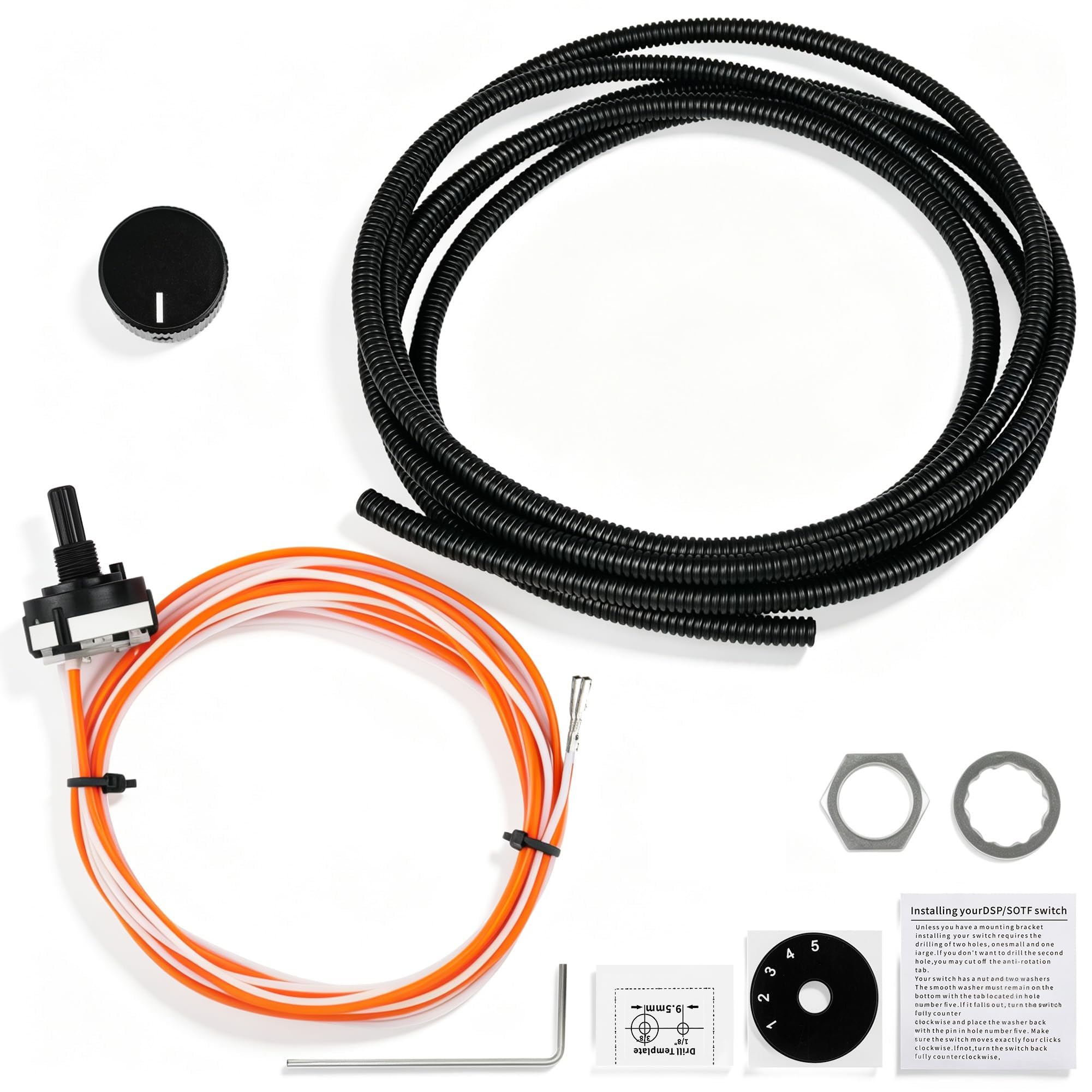

EGR Performance SOTF tune switch is a 5-position rotary ECM terminal-pin switch for for Chevrolet Silverado 2500HD, for Chevrolet Silverado 3500HD, for GMC Sierra 2500HD, and for GMC Sierra 3500HD trucks equipped with the 6.6L Duramax LLY diesel engine in the source-supported 2004.5-2005 range. This switch selects a tune position already programmed into the ECM through a compatible hardwired switchable-tune calibration; it is not a tuner and does not include software, tune files, preset power levels, or installation instructions.
Product Overview

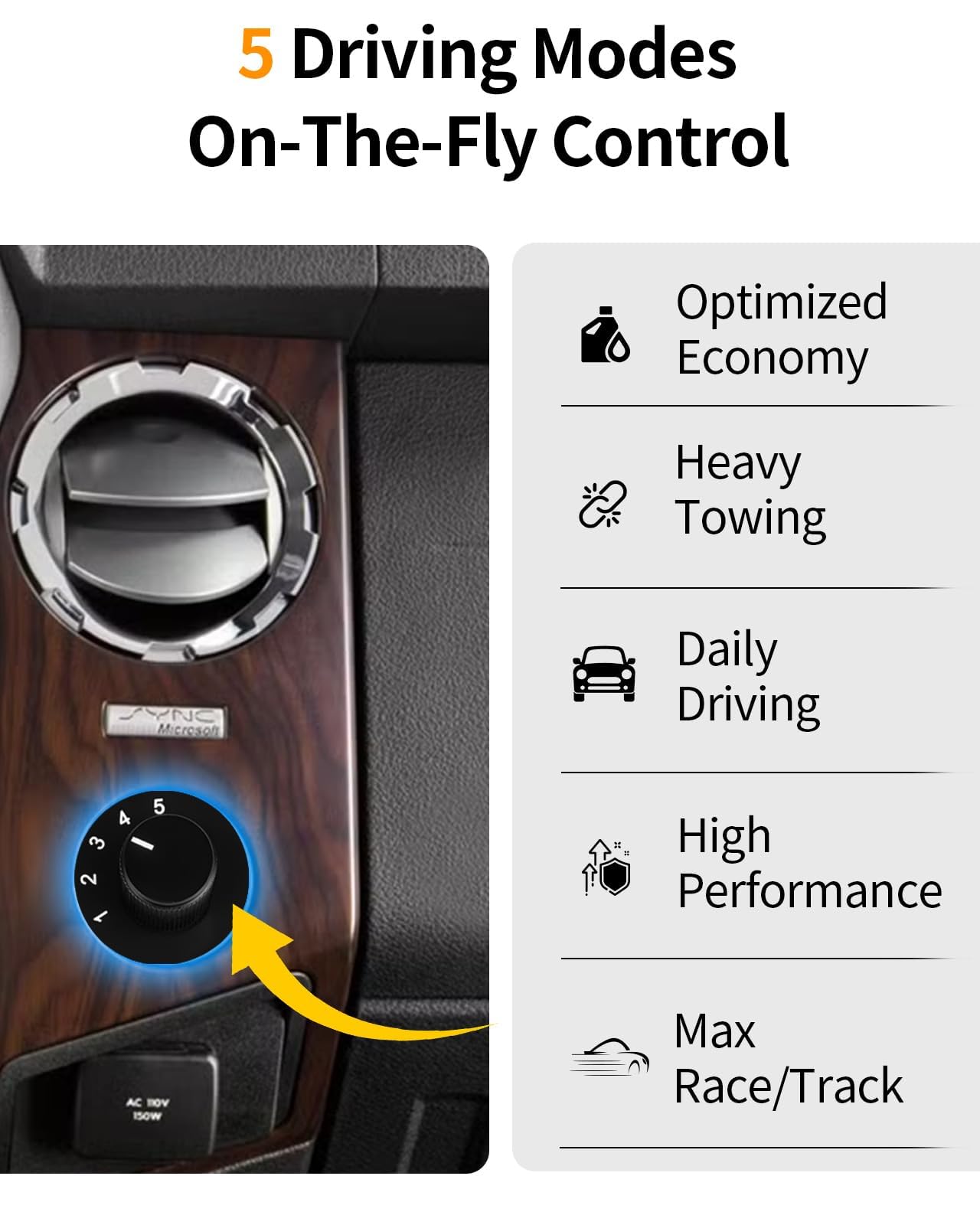

The EGR Performance SOTF tune switch for 6.6L Duramax LLY is designed for a direct ECM terminal-pin connection on supported for Chevrolet Silverado and for GMC Sierra 2500HD and 3500HD trucks. It uses a rotary selector with 5 tune positions, allowing the driver to select among tune positions that have already been programmed into the ECM by a compatible calibration.

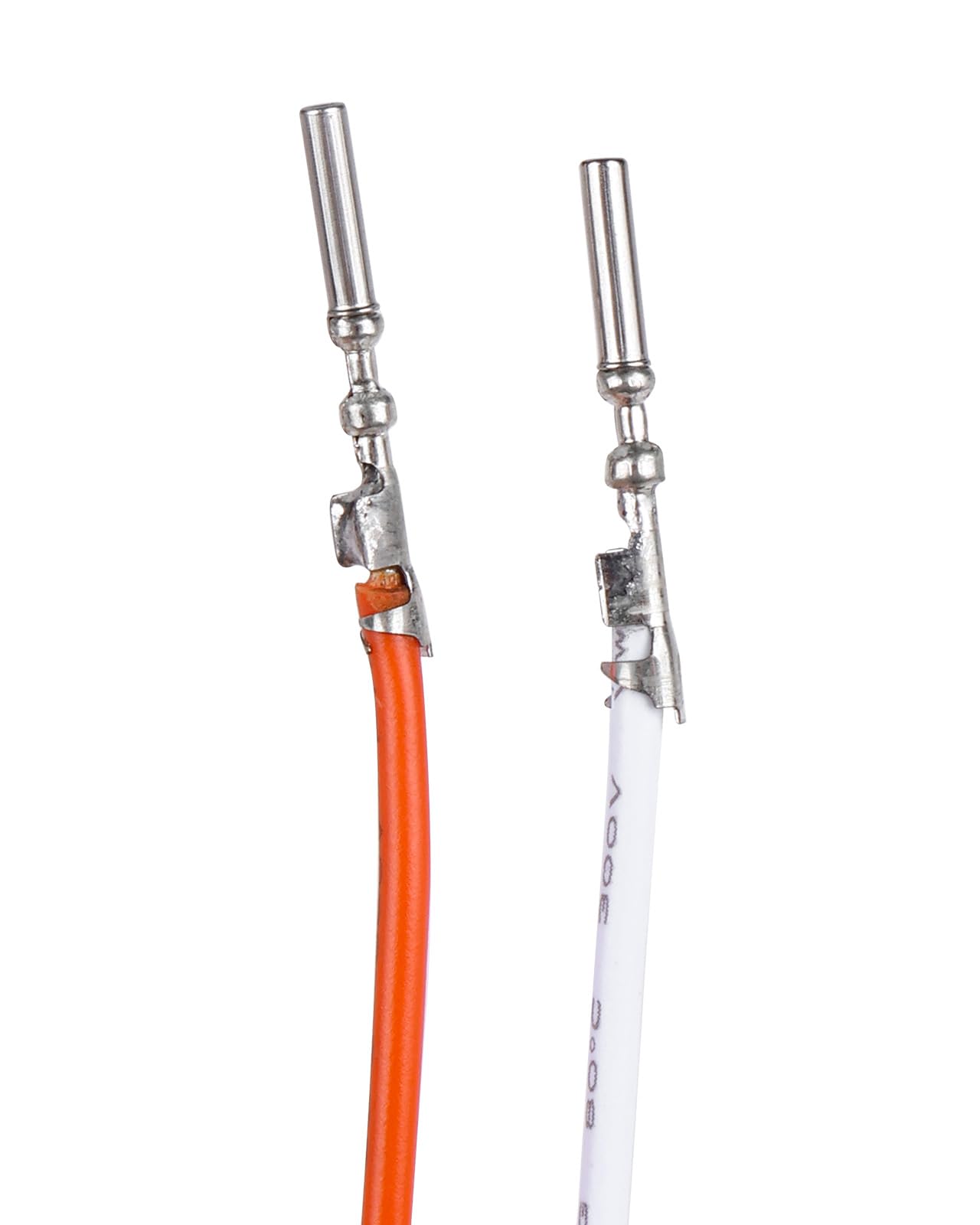

This SOTF switch uses pre-terminated ECM terminals for a clean installation at the specified LLY ECM connector cavities. The source information describes a no-cut harness installation when installed correctly, with routing through a protected firewall pass-through and secure placement away from heat, sharp edges, moving parts, and abrasion points.
Before ordering or installation, confirm the vehicle VIN, engine code, ECM connector details, approved pinout, terminal orientation, and switchable tune compatibility. Trim levels, drive type, and cab configuration are not specified in the source information and should be confirmed before purchase.
This product is backed by the EGR Performance 1-year manufacturer warranty. Installation instructions are not included. For support, contact service@egrperformance.com.
Common Faults & Replacement Symptoms
- A damaged or worn SOTF tune switch for 6.6L Duramax LLY may prevent reliable selection of the ECM tune position on compatible for Chevrolet Silverado 2500HD, for Chevrolet Silverado 3500HD, for GMC Sierra 2500HD, and for GMC Sierra 3500HD trucks.
- An inconsistent rotary switch signal can cause the programmed switchable tune selection to feel unreliable, especially when the ECM is expecting a defined 5-position input from the ECM terminal-pin SOTF switch.
- Loose, damaged, or incorrectly seated terminal connections may interrupt the signal between the SOTF tune switch and the LLY ECM connector cavities, requiring inspection of terminal orientation and approved pinout before final installation.
- If the existing switch no longer provides clear position changes, this 5-position rotary SOTF switch helps restore defined positive-detent tune position selection when used with a compatible programmed calibration.
- If the harness has been exposed to heat, abrasion, sharp edges, or moving parts, replacing the affected LLY SOTF switch assembly and routing it through a protected firewall pass-through can help maintain a cleaner no-cut installation path.
- This product does not correct missing tune files, unsupported ECM calibration, or an incompatible switchable-tune setup. The selector only chooses a tune position already programmed into the ECM.
Ideal For
- Owners of source-supported for Chevrolet Silverado 2500HD and 3500HD trucks with the 6.6L Duramax LLY diesel engine who need a compatible 5-position SOTF tune switch.
- Owners of source-supported for GMC Sierra 2500HD and 3500HD trucks with the 6.6L Duramax LLY diesel engine who need an ECM terminal-pin switch for a compatible hardwired switchable tune.
- Diesel performance shops and professional technicians replacing a worn or damaged SOTF selector on a supported LLY application.
- DIY buyers who understand that this part is a switch only and must be used with a compatible multi-position tune already programmed into the ECM.
- Installations where a clean no-cut harness route is preferred, provided the approved ECM pinout, terminal orientation, VIN, engine code, and tune compatibility are confirmed before installation.
Shipping Details

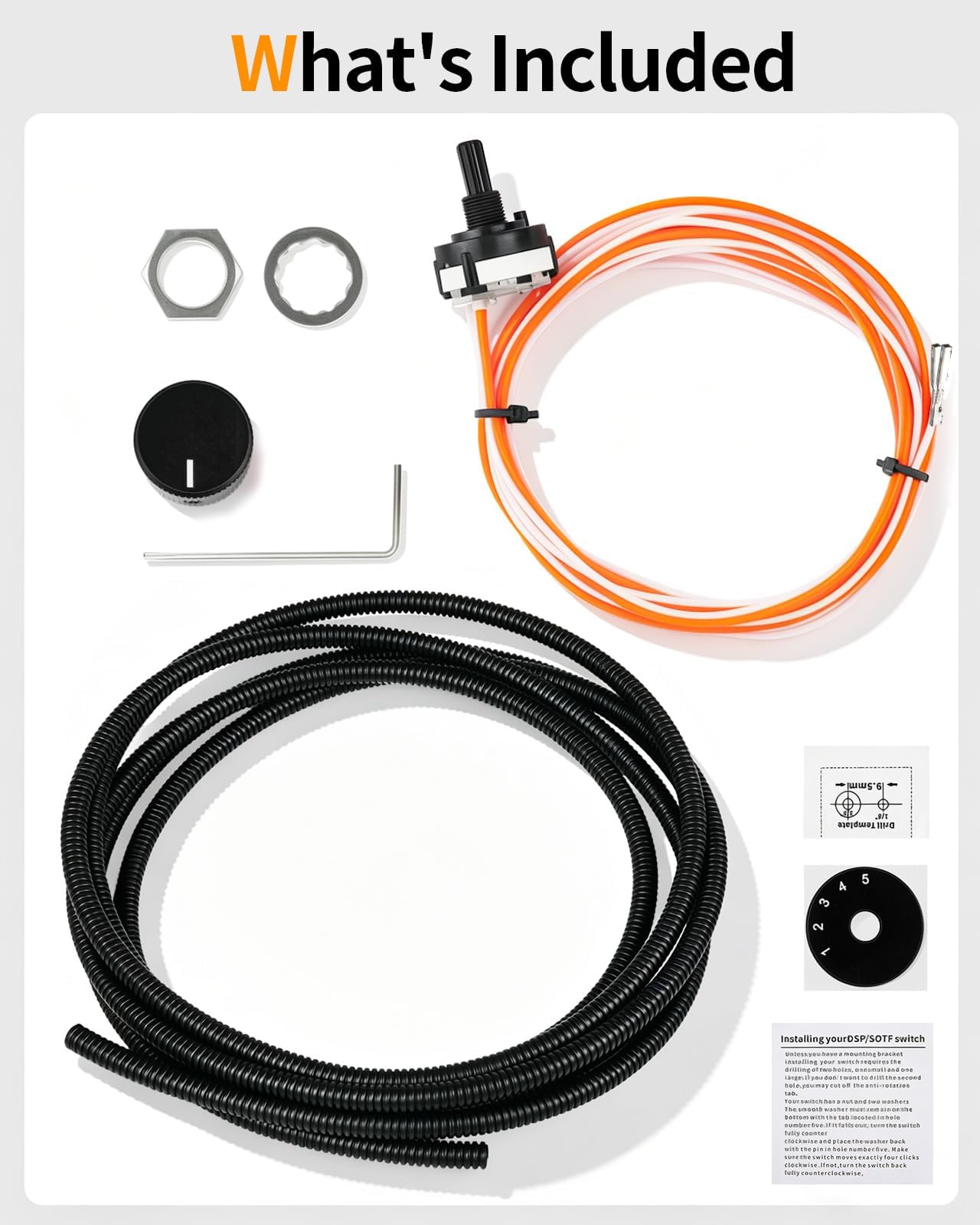

Package List
Delivery Time
2-5 working days inland in the United States
Attention
LEGAL DISCLAIMER
This product may NEVER be installed on a vehicle registered for highway or public street use. By installing this product onto your vehicle, you assume all risk and liability associated with its use. It is your responsibility to make sure your vehicle complies with all federal, state, and local emissions laws.
Federal and many state and local laws prohibit the removal, modification or rendering inoperative of any part of the design affecting emissions or safety on motor vehicles used on a public street or highway. Violation may result in a fine of up to $32,500 per vehicle (or possibly higher depending on changes in the law). All civil penalties and fines for removing your vehicle's emissions equipment are the sole responsibility of the end user.
No other applications besides off-road competition racing use are intended or implied. Depending on where you live, additional restrictions may apply. Check all applicable laws before installing or using.
Not available for sale or use in the state of California, Colorado and Arizona.
