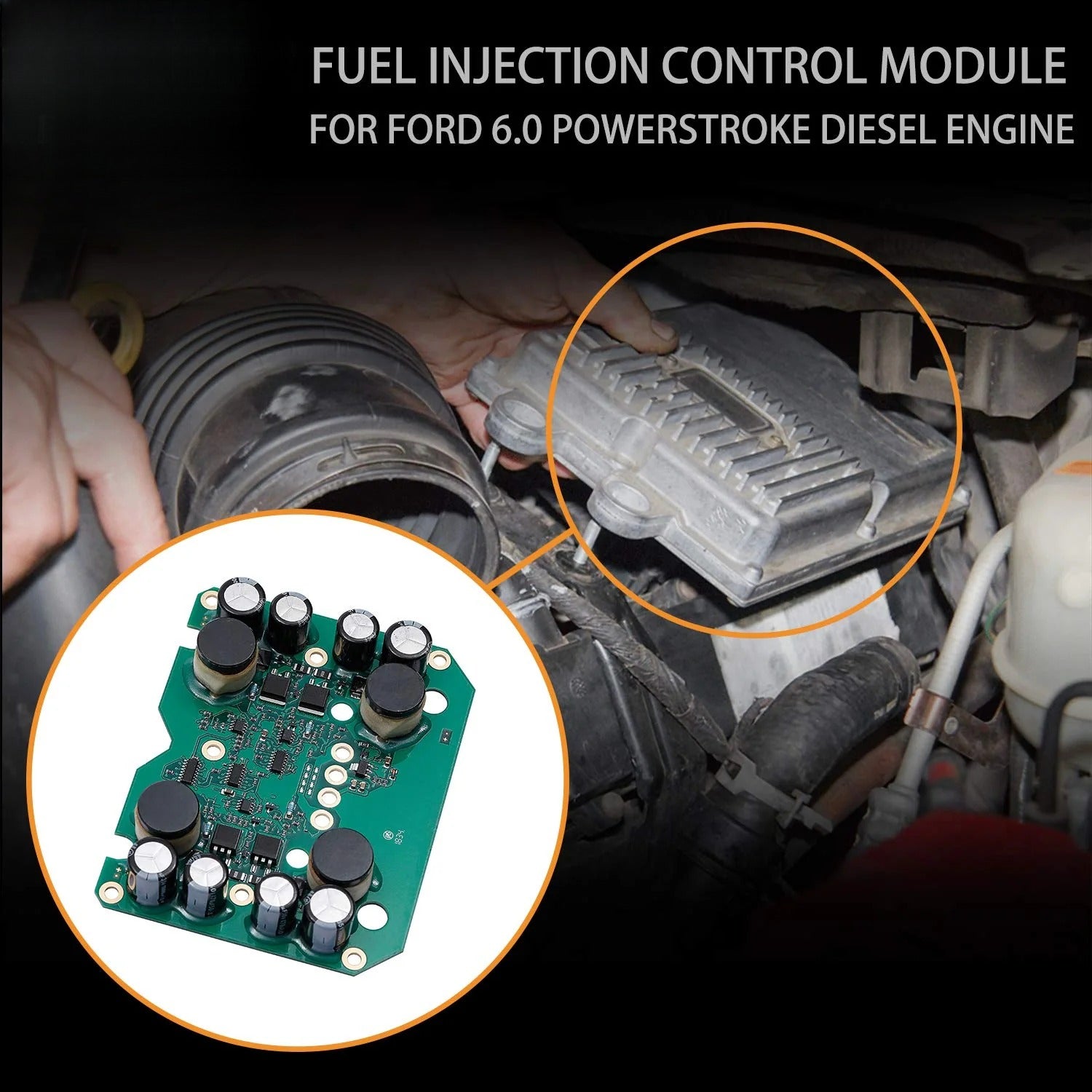

Installation diagram showing component placement for FICM 6.0 Powerstroke fuel injection control module for 6.0L Ford for F250 F350 F450 F550 2003-2007

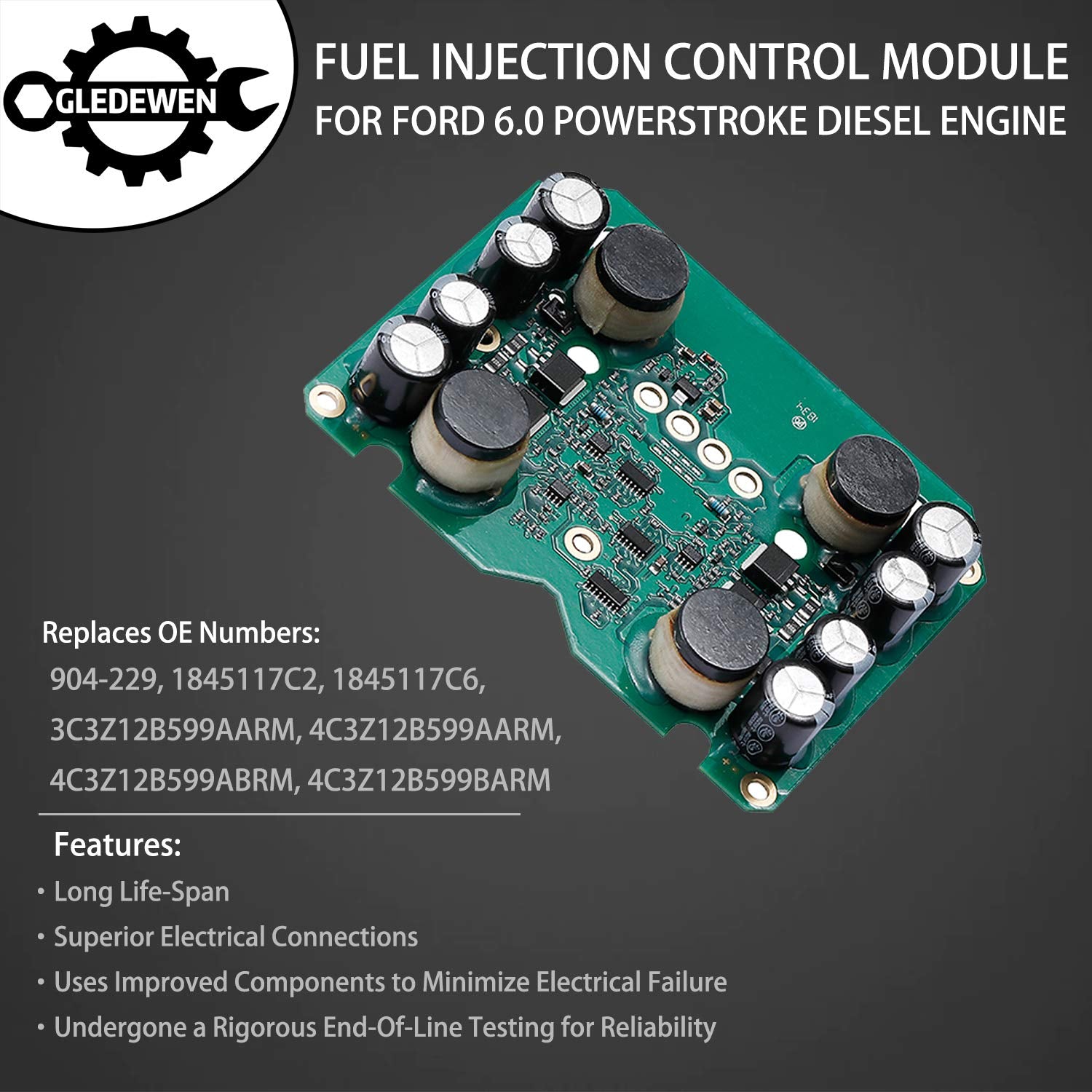

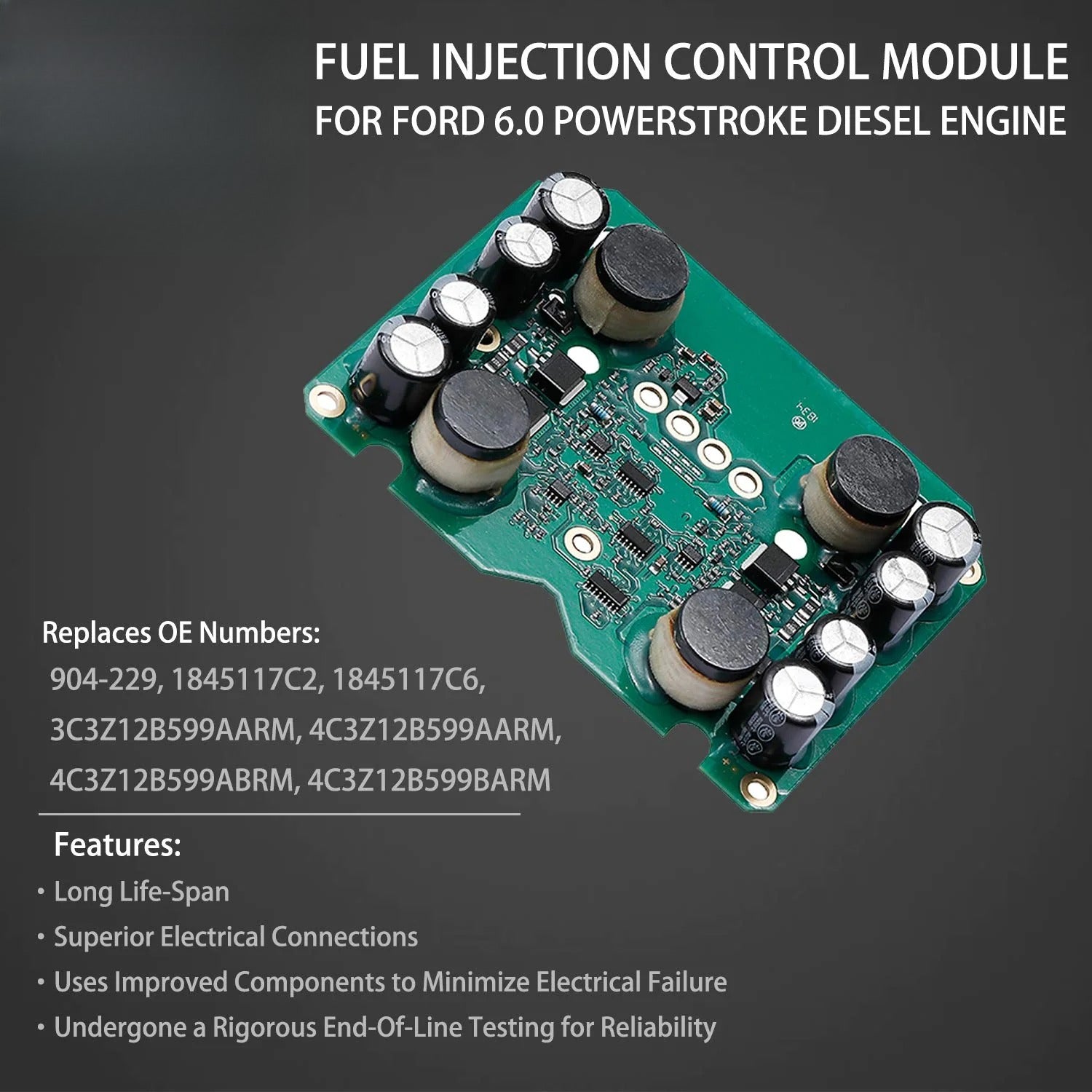

FICM for 6.0 Powerstroke Diesel Engine for Ford F250 F350 F450 F550 2003-2007 Replacement for 904-229 - image 6
FICM for 6.0 Powerstroke Diesel Engine for Ford F250 F350 F450 F550 2003-2007 Replacement for 904-229 - image 7
Front view showing mounting flanges and bolt holes for FICM 6.0 Powerstroke fuel injection control module for 6.0L Ford for F250 F350 F450 F550 2003-2007
FICM 6.0 Powerstroke for 6.0L Diesel Ford F250 F350
FICM fuel injection control module front view
Installation diagram showing component placement for FICM 6.0 Powerstroke fuel injection control module for 6.0L Ford for F250 F350 F450 F550 2003-2007
FICM for 6.0 Powerstroke Diesel Engine for Ford F250 F350 F450 F550 2003-2007 Replacement for 904-229 - image 6
FICM for 6.0 Powerstroke Diesel Engine for Ford F250 F350 F450 F550 2003-2007 Replacement for 904-229 - image 7

FICM for 6.0 Powerstroke Ford F250 F350 F450 F550 2003-2007

$52.96
Shipping calculated at checkout.
21 in stock, ready to ship
🛒 Bulk Discount: Save 6% on 2+ Items
🎁 Special Offer: Enjoy 10% Off on 3+ Items
📞 Large Orders (10+): Contact Us for Exclusive Deals
Details

FICM 6.0 Powerstroke Fuel Injection Control Module is the critical solution for restoring reliable fuel delivery in your 2003-2007 Ford F250 or F350 equipped with the 6.0L Powerstroke Diesel engine. A failing FICM causes hard starts, rough idle, reduced power, and poor fuel economy — issues that can leave your truck stranded. Our re-engineered module features upgraded microcontrollers and 100% resoldered critical components for superior electrical connections and longer service life. Don't let a faulty injection control module derail your workday. Read on to learn how this direct-fit replacement gets your 6.0 Powerstroke running like new again.

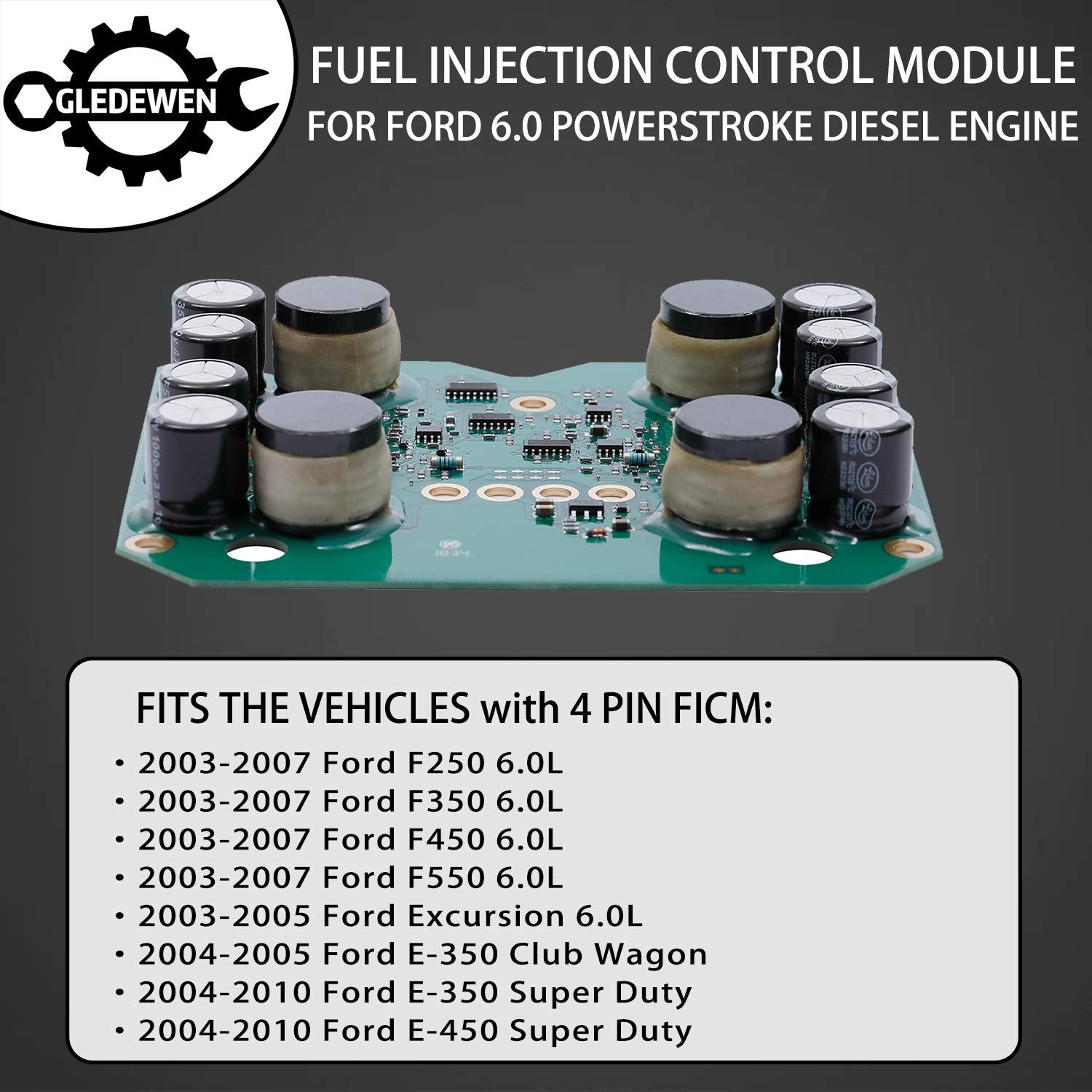

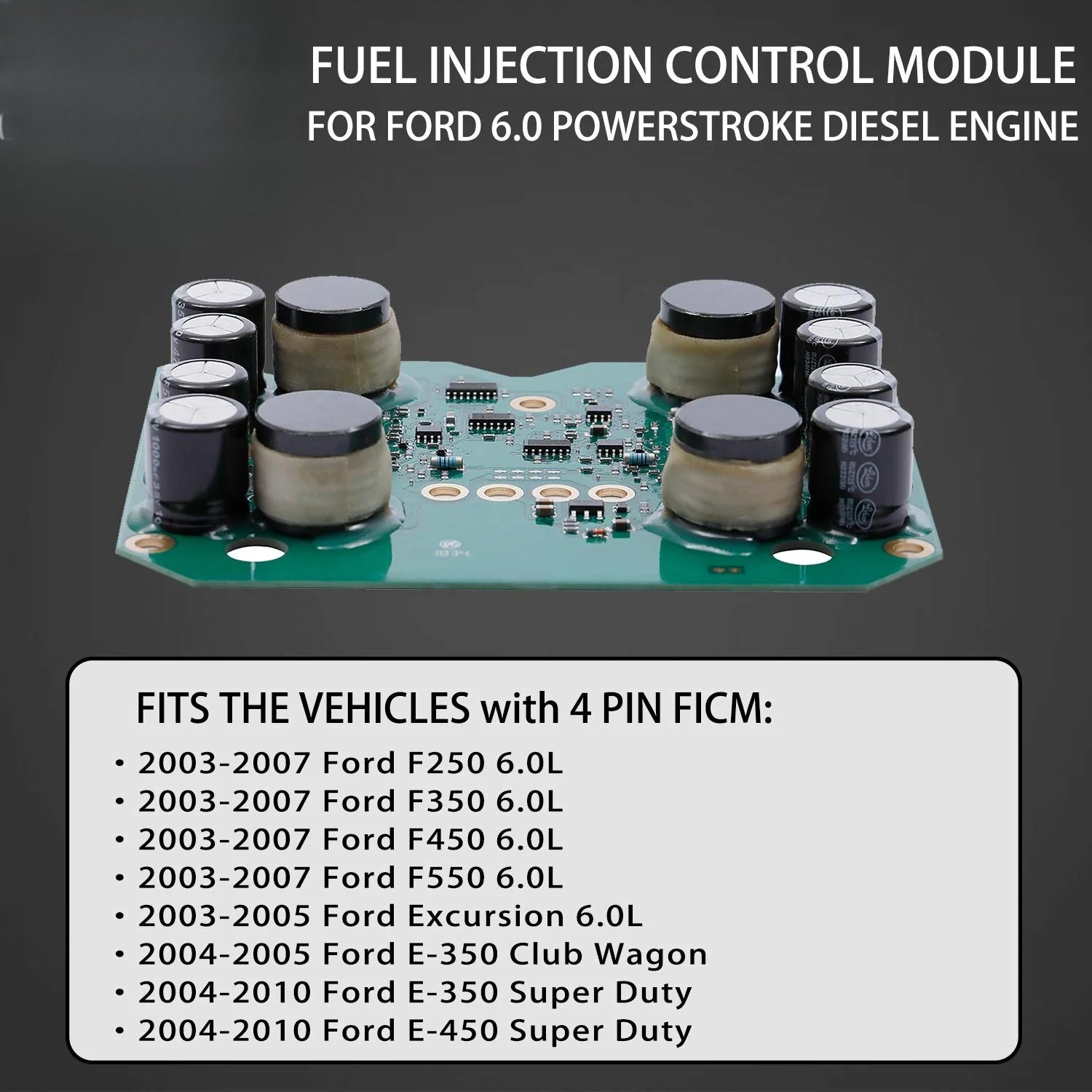

Brand Model Year Engine Model
Ford F-250 Super Duty 2003-2007 6.0L Powerstroke Diesel
Ford F-350 Super Duty 2003-2007 6.0L Powerstroke Diesel
Ford F-450 Super Duty 2003-2007 6.0L Powerstroke Diesel
Ford F-550 Super Duty 2003-2007 6.0L Powerstroke Diesel
Ford Excursion 2003-2005 6.0L Powerstroke Diesel
Ford E-350 Club Wagon 2004-2005 6.0L Powerstroke Diesel
Ford E-350 Super Duty 2004-2010 6.0L Powerstroke Diesel
Ford E-450 Super Duty 2004-2010 6.0L Powerstroke Diesel

✅ Exact Fitment Guarantee | If you are unsure about compatibility, please contact us at service@egrperformance.com with your VIN number.
Shipping Details

Ontario CA / Springdale OH / Newark NJ

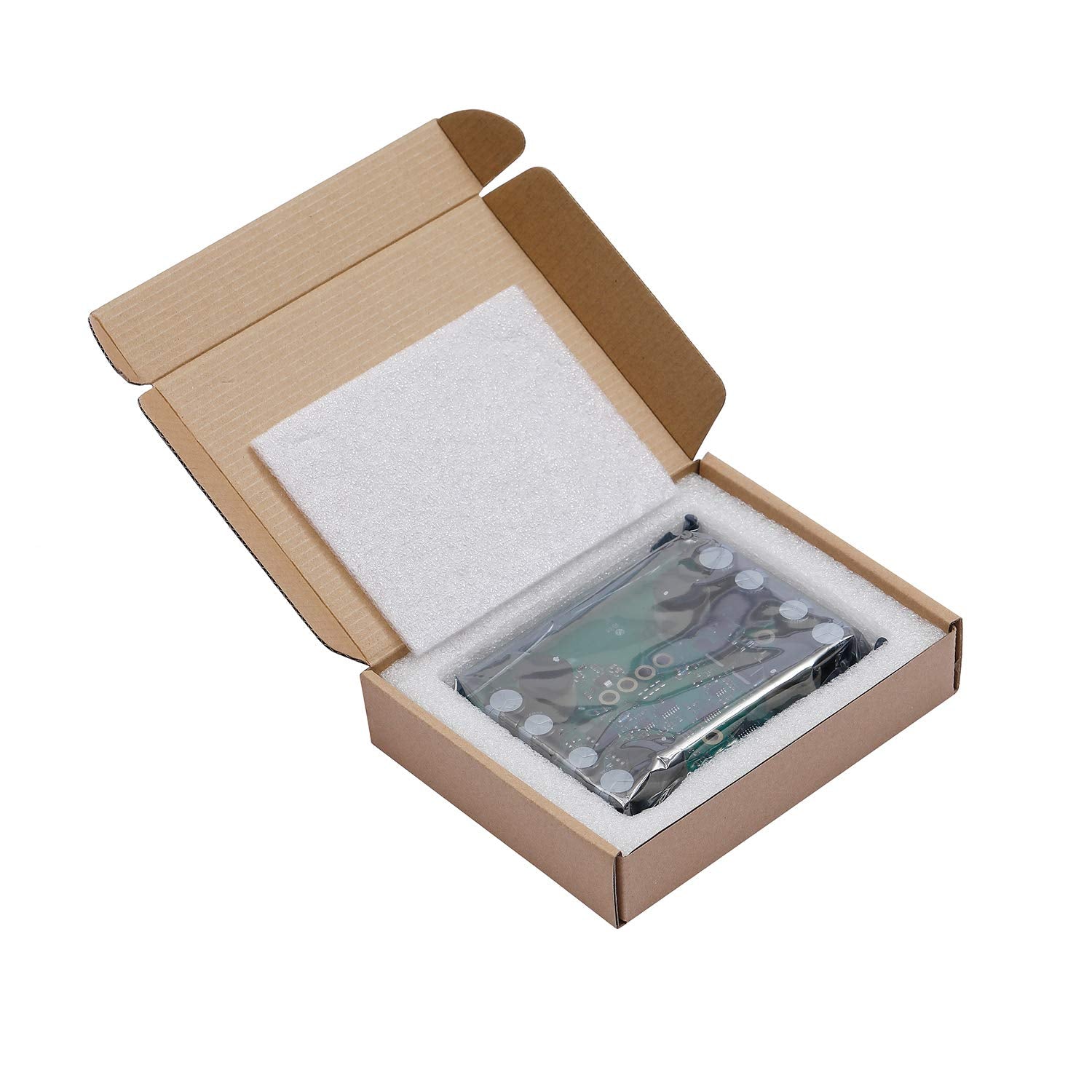

Package List


1x FICM (Fuel Injection Control Module) — 4-pin
Delivery Time

2-5 working days inland in the United States
Attention
Legal Disclaimer EGR DPF Delete Offroad Use Only

LEGAL DISCLAIMER

This product may NEVER be installed on a vehicle registered for highway or public street use. By installing this product onto your vehicle, you assume all risk and liability associated with its use. It is your responsibility to make sure your vehicle complies with all federal, state, and local emissions laws.

Federal and many state and local laws prohibit the removal, modification or rendering inoperative of any part of the design affecting emissions or safety on motor vehicles used on a public street or highway. Violation may result in a fine of up to $32,500 per vehicle (or possibly higher depending on changes in the law). All civil penalties and fines for removing your vehicle's emissions equipment are the sole responsibility of the end user.

No other applications besides off-road competition racing use are intended or implied. Depending on where you live, additional restrictions may apply. Check all applicable laws before installing or using.

Not available for sale or use in the state of California, Colorado and Arizona.

Product details

Product Overview

The FICM 6.0 Powerstroke module controls the voltage and timing that fire your diesel engine's fuel injectors. When the original FICM fails, injector output drops, causing hard starts, misfires, and a noticeable loss of power. Our replacement module is re-engineered with upgraded microcontrollers and all-new active electronic components to eliminate intermittent failures. Every unit undergoes automated computerized testing to ensure reliable functionality out of the box. It is a direct bolt-on replacement for your factory 4-pin FICM — no modifications required.

Ideal For

  • Towing and Hauling: Restores consistent fuel injector voltage so your 6.0L Powerstroke maintains power and throttle response under heavy loads.
  • Daily Driving: Eliminates hard starts, rough idle, and stalling for smooth, dependable daily commuting.
  • Commercial Vehicles: Built for E-350 and E-450 vans that run all day — reduces downtime and costly repeat repairs.
  • Engine Performance Upgrades: A reliable FICM is essential before adding tuners or injectors; it ensures your upgrades receive stable injector voltage.
  • Long-Term Vehicle Ownership: Upgraded components and full resolder service extend module life, lowering long-term maintenance costs.

Core Advantages

  • Restored Injector Voltage: Upgraded microcontrollers deliver consistent 48V output to all injectors — eliminates misfires and hard starts caused by low FICM voltage.
  • Improved Startability: Strong, reliable cold starts even in extreme temperatures — no more cranking for seconds at a time.
  • Smoother Idle and Throttle Response: Stable injection timing removes rough idle and hesitation for predictable power delivery.
  • Extended Service Life: 100% resolder of critical components prevents the cold-solder joint failures that plague factory FICMs.
  • Direct Bolt-On Installation: Exact-fit 4-pin connector matches your original module — plug-and-play with no wiring modifications.
  • Tested Before Shipment: Every unit passes automated computerized functional testing for guaranteed reliability.

Technical Specifications

  • Material: Reinforced plastic housing with upgraded printed circuit board (PCB)
  • Finish: Matte black protective coating
  • Weight: 3.2 lbs
  • Dimensions: 10.5 x 7.5 x 2.5 inches
  • Connector Type: 4-pin OEM-style connector
  • Voltage Output: 48V (regulated)
  • Warranty: 1 Year Limited Warranty against manufacturing defects

H2: Why Choose EGR Performance

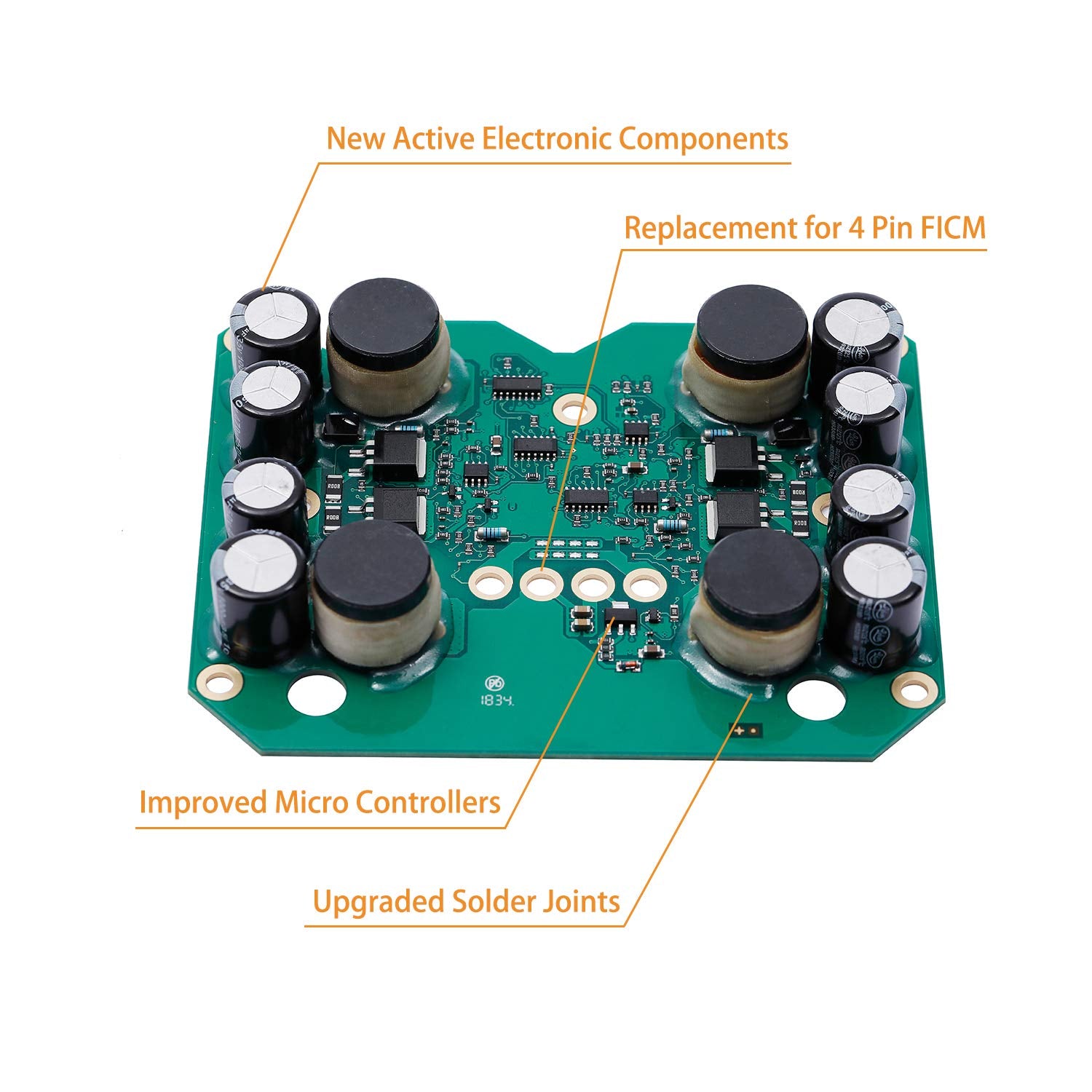

  • Premium Quality Components: Upgraded microcontrollers and new active electronic components outlast factory originals.
  • Precision Engineering: 100% resolder of all critical connection points ensures superior electrical continuity.
  • Rigorous Testing: Automated computerized test equipment validates functionality and reliability on every unit.
  • Dedicated Customer Support: Email us at service@egrperformance.com
  • Fast Shipping from USA Warehouse
  • 1 Year Limited Warranty

Troubleshooting and Problem Solving

Common Issues After Installation

  • Check Engine Light (may require a code reset after replacement)
  • Rough Idle (typically resolves after an ECU relearn cycle)
  • Reduced Power (check 4-pin connector seating and battery voltage)
  • Hard Start (verify FICM output voltage with a multimeter)
  • Intermittent Misfire (inspect wiring harness for damage or corrosion)

Error Code Solutions

  • P0261: Cylinder 1 Injector Circuit Low — Check FICM 4-pin connector and wiring harness for loose or corroded pins; verify 48V output.
  • P0262: Cylinder 1 Injector Circuit High — Inspect injector wiring for shorts; test FICM output voltage with multimeter.
  • P0611: FICM Internal Circuit Failure — Confirm FICM is properly grounded; if code persists, the module may require replacement.
  • P0674: Glow Plug Circuit Fault (Cylinder 8) — Unrelated to FICM; inspect glow plug and harness separately.

How to Reset Check Engine Light After Installation

  1. Start the engine and let it idle for 5 minutes to allow the ECU to recognize the new module.
  2. Turn off the engine and wait 30 seconds.
  3. Restart the engine and drive normally for 10-15 minutes to complete the drive cycle.
  4. If the light persists, use an OBD2 scanner to clear stored codes.
  5. If the light returns after clearing, recheck the 4-pin connector and battery connections.

What to Do If Your Vehicle Loses Power After Installation

  • Verify both battery terminals are clean and tightly connected.
  • Confirm the 4-pin FICM connector is fully seated and locked.
  • Test FICM output voltage with a multimeter — should read approximately 48V with key ON, engine OFF.
  • Check for damaged or corroded pins in the wiring harness connector.
  • Ensure both batteries are fully charged and in good condition (6.0L Powerstroke requires strong battery voltage for proper FICM operation).

Long-Term Maintenance Tips

  • Regular Inspection: Every 10,000-15,000 miles, inspect the FICM mounting bolts and 4-pin connector for tightness and corrosion.
  • Battery Health Check: Every oil change, test both batteries — weak batteries cause low FICM voltage and premature module failure.
  • Connector Maintenance: Every 20,000 miles, apply dielectric grease to the 4-pin connector to prevent moisture intrusion and corrosion.
  • Voltage Monitoring: Periodically check FICM output voltage with a multimeter (should be 48V) to catch declining performance early.
  • Storage Tips: If storing the module for an extended period, keep it in a dry, temperature-controlled environment away from moisture and dust.
  • Warranty Reminder: "Following these maintenance guidelines will keep your 1 Year Limited Warranty valid."

This FICM 6.0 Powerstroke module fits all 2003-2007 Ford F-250, F-350, F-450, and F-550 Super Duty trucks equipped with the 6.0L Powerstroke Diesel engine and a 4-pin FICM connector. It also fits 2003-2005 Ford Excursion, 2004-2005 Ford E-350 Club Wagon, and 2004-2010 Ford E-350 and E-450 Super Duty vans with the same 6.0L Powerstroke engine. No modifications or special conditions are required for installation — this is a direct-fit replacement.

Exceptions: This module is designed for 4-pin FICM connectors only. Some early 2003 models may use a different connector style — please verify your connector pin count before ordering. Not compatible with vehicles that have been converted to a 7.3L engine or non-Powerstroke gasoline engines.

For 100% fitment confirmation, please send your VIN number to service@egrperformance.com.

  1. Dispatch Time: Orders will be shipped within 24 hours after successful payment.
  2. Delivery Time: 2-5 business days after dispatch (delivery speed depends on proximity to warehouse location).
  3. Return Window:7 days for unsatisfactory items45 days for quality-related issues
  4. Refund Processing: Refunds will be processed back to your original payment method within 2-4 business days after receiving the automated refund confirmation email (subject to bank verification).

What is a FICM?

A FICM (Fuel Injection Control Module) is an electronic control unit that regulates the voltage and timing signals sent to the fuel injectors in a 6.0L Powerstroke Diesel engine. It converts battery voltage to the 48V required to open the injectors precisely.

How does a FICM work?

The FICM receives commands from the engine's main PCM and amplifies the signal to deliver a controlled 48-volt pulse to each fuel injector at the exact moment needed. This precise voltage control determines how much fuel is injected and when, directly affecting engine performance, emissions, and fuel economy.

What are the benefits of a FICM replacement?

Replacing a failing FICM restores reliable cold starts, eliminates rough idle and misfires, recovers lost horsepower and torque, and improves overall fuel efficiency. Our upgraded module also lasts longer than the factory unit due to resoldered critical components.

Will a FICM replacement void my warranty?

No — replacing a worn-out FICM with a direct-fit OEM-spec module is a standard maintenance repair and does not void your vehicle's warranty. This is a like-for-like replacement, not a performance modification.

Is a FICM replacement legal in my state?

Yes. A FICM is a direct replacement for a factory emissions-related component and meets all federal and state emissions requirements. It does not alter or delete any emissions systems, so it is legal in all 50 states, including California.

Do I need a tuner for a FICM replacement?

No. A FICM replacement works with your stock PCM calibration and requires no tuning. If you already have a tuner, the new FICM will work seamlessly with your existing tune without any adjustments.

How much horsepower does a FICM replacement add?

A FICM replacement does not add horsepower on its own — it restores the horsepower that was lost due to a failing module. Most drivers report a noticeable recovery of throttle response, smoother power delivery, and improved towing performance after installation.

How much MPG gain can I expect from a FICM replacement?

Drivers typically see a 1-3 MPG improvement after replacing a faulty FICM, as proper injector timing restores efficient fuel combustion. Results vary based on driving habits, vehicle condition, and load.

How long does it take to install a FICM?

Most DIY mechanics can complete the installation in 1-2 hours with basic hand tools. The FICM is located on the driver-side valve cover and is easily accessible after removing the engine cover.

Can I install a FICM myself?

Yes, if you are comfortable with basic automotive electrical work. The installation requires disconnecting batteries, removing the engine cover, unplugging the 4-pin connector, and swapping the module. A multimeter is recommended for post-installation voltage verification.

How often should I maintain my FICM?

Inspect the FICM connector and mounting every 10,000-15,000 miles. The module itself is a sealed electronic component with no serviceable parts, but keeping batteries healthy and connectors clean will maximize its lifespan.

Will this FICM fit my 2005 Ford F250 6.0L Powerstroke?

Yes — this FICM fits all 2003-2007 Ford F-250 Super Duty models with the 6.0L Powerstroke Diesel engine and a 4-pin FICM connector. Please verify your connector is the 4-pin style before ordering.

What is the warranty on this FICM?

This FICM comes with a 1 Year Limited Warranty against manufacturing defects. If the module fails due to a workmanship or material defect within one year of purchase, we will replace it at no cost.

Do you offer technical support?

Yes — our technical support team is available via email at service@egrperformance.com. We can help with fitment questions, installation guidance, and troubleshooting.

How long does shipping take?

Orders ship from our USA warehouse within 1-2 business days. Standard shipping takes 3-5 business days, and expedited shipping options are available at checkout.

Can I return this FICM if it doesn't fit?

Yes — we offer a 30-day return policy for unused, uninstalled items in original packaging. If you are unsure about fitment, email your VIN to service@egrperformance.com before ordering for guaranteed compatibility.

Installation Difficulty Level

Moderate

Estimated Installation Time

1-2 hours

Required Tools

  • Socket Set (8mm, 10mm)
  • Torque Wrench
  • Screwdrivers (Phillips and Flathead)
  • Pliers
  • Multimeter (for voltage verification)
  • Trim Panel Removal Tool

Step-by-Step Installation Overview

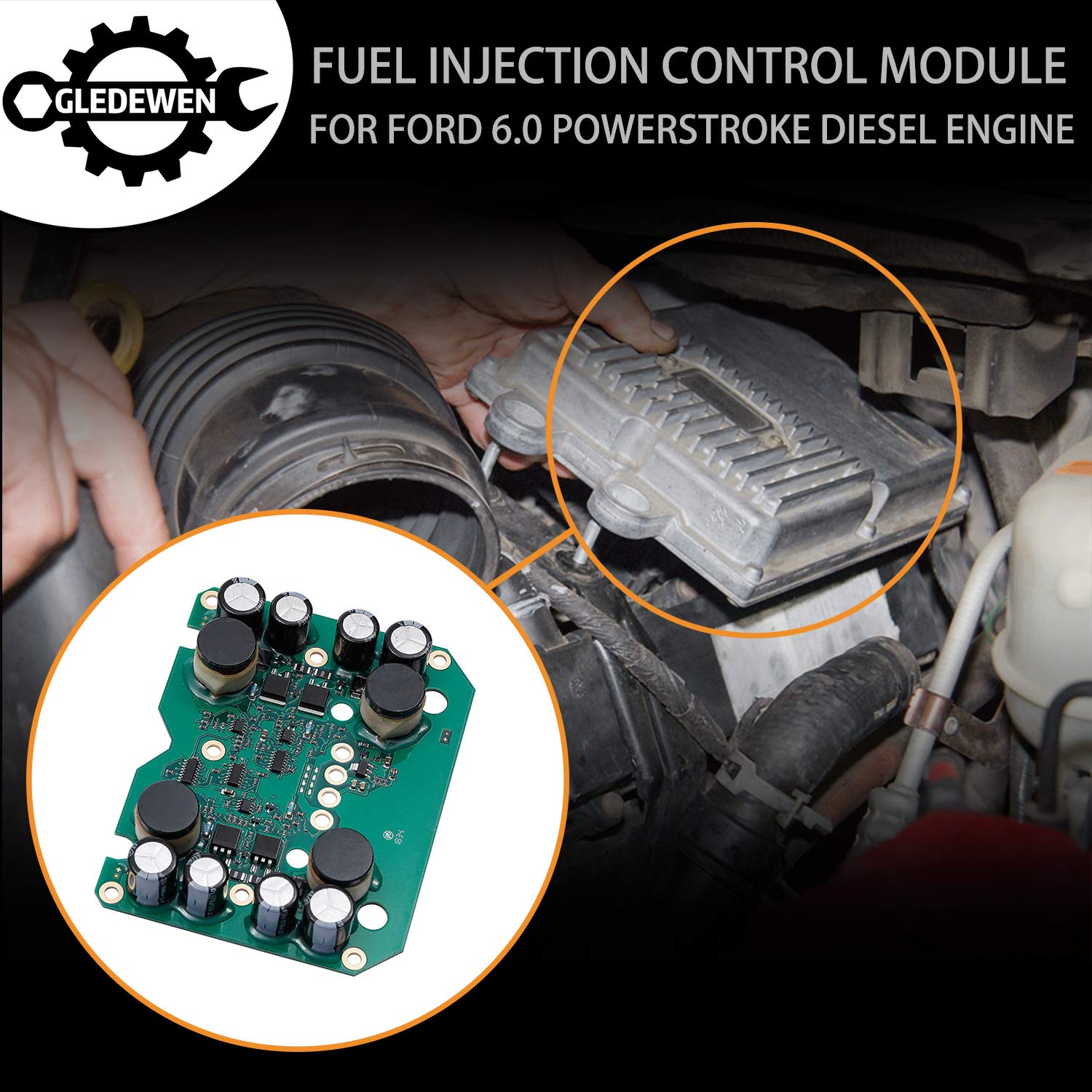

  1. Disconnect both negative battery cables and remove the engine cover to access the FICM mounted on the driver-side valve cover.
  2. Disconnect the 4-pin electrical connector and remove the mounting bolts securing the original FICM.
  3. Install the new EGR Performance FICM in the same location and torque mounting bolts to factory specification (8-10 ft-lbs).
  4. Reconnect the 4-pin electrical connector until it clicks into place, then reinstall the engine cover.
  5. Reconnect both battery cables, turn the ignition to the ON position for 30 seconds, then start the engine and verify smooth idle.

Important Note: No printed installation instructions are included. Professional installation is highly recommended. If you need technical support, please contact us at service@egrperformance.com.
