How to Fast Diagnose & Fix 7.3 Powerstroke P1249 Code

Introduction

Seeing a 7.3 Powerstroke truck suddenly lose power and throw the P1249 code, it is scary on the highway.

The P1249 code on a 7.3L Powerstroke points to a wastegate control problem or improper turbo boost regulation. The PCM detects that the turbo does not behave as expected. Replace brittle factory vacuum lines or a faulty wastegate boost solenoid to fix it fast. Many owners pick the Turbo Vacuum Harness and Wastegate Boost Solenoid from EGR Performance for reliable results.

We know how frustrating these codes feel. Now we walk you through everything step by step so you can fix your 7.3 Powerstroke P1249 code and get back on the road with confidence.

What Does P1249 Mean on a 7.3 Powerstroke?

A Ford 7.3 Powerstroke code P1249 means that the PCM does not detect the boost behavior that it expects to see from the turbo. It indicates a failure with the wastegate control system or boost regulation system. The code often links to overboost on tuned trucks.

Is P1249 an Overboost Code?

Yes, Ford 7.3 Ppowerstroke code P1249 is mainly related to overboost (especially in tuned trucks). When the wastegate fails to open properly, the resulting boost level exceeds allowable limits, which sets the code.

What "Wastegate Steady State Failure" Means

Essentially, if the PCM detects unstable boost while the truck travels continuously, it compares the expected boost level with the actual response from the turbo. If they do not align, the 7.3 Powerstroke P1249 code is set.

We learned a lot about this code after dealing with it on our own 2001 F250.

The wastegate controls how much exhaust gas bypasses the turbo. Proper control keeps boost at safe levels around 22-25 psi on stock trucks.

On tuned trucks, we see this code more because extra fuel pushes the boost higher. The factory system cannot keep up. We once ran a mild tune and hit 28 psi before the code appeared. That extra pressure triggers the PCM to protect the engine by pulling fuel.

We tested our solenoid by applying power. It should click cleanly. Ours stuck sometimes, which caused wild boost swings.

Here is a simple table we use to understand related issues:

Component	Normal Behavior	Problem Sign
Wastegate Solenoid	Clicks when powered	No click or stuck operation
Red/Green Vacuum Lines	Hold vacuum properly	Cracks, leaks, or dry rot
Actuator Rod	Moves freely and smoothly	Seized, binding, or loose movement
MAP Sensor	Reports accurate boost pressure	Incorrect or unstable boost readings

Our experience shows that most P1249 cases on 7.3 trucks come from age-related parts. Trucks from 1999-2003 are now over 20 years old. Rubber and plastic parts fail first. We replaced our harness and solenoid together. Boost became steady again, and the code stayed gone.

Many times, the fix costs under $100 and takes one afternoon. But we ignore it at our own risk. Continued overboost can raise EGTs by 100-200 degrees and hurt the engine over time.

Common Symptoms of the 7.3 Powerstroke P1249 Code

Common symptoms include the check engine light, low power in limp mode, inconsistent boost on the gauge, and poor performance when towing or accelerating hard. The truck may defuel to protect the engine.

Drivers usually notice drivability problems with the 7.3 Powerstroke P1249 code before they scan it.

Check Engine Light (CEL)

The check engine light (CEL) may be the first sign of trouble, but the truck may run normally at this point.

Low Power or Defueling

If the PCM is trying to protect the engine, it may reduce fuel to it. This causes a limp-like condition.

Erratic Boost

Boost can go up and down quickly, usually due to 7.3 Powerstroke wastegate solenoid symptoms or failing control components.

Poor Performance Under Load

While pulling or accelerating hard, the truck feels very sluggish. Power feels weak and uneven.

We drove our truck for a week with the code before we dug in. The check engine light stayed on, but the truck still moved. Then, during highway pulls, we felt a sudden loss of power. It felt like the engine hit a wall at 70 mph.

Limp mode hit a few times. The PCM cuts fuel delivery when it detects bad boost control. We lost 30-40% of normal power. Acceleration from a stop took longer, and we struggled to merge. Fuel economy dropped from 14 mpg to 10 mpg on our mixed drives.

Boost gauges showed the real story. We saw spikes to 30 psi, then drops to 15 psi in seconds. Normal stock behavior stays smooth between 20-25 psi. These swings made towing our 8,000 lb trailer scary on hills.

We also heard unusual turbo spool sounds. Sometimes it whistled louder than normal. Other times, it felt laggy. Exhaust gas temperatures climbed 150 degrees higher on our pyrometer during pulls. That extra heat stresses the turbo and head gaskets over time.

Our friends report similar issues. One buddy towed with P1249 active and saw his EGTs hit 1,200 degrees. He stopped and checked the lines right away. Small cracks in the green reference line caused the whole problem.

Here is what we check first when symptoms appear:

• Scan for codes and freeze frame data
• Watch live boost and commanded boost
• Note when the code sets (idle, cruise, or WOT)
• Check for other codes like P1247 or P1690

One of our trucks sat with the code for months. The actuator eventually seized due to constant incorrect pressure. That repair costs more.

After we fixed the vacuum harness, the symptoms vanished. Power returned to full, and boost held steady at 23 psi under load. The truck felt strong again on every pull.

What Causes the 7.3 Powerstroke P1249 Code?

Main causes include a faulty wastegate boost solenoid, cracked red and green reference lines, a stuck wastegate actuator, aggressive performance tunes, and damaged wiring. These parts fail after years of heat and age.

The 7.3 Powerstroke P1249 code points to an issue with the wastegate control system or a malfunctioning boost regulation component. Here are the key reasons:

Faulty Wastegate Boost Solenoid

One issue that occurs involves a faulty wastegate boost solenoid; it is either electrically faulty or it is physically stuck. This is a common problem with 7.3 Powerstroke wastegate control solenoids and creates a lack of boost control.

Cracked or Leaking Turbo Vacuum Lines

The vacuum or pressure lines on older 7.3 Powerstroke turbos tend to become hard and brittle. As a result, small leaks can cause inaccurate pressure signals, triggering the codes.

Stuck Wastegate Actuator

If the actuator is stuck, it does not function properly. This does not allow the wastegate to properly regulate boost pressure.

Performance Tunes or Chips

Highly modified vehicles often experience excessive power. This leads to "false" (or "nuisance") diagnostics. DTC P1249 is generated due to over-boosting.

Damaged Wiring

Corrosion or breakage of wires can interrupt the signal sent to the solenoid, resulting in a malfunction.

We took time to test every possible cause of our failed wastegate boost solenoid. When it sticks open or closed, the wastegate cannot move right. We applied 12 volts and listened. No click meant replacement time.

The red and green plastic lines run from the solenoid to the turbo. After 20+ years, they dry rot and crack. We found pinhole leaks that lost 5-8 psi of control pressure. Even small leaks confuse the PCM.

A seized wastegate actuator stops movement completely. We pulled the rod by hand. It should move smoothly about 0.5 inches. Ours stuck to carbon and old grease. No vacuum could open it, so boost climbed too high.

We ran a popular tuner chip once and saw the code within 50 miles. The tune added fuel, but the stock wastegate could not bleed enough exhaust. Boost hit 32 psi before defuel. A booster helped, but we still fixed the hardware.

Wiring problems hide well. Corrosion at the solenoid connector or chafed wires breaks the signal. We cleaned pins and checked resistance. Good connections read under 1 ohm.

Other, less common causes include a bad MAP sensor that reports wrong boost or a plugged vacuum port on the turbo. We cleaned ours with brake cleaner and saw better readings.

We made this cause priority list from our experience:

• Vacuum lines (most common on high-mile trucks)
• Wastegate solenoid
• Actuator rod movement
• Tuner settings
• Wiring and connectors

We now inspect these parts every oil change on our 7.3 trucks. Replacing the whole Turbo Vacuum Harness and solenoid together gives the highest success rate. We did this on two different trucks and cleared the code both times on the first try.

How to Diagnose P1249 on a 7.3 Powerstroke Step-by-Step

We followed a simple checklist and found the bad lines in under an hour.

Follow this flow: Remove any tuner first, inspect red and green lines for cracks, test the solenoid for a click, check actuator movement, and verify MAP sensor readings. This order saves time and money.

Before replacing any part on a Ford 7.3 Powerstroke code P1249, please follow these simple steps to diagnose P1249 on a 7.3 Powerstroke:

Step 1: Check for Tuner or Chip

Return the vehicle to OEM or stock settings. Drive and see if the code returns.

We unplug the chip or return the PCM flash. Many tune-related codes disappear.

Step 2: Inspect Turbo Vacuum Lines

Examine the wastegate vacuum lines for any cracks, leaks, or loose fittings.

We inspect the red and green lines visually. Look for dry rot, melted spots near the exhaust, or loose fittings at the turbo. We squeeze them gently. Brittle lines crack in our hands. We replaced any that looked bad.

Step 3: Test Wastegate Boost Solenoid

Examine the 7.3 Powerstroke wastegate control solenoid. It should be clean and working with proper electrical response.

We disconnect the electrical plug and clean it. Then we use a 12-volt power supply or jumper wires. A good solenoid clicks each time sharply. No click or weak sound means replacement.

We also check for vacuum output with a hand pump.

Step 4: Verify Wastegate Movement

Ensure that there is no interference with the movement of the actuator rod. Movement interference results in boost-related faults.

We reach the wastegate arm on the turbo. It should move freely when we pull it. We apply about 15 psi of air pressure to the actuator port if possible. Smooth movement without sticking confirms good mechanical condition.

Step 5: Inspect MAP Sensor and Wiring

Examine the sensor and wiring to ensure they are free of damage and provide the correct performance.

We check the MAP sensor located on the firewall, which reads boost. We inspect the hose for cracks and test the voltage output with a multimeter. Good sensors give steady readings that match our boost gauge.

Wiring inspection takes time, but matters. We trace wires from the solenoid back to the PCM. Look for corrosion, rodent damage, or pinched spots. We measure resistance end-to-end.

We use this diagnostic table during checks:

Step	Tool Needed	What Good Looks Like
Tuner check	Scan tool	Code clears and stays gone on stock tune
Line inspection	Eyes and hands	No cracks and holds vacuum properly
Solenoid test	12V power source	Strong audible click
Actuator check	Hand pressure	Smooth ~0.5" actuator movement
MAP test	Multimeter	Accurate PSI/voltage readings

Our last diagnosis took 45 minutes and found two cracked lines plus a weak solenoid. We fixed both, and the code never returned. This process prevents guessing and wasted parts.

We recommend a quality scan tool that reads live data. Watching commanded versus actual boost in real time shows exactly where control fails. On our truck, the actual boost ran 6 psi higher than commanded until we fixed the lines.

Best Fixes for the 7.3 Powerstroke P1249 Code

The best fix replaces the Turbo Vacuum Harness and Wastegate Boost Solenoid together. This refreshes the complete control circuit. Add wiring repairs or tune adjustments as needed for full results.

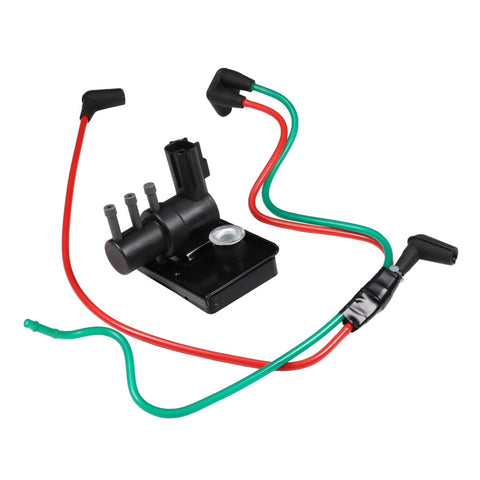

Replace the Turbo Vacuum Harness and Solenoid

As time goes by, the old 7.3 Powerstroke wastegate vacuum lines leak due to excessive heat exposure.

Replacing the turbo vacuum power harness and adding a new one from EGR Performance or OEM Motorcraft eliminates hidden leaks. You also need to add a new 7.3 Powerstroke wastegate control solenoid to complete the system repair.

EGR Performance kit includes new high-quality lines and fittings that resist heat better. Installation takes about one hour with basic tools. We label old lines before removal to match colors.

The solenoid mounts near the turbo and connects to the new lines. We torque fittings snug but not overtight to avoid cracks.

Fix Damaged Wiring

Inspect the electrical wiring harness for broken wires and loosened grounds, because even minor electrical problems can generate the code.

We solder breaks and use heat-shrink tubing. New grounds to the chassis help too. Clean connectors with electrical contact cleaner for good signals.

Fix Tune-Related Overboost

If the issue is exclusive to tuning, either adjust the tuning calibration or implement a boost management solution.

We contact our tuner. Many add a boost fooler or revise the calibration. We lowered our wastegate preload slightly on one truck to control peak boost at 26 psi. This stopped the code without losing much power.

We also clean the wastegate actuator rod and apply high-temp grease. This keeps the movement smooth for years.

Preventive maintenance helps too. We inspect lines every 10,000 miles now. Early replacement avoids codes completely. One friend waited too long, and the stuck actuator damaged his turbo. The full repair cost him three times more.

EGR Performance parts stand out because they fit perfectly and use better materials. We trust them on our daily driver and towing rig. The combination gives reliable factory-like boost control for many more miles.

Should You Replace the Solenoid, Harness, or Both?

The worn boost control components are most often the cause of the P1249 code on a 7.3 Powerstroke. We replaced both on our truck and had zero issues afterward.

Replace the solenoid if it fails electrical tests. Replace the harness if the lines show cracks or leaks. Replace both on older trucks to save time and get the best fix.

Replace the Solenoid If

If the solenoid fails a test or shows signs of electrical failure, it directly affects the 7.3 Powerstroke wastegate control solenoid.

A bad solenoid that does not click needs replacement right away. We bench test with power and vacuum. If it holds and releases properly, we know it works.

Replace the Vacuum Harness If

If you notice cracks, brittleness, or leaks in the 7.3 Powerstroke wastegate vacuum lines, you need to replace them, as even small leaks trigger the P1249 code.

We pull them off and stretch gently. Any that crack or feel hard go in the trash. New harnesses solve hidden leaks we cannot see.

Replace Both If

If you want to ensure that the P1249 code does not return, it is recommended that you replace both the solenoid and the vacuum harness at the same time. This is very common in older vehicles and provides a one-time fix.

On trucks over 150,000 miles, we replace both every time. It costs a little more, but the success rate jumps to nearly 100%. We did this on our 2002 model, and the code has stayed gone for 30,000 miles so far.

Time savings matter too. Diagnosis takes effort. Swapping both at once avoids repeat work. We finish the whole job in one session.

We learned from mistakes. Once we replaced only the solenoid. Old lines leaked, and the code returned in 200 miles. Now we always do the full refresh.

EGR Performance makes the process easy. Their kit includes everything needed with clear instructions. Fitment is perfect on 99-03 7.3 trucks. We highly recommend their bundle for anyone facing P1249.

How Much Does It Cost to Fix the 7.3 Powerstroke P1249 Code?

If you catch the 7.3 Powerstroke P1249 code in time, it can usually be an inexpensive or moderate cost to fix. We spent under $150 DIY and fixed ours completely.

The majority of the fixes involve boost control parts and vacuum leaks.

Solenoid replacement costs $40-70. Turbo Vacuum Harness runs $60-80. DIY total stays under $150. Shop diagnosis and repair can reach $400-800, depending on parts and labor.

Cost to Replace Wastegate Boost Solenoid

On average, the cost of the 7.3 Powerstroke wastegate control solenoid is between $40-$70 for the part alone. However, you may incur additional labor costs if the repair is done through a repair shop.

Cost to Replace Turbo Vacuum Harness

The cost of new 7.3 Powerstroke turbo vacuum lines is generally between $60-$80. It is also the most inexpensive and frequent fix.

Cost of Repair DIY vs. Shop Diagnosis

DIY repair typically comes in under $200 total for just replacing the basic parts. Diagnosis alone runs $100-150 at diesel specialists. Parts plus labor push totals to $500 or more.

Most Cost-Effective First Repairs

Repairing vacuum lines and solenoids are usually the least expensive repairs to make first in order to solve P1249 code problem. We see 80% success with this approach from our group of 7.3 owners.

We factor in long-term savings too. Fresh parts prevent future codes and maintain better fuel economy. Our truck gained 2 mpg after the fix from the consistent boost.

Can You Drive with the 7.3 Powerstroke P1249 Code?

Yes, you can drive short distances, but risks include poor fuel economy, higher EGTs, and sudden power loss. Stop and inspect if you see severe symptoms or repeated codes.

P1249 code doesn't signal an urgent engine failure. However, it's important not to let it slide for too long. We drove 300 miles with the code but noticed a power loss.

Risks of Driving with P1249

When driving a 7.3 Powerstroke that has a P1249 code, you may experience decreased fuel economy and low boost levels.

In addition, you may also experience higher exhaust temperatures than normal and a reduced engine output while under load, especially during highway and towing applications.

When You Should Stop Driving

If there are any indications of a significant loss in engine power or a surge of boost, or if the codes repeatedly appear, the truck must be inspected and stopped.

This suggests that there is a much more serious underlying issue with the 7.3 Powerstroke wastegate solenoid or boost control issue.

We continued driving our truck for a short period while we ordered parts. Daily commutes felt okay, but towing suffered. Power dropped 25% on hills, which made passing harder.

Higher EGTs worried us most. We watched our gauge hit 100-150 degrees hotter than normal. Constant heat shortens turbo life and stresses other components.

Fuel economy suffered too. We lost about 3 mpg over 500 miles with the active code. An inconsistent boost made the engine work harder.

Sudden limp mode creates safety issues. We felt it once during a merge. The truck slowed unexpectedly, which felt dangerous.

We recommend fixing it soon. If boost surges wildly or power drops hard, we park the truck. Better safe than sorry with these old diesels.

Short drives to the parts store stay fine. Long trips or heavy towing need the fix first. Our repaired truck now tows confidently again with steady power.

P1249 vs P1247 vs P1248 on a 7.3 Powerstroke

The P1249 Code for the 7.3 Powerstroke engine is triggered by similar codes related to boost and sensor systems. We had P1249 alone first, then saw others after a leak.

P1249 targets wastegate control. P1247 means low boost pressure. P1248 means boost pressure not detected. Multiple codes often point to major leaks or MAP sensor issues.

P1249

The 7.3 Powerstroke P1249 code indicates an issue with the wastegate control system. The PCM sees the turbo not responding to commands.

This code usually indicates a problem with the regulation of boost or a defective 7.3 Powerstroke wastegate control solenoid.

P1247/P1248

Codes P1247 and P1248 indicate low levels of boost. This is most commonly due to either MAP sensor malfunction or vacuum line leakage from a turbocharger on a 7.3L Powerstroke engine.

When All Three Appear

When you see these codes together, it typically points to a large boost leak as one of your major issues with the 7.3 engine. Or a failure of the vacuum source.

Our table helps sort them:

Code	Meaning	Common Fix
P1249	Wastegate control failure	Inspect/replace solenoid and harness
P1247	Low boost condition	Check for boost leaks or turbo issues
P1248	No boost detected	Inspect MAP sensor and boost reference hose

We check for large vacuum or boost leaks first. A failed vacuum source affects everything. We cleared all codes by fixing the vacuum system and MAP connections.

Final Verdict: Start with the Vacuum Harness and Wastegate Boost Solenoid

A P1249 code for the 7.3 Powerstroke indicates a potential problem with the wastegate control. The cause typically stems from either weak boost regulation or a vacuum leak.

To begin your diagnosis, inspect the turbo vacuum lines and wastegate control solenoid on your 7.3 Powerstroke. The majority of issues are resolved with replacement parts. Common failures include worn hoses and a bad solenoid.

To provide a long-lasting solution to this issue, it is best to replace both components at the same time.

We strongly recommend EGR Performance turbo vacuum harness and wastegate boost solenoid as the top choice to restore reliable factory boost control again.

Many owners, including us, restore full power and clear the code for good with these quality components. Invest in EGR Performance for your 7.3 and enjoy strong performance for years ahead.

FAQs

Is P1249 an overboost code?

Yes. The 7.3 Powerstroke P1249 code is often linked to overboost, when the wastegate fails to open properly.

Can I drive with a P1249 code?

Yes, but not for long. It can cause low power, high EGTs, and poor boost control.

Can vacuum line leaks trigger P1249?

Yes. Leaking 7.3 Powerstroke wastegate vacuum lines are a very common cause. Even small cracks in red and green lines cause it.

Can a bad MAP sensor cause P1249?

Yes. It can contribute by giving wrong readings to the PCM.

Can a bad wastegate solenoid cause P1249?

Yes. A failing 7.3 Powerstroke wastegate control solenoid is one of the top causes.

Can a tuner cause P1249 on a 7.3 Powerstroke?

Yes. Aggressive tuning can by pushing a bigger boost, create overboost conditions and trigger the code.

What does P1249 mean on a 7.3 Powerstroke?

It means the PCM sees incorrect turbo boost behavior due to wastegate control or boost regulation issues.

How do you fix P1249 on a 7.3 Powerstroke?

Check vacuum lines, test the solenoid, inspect the actuator, and verify boost control.

What is the first thing to check for the P1249 code?

Start with red and green 7.3 Powerstroke turbo vacuum lines for cracks or leaks.

Should I replace the turbo vacuum harness for P1249?

Yes, especially on older trucks with factory lines. Check if the lines are old, brittle, or leaking.

Should I replace the wastegate solenoid for P1249?

Yes, if testing shows failure or inconsistent operation.

Why does disconnecting the wastegate solenoid change boost?

It removes PCM control so the wastegate stays closed and boost rises.

More Reading

• Wastegate
• 7.3 Powerstroke Waste Gate Reach Rod
• Ford 7.3 Diesel Turbo Wastegate Operation
