L5P Duramax Intake Horn

Why Does Your 6.6L Duramax L5P Need an Intake Horn?

A Choked Compressor Inlet From the Factory

GM shipped the L5P with a plastic turbo intake horn measuring roughly 2.4 inches at its narrowest point. That undersized neck sits directly in front of the variable-geometry turbocharger and creates a pressure drop the compressor has to fight against. At low RPM, while towing, that restriction shows up as sluggish spool-up and a soft pedal.

Thermal Fatigue in the Factory Plastic

Plastic and sustained 1,300-degree exhaust gas temperatures do not mix. Over thousands of heat cycles the stock horn warps, the sealing surfaces go out of flat, and hairline cracks form along the molded ribs. A warped horn leaks metered boost, throws off the mass airflow reading, and leaves the turbo chasing its target.

PCV Sludge and Compressor Fouling

The factory horn routes crankcase vapor back through the intake path. Over tens of thousands of miles, oil mist coats the inside of the horn and bakes onto the compressor wheel, slowly robbing the turbo of efficiency and feeding carbon into the intercooler.

What Can an L5P Turbo Intake Horn Solve?

A Wider, Smoother Air Path

Stepping the inlet from 2.4 inches up to a full 3.5 inch smooth-bore aluminum horn removes the bottleneck at the compressor face. Denser, cooler charge air reaches the turbo with less turbulence, supporting sharper throttle response and more usable torque in the working RPM band.

Aluminum That Holds Its Shape

Precision-cast and TIG-welded aluminum sheds underhood heat instead of absorbing it. The sealing flange stays flat, the clamps stay tight, and the L5P turbo horn will not crack or warp after a season of heavy towing.

Cleaner Intake Charge With a Dedicated PCV Port

A purpose-built intake horn keeps the crankcase ventilation isolated from the main air column, reducing oil carry-over onto the compressor wheel and keeping the intercooler core cleaner for longer.

Shop Intake Horn by GM Duramax L5P Engine & Fitment Guide

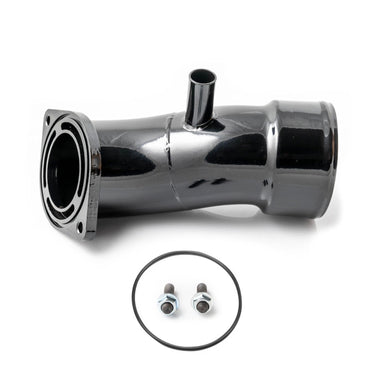

• 3.5" Turbo Intake Horn Kit - Fits the 6.6L Duramax L5P in Chevy Silverado 2500HD and GMC Sierra 2500HD (2017-2019, K2XX generation). Opens the undersized 2.4" factory inlet up to a full 3.5" smooth-bore to sharpen throttle response, with no tuning required.
• 3.5" Turbo Intake Horn Kit - Fits the 6.6L Duramax L5P in Chevy Silverado 3500HD and GMC Sierra 3500HD (2017-2019, K2XX generation). Replaces the heat-sensitive factory plastic horn with precision-cast, black anodized aluminum that holds its seal under sustained heavy-tow EGTs.

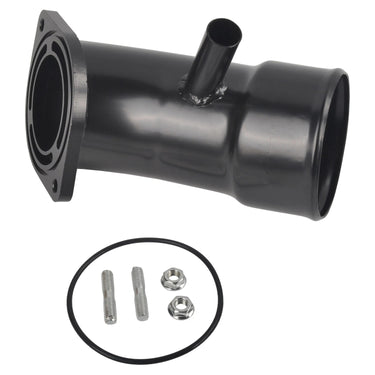

• 3.5" Black Turbo Intake Horn Kit - Fits the 6.6L Duramax L5P in Chevy Silverado 2500HD and GMC Sierra 2500HD (2020-2024, T1 generation). Direct bolt-on that increases volumetric airflow to the variable-geometry turbo and pairs with a cold air intake and exhaust for a denser charge.
• 3.5" Black Turbo Intake Horn Kit - Fits the 6.6L Duramax L5P in Chevy Silverado 3500HD and GMC Sierra 3500HD (2020-2024, T1 generation). Reuses factory mounting points, includes 304 stainless clamps and high-temperature silicone couplers, and seals tight against the turbo inlet for leak-free boost.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

L5P Duramax Intake Horn FAQs

What does an L5P intake horn do?

An L5P intake horn sits between the factory airbox and the turbocharger and feeds pressurized air into the compressor inlet.
The stock piece is a narrow plastic elbow, while an aftermarket L5P intake horn widens and smooths that path so the turbo draws a denser, cooler charge with less restriction.

Is an L5P intake horn worth it?

For most L5P owners, an L5P intake horn is worth it as a supporting modification.

On an otherwise stock truck, you will notice sharper throttle response and a louder turbo whistle, while on a tuned truck with a cold air intake and free-flowing exhaust, the horn helps the engine breathe and supports lower EGTs.

This is exactly why the L5P intake horn is worth it question comes up so often in tow and haul builds.

Will an L5P turbo intake horn add horsepower?

Across L5P intake horn review discussions, the consensus is that gains depend on the rest of your build.

A bolt-on horn by itself is a small piece of the airflow puzzle, but paired with tuning and exhaust it supports more usable torque between 1,700 and 2,200 RPM.

The largest gains show up once the rest of the intake and exhaust path is opened up.

Do I need a tune after installing an L5P intake horn?

No, a tune is not required.

Our L5P turbo intake horn kits are designed as direct bolt-on replacements that reuse the factory mounting points and sensors.

A tune simply lets you take fuller advantage of the extra airflow.

Does an L5P intake horn increase turbo whistle?

Yes, a louder turbo whistle is one of the most consistently reported effects. Removing the baffled plastic elbow lets more induction noise reach the cab, so you hear the variable-geometry turbo spool clearly.

Does an L5P intake horn lower EGTs?

A less restrictive intake path helps the turbo breathe, which can support lower exhaust gas temperatures under heavy load.
The benefit is most noticeable when the horn is combined with a high-flow airbox, a free-flowing exhaust, and conservative towing.

It is a supporting piece of an EGT control strategy, not a standalone fix for an over-fueled tune.

What size is the stock L5P intake horn versus an aftermarket horn?

The factory L5P intake horn measures roughly 2.4 inches at its narrowest point and is molded from plastic.

Our L5P turbo intake horn kits open that inlet up to a full 3.5 inch smooth-bore aluminum path, removing the bottleneck right at the compressor face.

Will the L5P intake horn fit my Chevy Silverado or GMC Sierra HD?

Fitment splits by generation.

The 3.5" Turbo Intake Horn Kit fits the 6.6L Duramax L5P in 2017-2019 Chevy Silverado 2500HD, 3500HD, GMC Sierra 2500HD, and 3500HD (K2XX generation), while the 3.5" Black Turbo Intake Horn Kit fits the 2020-2024 trucks (T1 generation).
The most common fitment issue is ordering the 2020-2024 horn for a 2017-2019 truck, so confirm your model year before ordering.

How hard is it to install an L5P turbo intake horn?

It is a straightforward bolt-on that most owners finish with basic hand tools.

The horn reuses the factory mounting points, clamps, and sensors, so there is no cutting or drilling.

Each kit ships with the clamps and couplers needed for the swap, and it arrives with free shipping.

Is an L5P intake horn street legal?

Performance intake components are intended for competition and closed-course off-road use only and may not be legal for registration or operation on public highways in some jurisdictions.

Before installing, confirm the correct fitment for your model year, since the 2017-2019 and 2020-2024 horns are not interchangeable, and check your local emissions rules.

Every order is backed by free shipping, a one-year warranty, and a 45-day return policy so you can shop with confidence.
