🔧 30-Second Summary: LML Duramax EGR Delete
An LML EGR delete permanently removes the troublesome factory valve and cooler assembly to halt severe intake soot accumulation. Executing this modification leads to a cleaner intake tract and smoother overall engine operation. However, pairing the physical components with a comprehensive calibration tune is mandatory to prevent severe engine limp mode. Plan for a demanding 6-8 hour installation timeline and utilize a premium EGR Performance hardware kit exclusively for authorized off-road applications.
Table of Contents
- Introduction
- What Does EGR Do on a 2011–2016 LML Duramax?
- Is Deleting EGR Legal for Your LML Duramax?
- What Parts and Tools Do You Need for LML EGR Delete?
- How Do You Perform Step-by-Step LML EGR Delete?
- Final Checklist Before Starting the Truck
- What Problems Happen During LML EGR Delete?
- How Hard Is an EGR Delete on LML Duramax?
- Is LML EGR Delete Worth Doing?
- Should You Do EGR Delete Only or a Full Delete?
- FAQs
- Conclusion
Introduction
The 6.6L Duramax LML (2011–2016) is one of the most capable diesel engines GM ever built. But its EGR system is also one of its weakest points.
The EGR cooler is prone to cracking, the valve sticks, and soot buildup chokes the intake over tens of thousands of miles. Deleting the EGR system eliminates these failure points and improves engine breathing, throttle response, and long-term reliability.
You can delete the EGR on your 2011-2016 6.6L LML Duramax with the right kit, tools, and tune. This removes the valve and cooler, adds block-off plates, and reroutes coolant. It takes intermediate skills and 6-8 hours. Always use this for off-road use only.
This mod helps reliability when done right with quality parts. This guide covers every step of an LML EGR delete, from parts and tools to the full installation procedure, common problems, and whether it is the right decision for your truck.
Whether you are a seasoned diesel mechanic or a first-time DIYer, we walk you through it with the same level of detail we use in our own shop.
What Does EGR Do on a 2011–2016 LML Duramax?
The EGR valve and cooler on LML Duramax engines recirculate exhaust gases to meet emissions rules. A delete removes these parts and blocks the ports. This stops soot from entering the intake and reduces engine bay heat.
EGR systems send exhaust back into the engine. This lowers combustion temperatures and cuts NOx emissions. The EGR valve and cooler on LML Duramax engines recirculate exhaust gases to meet emissions rules.
But there's a catch; the exhaust isn't clean. It's full of soot, and that soot sticks to everything it touches. Over time it cakes up inside the intake manifold, intercooler, and the EGR cooler itself. Airflow gets choked off, temps climb, and parts start giving out.
On the LML, the EGR coolers have a tendency to crack. When that happens, coolant leaks right into the intake, and you've got a bigger problem on your hands.
Common EGR Problems on LML
- Soot buildup in intake manifold
- Cooler leaks that mix fluids
- Fault codes like P0401 and P0404
- Reduced power in hot weather
An LML EGR delete solves this at the source. It means removing the valve and cooler, installing block-off plates, and rerouting the coolant line.
The intake stays clean. The soot cycle stops completely.
Tired of dealing with soot and clogged EGR valves? Grab an LML EGR Delete Kit and put it behind you for good.
Quick note: This is strictly for off-road and competition trucks. If your truck's road-registered, pulling emissions gear is illegal in most places.
Is Deleting EGR Legal for Your LML Duramax?
Deleting EGR on LML Duramax is illegal for on-road vehicles in the United States. It violates Clean Air Act rules. Use this modification only for off-road or competition trucks.
Deleting the EGR system on any on-road diesel vehicle violates the federal Clean Air Act. The EPA treats it as tampering with emissions equipment. <Check if an EGR Delete still illegal now>
The same rules apply in Canada, the UK, Australia, and most of Europe. This modification is legal only for off-road, competition, or agricultural use.
If your state requires emissions testing, a deleted truck will fail OBD-II scans immediately. Fines for tampering with emissions equipment can reach $4,527 per violation under EPA enforcement.
We cover this procedure for educational purposes and for owners who operate their trucks exclusively off-road. Always research your state laws before proceeding. Some areas do visual checks during inspections. Others use OBD scanners that catch tune changes
If you need a street-legal truck, look into maintenance and repair options for your EGR system instead.
More Impact and Risks of Deleting
- Emissions test failure: OBD port scans detect a deleted tune instantly
- Registration problems: a failed emissions test means no legal registration
- Voided warranty: your powertrain warranty is gone the moment you delete
- Resale complications: deleted trucks are harder to sell and must be disclosed
- Environmental Impact: EGR systems reduce nitrogen oxide emissions. NOx contributes directly to smog and poor air quality. Removing the EGR increases NOx output.
What Parts and Tools Do You Need for LML EGR Delete?
You need an EGR delete kit with block-off plates, gaskets, coolant reroute hose, and a proper tune. Basic tools like sockets and a torque wrench are essential too.
Good preparation makes the job easier. Missing one item stops your progress.

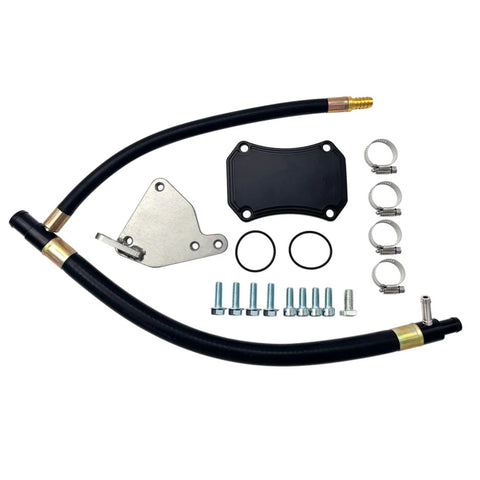

Required Parts
Always opt for a quality kit like the duramax LML EGR delete kit.
The kit should include:
- Block-off plates, gaskets, and hardware: seals the openings after EGR removal
- Coolant reroute bypass hose: loops the coolant line that ran through the cooler
- Optional: Straight-through replacement up-pipe: removes the cooler fully instead of bypassing it. Cleaner and more thorough for full builds.
Required Tools
- Socket set
- Wrenches
- Screwdrivers
- Pliers
- Torque wrench
- Penetrating oil
- Coolant drain pan
Tuning Requirements
Tuning is mandatory. There are no exceptions.
The ECM monitors the EGR system constantly. Once the valve and cooler are gone, the ECM detects missing signals right away. Without a tune, it throws a Check Engine Light and forces the truck into limp mode.
A proper LML delete tune tells the ECM to ignore the EGR system entirely. Popular options include EFI Live and HP Tuners. Many owners use a pre-loaded device that flashes through the OBD-II port. Simple and effective.
No tune. No delete. It is that straightforward.
How Do You Perform Step-by-Step LML EGR Delete?
The full process includes battery disconnect, coolant drain, part removal, block-off installation, reassembly, and tuning. Plan for 6-8 hours total.
Work on a cold engine only. Wait at least four hours after the last run before starting. Rushing this is how mistakes happen.
Step 1: Safety First: Disconnect the Batteries
Always start here. The LML Duramax runs two batteries.
- Remove the negative cable from both batteries
- Wait 10 full minutes before touching any electrical component
- This protects the ECM and prevents accidental airbag deployment
Step 2: Drain the Coolant
The EGR cooler has coolant running through it. Drain the system before removing anything.
- Locate the lower radiator hose
- Remove the metal retaining clip
- Place the drain pan directly underneath
- Let it drain completely before moving on
Disposal matters. Coolant is toxic to animals. Never pour it down a drain. Take it to a recycling centre or auto parts store.
Step 3: Intake and Turbo Access
You need a clear path to the EGR system. Remove these components in order:
- Air intake resonator: pull straight up
- Intake elbow: loosen the clamp and wiggle it free
- Turbo heat shield: three or four bolts; use a long extension
- Turbo inlet pipe: disconnect the clamp at the compressor inlet
Set every part aside carefully. You will reuse all of them.
Step 4: Remove the Factory Downpipe
This is the hardest step in the entire job. The downpipe sits in an extremely tight space.
- Soak all downpipe bolts with penetrating oil the night before. This is not optional.
- Use a breaker bar: factory torque on these bolts is high
- Work slowly and apply steady pressure
- If a bolt snaps, stop immediately and deal with it before going further
Step 5: Disconnect the EGR System
The EGR components are now accessible. Work through each disconnection carefully:
- Unplug the EGR valve electrical connector: press the tab and pull straight back
- Disconnect the EGR cooler coolant lines: keep a rag ready for drips
- Remove the EGR valve mounting bolts: typically four bolts into the intake horn
Step 6: Remove the EGR Cooler and Up-Pipe
This assembly is heavy. Have a helper if possible.
- Remove all mounting bolts from the EGR cooler bracket
- Disconnect the up-pipe from the exhaust manifold
- Up-pipe bolts snap easily on LML trucks. Use a six-point socket only. Never a twelve-point.
- Lift the entire cooler and up-pipe assembly out carefully
Full delete? This assembly is gone permanently. Block-off plates only? The cooler stays but gets fully bypassed.
Step 7: Install Block-Off Plates and Coolant Reroute
Now the LML EGR delete kit components go in.
Block-off plates:
- Clean all mating surfaces thoroughly before installing
- Fit the block-off plates with the supplied gaskets
- Torque bolts to spec: typically 18–22 ft-lbs for intake hardware
- Do not overtighten. Cracked plates are a common and costly mistake.
Coolant reroute:
- Loop the bypass hose where the EGR cooler line previously ran
- Secure both ends firmly with the supplied clamps
- Check for kinks: a kinked coolant hose causes overheating fast
If you need to remove DPF on LML, refer to the LML DPF delete steps.
Step 8: Reassembly
Now put it all back together, working in reverse order.
- Start by reinstalling the downpipe and torque the bolts to spec.
- Reinstall the turbo inlet pipe and tighten the clamp
- Reinstall the turbo heat shield
- Reinstall the intake elbow and resonator
- Reconnect every electrical connector you unplugged
Take your time here. A loose intake clamp causes boost leaks. A forgotten connector causes fault codes. Neither is a small problem.
Step 9: Coolant Refill and ECM Tune Flash
Coolant refill:
- Use the correct coolant: Dex-Cool or equivalent OAT coolant for the LML
- Fill slowly and watch the level carefully
- Start the truck and let it idle: monitor the temperature gauge closely
- Air pockets clear naturally over the first few heat cycles
- Inspect every coolant connection point for leaks
ECM tune flash:

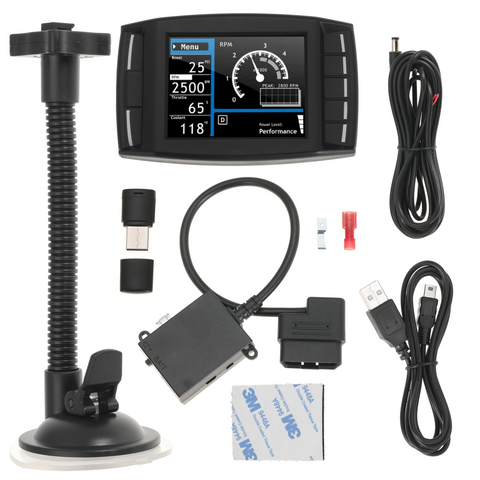

- Plug your tuning device for LML into the OBD-II port
- Follow the device instructions and load the LML delete tune
- The flash takes roughly 10–20 minutes: do not interrupt power during this process
- Start the truck after the flash and confirm zero check engine lights
Final Checklist Before Starting the Truck
Run through every point before you turn the key. Do not skip this.
- All electrical connectors reattached
- Coolant reroute hose secured at both ends
- Intake elbow and downpipe reinstalled and clamped
- All fluids topped off to correct levels
- ECM tune flashed successfully
- No visible leaks or loose hardware anywhere
What Problems Happen During LML EGR Delete?
Common problems include broken up-pipe bolts, coolant leaks, and check engine lights. Good planning fixes most of these.
Every installer hits at least one of these. Know them before you start.
Broken Up-Pipe Bolts
This is the most common problem on LML trucks. The up-pipe bolts sit close to heat and moisture. They corrode into the turbo flange over time. When torque is applied, they snap.
Here's the trick:
- Hit those bolts with penetrating oil and let them soak for at least 24 hours before you even touch a wrench.
- Use a six-point socket only: twelve-point sockets round the heads fast
- If a bolt snaps flush, use a bolt extractor set
- If it snaps below the surface, a left-hand drill bit set is needed
- Worst case: the turbo comes off for proper extraction
Coolant Leaks
Leaks almost always happen at the bypass hose connections.
Common causes:
- Clamp not fully seated on the hose bead
- Hose routed too close to a hot surface and cracked
- Incorrect hose size from a cheap kit
Heat cycle the truck three times after installation. Coolant connections need expansion and contraction cycles before they fully settle.
Check Engine Light and Limp Mode
If the truck throws codes after the delete, the tune is the problem. Three likely causes:
- Tune was not flashed completely: reflash and retry
- Tune is not calibrated for your specific build: contact your tuner
- A connector was accidentally unplugged: inspect everything
Hang-Up Points
Two spots cause the most frustration.
- First, the engine bay is tight. There is very little room to manoeuvre around the EGR cooler assembly.
- Second, the downpipe removal demands patience. Rushing it risks snapping bolts or damaging surrounding components. Slow and steady wins here every time.
How Hard Is an EGR Delete on LML Duramax?
LML EGR delete is intermediate to advanced. It takes 6-8 hours for most owners. Many choose shops for complex steps.
EGR delete is not for part time mechanics, it is a serious job for people with intermediate-to-advanced expertise.
Shops charge $600-1200 for an LML EGR delete while DIY saves 60-70% on labor. An experienced mechanic takes 4-6 hours. A first-timer should budget a full day minimum: up to 9 hours.
Factor |
Reality |
|---|---|
Skill Level |
Intermediate to advanced mechanical experience recommended |
Estimated Labor Time |
Approximately 4–8 hours, depending on vehicle condition and experience level |
Biggest Challenge |
Seized or broken up-pipe fasteners and limited access around the downpipe area |
Tuning Requirement |
Mandatory for setups that alter engine management; adds additional complexity |
Professional Shop Cost |
Typically $600–$1,200+ depending on region, labor rates, and vehicle platform |
Some owners choose a professional shop for good reason. The tuning side requires specific equipment. Broken bolt extraction can turn a four-hour job into a full-day ordeal. If you have never worked inside a diesel engine bay before, a shop is the smarter call.
Is LML EGR Delete Worth Doing?
Yes, many owners find LML EGR delete worth it for reduced soot and better response. Legal risks remain important to consider.
Potential Benefits
Deleting EGR on LML engine has many benefits:
- Soot recirculation reduction: exhaust gas stops cycling through the intake entirely
- Cleaner intake path: no more buildup on the manifold or intercooler
- Better throttle response: noticeable improvement especially at lower RPMs
- Long-term reliability: eliminates a known failure point on the LML platform
Potential Trade-Offs
- Illegal for street use: federal law is clear on this
- Emissions test failure: OBD scans will catch a deleted tune every time
- Voided warranty: no powertrain coverage after this modification
- Resale complications: disclosure is required and buyers may walk away
Should You Do EGR Delete Only or Full Emissions Delete on LML?
Many owners prefer full delete instead of EGR only. This avoids leftover fault codes and restrictions.
Many LML owners start with the EGR and stop there. Experienced builders always say that only EGR delete is a mistake as all the systems are interconnected. They share sensors, tuning parameters, and regeneration cycles.
Deleting the EGR alone while leaving the DPF and DEF in place often results in:
- Ongoing fault codes from related sensors
- Incomplete tuning that leaves restrictions in place
- Continued DPF regeneration cycles that stress remaining components
For off-road builds, a full emissions delete with a single unified tune gives the cleanest and most reliable result. Partial deletes create partial problems.
FAQs
What causes P0401 or P0404 on an LML Duramax?
Both codes point to a failing valve or restricted cooler. P0401 is linked to insufficient EGR flow whereas P0404 refers to an EGR valve operating out of range.
Do you need a tune for an LML Duramax EGR delete?
Yes. You always need. Without a tune the ECM triggers limp mode immediately. There are no exceptions.
Can broken up-pipe bolts stop the installation?
Yes. A snapped bolt must be extracted before proceeding. This alone can add several hours to the job.
Can you delete the EGR without removing the cooler?
Yes. Block-off plates bypass the system without physically removing the cooler from the engine bay.
Will deleting the EGR throw a check engine light?
Without a tune, yes, immediately. With a proper LML delete tune, no EGR-related codes should appear.
Can you drive an LML Duramax with a bad EGR cooler?
A cracked cooler will leak coolant into the intake thus producing white smoke. It is not safe as it will likely damage the engine and you also lose coolant.
What is the hardest part of an LML Duramax EGR delete?
The downpipe removal and up-pipe bolts. Both involve tight access and bolts that are highly prone to snapping.
Should you do an LML EGR delete yourself or hire a shop?
DIY works if you have solid mechanical experience and a tuning solution ready. Otherwise a shop is the safer option.
How long does it take to delete the EGR on an LML Duramax?
An experienced mechanic takes 4–6 hours. A first-timer should budget a full day minimum.
What are the benefits of deleting the EGR on an LML Duramax?
Cleaner intake, eliminated cooler failure risk, better throttle response, and fewer EGR-related repairs. For off-road use only.
Conclusion
LML EGR delete is not a simple job. Various steps are included: coolant draining, pulling intake components, bolt tightening, and tuning the ECM on top. Everything in the whole journey is interconnected.
Vigilance is the key to doing every step as required. With the right LML EGR Delete Kit, the right tune, and a full day set aside, it is absolutely doable. Just do not rush the up-pipe bolts.
It is required to know the law of your area as this LML modification is only for off-road and competition use.
