6.6 Duramax LML Muffler Delete Pipe

Why Does Your 6.6 Duramax LML Need a Muffler Delete?

Factory Muffler Choke Point Restricts Turbo Efficiency

The OEM muffler on the LML Duramax uses a chambered internal design with baffles that interrupt exhaust gas flow. On a turbo-diesel engine that already pushes high exhaust gas volume under load, this restriction forces the variable-geometry turbo to work against unnecessary backpressure. The result is slower spool times, elevated EGTs during sustained towing, and a turbo that cannot deliver peak boost when you need it most.

Soot and Carbon Accumulation in the Stock Muffler Assembly

Diesel exhaust carries particulate matter and soot that accumulates inside the factory muffler over tens of thousands of miles. This buildup progressively narrows the internal passage, further restricting exhaust flow and increasing exhaust gas temperatures. On high-mileage LML trucks, a partially clogged muffler can be the difference between safe and dangerous EGT readings when towing at full GCWR.

Thermal Fatigue at the Muffler-to-Pipe Connection

The factory muffler assembly on the 6.6L Duramax LML is connected with mild steel components that are prone to thermal cycling fatigue. Repeated heating and cooling causes the slip-fit joints and clamp connections to loosen over time, creating exhaust leaks at the muffler inlet and outlet. These leaks introduce oxygen into the exhaust stream, which confuses the factory oxygen sensors and can trigger false check engine codes.

What Can a Muffler Delete Solve?

Component-Level Solutions for Your LML Duramax Exhaust

A muffler delete pipe eliminates the restrictive OEM muffler assembly entirely, replacing it with a mandrel-bent straight-through section of 409 stainless steel tubing. The direct bolt-on design uses factory-style hanger locations and heavy-duty band clamps, so the installation requires no cutting or welding. By removing the baffled muffler, exhaust gases exit the system with minimal restriction, the turbocharger sees lower backpressure, and exhaust gas temperatures drop measurably under load.

When paired with a DPF delete pipe and a performance tune, the muffler delete becomes part of a complete exhaust flow upgrade that restores the full potential of the 6.6L Duramax LML. The combination reduces EGTs, improves turbo response, increases horsepower and torque output, and delivers a deeper, more aggressive exhaust note without the drone associated with cheap aftermarket mufflers.

Shop Muffler Delete Pipe by Chevrolet GMC Engine & Fitment Guide

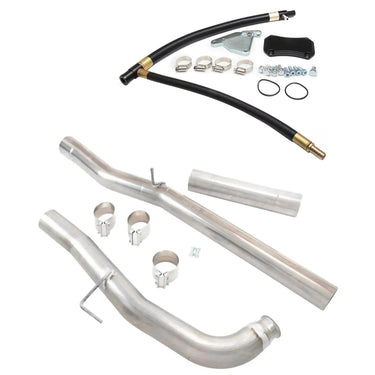

• 4" Exhaust Muffler Delete Pipe with EGR Delete Kit - Fits 6.6L Duramax LML in Chevy Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD (2011-2015). Replaces the factory muffler with a mandrel-bent 4-inch aluminized steel straight-through pipe paired with a complete EGR delete kit for comprehensive emissions component removal.
• 5" 409 Stainless Steel DPF Muffler Delete Pipe - Fits 6.6L Duramax LML in Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD (2015.5-2016). Direct bolt-on DPF muffler delete fabricated from 409 stainless steel with 5-inch diameter tubing, precision TIG-welded flanges, and heavy-duty band clamps for a leak-free seal on the revised 2015.5+ exhaust configuration.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What does a muffler delete do on a 6.6L Duramax LML?

A muffler delete on the 6.6L Duramax LML removes the factory OEM muffler assembly and replaces it with a mandrel-bent straight-through pipe, typically fabricated from 409 stainless steel or aluminized steel tubing.
The delete pipe eliminates the baffled internal structure of the stock muffler that restricts exhaust gas flow, allowing exhaust gases to exit the system with far less resistance.
This reduction in backpressure lets the variable-geometry turbocharger spool faster, lowers exhaust gas temperatures under load, and delivers a deeper, more aggressive exhaust note.

Will a muffler delete make my LML Duramax louder?

Yes, a muffler delete will increase the exhaust volume on your LML Duramax, but the change is more refined than most truck owners expect.
Because the 6.6L Duramax LML still has the turbocharger and DPF filter in the exhaust path, both of which act as sound dampeners, the resulting tone is deeper and throatier rather than obnoxiously loud.
Most owners report that the 4-inch delete pipe produces a moderate increase in volume that remains comfortable for daily driving and highway cruising.

What is the difference between a muffler delete and a resonator delete on a Duramax?

A muffler delete removes the exhaust muffler located under the truck, which changes the exhaust note and volume exiting the tailpipe.
A resonator delete on the Duramax removes the intake-side turbo resonator box, which is designed to quiet the turbo compressor whistle.
The resonator delete makes the turbo spool slightly louder under the hood, while the muffler delete opens up the exhaust tone out the back of the truck.
Many Duramax owners perform both modifications together for maximum sound improvement, as they target completely different parts of the engine's airflow system.

What size muffler delete pipe fits a 2015 Duramax LML?

For the 2011 through early 2015 LML Duramax, the standard fitment is a 4-inch diameter muffler delete pipe that matches the factory exhaust tubing diameter.
For the 2015.5 through 2016 LML Duramax, which received a revised exhaust configuration from GM, the correct fitment is a 5-inch diameter DPF muffler delete pipe with updated flange geometry.
Using the wrong diameter pipe for your specific production date will result in poor fitment and potential exhaust leaks at the connection points.
Always verify your truck's production date and exhaust configuration before ordering a delete pipe.

Does a muffler delete improve horsepower on the 6.6 Duramax?

A muffler delete alone provides a modest improvement in exhaust flow that can free up a small amount of horsepower by reducing backpressure on the turbocharger.
However, the real performance gains come when the muffler delete is paired with a DPF delete pipe and a custom performance tune for the LML Duramax.
This combination can unlock 50 to 100 or more additional horsepower, lower exhaust gas temperatures significantly, and improve fuel economy by two to five miles per gallon depending on your driving conditions and tune calibration.

Can I install a muffler delete pipe on my LML Duramax myself?

Most muffler delete pipes for the 6.6L Duramax LML are designed as direct bolt-on replacements that use the factory hanger locations and band clamp connections.
With basic hand tools including a socket set, jack stands, and a penetrating oil for the factory clamps, the installation can typically be completed in about an hour in your driveway or garage.
No cutting or welding is required for most kits, as the pipes are pre-fabricated to match the factory exhaust routing and connection points.

Will a muffler delete cause exhaust drone at highway speeds?

Exhaust drone is a valid concern with any muffler delete, but the severity depends heavily on the pipe diameter and your specific exhaust configuration.
A 4-inch muffler delete pipe on the LML Duramax generally produces minimal drone that most owners find acceptable for daily driving and highway towing.
A 5-inch pipe will be noticeably louder and may produce more drone at certain RPM ranges, particularly between 1,800 and 2,200 RPM under light throttle load.
If drone becomes an issue, some owners add an inline muffler or resonator downstream to tame the highway frequency without giving up the performance benefits of the delete pipe.

What material should I look for in a Duramax muffler delete pipe?

The two most common materials for LML Duramax muffler delete pipes are 409 stainless steel and aluminized steel, and both have distinct advantages depending on your usage.
409 stainless steel offers superior corrosion resistance and is the preferred choice for trucks operating in salt-belt states or high-humidity environments where rust is a persistent concern.
Aluminized steel is more affordable and provides adequate durability for fair-weather trucks, but it is more susceptible to surface rust and corrosion over time.
Regardless of material choice, look for precision TIG-welded flanges, heavy-duty stainless steel band clamps, and mandrel-bent tubing that maintains consistent inner diameter through every bend.

Is a muffler delete the same as a full DPF delete on the LML Duramax?

No, a muffler delete and a DPF delete are two separate modifications that target different components of the LML Duramax exhaust system.
A muffler delete removes only the muffler assembly located behind the DPF filter, while a DPF delete removes the diesel particulate filter itself, which is the primary emissions control device in the exhaust.
The DPF delete is a far more significant modification that eliminates the regeneration cycle, reduces exhaust backpressure dramatically, and requires a custom tune to prevent engine codes and limp mode.
A muffler delete can be done independently or combined with a DPF delete as part of a comprehensive exhaust flow upgrade.

Is a muffler delete legal on my LML Duramax for street use?

Muffler delete pipes and exhaust modification products are designed and sold for competition and closed-course off-road use only.
Removing or modifying factory emissions components, including mufflers and DPF systems, may violate federal EPA regulations and state or local emissions laws depending on your jurisdiction.
It is the owner's responsibility to check all applicable local, state, and federal regulations before installing any exhaust modification product on a vehicle registered for highway use.
All muffler delete products from EGR Performance include free shipping, a one-year warranty against manufacturing defects, and a 45-day return policy for your peace of mind.
