6.4 Powerstroke Oil Capacity: 15 Quarts, Oil Type & Change

Introduction

The 6.4L Powerstroke is a heavy-duty beast that demands precise oil service to survive towing, idling, and extreme temperatures. A simple mistake in capacity, viscosity, or procedure can lead to catastrophic engine damage. The most common question at service time is how many quarts of oil does a 6.4 Powerstroke take.

The 6.4L Powerstroke (2008-2010 Ford F-250/F-350 Super Duty) takes exactly 15 quarts (14.2 liters) of oil with a filter change. The number remains unchanged for all three model years. Use API CJ-4 or CK-4 rated synthetic or synthetic-blend diesel oil matched to your operating temperature and replace the OEM Motorcraft filter every service.

This guide explains exact refill volume, oil type by climate, filter selection and dipstick checks. You'll also find common mistakes and a full fluid reference chart, so you complete the service correctly and protect your Super Duty investment.

6.4 Powerstroke Oil Capacity Breakdown

The 6.4L Powerstroke requires 15 quarts (14.2 liters) of oil with the filter change. The service capacity already includes the small volume held in the oil filter housing, so you add exactly 15 quarts after draining.

Quick Answer

The 6.4L Powerstroke has a capacity of 15 quarts or 14.2 liters of oil. That number already accounts for the oil filter housing, since the housing itself contains only a small amount.

You might be wondering how much oil does a 6.4 Powerstroke hold without changing the oil filter. The answer sits close to the same number, so there is little practical difference.

• Quarts: 15 quarts
• Liters: 14.2 liters
• Filter Inclusion: Service capacity includes the oil filter housing.

A 6.4 Ford oil capacity spec sheet from Ford lists 15 quarts as the standard fill for this engine.

Why Accurate Refill Volume Matters

Correct 6.4 Powerstroke oil change capacity ensures the engine is protected in two ways.

• If overfilled, it will cause crankcase aeration and may lead to seal damage.
• Underfilling reduces lubrication and speeds up wear.

Recommended Oil Type & Viscosity for the 6.4 Powerstroke

Use API CJ-4 or CK-4 rated synthetic or synthetic-blend diesel oil. Choose 15W-40 for warmer climates above 20F, 10W-30 for moderate cold 0F to 20F, and 5W-40 for extreme cold down to -20F to ensure easy starts and rapid flow.

Viscosity Selection by Temperature

The correct 6.4 Powerstroke oil type is based on your climate. Ford has established viscosity limits for this engine.

• 15W-40: Best above 20F (-6C).
• 10W-30: Suited to 0F through 20F (-18C to -6C).
• 5W-40: Needed below -20F (-29C) for easier cold starts.

Conventional vs. Synthetic Oil

Recommendation: Check for API CJ-4 or CK-4 oil. Synthetic or synthetic-blend diesel oil with that rating is the recommended oil for 6.4 Powerstroke engines. It also helps combat soot accumulation.

Why synthetic matters: The 6.4 Powerstroke synthetic oil can withstand the heat generated by frequent DPF regeneration cycles. Conventional oil breaks down more easily under that stress than synthetic blends.

Best Oil Filter for a 6.4 Powerstroke

OEM Motorcraft oil filter is the only filter recommended for a 6.4 Powerstroke. It ensures consistent filtration, structural integrity under high-pressure operation, and compatibility with the engine's oil control system.

OEM Motorcraft Oil Filter Recommendation

The best oil filter for a 6.4 Powerstroke is a 6.4 Powerstroke Motorcraft oil filter. When changing oil, always install it first. The OEM part is the same fitment and filtration rate this engine requires.

Filters made by third parties may not be of the same quality as the original. If the seal is not tight or the filter media is weak, debris can enter the high-pressure oil system.

Why Replace the Filter Every Change

A 6.4 Powerstroke Motorcraft oil filter keeps oil flow clean under heavy towing loads. Replacing the filter during every oil change helps maintain clean oil circulation and ensures the filtration system continues working as intended.

How to Check the Oil Level Correctly on a 6.4 Powerstroke and Oil Change Practises

Tools needed include 15 quarts of engine oil, OEM Motorcraft filter, drain pan, funnel, gloves, and shop towels. Follow the exact step-by-step oil change checklist: drain old oil, replace the filter, refill in stages, check for leaks, warm the engine, wait 15 minutes, verify the dipstick between MIN and MAX, and reset the oil life monitor.

Tools & Materials Needed

There are a few simple tools required to perform a proper oil change. Before you begin, collect:

• 15 quarts of oil
• OEM Motorcraft filter
• Drain pan
• Funnel
• Gloves
• Shop towels

Step-by-Step Oil Change Checklist

Follow this order for an accurate 6.4 Powerstroke oil change:

1. Drain the oil completely and replace the filter.
2. Add oil gradually, checking the level as you add it.
3. Start the engine for a short period, turn it off and check for leaks.

How to Check the Dipstick Level Correctly

This step is often rushed and results in a false reading. Here's how to properly check the dipstick level.

• Park the truck on a flat, level surface.
• Warm up the engine, then shut it off.
• Let the oil return to the pan after 15 minutes.
• Verify that the level is within the MIN and MAX marks.
• Reset the oil life monitor once you're done.

Common Mistakes to Avoid When Filling a 6.4 Powerstroke

Overfilling the crankcase is one of the most frequent owner errors. Using improper oil viscosity for your operating temperature, reusing an old filter, or checking the dipstick immediately after engine shutdown on an incline all lead to incorrect readings and premature wear.

Avoid the following mistakes to get the best of your 6.4 Powerstroke.

• Overfilling the crankcase past the MAX mark.
• Using the wrong viscosity for your climate.
• Using an old filter or a low-quality aftermarket filter.
• Checking the dipstick immediately after shutdown or on an incline.

Overfilling the crankcase beyond the 15-quart capacity increases oil aeration and crankcase pressure, which compounds factory risks like rocker arm wear and cracked pistons. To review major mechanical stress points and failure prevention strategies for this engine platform, read our analysis on 6.4 Powerstroke reliability.

Every error disrupts your reading or puts strain on the engine. Take your time and do things step by step.



How Often Should You Change the 6.4 Powerstroke Oil?

Change oil every 7,500 miles under normal conditions and every 5,000 miles or less for severe service including towing, heavy hauling, high dust conditions, extended idling, or extreme temperatures.

Normal Service Conditions

Change the oil every 7,500 miles under normal driving.

Severe Duty Service

That number is reduced by severe-duty conditions. Change the oil every 5,000 miles or less if you tow often or haul heavy loads. This applies in dusty conditions, long idling or extreme heat.

Due to the active DPF regeneration cycles spraying excess diesel into the cylinders, fuel dilution can degrade oil viscosity faster than standard service intervals suggest. To establish proper service intervals for fuel filter swaps, coolant flushes, and severe-duty oil changes, consult our full 6.4 Powerstroke maintenance guide.

Complete 6.4 Powerstroke Fluid Capacities Quick Reference

Engine Coolant: ~6.9 gallons (Ford Premium Gold Coolant). Transmission (5R110 TorqShift): 7–10 qt service fill / 17–18 qt dry fill (Mercon LV or Mercon SP). Transfer Case: ~2 qt (Motorcraft Transfer Case Fluid). Rear Differential: 3.5–4 qt (75W-140 Synthetic). Fuel Tank: 29–38 gallons (Ultra-Low Sulfur Diesel).

Owners who ask how many quarts of oil does a 6.4 Powerstroke take usually want the other specs too. Knowing all fluid capacities helps you service the entire truck in one trip and prevents shortages during major repairs.

So, here is the full picture.

Fluid	Capacity	Spec
Engine oil	15 qt (14.2 L)	15W-40, 10W-30, or 5W-40
Coolant	~6.9 gallons	Ford Premium Gold Coolant
Transmission (5R110)	7-10 qt service / 17-18 qt dry	Mercon LV or Mercon SP
Transfer case	~2 qt	Motorcraft Transfer Case Fluid
Rear differential	3.5-4 qt	75W-140 Synthetic
Fuel tank	29-38 gallons	Ultra-Low Sulfur Diesel

Use this table for your next full service. It saves a search each time you fill up a different fluid.

Maintaining correct fluid levels across all engine and cooling systems is essential for preventing localized hot spots in the dual-radiator setup. For complete factory specifications, torque specs, and mechanical architecture details for 2008–2010 Ford trucks, review our comprehensive 6.4 Powerstroke engine guide.

Recommended Upgrades & Reliability Notes for 6.4 Powerstroke Owners

An EGR Performance 6.4 Powerstroke EGR Delete Kit eliminates cooler failures, improves fuel economy by ~5 MPG, and gains 100–200 HP. This upgrade is strictly for off-road/competition use only where legally permitted.

Addressing Root Causes of Oil Contamination and Reliability Issues

Even the recommended oil for 6.4 Powerstroke engines can't compensate for the known weak points. Both DPF clogging and EGR cooler failure introduce contaminants into the oil at a higher rate than normal. Therefore, you must address these issues first.

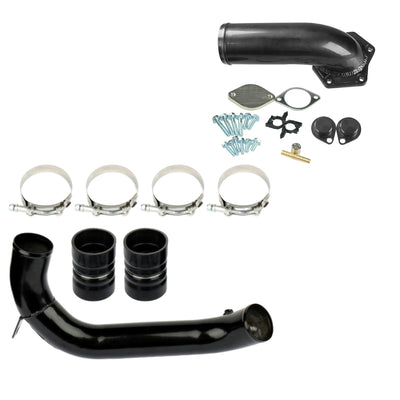

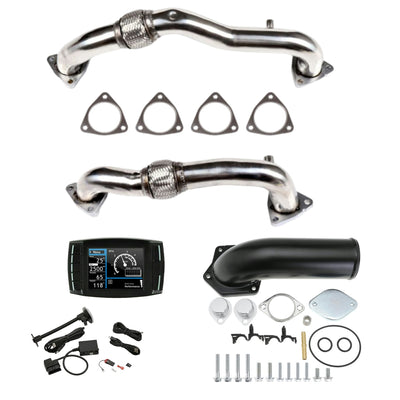

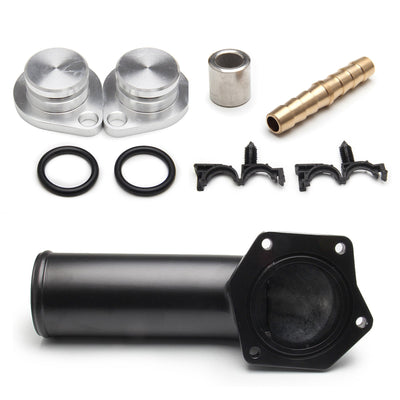

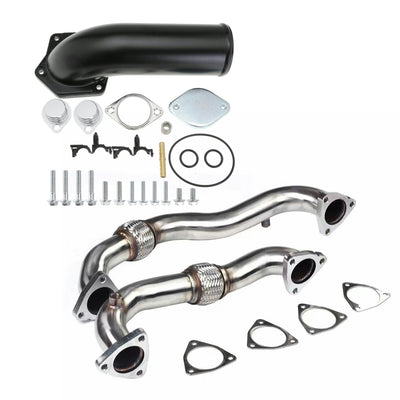

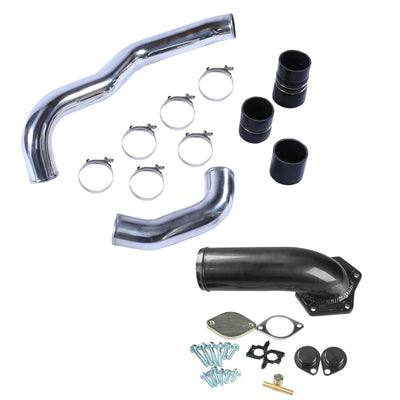

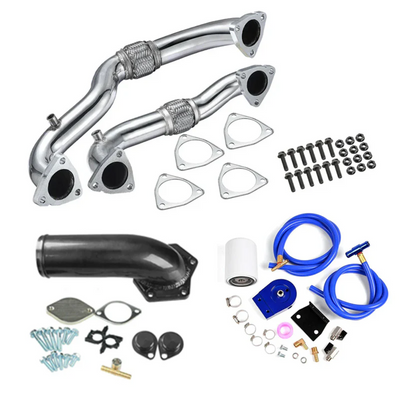

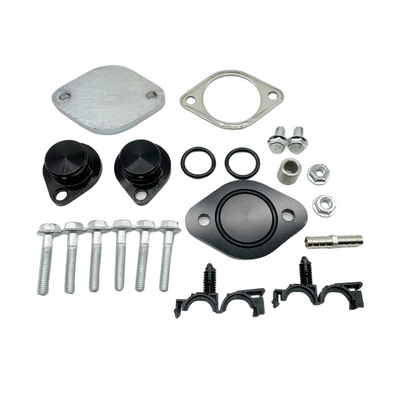

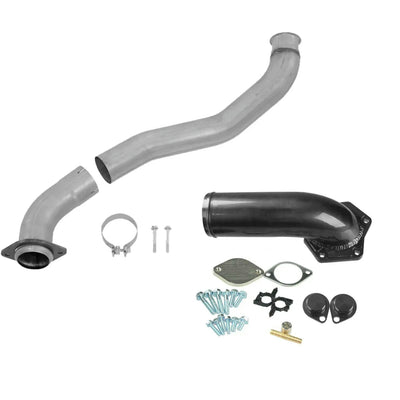

Product Spotlight: EGR Performance 6.4 Powerstroke EGR Delete Kit

Many owners solve this problem by using an EGR Performance 6.4 Powerstroke EGR Delete Kit. It takes out the unreliable cooler and can boost fuel economy by about 5 mpg and add 100-200 hp.

Compliance Warning

This modification is intended strictly for off-road or competition use, where legally permitted by local law. Please review your state and local emissions regulations before making any modifications.

Tip: Upgrading to heavy-duty oil caps, aftermarket filtration adapters, and thermal management hardware helps preserve lubrication integrity under heavy towing loads. Explore specialized replacement hardware, maintenance parts, and performance upgrades in our dedicated 6.4 Powerstroke performance upgrades.

FAQs

Should I use an OEM Motorcraft oil filter?

Yes. It fits and filters exactly as this engine requires. Aftermarket filters are not all created equal and may allow dirt to enter the high-pressure oil system.

What is the oil capacity of a 6.4 Powerstroke in liters?

The 6.4 Powerstroke oil capacity is 14.2 liters with a filter change. This equals 15 quarts, which is the amount most service manuals specify.

Does the oil capacity vary by model year (2008-2010)?

No. All three model years have a 15-quart capacity. The oil system was not changed during that production period.

Is synthetic oil better than conventional for the 6.4 Powerstroke?

Yes, for the majority of owners. The 6.4 Powerstroke synthetic oil is more resistant to breakdown during DPF regeneration than conventional oil. It lasts longer between changes.

How much quarts of oil does a 6.4 Powerstroke take with a filter change?

It takes 15 quarts with the filter installed. A small amount is in the filter housing, so the total is still 15 quarts.

What happens if you overfill a 6.4 Powerstroke with oil?

If the crankcase is overfilled, it will cause crankcase aeration that will damage the seals and affect the quality of lubrication. It also increases the internal pressure and may cause oil to leak through gaskets.

How much coolant does a 6.4 Powerstroke take?

The 6.4 Powerstroke has a 6.9-gallon coolant capacity. Fill with Ford Premium Gold Coolant to factory specification.

What transmission fluid does the 6.4 Powerstroke use?

The 5R110 TorqShift transmission uses Mercon LV or Mercon SP fluid. Service fill is 7 to 10 quarts, and a dry fill is 17 to 18 quarts.

What oil viscosity should I use in a 6.4 Powerstroke?

Use 15W-40 above 20F, 10W-30 between 0F and 20F, and 5W-40 below -20F. Match the viscosity to your coldest expected driving temperature.

How often should you change oil in a 6.4 Powerstroke?

Change it every 7,500 miles under normal use, or every 5,000 miles under severe duty. Towing, heavy hauling and extreme heat are all considered severe duty.

Conclusion

The 6.4 Powerstroke oil capacity is 15 quarts or 14.2 liters with an oil filter change and getting this right is essential for a safe, accurate oil change. Use the correct oil viscosity for the season and switch to an OEM Motorcraft filter. Recheck the level once the engine has warmed up and rested on flat ground.

This 15-quart spec is valid for the full 2008-2010 run for 6.4 Ford oil capacity questions on both trucks.

An EGR Performance 6.4 Powerstroke EGR Delete is a popular upgrade consideration for owners who are building a dedicated off-road or competition truck. To unlock maximum airflow, lower operating EGTs, and ensure long-term engine reliability for your 2008–2010 Ford diesel, explore our high-performance up-pipes, race pipes, and thermal management hardware in the 6.4 Powerstroke performance parts collection.
