3.0 EcoDiesel EGR Delete Instructions for 2014-2019 Ram 1500

Introduction

Your RAM 1500 EcoDiesel suffers from EGR cooler leaks. Carbon buildup clogs passages. Coolant disappears mysteriously. White smoke is seen at idle. Fault codes such as P0401 plague your dashboard. A full EGR delete kit removes the root cause.

A complete EcoDiesel EGR delete installs intake, cooler, and turbo block-off plates, reroutes coolant with a supplied adapter hose, and requires a custom PCM tune to clear EGR DTCs like P0401, P0404, and P0405 while restoring full power and preventing limp mode.

This guide provides you with precise ecodiesel EGR delete instructions for 2014-2019 models. You will learn how to do an EGR delete safely. Tools, teardown steps, and tuning. You get reliability and peace of mind. Let's get your truck fixed up right.

What Are the Most Common EcoDiesel EGR Failure Points and Delete Benefits?

EcoDiesel EGR coolers fail from exhaust soot restricting passages and coolant side corrosion, leading to external leaks, internal coolant ingestion, rough idle, white smoke on startup, and diagnostic codes P0401, P0404, and P0405. A complete delete removes the cooler and tubes, installs block-off plates, and pairs with a tune for reliable operation without those failures.

Why the Factory EGR Cooler Fails Repeatedly

The 3.0L EcoDiesel routes hot exhaust gas through a liquid-cooled heat exchanger mounted low on the engine. Exhaust temperatures routinely exceed 900°F under load while coolant stays near 195°F. The resulting thermal cycling cracks the internal tubes.

Carbon from incomplete combustion packs the gas passages, further restricting flow and raising backpressure. Once a crack forms, coolant migrates into the exhaust stream or intake tract.

Owners report gradual coolant loss with no external puddle, followed by white smoke and misfires. Codes P0401 (insufficient EGR flow), P0404 (EGR performance), and P0405 (EGR sensor circuit) appear first. Left unchecked, liquid coolant reaches a cylinder and hydrolocks the engine.

Reliability and Maintenance Gains After Delete

Removing the entire EGR circuit eliminates the leak path and the carbon source that coats the intake valves and ports. Intake soot accumulation drops because no exhaust gas recirculates. Coolant capacity remains stable without the cooler’s internal volume.

Service intervals lengthen because the system no longer requires periodic cooler inspections or cleaning. The risk of sudden coolant ingestion disappears. Many owners note smoother idle and fewer derates after the delete and tune combination.

Vehicles Covered by This Guide

This procedure applies to 2014–2019 Ram 1500 trucks equipped with the 3.0L EcoDiesel V6. The EGR layout, cooler mounting, and electrical connectors remain consistent across these model years. Kits designed for this platform include the correct block-off plates and coolant adapter for the specific flange patterns.

Are EcoDiesel EGR Deletes Street-Legal and What Happens Without a Tune?

EGR deletes are not street-legal in the United States, Canada, or the European Union for vehicles driven on public roads. They are intended for off-road or competition use only. Skipping the required custom PCM tune leaves EGR monitors active, produces continuous check-engine lights, and often triggers limp mode with reduced power.

Emissions Regulations and Enforcement

While bypassing recirculated soot prevents premature intake manifold clogging and oil contamination on the 3.0L motor, removing factory hardware impacts federal emissions compliance.

EGR deletes are not legal on the road in the USA. They are also prohibited in Canada and the European Union. These changes are only for off-road and competition use.

Federal and state laws require the original emissions control system to remain intact and functional for any vehicle operated on public highways. Removing the EGR cooler, tubes, and related sensors constitutes tampering.

Enforcement occurs during state inspections, roadside checks, or when a technician scans the PCM and notes missing components. Fines and mandatory repairs can result.

Canadian and EU regulations follow similar restrictions. Owners who install a delete must restrict the truck to private property, closed courses, or off-road trails.

Warranty and Inspection Risks

Your warranty may be cancelled at once. Emissions tests will be failed. So, it is important to be aware of these risks of EGR deletes before you go ahead.

A dealership that discovers an EGR delete can deny warranty claims on related engine or aftertreatment components. Emissions testing facilities fail the vehicle if the EGR system is absent or if the PCM reports readiness monitors that never complete. Some jurisdictions require visual inspection of the under-hood components in addition to the OBD scan.

Why the Delete Tune Is Mandatory

To perform ecodiesel EGR delete, it is necessary to have the proper software support. Moreover, compatible tuning devices are also required. Do not make mechanical changes without assistance.

The factory PCM continuously monitors EGR flow, cooler temperature, and actuator position. When those components disappear, the PCM records multiple DTCs within minutes of the first key cycle.

A delete tune is strictly required. The ECU is constantly measuring exhaust flow. It monitors temperature sensors very carefully.

Without a tune that disables the EGR monitors and adjusts fueling and boost maps, the truck enters limp mode, limits throttle response, and illuminates the check engine light permanently. This is a step you can't skip.

A proper delete tune removes the EGR-related diagnostics, recalibrates the remaining sensors, and restores full power delivery. Flashing must occur after the mechanical work is complete so the PCM no longer expects the deleted hardware.

What Tools and Parts Does an EcoDiesel EGR Delete Kit Include?

A typical EcoDiesel EGR delete kit contains intake-side, cooler-side, and turbo/manifold block-off plates, a coolant reroute hose with adapter and bracket, hose clamps, a vacuum cap, and mounting hardware. Required tools include 8 mm, 10 mm, and 13 mm sockets, T-25 and T-40 Torx bits, extensions, and a coolant drain pan.

A quality 3.0 ecodiesel EGR delete kit saves headaches.

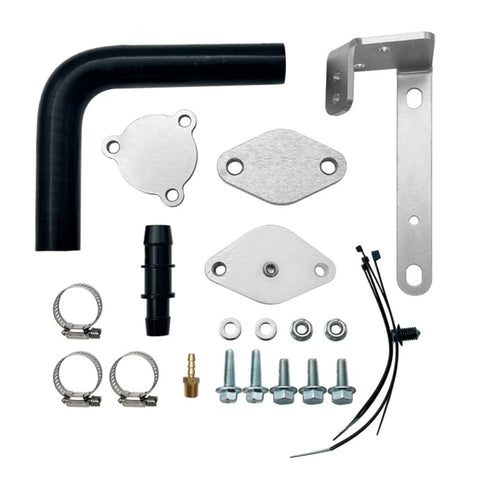

2014-2019 RAM 1500 Ecodiesel EGR Delete

7% OFF New Customer Coupon Code: EGR7

Buy Now

Block-off plates are included in most RAM ecodiesel EGR delete kit packages. Coolant reroute hoses are also included. Standard kits include adapters, brackets, hardware, gaskets and vacuum caps.

• Intake-side block-off plate seals the EGR port on the intake manifold and often includes a threaded port for a boost gauge.
• Cooler-side plate covers the upper cooler flange. Turbo or exhaust manifold plate seals the lower up-pipe flange.
• The coolant adapter replaces the lower cooler hose connection, and routes flow past the deleted cooler.
• A short section of reinforced hose, two or more constant-tension clamps, and a vacuum port cap complete the package.
• Most kits reuse factory gaskets where possible or supply new ones for the block-off plates.

Before you begin, collect these tools:

• Metric socket set: 8mm, 10mm and 13mm deep and shallow sockets to handle the majority of fasteners
• Torx bit set: T-25 and T-40 bits to remove the rear cooler bolt and certain electrical connectors
• Flathead screwdriver and panel removal tool to free plastic retainers and foam pads.
• Pliers and hose clamp removal tool (Pliers grip hose clamps)
• Extension bars and universal joints to reach the rear T-40 bolt hidden behind the cooler
• Light source for dark firewall areas. A bright LED work light improves visibility in the tight space.
• At least one gallon of fresh OAT-compliant 50/50 coolant for the cooling system service.
• Catch pan for draining coolant.

Mark each bolt when removing it. Take photos of hose connections. The RAM 1500 ecodiesel EGR delete kit is easier to install when everything is prepared. EGR delete kits vary by brand, so check all components before starting.

How Should You Prepare the Truck Before Starting the EGR Delete?

Allow the engine to cool completely, disconnect the negative battery terminal, and fully drain the cooling system before removing any EGR cooler hoses or bolts. Working on a hot system risks burns and coolant spray; residual electrical power can damage sensors during unplugging.

Let the Engine Cool Completely

Safety comes first. Allow the engine to cool down completely. Hot coolant can cause severe burns. The EGR cooler retains heat for hours. Removing it from a hot engine can be dangerous. Wait until everything is cool to the touch.

Disconnect the Negative Battery Terminal

Remove the negative battery cable. This avoids short circuits and accidental airbag activation.

Drain the Coolant System

Then drain the cooling system. Open the radiator petcock slowly. Catch all coolant in your drain pan. This prevents spills during cooler removal.

RAM ecodiesel EGR systems remain pressurized. EGR cooler dodge ecodiesel units are prone to cracking when hot. Place your truck on level ground. Ensure your workspace is well lit and free of clutter.

Before unbolting intake components, ensure you have sourced a high-grade hardware package tailored specifically for the 3.0L V6 platform. You can inspect compatible bypass kits, block-off plates, and silicone hoses in our dedicated EcoDiesel Delete Kit Collection.

What Is the Exact Step-by-Step Process for Installing an EcoDiesel EGR Delete Kit?

Phase 1 removes the air intake and upper EGR tube then installs the intake block-off plate. Phase 2 disconnects vacuum and electrical lines, removes the EGR cooler, reroutes coolant, and installs the turbo block-off plate. Phase 3 secures wiring, refits the intake, refills coolant, flashes the delete tune, and checks for leaks.

Follow these phases exactly. Rushing causes stripped bolts.

Phase 1: Take out the Air Intake and Upper EGR Tube

Step 1: Remove the Engine Cover and Foam Pads

First, take off the engine cover. Pull up firmly on both sides. The plastic injector cover comes off. Take out the foam pads under it.

Step 2: Remove the Air Box and Intake Ducting

Take off the air box and intake ducting. Unplug the MAF sensor first. Gently release the red security tab. Unclip the four air box clips. Pull the lower air box straight up. Unclamp the turbo inlet.

Step 3: Remove the Upper EGR Tube

Next, remove the top EGR tube. Take out two 10mm bolts on the cooler side. Remove two 8mm bolts from the intake side. Carefully lift the tube clear.

Step 4: Install the Intake-Side Block-Off Plate

Install the intake-side block-off plate. Reuse the factory hardware. Tighten the bolts snugly. Some kits include a boost gauge port. If not used, leave the plug in place.

Install the cooler-side block-off plate. Carefully move the factory gasket. Bolt it down to the valve cover port. The block off plates stop exhaust flow. RAM ecodiesel intake manifold removal steps need care.

Phase 2: Remove Lower EGR Cooler and Reroute Coolant

Step 5: Disconnect the Vacuum Line and EGR Actuator Connections

Remove the vacuum line from the EGR actuator. Follow it to the solenoid. Remove the line completely. Cap the open solenoid port using the supplied rubber cap. Vacuum leaks can cause rough idle.

Step 6: Disconnect Electrical Connectors and Sensors

Next, unplug the electrical connectors. Disconnect the main EGR connector and the EGR temperature sensor. These sensors are no longer needed after deletion.

Step 7: Access and Remove the EGR Cooler

Remove the actuator hardware. Take out the E-clip and washer. Remove the T-25 bolts holding it. Unbolt the lower support bracket. It is usually secured with three 13mm bolts.

Now remove the rear cooler fasteners. Remove the hidden T-40 bolt using extensions and swivel joints. Clearance around the firewall is limited.

Carefully unbolt the EGR cooler body. It attaches to the back of the engine block. Support it while removing the final bolt. Lift the cooler assembly straight up.

Step 8: Modify the Coolant Routing

Next, adjust the coolant lines. Locate the lower coolant hose. Use pliers to move the spring clamp back. Disconnect the hose completely.

Install the supplied coolant adapter hose. Use new hose clamps. Install the upper and lower coolant lines. Bypass the deleted cooler loop completely. Tighten every clamp securely. Ecodiesel EGR removal changes the cooling path.

Step 9: Install the Turbo/Exhaust Manifold Block-Off Plate

Install the turbo manifold block-off plate. Locate the lower EGR up-pipe flange. Remove the lower flange. Reuse the factory gasket. Bolt down the supplied manifold plate. The ecodiesel EGR diffuser tube is now permanently sealed.

Phase 3: Reassembly and ECU Tuning Guide

Step 10: Secure Loose Wiring and Connectors

Secure all loose wiring harnesses with zip ties. Keep unused electrical connectors away from heat and moving parts.

Step 11: Reinstall the Intake System

Reinstall the intake system. Place the lower air box back onto its grommets. Reconnect the turbo inlet tube. Tighten every hose clamp. Plug the MAF sensor back in. Reinstall the engine cover.

Step 12: Refill and Bleed the Cooling System

Refill and bleed the cooling system using fresh OAT-compatible coolant. Run the engine until it reaches operating temperature. Turn the heater to high. Watch for air in the degas bottle and top off coolant as needed.

Step 13: Flash the ECU With a Compatible Tune

Completing the physical removal of exhaust hardware is only half the battle. Running your truck without recalibrating the ECU will immediately trigger engine limp mode, check engine lights (CEL), and diagnostic trouble codes due to missing sensors.

Install a compatible tune after EGR Delete into the ECU. Read the stock PCM file first. Send it to your tuner.

Receive the custom delete tune. Flash it to disable EGR monitoring. Clear all fault codes.

Step 14: Inspect for Leaks Before Test Driving

Before driving, inspect every coolant fitting, block-off plate, hose clamp and boost connection. Make sure there are no leaks under the truck.

Tips for a Smoother 3.0 Ecodiesel EGR Delete Kits Installation

• Label bolts and brackets during removal
• Take photos before disconnecting hoses
• Use extensions and swivel joints for rear fasteners
• Double-check clamp orientation for future serviceability
• Verify kit contents before starting the job

What Common Mistakes Happen During a Ram 1500 EcoDiesel EGR Delete?

The most frequent errors are failing to drain coolant first, struggling with the hidden rear cooler bolt, leaving vacuum ports uncapped, and driving without a custom delete tune. Each mistake causes either a messy workspace, incomplete removal, vacuum leaks, or immediate check-engine lights and limp mode.

Forgetting to Drain Coolant

Many DIYers do not drain the coolant. This results in a wet work area. It also adds air locks. Air-locked heaters blow cold. Always drain the system first.

Hard-to-Reach Rear Cooler Bolts

Rear cooler bolts frustrate many first-time installers. The hidden T-40 bolt catches everyone. Use long extensions and swivel joints. A universal joint saves your knuckles.

Vacuum Ports Left Open

Lean running is caused by open vacuum ports. Air enters the intake without being metered. Cap the solenoid with the supplied rubber cap.

Skipping the Custom Tune

Skipping the custom tune kills performance. The ECU expects EGR flow data. Without it, the truck enters limp mode. Power drops significantly.

What Should the Post-Installation Checklist Include?

Confirm all three block-off plates are torqued, factory gaskets are properly seated, coolant reroute hoses are clamped and vacuum ports capped, the air intake and MAF are fully connected, coolant is refilled and bled, the delete tune is flashed, and no leaks or warning lights are present.

Check the following before driving:

• All block-off plates tightened to specification
• Factory gaskets correctly inspected and reused
• Coolant reroute completed without leaks
• Vacuum ports capped
• Air intake system fully reconnected
• MAF sensor connected
• Cooling system refilled and properly bled
• Tune installed and fault codes cleared
• No warning lights or fluid leaks

What Results and Follow-Up Maintenance Can You Expect After the Delete?

After a complete EGR delete and tune, owners typically see elimination of cooler leaks and coolant loss, disappearance of P0401/P0404/P0405 codes, and reduced intake soot. Related upgrades include DPF considerations, intake cleaning, and sensor service. Ongoing maintenance focuses on coolant level checks, hose inspection, and oil/fuel filter intervals.

Typical Results

Immediate changes will be noticeable. EGR cooler leaks disappear. Coolant remains in the reservoir. White smoke at idle is eliminated. Fault codes such as P0401 no longer return. Carbon buildup inside the intake slows significantly.

Over the following months, intake ports remain cleaner because no exhaust gas recirculates. Many owners report more consistent power delivery under load.

Related Upgrades Often Considered

DPF delete considerations

To unlock maximum thermal relief and eliminate exhaust restriction, pairing your EGR bypass with a high-flow downpipe is highly recommended.

Check out our 2014-2018 Ram 1500 Ecodiesel 3-inch DPF delete kit to drop exhaust backpressure and complete your race setup. Note the DPF delete also carries additional legal restrictions.

Intake cleaning after EGR system removal

Inspect the intake manifold for existing carbon deposits. An intake manifold cleaning removes existing carbon before the new plates go on.

Charge pipe inspection

Inspect the charge pipes for oil residue or cracks.

MAP/MAF sensor cleaning

Clean the MAP and MAF sensors while the intake is apart.

Tuning and drivability calibration

A quality delete tune can also refine throttle response and boost control in response to the modified airflow.

Simple Maintenance After the Install

• Check the coolant reservoir every few hundred miles for the first thousand miles and top off if needed.
• Visually inspect the new coolant hose and clamps for seepage monthly.
• Continue regular oil changes and fuel filter replacements on the factory schedule.
• Scan for fault codes after the first several hundred miles to confirm the tune remains stable.

FAQs

Is an EGR delete legal for street use?

No. EGR deletes are not legal for on-road use in the U.S., Canada, or the EU. They are intended for off-road or competition vehicles only.

Can I reuse the factory gaskets and bolts?

Yes, if the gaskets are intact and free of tears. Most kits allow reuse of the original bolts for the block-off plates. Factory bolts fit the new hardware.

Can I install an EGR delete kit without draining coolant?

No. Draining is required to avoid large spills and to allow proper bleeding of the new coolant circuit.

What does an EGR delete do on a 3.0L EcoDiesel?

It removes the cooler, upper tube, and actuator, installs block-off plates, reroutes coolant, and requires a tune so the engine no longer recirculates exhaust gas. It prevents carbon buildup.

How do I know if my coolant reroute is installed correctly?

The adapter and hose must form a continuous path that bypasses the deleted cooler location with no kinks and both clamps tight. There should be no leaks at the fittings. The heater should blow hot air. Coolant levels should remain stable.

What are the symptoms of a failing EcoDiesel EGR cooler?

Coolant loss without external leaks, white smoke, rough idle, and codes P0401, P0404, or P0405.

Do I need a tune after installing an EcoDiesel EGR delete kit?

Yes. A delete tune disables EGR monitoring. It prevents check engine lights. Without a delete tune, the PCM sets multiple EGR codes and often forces limp mode.

Will an EGR delete fix my EcoDiesel's coolant loss problem?

Yes, when the loss is caused by a cracked EGR cooler. It removes the leaking EGR cooler. Coolant loss stops immediately.

Why is my truck showing a check engine light after the delete?

The tune is missing or an incomplete flash that left EGR monitors active. Flash a proper delete tune immediately.

How long does an EcoDiesel EGR delete installation usually take?

6-8 hours for first-time installers. Most experienced DIY installs take 4–6 hours including coolant service and tuning.

Can I do an EcoDiesel EGR delete without removing the DPF/DEF?

Yes. The EGR delete is independent of the DPF and DEF systems.

Can I drive my truck immediately after installing an EGR delete kit?

Only after the coolant is fully bled, the tune is flashed, and a leak check is complete. The tune must clear the codes first.

What's the difference between an EGR delete and an EGR cooler delete?

A full EGR delete removes the cooler, tubes, and actuator and installs multiple block-off plates. A cooler-only delete leaves more of the system in place and is less common on this platform.

Does an EGR delete improve fuel economy or power on the EcoDiesel?

Not significantly. Most owners see modest gains in consistency and throttle response once the tune is active; exact numbers vary with driving style and other modifications. The main benefit is improved reliability. Carbon buildup stops.

What happens if I install an EGR delete but don't tune the ECU?

The truck will set EGR-related DTCs, illuminate the check engine light, and frequently enter limp mode with reduced power.

Is the EGR valve ecodiesel unit easy to remove?

Yes. The EGR valve ecodiesel connector unplugs with one click.

Does the EGR valve RAM 1500 ecodiesel often fail?

Yes. The EGR valve RAM 1500 ecodiesel cracks and leaks frequently.

Conclusion

Now you have complete RAM ecodiesel EGR delete instructions for your truck. This guide walked you through a complete RAM 1500 ecodiesel EGR delete and explained how to remove EGR system safely.

Remember the key steps. Drain the coolant before removing components. Use proper extensions for the rear fasteners. Cap every vacuum port. Flash the tune before driving. Double-check for leaks before your first drive.

Full EcoDiesel EGR delete combines block-off plates, coolant reroute, and custom tune for lasting reliability. Check coolant and hoses regularly. EGR Performance EGR deletes Ecodiesel deliver the most precise fit and proven results for 2014-2019 Ram 1500 3.0L trucks.

About the Author - Mark Peterson

With 20 years under the hood of heavy-duty diesel trucks, I've seen every wrench turn and sensor failure imaginable. My mission is to help Powerstroke, Cummins, and Duramax owners push their engines to the limit. I don't just review parts - I provide field-tested solutions based on two decades of diagnostic data.

More Reading

• EcoDiesel
• Ram EcoDiesel Explained
• EcoDiesel Performance Upgrades
