6.0 Powerstroke Fuel Pressure Test Kit & IPR Air Test Tool

Why Does Your 6.0 Powerstroke Need a Fuel Pressure Test and IPR Air Test Tool?

Fuel Pressure Drops Are Destroying Your Injectors

The 6.0L Powerstroke relies on consistent fuel pressure between 45 and 65 PSI to keep the HEUI injectors operating correctly. When fuel pressure drops below 45 PSI, injector solenoids overwork, internal components starve for lubrication, and premature injector failure follows. The problem is that you cannot see fuel pressure without a test port fitting. Many owners replace injectors, fuel pumps, and filters without ever confirming whether low fuel pressure was the actual root cause, wasting hundreds or thousands of dollars on parts that were never broken.

No-Start Conditions Require Systematic Diagnosis

A 6.0 Powerstroke that cranks but will not start can be caused by low fuel pressure, high-pressure oil leaks, a failed IPR valve, a bad ICP sensor, or HPOP failure. Without a diagnostic test kit, you are left swapping parts one at a time, hoping to stumble onto the answer. The IPR air test fitting lets you pressurize the high-pressure oil system with shop air (100-150 PSI) and listen for leaks at the standpipes, dummy plugs, injector O-rings, and branch tubes. In under 30 minutes, you can narrow a no-start problem from five possible causes down to the exact failure point.

HPOP and IPR Failures Are Expensive to Guess At

The high-pressure oil pump and IPR valve are among the most expensive components on the 6.0 Powerstroke. A new HPOP can cost over $1,500, and the IPR valve is buried under the turbo, making replacement a multi-hour job. Before you pull the turbo or order a pump, an air test through the IPR port tells you whether the HPOP is actually bad or if the leak is elsewhere in the system. A simple $37 fitting can prevent a $1,500 misdiagnosis.

What Can a Fuel Pressure Test and an IPR Air Test Tool Solve?

Fuel Pressure Verification at the Filter Housing

The test fitting threads into the secondary fuel filter housing port on top of the engine. Once installed, you connect a standard fuel pressure gauge and read live pressure while cranking, idling, and under load. If pressure holds steady at 45-65 PSI, your fuel delivery system is healthy. If pressure drops below 45 PSI or bleeds off quickly after shutdown, you have identified a fuel system problem: restricted filter, weak lift pump, leaking regulator, or air in the lines. This eliminates guesswork and tells you exactly where to focus your repair efforts.

High-Pressure Oil Leak Detection via IPR Port

The IPR air test adapter screws into the IPR valve port on the HPOP. You connect shop air (100-150 PSI) and pressurize the entire high-pressure oil circuit. With the system under air pressure, you listen for hissing at the valve covers, oil rails, and front cover. Leaking air means leaking oil during operation. Common leak points include standpipe O-rings, dummy plug O-rings, injector O-rings, branch tube connections, and the STC fitting (2003-2005 models). This test pinpoints the exact location of the leak, so you replace only the parts that are actually failed.

ICP Sensor Port Testing and Verification

The diagnostic test kit includes an M12 x 1.5 adapter that threads into the ICP sensor port on the passenger side valve cover. This allows you to connect a pressure gauge to verify ICP readings against what the PCM is reporting. If your scan tool shows 2,000 PSI ICP but the mechanical gauge reads 500 PSI, you know the ICP sensor is lying to the computer and needs replacement. This cross-reference test catches faulty sensor readings that would otherwise lead you down the wrong diagnostic path.

Shop 6.0 Powerstroke Fuel Pressure Test Kit by Ford Engine & Fitment Guide

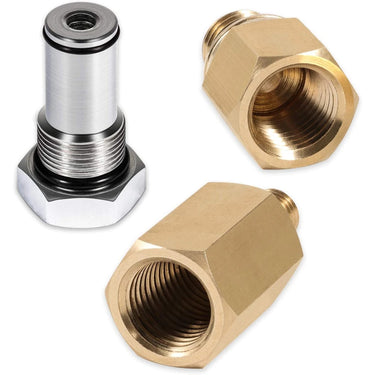

• Air Test Fitting Tool & Oil Rail Adapter Leak Test Kit - Fits 6.0L Powerstroke in Ford F250, F350, F450, F550 (2003-2010). Threads into the IPR port and fuel filter housing for combined fuel and HPO leak testing. Includes M12 x 1.5 adapters and quick-connect fittings.
• Engine Pressure Diagnostic Test Kit - Fits 6.0L Powerstroke in Ford F250, F350, F450, F550 (2003-2007). Comprehensive kit with IPR air test adapter, ICP sensor port adapter (M12 x 1.5), and fuel pressure test fitting. Covers all three diagnostic ports for complete system testing.
