Ford 6.0L Powerstroke Valve Cover & Gasket Set 2003-2010

Why Does Your 6.0 Powerstroke Need a Valve Cover Gasket or Valve Cover Replacement?

1. Oil Leaking Down the Back of the Cylinder Heads

The most common symptom of a failed 6.0 Powerstroke valve cover gasket is oil visible on the back of the cylinder heads, running down onto the transmission bell housing, and dripping onto the ground. On the 6.0L, the driver's side is particularly prone to this because the tilt of the engine causes oil to pool at the rear of the head. Over time, the rubber gasket material degrades from heat cycling and age, losing its ability to maintain a tight seal against the valve cover mating surface.

2. Cracked or Warped Factory Valve Covers

The factory Ford 6.0 valve cover is made from a composite plastic material that is vulnerable to cracking, warping, and distortion after years of exposure to extreme under-hood temperatures. Once the cover warps, no amount of gasket replacement will create a lasting seal because the mating surface is no longer flat. This is especially common on trucks with performance tunes, heavy towing duty cycles, or engines that run elevated operating temperatures. A replacement valve cover with superior material construction is the only permanent fix.

3. Burning Oil Smell and Engine Bay Smoke

When a 6.0 Powerstroke valve cover gasket leaks, oil seeps out and drips onto hot engine components or the exhaust manifold. This produces a noticeable burning oil odor that enters the cabin through the HVAC system, and in more severe cases, visible smoke from under the hood. Beyond being unpleasant, oil contacting hot exhaust surfaces creates a potential fire hazard and can damage surrounding wiring harnesses and sensors over time.

What Can a 6.0 Powerstroke Valve Cover and Gasket Replacement Solve?

Complete Gasket Sets Seal Both Upper and Lower Joints

The 6.0 Powerstroke uses a two-piece cover system with an upper valve cover and a lower rocker box. Each has its own gasket. Our valve cover gasket sets include both the upper valve cover gaskets and the rocker box gaskets, along with the rubber grommets for the mounting studs. This comprehensive approach ensures every sealing surface is addressed in one job, preventing the common scenario where replacing only the upper gasket leaves a lower rocker box leak unchecked.

Replacement Valve Covers Fix the Root Cause of Recurring Leaks

For trucks where the factory composite valve cover has cracked, warped, or developed stripped bolt holes, a replacement 6.0 Powerstroke valve cover provides a permanent solution. Our replacement covers are manufactured from robust materials that resist the thermal distortion that ruins the factory units. The precise mating surface ensures the gasket can seal properly and maintain that seal over the long term, even under demanding operating conditions.

Protects Wiring Harnesses and Engine Components from Oil Contamination

Oil leaking from a failed valve cover gasket does not just make a mess on the outside of the engine. On the 6.0L Powerstroke, oil can seep into the wiring harness channels and contaminate electrical connections for the fuel injectors and glow plugs. Over time, oil-soaked wiring degrades and can cause intermittent electrical issues, misfires, or no-start conditions. Replacing a leaking valve cover gasket promptly prevents this collateral damage and avoids much more expensive electrical repairs down the road.

Shop 6.0 Powerstroke Valve Cover Gasket by Ford Engine & Fitment Guide

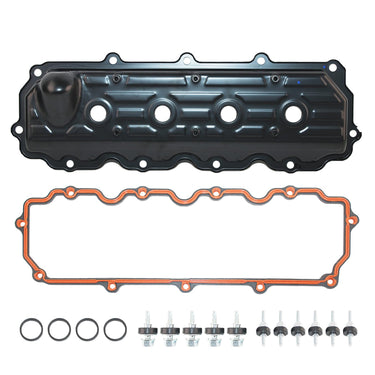

• Valve Cover for 6.0L Powerstroke Ford F250 F350 Excursion: Fits 2004-2007 Ford F-250, F-350, F-450, F-550 Super Duty and Excursion with the 6.0L Powerstroke V8 diesel. Direct replacement for cracked or warped factory composite covers.

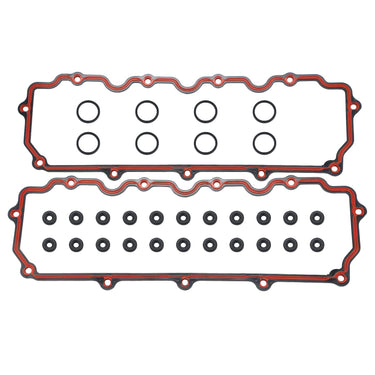

• Valve Cover Gasket Set for 6.0L Powerstroke: Fits 2003-2010 Ford F-250, F-350, F-450, F-550 with the 6.0L Powerstroke V8 diesel. Complete set includes upper valve cover gaskets, rocker box gaskets, and rubber grommets for both cylinder banks.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts; we live this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

Frequently Asked Questions About 6.0 Powerstroke Valve Cover Gaskets

1. What are the symptoms of a leaking 6.0 Powerstroke valve cover gasket?

The most obvious sign is oil visible on the back of the cylinder heads, running down the engine block and onto the transmission bell housing or the ground below. On the 6.0L, the driver's side is especially prone to this due to the slight rearward tilt of the engine.

You may also notice a persistent burning oil smell while driving, which occurs when seeping oil drips onto the hot exhaust manifold or other engine surfaces. In more severe cases, you might see light smoke from under the hood. Over time, a slow valve cover gasket leak can cause your engine oil level to drop gradually, so monitoring your dipstick is important.

2. Does the 6.0 Powerstroke use a valve cover gasket or a rocker box gasket?

The 6.0L Powerstroke actually uses both. The engine has a two-piece cover design on each cylinder head. The upper valve cover sits on top and seals against the lower rocker box with an upper valve cover gasket. The rocker box itself bolts to the cylinder head and uses a separate rocker box gasket to seal that joint.

Most quality valve cover gasket sets include both the upper gaskets and the lower rocker box gaskets, along with the rubber grommets for the mounting studs. The upper gasket is relatively easy to replace. The lower rocker box gasket is a much more involved job because the head bolts pass through the rocker box.

3. How do I know if my valve cover is cracked and not just the gasket leaking?

If you have replaced the valve cover gasket and the oil leak returns shortly after, the valve cover itself may be warped or cracked. The factory composite valve covers on the 2003 to 2007 Ford 6.0 Powerstroke are known to distort over time from heat cycling.

You can check for warping by removing the valve cover and placing it on a known flat surface. If light is visible between the cover flange and the flat surface, the cover has warped and will not seal properly with any gasket. Visible cracks in the composite material are also a clear sign that the cover needs to be replaced rather than just re-gasketed.

4. What vehicles does the 6.0 Powerstroke valve cover gasket fit?

Our valve cover gasket set covers the full 2003 to 2010 Ford 6.0L Powerstroke production run. This includes the Ford F-250, F-350, F-450, and F-550 Super Duty trucks, as well as the Ford Excursion equipped with the 6.0L Powerstroke diesel engine.

The replacement valve cover in this collection fits 2004 through 2007 models specifically. If you have an early 2003 model, the gasket set will fit your truck, but verify compatibility on the valve cover itself since Ford made a design change during the 2003 model year.

5. Can I drive with a leaking 6.0 Powerstroke valve cover gasket?

You can drive short distances with a minor leak, but it is not recommended to ignore it for long. Oil leaking from the valve cover can contaminate the wiring harness that runs through the valvetrain area. On the 6.0L, the injector and glow plug wiring pass near the valve cover, and oil-soaked wiring degrades over time.

Additionally, oil dripping onto hot exhaust components creates a fire risk and produces unpleasant fumes in the cabin. A persistent leak will also gradually lower your engine oil level, which can lead to inadequate lubrication if not monitored closely. It is always best to address a valve cover gasket leak promptly to avoid more expensive secondary damage.

6. How long does it take to replace a 6.0 Powerstroke valve cover gasket?

For an experienced mechanic or confident DIYer, replacing one valve cover gasket takes roughly 1 to 2 hours. Doing both sides in one session typically takes 2 to 4 hours. The passenger side rear bolts can be difficult to reach, and removing the transmission dipstick tube may be necessary for clearance.

The key steps involve removing the valve cover bolts, lifting off the cover, cleaning the mating surfaces thoroughly, installing the new gasket and grommets, and torquing the bolts to specification. Thread all bolts in by hand first to ensure they pass through the gasket holes without pinching, then tighten in a crisscross pattern to seat the gasket evenly.

7. Are 6.0 Powerstroke valve cover gaskets reusable?

Some owners report reusing the factory gaskets during brief inspections and having them seal again. However, best practice is to replace the gaskets whenever the valve cover is removed. The rubber material compresses during the initial installation and does not fully recover its original shape.

Reusing a compressed gasket increases the risk of an improper seal and a recurring oil leak. Given that a quality 6.0 Powerstroke valve cover gasket set is an affordable investment compared to the labor of doing the job twice, most experienced diesel technicians recommend installing fresh gaskets every time the cover comes off.

8. What is the difference between the upper valve cover gasket and the rocker box gasket?

The upper valve cover gasket seals between the outer valve cover and the lower rocker box. This is the gasket most people refer to when they talk about a valve cover gasket leak. It is accessible by simply unbolting and removing the upper valve cover.

The rocker box gasket, sometimes called the lower gasket, seals between the rocker box housing and the cylinder head itself. This gasket is much deeper inside the engine. Because the cylinder head bolts pass through the rocker box, replacing the rocker box gasket requires loosening or removing the head bolts, which is a significantly more involved job. Both gaskets are included in our complete valve cover gasket set.

9. Should I replace the valve cover gasket on both sides at the same time?

Yes, it is generally recommended to replace both sides together. Both cylinder banks experience the same heat cycling, pressure, and wear conditions. If the gasket on one side has failed, the other side is likely approaching the end of its service life as well.

Doing both sides at once saves time since you already have the tools out and the work area set up. It also means you only need to deal with the tight bolt access and surface cleaning once. Many 6.0 Powerstroke owners who replace only the leaking side find themselves back under the hood a few months later to do the other side.

10. Does EGR Performance offer a warranty on 6.0 Powerstroke valve covers and gaskets?

Yes. EGR Performance offers a 45-day hassle-free return and a one-year warranty on all 6.0 Powerstroke valve covers and valve cover gasket sets. If any defect in materials or workmanship arises within the warranty period, we will work with you to resolve the issue.

We also provide free shipping on all orders and 24/7 live technical support to assist with fitment questions, installation guidance, and any post-install concerns. Our support team can help you verify the correct parts for your specific truck before you order.
