7.3 Powerstroke Oil Cooler

Why Does Your 7.3 Powerstroke Need an Oil Cooler?

Factory O-Rings Harden and Weep

The stock oil cooler keeps engine oil and coolant in separate circuits with a set of O-rings under the oil filter housing. Years of heat cycling cook those seals until they crack, and the first thing you notice is oil floating in the coolant or a slow weep down the front of the block.

Restricted Coolant Passages and Scale

Contaminated coolant and silicate dropout plate the inside of the core with scale. Once the coolant side chokes off, the cooler stops rejecting heat, oil temperatures climb, and the spread between oil temp and coolant temp blows past the safe 15 degF mark.

Core Thermal Fatigue and External Leaks

A fatigued factory core cracks under repeated heat and pressure, and you start chasing unexplained coolant loss. Left alone, the leak only gets worse, and the thin oil starts starving the high-pressure oil system that fires the injectors.

What Can an Oil Cooler Solve?

Sealed Coolant System

Fresh high-temperature Viton (FKM) O-rings and gaskets reseal the oil-to-coolant barrier and end the cross-contamination that turns coolant brown. The system stays clean, the water pump survives, and you stop losing fluid.

Restored Oil Temperature Control

A clean cast aluminum stacked-plate core rejects heat the way Ford intended, pulling oil temps back under control and protecting the bearings, turbo, and injectors from thin, overheated oil.

Protected HEUI High-Pressure Oil System

The 7.3L fires its injectors with engine oil pressure through the HEUI system, so oil temperature and viscosity matter more here than on almost any other platform. A functioning cooler keeps that oil thick enough to hold rail pressure and prevent rough hot starts.

Reinforced Housings and Lines

CNC-machined 6061-T6 billet adapter surfaces, T304 stainless fittings, and precision TIG welds shrug off the vibration and pressure that crack stock units, while remote relocation kits add braided stainless PTFE lines for extra thermal headroom and easier service.

Shop 7.3 Powerstroke Oil Cooler by Ford Engine & Fitment Guide

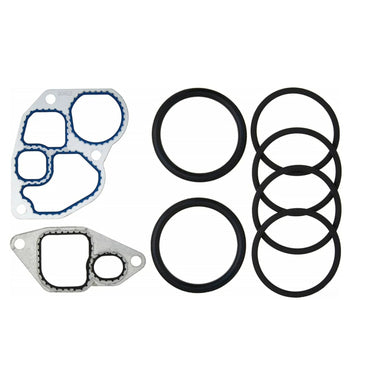

• Oil Cooler Gasket O-ring Kit for 7.3L Powerstroke Ford F250 F350 (1994-2003) - Fits the 7.3L Power Stroke (T444E) in Ford F-250 and F-350 across the OBS generation (1994.5-1997) and the Super Duty generation (1999-2003). Fresh high-temperature Viton O-rings and gaskets reseal the factory cooler to stop oil seeping into the coolant and end cross-contamination without replacing the core.
• Diesel Engine Oil Cooler Kit for 7.3L Powerstroke Ford F250 F350 (1994-2003) - Fits the 7.3L Power Stroke (T444E) in Ford F-250 and F-350 across the OBS generation (1994.5-1997) and the Super Duty generation (1999-2003). A new cast aluminum stacked-plate core with CNC 6061-T6 adapter surfaces and fresh seals replaces the scale-plugged, fatigued factory cooler to bring oil temperatures back under control and protect the HEUI injection system.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

What are the symptoms of a failing 7.3 Powerstroke oil cooler?

The first giveaway is oil floating in your coolant, which turns the degas bottle into a chocolate-milk mess.
Watch for climbing oil temperatures, unexplained coolant loss, and an external weep under the oil filter housing or down the front of the block.
Left alone, the HEUI injection system starves for clean oil, rail pressure drops, and the truck runs hot under a load. Pull the cooler before it takes the bearings or injectors with it.

Why is oil mixing into my coolant on a 7.3 Powerstroke?

The factory oil cooler keeps engine oil and coolant apart with a set of O-rings under the oil filter housing.
When those seals age, harden, and crack from heat cycling, oil pressure pushes engine oil straight into the coolant side.
That cross-contamination is the classic cause of brown, milky coolant on a 7.3L Power Stroke, not a head gasket. A fresh Viton O-ring kit ends the leak at the source.

Where is the oil cooler located on a 7.3 Powerstroke engine?

It sits in the engine valley, bolted under the oil filter housing on top of the block.
It is an oil-to-coolant heat exchanger, so both engine oil and coolant pass through it on their normal circuits.
That tucked location is why a weeping O-ring leaks coolant down the front of the block, and why you drain both fluids before you swap the unit.

How often should I replace the oil cooler O-rings and gasket on my 7.3 Powerstroke?

Treat the O-rings as a wear item around 150,000 miles, sooner if you tow heavy or run hot oil.
Any time you have the filter housing off, or the moment the coolant turns brown, install a fresh high-temperature Viton gasket and O-ring set.
Catching the seals early costs you an afternoon and saves the cooler, the coolant system, and the injectors.

What is the best oil cooler for a 7.3 Powerstroke?

The best unit is a direct-fit cast aluminum stacked-plate core with CNC-machined 6061-T6 billet adapter surfaces and fresh Viton seals, matched to your exact year.
For tow rigs and hotshot trucks, owners step up to a remote oil cooler with T304 stainless braided PTFE lines and a larger core for extra thermal headroom and easier service.
Pick the setup that matches your horsepower and how hard you work the truck.

How much does a 7.3 Powerstroke oil cooler replacement cost?

A complete direct-fit cooler kit or an O-ring seal set runs far less than dealer parts, and doing the swap yourself saves the shop rate.
The real value is preventive, because fresh seals and a clean core are cheap insurance next to a wiped bearing or a full set of HEUI injectors.
We ship every order free, back it with a 1-year warranty, and give you 45 days to return it if the fit is not right.

Can I replace just the O-rings instead of the whole oil cooler on a 7.3 Powerstroke?

If the core is clean and holds pressure, yes, an O-ring and gasket kit is all most trucks need.
The factory core usually survives while the seals fail, so resealing it stops the oil-in-coolant leak at the source.
Replace the whole cooler only if the core is scale-plugged, cracked, or will not hold a pressure test.

Can a bad oil cooler cause low oil pressure or high temperatures on a 7.3?

It can. A restricted cooler chokes coolant flow, oil temperatures climb, and the oil thins out.
Thin oil drops the high-pressure oil that fires the HEUI injectors, so you get rough hot starts, stumbling, and lost rail pressure.
Resealing or replacing the cooler restores oil temperature control and protects the HPOP, injectors, and bearings.

Does this 7.3 Powerstroke oil cooler fit OBS and Super Duty trucks?

Yes. These kits fit the 7.3L Power Stroke (T444E) across both body styles, the OBS trucks from 1994.5 through 1997 and the Super Duty trucks from 1999 through 2003.
They cover the Ford F-250 and F-350 running the same T444E platform.
If you run an E-Series van or an Excursion on the same engine, contact our tech line to confirm fitment before you order.

Are these 7.3 Powerstroke oil cooler parts legal for street use, and what is your return policy?

A direct-fit replacement oil cooler and O-ring kit is standard maintenance that restores factory oil cooling, so it is street-legal repair work.
Any performance or emissions modification you pair with it is intended for competition and closed-course off-road use only, and you are responsible for checking your local emissions laws before you install it.
Confirm your exact 1994-2003 year and model for fitment, then shop risk-free with free shipping, a 1-year warranty, and our 45-day return policy.
