7.3 Powerstroke Turbo Rebuild Kit & Billet Compressor Wheel

Why Does Your 7.3 Powerstroke Need a Turbo Rebuild Kit?

Bearing Wear and Shaft Play After High Mileage

The journal and thrust bearings inside a 7.3L Powerstroke turbo live in a bath of engine oil and take the full axial load of a wheel spinning past 100,000 rpm. After 150,000 miles of towing and heat cycles, the oil film thins, the brass bushings wear, and the turbine shaft starts walking in and out. That play shows up as the compressor wheel contacting the housing, a grinding noise on the spool, and metal flake in the oil return.

Oil Migration Into the Intake and Intercooler

The pedestal O-rings, the compressor seal, and the piston rings all harden with age, and when they fail, the turbo becomes an oil pump. Engine oil pushes past the seals, fills the intercooler boots, coats the intake charge, and forces the truck to burn its own crankcase oil under load. A 7.3 ebpv rebuild and a fresh set of F4TZ-6N653-A yellow pedestal seals stop the leak at the source instead of chasing oil all the way to the intercooler.

Surge, Howling, and a Lazy Boost Response

A tired thrust bearing and a worn cast compressor wheel combine into a turbo that surges under load, howls at cold start, and builds boost late. You feel it as a dead pedal off the line and gray smoke until the rpm finally climbs. Rebuilding the CHRA and dropping in a billet compressor wheel restores the sharp, immediate spool that the 7.3 was built around.

What Can a 7.3 Powerstroke Turbo Rebuild Kit Solve?

Restore the Thrust Bearing and Journal Bushings

The rebuild kit replaces the journal bearings, piston rings, thrust washer, and O-rings, taking the shaft play out of the rotating assembly so the wheel runs true in the housing again. Stepping up to the 360-degree thrust bearing spreads the axial load across a full circle instead of the factory 270-degree arc, which is why heavy-tow and tuned trucks live longer on the upgraded kit.

Reseal the Pedestal and EBPV Actuator

The turbo pedestal holds the exhaust back pressure valve, or EBPV, that Ford used to warm the engine on cold starts, and its O-rings are the most common oil leak on a high-mileage 7.3. The mounting gasket set and yellow O-ring seals reseat the pedestal and the EBPV actuator rod so the oil stays in the turbo and out of the intake.

Upgrade the Compressor Wheel for Cleaner Flow

Swapping the cast factory wheel for a CNC-machined billet aluminum compressor wheel while the CHRA is apart is the cheapest horsepower and response you will ever buy for a 7.3 Powerstroke. The stronger billet wheel runs thinner, more aggressive blades that flow more air without flexing, which sharpens the spool and widens the surge margin for towing.

Shop 7.3 Powerstroke Turbo Rebuild Kit by Ford Engine & Fitment Guide

• Turbo Rebuild Kit GTP38/TP38 - Fits the 7.3L Powerstroke in the 1994-1997 OBS F-250, F-350, and F-Super Duty, and the 1999-2003 Super Duty F-250 and F-350 (1994-2003). Drops in new journal bearings, piston rings, and a thrust washer to remove shaft play from a tired Garrett, covering the OBS TP38 and the Super Duty GTP38 in one kit.
• Turbo Rebuild Kit 360° Upgraded - Fits the 7.3L Powerstroke in the Ford F-250, F-350, F-450, and F-550 Super Duty (1994-2003). Swaps the factory 270-degree thrust bearing for a full 360-degree thrust bearing and ships with a fresh turbine shaft for trucks that tow heavy or run turned-up tuning.
• Billet Compressor Wheel (WW38) - Fits the 7.3L Powerstroke in the Ford F-250 and F-350, both the OBS TP38 and the Super Duty GTP38 (1994-2003). CNC-machined billet aluminum wheel replaces the cast stock wheel to widen the surge margin and sharpen the spool, the best compressor wheel for 7.3 owners who tow.

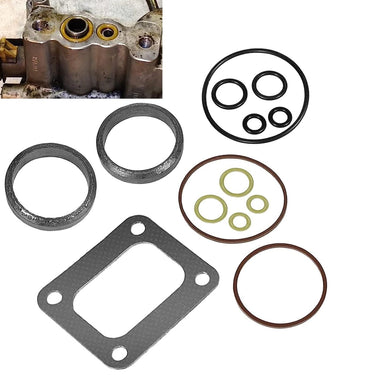

• Turbo Mounting Gasket Set & Yellow O-Ring Seals - Fits the 7.3L Powerstroke in the Ford F-250, F-350, F-450, and F-550, OBS and Super Duty (1994-2003). Viton pedestal seal kit built around the F4TZ-6N653-A yellow O-rings to stop the oil leak that fills the intake and EBPV actuator on high-mileage pedestals.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

7.3 Powerstroke Turbo Rebuild Kit & Billet Compressor Wheel FAQs

How do I know if my 7.3 Powerstroke turbo needs a rebuild?

Listen for a high-pitched whine or siren howl at cold start and idle, watch for a lazy boost gauge, gray smoke when you roll into the throttle, and oil weeping from the compressor housing or pooling in the intercooler boots.

If you can grab the compressor wheel and feel in-and-out or side-to-side play beyond a few thousandths, the thrust and journal bearings are done.

Most 7.3L Powerstroke turbos past 150,000 miles, especially trucks that tow or idle a lot, are ready for a rebuild long before they fail.

What years does the 7.3 Powerstroke turbo rebuild kit fit?

Our kits fit the 7.3L Powerstroke across its full run, 1994 through 2003, covering the OBS F-250, F-350 and F-Super Duty as well as the Super Duty F-250 through F-550.

That covers every search a shop makes, including the 1995, 1996, 1997, 1999, 2000, 2001 and 2002 7.3 turbo rebuild kit listings.

Before you order, confirm whether you have the OBS TP38 or the Super Duty GTP38, because the housings and wheels differ between the two.

What is the difference between the TP38 and GTP38 turbo on the 7.3 Powerstroke?

The TP38 sits in the 1994 to 1997 OBS trucks, while the GTP38 is the wastegated unit Ford used in the 1999 to 2003 Super Duty.

The early 99 Super Duty received a unique larger GTP38 with a bigger compressor wheel and housing before Ford downsized it for late 99 through 2003.

If you need an early 99 7.3 turbo rebuild kit, measure the compressor inducer so you order the correct wheel instead of the smaller late-99 piece.

What is the 360 degree thrust bearing upgrade and why does it matter?

The factory Garrett runs a 270 degree thrust bearing that carries axial load across most of the wheel but leaves a gap, and that gap is where high-mileage and tuned trucks wear first.

The 360 degree thrust bearing is a full-circle part that spreads the thrust load in every direction, cutting shaft walk and extending bearing life under heavy towing and higher boost.

For a work truck or anything running a tuner, the 360 degree upgraded 7.3 diesel turbo rebuild kit is the one to grab.

Will a billet compressor wheel improve my 7.3 Powerstroke?

A CNC-machined billet aluminum compressor wheel like the WW38 is stronger than the cast factory wheel, so the blades can be cut thinner and more aggressive without flexing at high rpm.
That widens the surge margin, sharpens spool, and cleans up the top end, which is why it is the best compressor wheel for 7.3 owners who tow or want a stronger throttle hit.
It drops straight onto the stock shaft during a rebuild, so there is no reason not to upgrade the wheel while the CHRA is already apart.

How hard is it to rebuild a 7.3 Powerstroke turbo, and can I do it myself?

Rebuilding a 7.3 Powerstroke turbo is very doable for a shop or a seasoned mechanic with clean bench space, snap-ring pliers, and a torque wrench.

The kit swaps the journal bearings, piston rings, thrust bearing, and O-rings, and the rotating assembly should be rebalanced on a VSR balancer before it goes back in.

If you are not set up to balance the wheel and shaft, hand the CHRA and the kit to a local turbo shop and let them spin it up to spec.

What is the EBPV, and do I need to rebuild the turbo pedestal?

The EBPV, or exhaust back pressure valve, is the butterfly in the exhaust outlet that closes when the engine is cold to build heat, and it lives in the turbo pedestal on 1994 to 2003 trucks.

The pedestal O-rings harden and leak, dumping oil down the intake or out the EBPV actuator rod, which is why the 7.3 ebpv rebuild kit and the ford 7.3 turbo pedestal rebuild kit both point to the same F4TZ-6N653-A yellow O-ring seal set.

Reseal the pedestal with fresh Viton seals any time you have the turbo off, and consider locking out the EBPV lever if the actuator is shot.

What is the difference between an OBS 7.3 and a Super Duty 7.3 turbo?

The OBS 7.3 Powerstroke ran from 1994 to 1997 with the TP38 and a mechanically simpler pedestal, while the Super Duty 7.3 from 1999 to 2003 uses the wastegated GTP38.

That means an obs 7.3 turbo rebuild kit and a Super Duty kit share most journal bearings and O-rings but differ on the compressor wheel, housing, and pedestal geometry.

Always match the kit to your body style and year, and double-check an early 99 because it bridges the two with its own larger wheel.

Do I need to balance my 7.3 Powerstroke turbo after rebuilding it?

Yes, the rotating assembly should be balanced after any rebuild that touches the shaft, wheel, or bearings, because the compressor and turbine are matched and balanced as a set from the factory.

Running an unbalanced CHRA causes vibration that hammers the new bearings and shortens the life of the rebuild you just did.

A turbo shop will VSR balance the assembly to OEM specs for a small fee, which is cheap insurance on a part that spins past 100,000 rpm.

Are these 7.3 Powerstroke turbo rebuild kits legal, and how do I confirm fitment?

Standard rebuild kits and pedestal seal kits that restore factory function are a maintenance repair and are legal for street-driven trucks.

The billet compressor wheel and the 360 degree thrust bearing are performance upgrades intended for competition and closed-course off-road use only, and buyers are responsible for checking local emissions and inspection laws before installing them.

To confirm fitment, verify your truck is a 1994 to 2003 7.3L Powerstroke, identify the OBS TP38 versus the Super Duty GTP38, and check the early 99 compressor size so you receive the correct parts.

Every order ships free, is covered by a one-year warranty, and can be returned within 45 days if the fitment is not right.
