Chevy 5.3 6.2 AFM DFM Disabler and DOD Delete Kit

Why Does Your Chevy 5.3 or 6.2 Need an AFM DOD Delete?

Collapsing Deactivating Lifters and Wiped Cam Lobes

The deactivating lifters on cylinders 1, 4, 6, and 7 are the weak link in the whole system. They collapse to drop the valve and shut the cylinder down, and over miles of cycling they stick, pinch in the plastic lifter tray, or flat-out fail. A stuck lifter holds the valve open, chews the cam lobe it rides on, and bends the pushrod above it. Once that lobe is gone the engine runs on seven holes, throws a misfire code, and sends hardened steel debris straight into the oil pan. Reusing the same AFM lifters after a repair is the number one reason the tick comes back within a tank of gas.

VLOM Oil-Control Failure and Masked Oil Pressure

The Valve Lifter Oil Manifold under the valley cover is the hydraulic brain that commands deactivation, and its solenoids and pressure-regulator circuits are fed straight off the engine oil gallery. When the VLOM sticks or its screens plug, it can dump rail oil pressure or feed oil to the wrong lifter bank. The scary part is that dash oil pressure can read normal at idle while a bore is starving, so the first warning is often the tick and not the gauge. Pulling the VLOM with a non-AFM valley cover removes that failure path for good and returns clean, uninterrupted oil control to the valvetrain.

DFM Complexity and the Repeat-Failure Loop

The 2019 and newer Dynamic Fuel Management system runs 17 different cylinder combinations instead of a simple V8 to V4 switch, which means far more solenoid and lifter cycling per mile. More cycles equal more wear, and the 2021 and newer refresh bundled DFM with auto start-stop on a shared controller, which is why the older disabler module will not talk to a refreshed truck. Whether you run a GMT900 Gen IV, a K2XX Gen V, or a T1 refresh, the deactivation hardware is the common denominator, and every product here is aimed at taking it offline.

What Can an AFM DOD Delete Solve?

Full V8 Firing at All Times

The plug-in disabler module blocks the deactivation command at the OBD2 port, so all eight cylinders fire on every stroke and the deactivating lifters never collapse. That stops the cyclic wear cold on a healthy engine, smooths out the V4-mode drone at highway speed, and needs no engine teardown, no reflash, and no downtime. It is the cleanest preventive fix for a daily driver, a tow rig, or a truck whose lifters still pass a leak-down test.

Permanent Lifter and VLOM Removal

Once a lifter has failed, the hardware delete is the lasting answer. Fresh Sealed Power roller lifters replace the chewed deactivating units, and the Gen IV non-AFM valley cover deletes the VLOM oil-control manifold so the computer can no longer command the system even if it tries. Pair it with an ECM tune to clear the deactivation logic and you have a conventional, dependable V8 that will not tick again. The collapsing lifter is gone, the oil-control failure path is gone, and the repeat-failure loop is closed for good.

Clean Fitment Across the GM Truck and SUV Line

Every part here is mapped to a real platform and a real year range, from the GMT900 Gen IV 2007 to 2013 trucks through the 2024 DFM refresh. The same engine family sits under the hood of the Silverado 1500, Sierra 1500, Tahoe, Yukon, Suburban, Avalanche, and Escalade, so one product line covers the bulk of the GM half-ton and full-size SUV world. Match the module or the delete hardware to your generation and the fitment is clean.

Shop Chevy AFM DOD Delete by Engine and Fitment Guide

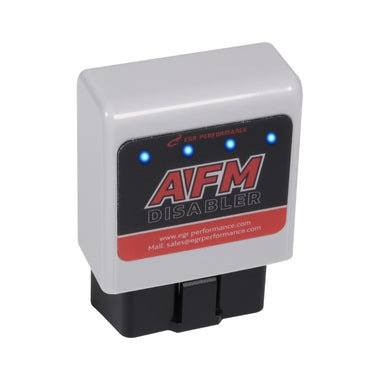

• GM AFM DFM Disabler RA003 - Fits the 4.8L, 5.3L, 6.0L, and 6.2L V8 with DOD, AFM, or early DFM in the 2005 to 2020 GMT900, K2XX, and early T1 Silverado 1500, Sierra 1500, Tahoe, Yukon, Suburban, Avalanche, and Escalade. A plug-and-play OBD2 module that keeps all eight cylinders firing and stops the deactivating lifters from cycling, with zero engine teardown and no reflash.
• DFM Disable Module RA007 - Fits the Gen V LT 5.3L and 6.2L V8 with the DFM refresh and auto start-stop in the 2021 to 2024 Silverado and Sierra 1500 plus the 2022.5 to 2024 Tahoe, Suburban, Yukon, and Escalade. Blocks the DFM and start-stop signal on the shared refresh controller that the older RA003 cannot reach.
• Sealed Power AFM DOD Valve Lifter 12569256 - Fits the Gen IV LS and Gen V LT 5.3L, 6.0L, and 6.2L V8 in the 2005 to 2020 Silverado, Sierra, Tahoe, Yukon, Suburban, and Escalade. An OE-grade oil-hardened roller lifter sold per piece to replace the collapsed deactivating lifter on cylinders 1, 4, 6, and 7, so you order the exact quantity your bank needs for a repair or a delete.
• Gen IV LS Non-AFM DOD Valley Cover 12598832 - Fits the Gen IV LS 5.3L, 6.0L, and 6.2L V8 in the 2007 to 2013 GMT900 Silverado 1500, Sierra 1500, Tahoe, Suburban, Avalanche, and Escalade. A genuine cast aluminum non-AFM valley cover that deletes the VLOM oil-control manifold and solenoid towers, removing the hydraulic brain of the deactivation system. Run an external or LS3-style PCV, since this cover has no internal PCV provision.

Why Choose EGR Performance?

The industry standard for high-performance diesel reliability.

Premium Quality & Rigorous Testing

Our EGR, DPF, and CCV delete kits are engineered from premium-grade materials and subjected to brutal quality control and field testing. Unlike generic alternatives, our products are built to withstand extreme heat and pressure, delivering unmatched durability and long-term stability when your rig needs it most.

20 Years of Proven Diesel Expertise

We aren't just selling parts. We live in this industry. With two decades of hands-on experience providing specialized modification solutions for heavy-duty truck owners, our upgrades have been extensively proven across every driving environment, from daily towing to high-performance tracks.

Industry-Leading Standards

We work hand-in-hand with top-tier industry partners and reputable organizations. Every product we design, test, and ship meets or exceeds strict industry standards, ensuring your Powerstroke, Cummins, or Duramax gets the exact precision it deserves.

Real Results, Proven Track Record

Thousands of diesel owners trust us to unlock their engine's true potential. Our massive library of positive customer feedback and successful build case studies proves one thing: our kits deliver real horsepower, lower EGTs, and flawless reliability in the real world.

Frequently Asked Questions

What does a Chevy 5.3 or 6.2 AFM DOD delete kit actually do?

An AFM, DOD, and DFM delete removes GM's cylinder-deactivation system from your Vortec or EcoTec3 V8.
Active Fuel Management and Displacement on Demand shut down half the cylinders under light load using special collapsing lifters, and those deactivating lifters are the part that fails.
A delete swaps the collapsing lifters for standard roller lifters, pulls the VLOM oil-control manifold out from under a non-AFM valley cover, and flashes the ECM so the computer stops commanding deactivation.
The result is full V8 firing at all times, no ticking lifter, no wiped cam lobe, and no repeat failure.
Because AFM is a fuel-economy feature and not an emissions device, this work removes no catalytic converter, EGR, DPF, PCV, or EVAP component.

What are the symptoms of a failing AFM lifter on a Silverado, Tahoe, or Suburban 5.3?

The first sign is a ticking or tapping noise from the top of the engine on the passenger side, where the deactivating lifters on cylinders 1, 4, 6, and 7 live.
That tick is followed by a cylinder-specific misfire code, rough idle, bent pushrods, and low compression on the dead hole.
If you keep driving, the collapsed lifter chews the cam lobe and sends hardened steel through the oil, which turns a lifter job into a full engine rebuild.
Idle oil pressure can look normal right up until the failure, so do not wait for the gauge to drop.
Catch it early and the valley cover plus lifter swap saves the long block.

Should I run an AFM disabler module or do a full DOD delete?

It depends on whether your lifters are still healthy.
The plug-in disabler module, our RA003 for 2005 to 2020 and RA007 for the 2021 to 2024 DFM refresh, blocks the deactivation signal at the OBD2 port and keeps all eight cylinders firing with zero engine teardown.
It is the right call for preventive protection on a truck that still runs clean.
The hardware delete, the Sealed Power lifter and the non-AFM valley cover, is the permanent fix once a lifter has already collapsed and you are already into the valley anyway.
Many owners run the module now and delete later at rebuild time.

How many AFM lifters does a 5.3 or 6.2 V8 have, and how many do I replace?

A GM 5.3 or 6.2 V8 has 16 total lifters, and 8 of them are the deactivating AFM or DOD lifters on cylinders 1, 4, 6, and 7.
The other 8 are standard lifters.
For a repair you can swap just the failed AFM lifter, and our Sealed Power 12569256 lifter is sold per piece so you order the exact quantity your bank needs.
For a clean delete most shops replace all 16 with standard lifters while the valley is open, because mixing old and new lifters on the same cam invites a comeback.
Replacing all 16 also protects the lobes that have not failed yet.

Will the 12598832 Gen IV non-AFM valley cover fit my 2007 to 2013 Silverado, Tahoe, or Suburban?

Yes, the 12598832 is the genuine Gen IV LS non-AFM, non-DOD valley cover for 2007 to 2013 GMT900 trucks and SUVs with the 4.8, 5.3, 6.0, or 6.2 Vortec.
It is the cast aluminum cover that deletes the VLOM and the solenoid oil-control towers, which are the hydraulic brain of the deactivation system.
Note that this cover has no internal PCV provision, so you run an external or LS3-style PCV setup.
Confirm whether your kit ships with the valley gasket and the DOD tower gaskets before you tear down.
It will not fit a 2014 and newer Gen V LT engine, which uses a different front cover layout.

Does the disabler module fit a 2007, 2008, or 2009 Silverado or Tahoe?

Yes, the RA003 module covers 2005 through 2020, so every 2007, 2008, and 2009 GMT900 5.3 or 6.2 is fully covered.
The DOD, AFM, and early DFM systems on those years all use the same four-cylinder deactivation logic that the RA003 blocks at the OBD2 port.
The RA007 is a different module for a different era, it only fits the 2021 to 2024 truck refresh and 2022.5 to 2024 SUVs.
GM bundled DFM and auto start-stop onto a shared controller on that refresh, which is why the older RA003 cannot talk to it.
Match the module to your model year before you order.

What is the difference between AFM, DOD, and DFM on a Chevy 5.3 or 6.2?

They are three generations of the same cylinder-deactivation idea.
DOD, or Displacement on Demand, was GM's first name on the 2005 to 2009 Gen IV LS engines.
AFM, or Active Fuel Management, is the renamed DOD system on the 2007 to 2014 GMT900 Gen IV and the 2014 to 2018 Gen V LT, and it shuts down four cylinders.
DFM, or Dynamic Fuel Management, arrived on the 2019 and newer Gen V and can run 17 different cylinder combinations, which is why it cycles the hardware more and fails more often.
The RA003 disabler handles DOD, AFM, and early DFM, while the RA007 handles the 2021 and newer DFM refresh.

Do I need a tune after a DOD delete on a 5.3 or 6.2?

Yes, the ECM has to be recalibrated to turn off the deactivation commands, or it will set codes and keep trying to fire a system that no longer exists.
A hardware delete without the tune will throw a check engine light and can trigger a rough idle or a limp mode.
The plug-in disabler module is different, it intercepts the signal at the OBD2 port so it needs no tune and no reflash.
That is exactly why owners use the module as a zero-downtime preventive measure while they save up for the full conversion.
Plan the tune at the same time you install the lifters and the non-AFM valley cover.

Is a Chevy AFM or DOD delete legal for street use?

AFM, DOD, and DFM are fuel-economy features and not emissions control devices, so disabling them removes no catalytic converter, diesel particulate filter, EGR, PCV, or EVAP hardware.
The plug-in disabler is widely used on daily-driven GM trucks, and the hardware delete is a permanent reliability conversion rather than a smog-device removal.
The competition and closed-course off-road use only language applies to trucks that are also fully emission-deleted or tuned for competition, and emissions and tampering rules vary by state and locality, so confirm your jurisdiction and confirm your exact year and engine fitment before you build.
Every module, lifter, and valley cover in this collection includes free shipping, is backed by a 1-year warranty, and comes with our 45-day return policy.

Which Chevy and GMC engines and years does this collection cover?

It covers the full GM Vortec and EcoTec3 V8 deactivation family from 2005 through 2024.
The 4.8, 5.3, 6.0, and 6.2 Gen IV LS engines in the GMT900 trucks and the 5.3 and 6.2 Gen V LT engines in the K2XX and T1 trucks all map to a product here.
The RA003 module fits 2005 to 2020, the RA007 module fits the 2021 to 2024 refresh, the Sealed Power 12569256 lifter fits Gen IV and V 5.3, 6.0, and 6.2, and the 12598832 valley cover fits Gen IV 2007 to 2013.
That spans the Silverado 1500 and Sierra 1500, the Tahoe, Yukon, Suburban, and Yukon XL, the Avalanche, and the Escalade.
If you want the best DOD delete setup for a 5.3, the module protects a healthy engine and the lifter plus valley cover is the permanent rebuild-time fix.
