What is a HEMI valve spring compressor used for?

A HEMI valve spring compressor is a dedicated service tool that collapses the valve spring on a Gen III HEMI so you can remove and install the keepers, retainers, springs, and shims without pulling the cylinder head. It bolts to the factory rocker shaft stands and loads the spring in line with the valve stem, which keeps the retainer square and the keepers from binding in their grooves. The POW352003 covers the 5.7L, 6.1L, 6.2L, and 6.4L HEMI, so one tool handles Ram 2500 and 3500 trucks, Charger, Challenger, and 300 SRT cars. You reach for it on cam swaps, bent-valve repairs, dropped keepers, beehive spring fatigue, and MDS deactivation refreshes.

Will the POW352003 fit my 5.7L, 6.1L, 6.2L, or 6.4L Gen III HEMI?

Yes. The POW352003 is engineered for the full Gen III HEMI family, which spans the 5.7L Eagle, the 6.1L SRT, the 6.2L Hellcat, and the 6.4L Apache. In the Dodge Ram 2500 and 3500 that means the 5.7L HEMI from 2003 onward and the 6.4L HEMI from 2014 up, with the same rocker shaft geometry across those displacements. The 6.1L and 6.2L are the SRT and Hellcat car engines, and they share the same valvetrain layout, so the same fixture services them. Always confirm your engine code before you order, but for the Gen III block the fitment is consistent.

Can I change HEMI valve springs with the cylinder heads still on the engine?

Yes, and that is the main reason this tool exists. The POW352003 mounts to the rocker shaft stands so you can service one valve at a time with the head bolted to the block. Pull the rocker arm for that cylinder, bring the piston to top dead center, hold the valves closed with compressed air through the spark plug hole, and compress the spring to release the keepers. There is no head removal, no new head gasket, and no valve job downtime, which turns a multi-day teardown into an in-chassis repair.

Do I need compressed air or an air-hold fitting to use this valve spring tool?

For heads-on work, yes. You screw an air-hold fitting into the spark plug hole and feed regulated compressed air into the cylinder to keep both valves seated while the keepers are out. Bring that cylinder to top dead center first so the piston is parked and the air has a sealed bore to push against. If you do not have a compressor, the rope trick, feeding clean rope through the spark plug hole to fill the chamber and mechanically hold the valves up, is the field alternative. With the heads off on a bench you do not need air at all.

How do I keep the valve from dropping into the cylinder when I remove the keepers?

You hold the valve closed from the combustion side with compressed air or the rope trick, and you never pull the keepers until that seal is set. Park the piston at top dead center so even if air pressure is lost the piston itself limits valve travel, then pressurize the bore before you compress the spring. Keep a magnet on the retainer as the keepers release so they do not fall down the oil return. The tool compresses the spring square, so the keepers lift straight out instead of catching and dropping.

Do I have to remove the rocker arms and cam to use the HEMI spring compressor?

You remove the rocker arm for the cylinder you are servicing, but you do not pull the camshaft. The tool bolts to the rocker shaft stands in place of that rocker, so the cam stays put and you work one valve at a time down the row. Loosen the rocker shaft stands enough to swing the arm out of the way, then clamp the fixture down to the same stands. That is what makes it a heads-on, in-chassis tool instead of a full top-end teardown.

Is this the same tool as the COMP Cams, BTR, Miller 8646, or Mancini HEMI spring compressor?

It is the same type of tool and does the same job, but EGR Performance carries the POW352003 as its own house fixture rather than relabeling a competitor's part. COMP Cams, Brian Tooley Racing, Miller 8646, and Mancini Racing are referenced for fitment and sizing only, since their Gen III HEMI tools share the same rocker-shaft mounting geometry. The POW352003 uses the same CNC-machined 6061-T6 billet aluminum frame and heat-treated carbon-steel ACME lead screw approach. If you have run any of those name-brand Gen III HEMI compressors, the operation is identical.

Will this valve spring compressor fit an older 426 HEMI, a Magnum 5.9, or the new Hurricane inline six?

No. This is a Gen III HEMI tool, and it will not fit the classic 426 HEMI, the LA and Magnum small blocks like the 5.2L and 5.9L, or the new 3.0L Hurricane twin-turbo inline six. Those engines use completely different rocker, retainer, and spring geometry, so the fixture will not seat or load correctly. The Gen III HEMI covers the 5.7L from 2003 up, the 6.1L, the 6.2L Hellcat, and the 6.4L Apache. Confirm you have a Gen III HEMI before you order so you get a tool that actually seats on your rocker shaft.

What size valve springs and retainers does the HEMI tool work with?

The spring pocket is sized for the factory Gen III HEMI beehive spring and retainer, and it also clears the common aftermarket upgrades like PAC, Comp, and BTR beehive and conical springs within the same installed height. The cage captures the retainer so it does not tilt as the lead screw collapses the spring, which is what keeps the two-groove keepers from galling. For oversized retainers or radically tall race springs, check the pocket diameter against your specific spring kit before you compress. The tool is built around the factory Gen III HEMI spring seat dimensions, which is the sweet spot for stock and mild cam builds.

Is this valve spring tool street legal, and what is the warranty and return policy?

The POW352003 valve spring compressor is a service tool that removes or bypasses no emissions device, so the tool itself is legal in all 50 states for use on a street-driven HEMI. A competition spring and cam install performed with this tool on a vehicle built for competition and closed-course off-road use only is subject to the tampering and emissions laws that apply to that modified vehicle, not to the tool, so confirm your local jurisdiction before you tune. Every order includes free shipping, is backed by a 1-year warranty, and comes with our 45-day return policy. Our 24/7 live support team will walk you through the rocker shaft setup before you turn a single screw.

HEMI Valve Spring Compressor

HEMI Valve Spring Compressor Tool for Gen III 5.7L, 6.1L, 6.2L, 6.4L

Precision Valve Service Built for the Gen III HEMI

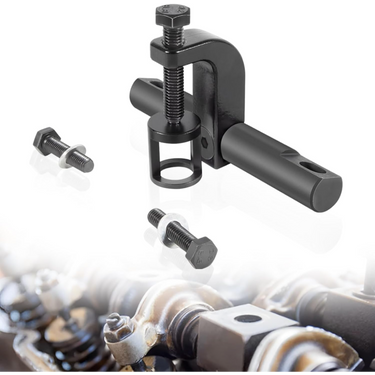

The POW352003 HEMI valve spring compressor is the dedicated service tool for the entire Gen III HEMI family, covering the 5.7L Eagle, 6.1L SRT, 6.2L Hellcat, and 6.4L Apache. The frame is CNC-machined from 6061-T6 billet aluminum, the lead screw is a heat-treated carbon-steel ACME thread, and the fulcrum pivots run on hardened steel pins with a brass thrust washer underneath. A precision-machined spring pocket seats the retainer square so the two factory valve keepers release under hand pressure instead of launching across the bay. The fixture bolts straight to the factory rocker shaft stands, which is the whole point of the design: you load one spring at a time, on axis, without cocking the retainer in the bore.

Heads-On Spring Swaps on Ram 2500 and 3500 HEMI Trucks

In the real world this tool earns its keep the minute a 5.7L or 6.4L HEMI in a Dodge Ram 2500 or 3500 needs a cam swap, a bent valve, dropped keepers, fatigued beehive springs, or an MDS cylinder deactivation refresh. Pull the rocker arm for that cylinder, bump the piston to top dead center, pressurize the bore through the spark plug hole with an air-hold fitting, and the compressor collapses the spring with the head still on the block. No head removal, no valvetrain teardown, no week of downtime on a towed-in truck. That is the difference between a morning spring swap and a full valve job, and it is exactly why this fixture belongs in every shop that touches a Gen III HEMI.

Why Tens of Thousands of Diesel Owners Trust EGR Performance

EGR Performance: Engineered for Power. Backed for Life.

Max efficiency, restored horsepower, and prolonged engine life for your EGR, DPF, and CCV systems on Powerstroke, Duramax, Cummins engines, etc.

Free Shipping: Fast & free delivery to get you back on the road sooner.
45-Day Returns: Shop risk-free with our generous 45-day return policy.
1-Year Warranty: Tested under extreme conditions. Guaranteed to perform.
24/7 Live Support: Real-time tech help from fitment to post-install tuning.

Product	Type	Application	Fitment
POW352003 Valve Spring Compressor	Valve spring service tool	Gen III HEMI, 5.7L, 6.1L, 6.2L, 6.4L	Dodge Ram 2500 3500, Chrysler SRT, heads-on or heads-off
Heavy-Duty Pickup Universal Joint	Driveshaft U-joint	5.7L HEMI, 6.7L Cummins	Dodge Ram 3500, 2007 to 2012

Shop HEMI Valve Spring Compressor Now!

EGR DELETE KITS

CCV PCV REROUTE KIT

DPF DELETE KITS

DIESEL TUNERS

Why Does Your Gen III HEMI Need a Valve Spring Compressor?

Fatigued and Floating Beehive Springs

The Gen III HEMI runs a beehive spring that fatigues over tens of thousands of heat cycles, and once the seat pressure drops the valve starts to float at high rpm. On a 5.7L Eagle or 6.4L Apache that gets towed hard or lives near the rev limiter, float costs you power first, then it costs you a piston when the keeper lets go. You cannot read spring fatigue by eye; you measure seat pressure, and when it is out of spec, you swap the springs. Doing that swap without a dedicated compressor is how retainers get launched, and fingers get pinched.

Dropped Keepers and Launched Retainers

Factory two-groove keepers are the weak link in any high-mileage HEMI valvetrain, and the moment one walks the retainer pops off, and the valve drops into the cylinder. Compressing those springs with a generic C-clamp style tool is a gamble: the load is off-axis, the retainer tilts, and the keeper binds in the groove. The POW352003 seats the retainer square under the rocker shaft so the keepers lift straight out, by hand, every time.

Bent Valves from Timing Chain and Gear Failure

The 5.7L and 6.4L HEMI timing chain and gear set is a documented failure point, and when it jumps or breaks, the pistons kiss the valves. A bent-valve repair means spring removal on every affected cylinder, and on a Ram 2500 or 3500, that is a job you want to do with the heads still on the block if the seats survived. The right compressor turns a multi-day teardown into an in-chassis repair.

What Can a HEMI Valve Spring Compressor Solve?

Hands-Free Keeper Access

The ACME lead screw and cage design collapses the spring and holds it compressed, leaving both hands free to pull the keepers, seat the retainer, and install shims. No magnet tricks, no third hand, no launched locks.

On-Axis Spring Loading

By bolting to the factory rocker shaft stands the tool loads the spring in line with the valve stem, so the retainer does not tilt and the keepers do not gall the groove. That is the difference between a clean swap and a cockeyed retainer that fights you the whole way.

In-Chassis, Heads-On Service

The fixture is built for heads-on work: pull the rocker, bring the cylinder to top dead center, hold the valves with compressed air, and service the springs without pulling a single head. For a shop that is billable hours saved; for a DIY owner it is the difference between a weekend project and an engine pull.

Shop HEMI Valve Spring Compressor by HEMI Engine & Fitment Guide

POW352003 Valve Spring Compressor Tool - Fits the Gen III HEMI in Dodge Ram 2500 and 3500, Charger, Challenger, and 300 (5.7L Eagle 2009 and up, 6.1L SRT 2005 to 2010, 6.4L Apache 2011 and up, 6.2L Hellcat 2015 and up). CNC-machined 6061-T6 billet aluminum frame bolts to the rocker shaft stands for heads-on spring swaps.
Heavy-Duty Pickup Universal Joint - Fits the Dodge Ram 3500 with the 5.7L HEMI or 6.7L Cummins (2007 to 2012). Forged 4340 chromoly cross with grease-packed needle bearings for the driveshaft, not the valvetrain; a drivetrain part carried alongside the spring compressor in this collection.
